Shanghai Kabel Intelligence Technology Co., Ltd Circular Series 16-pin inline and bulkhead underwater connectors. IP68, 7000m, 8A per contact. SubConn Circular 16-contact compatible.

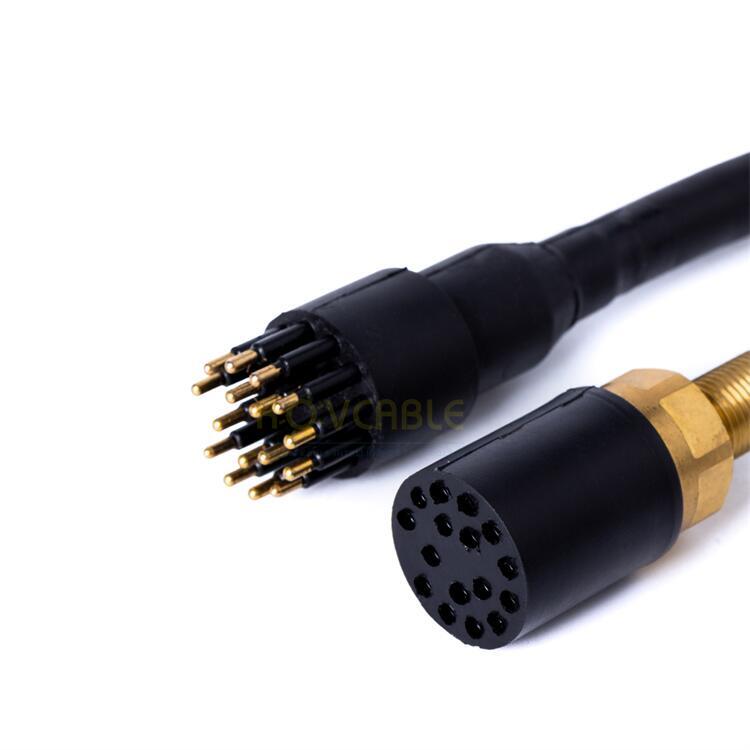

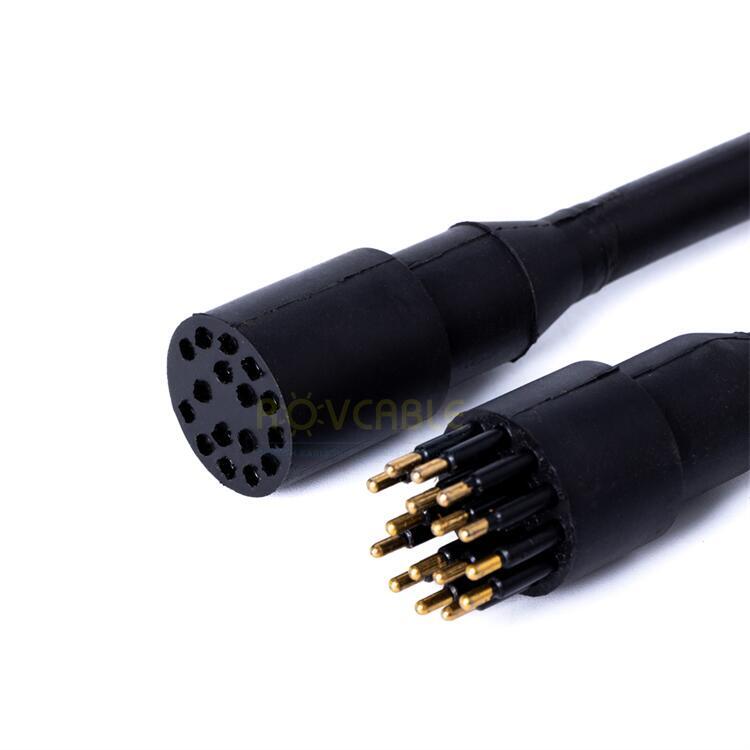

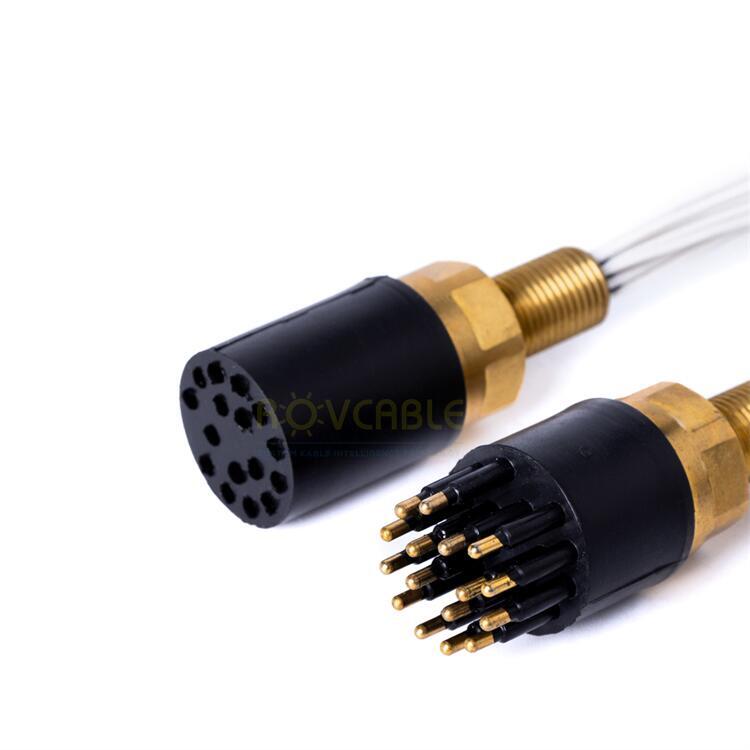

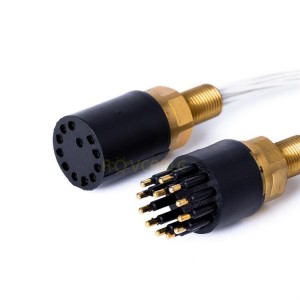

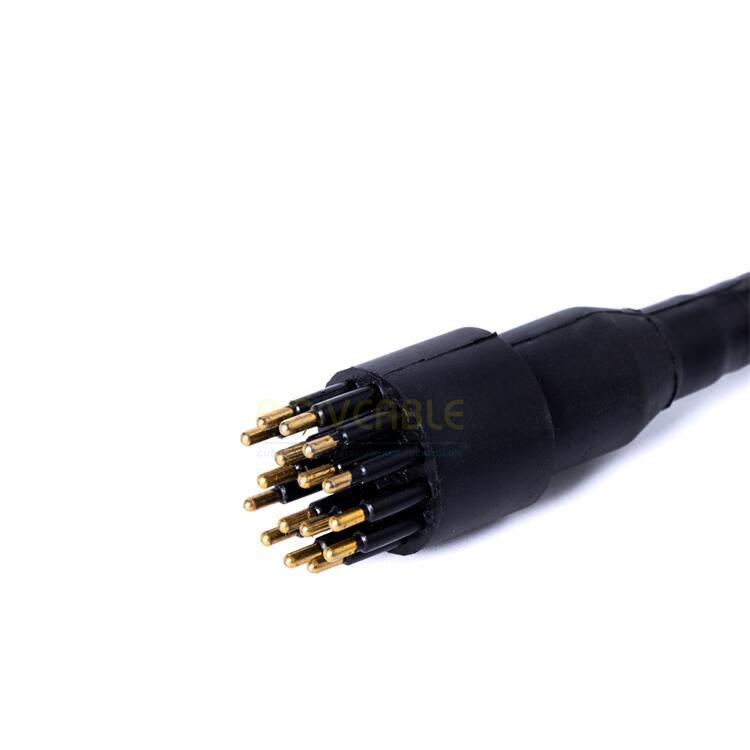

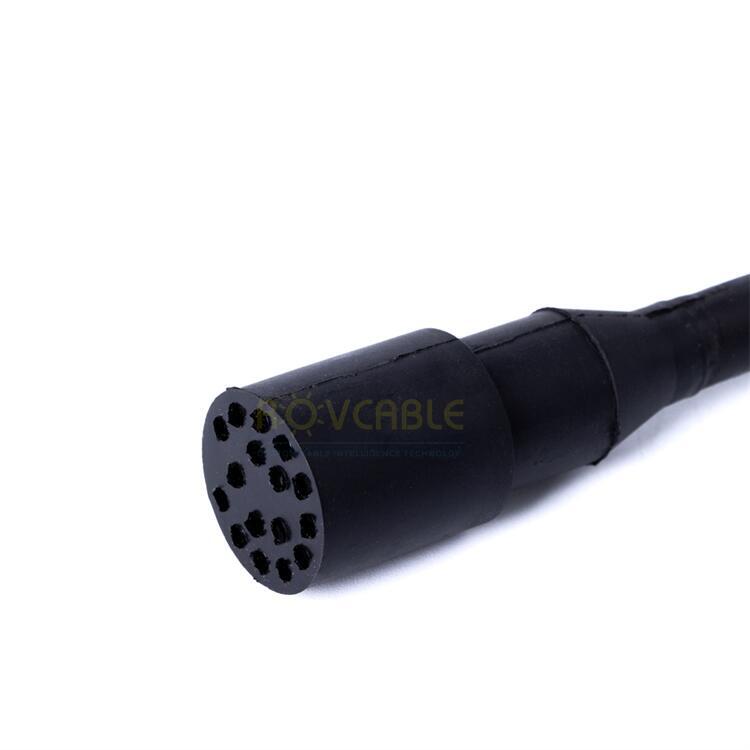

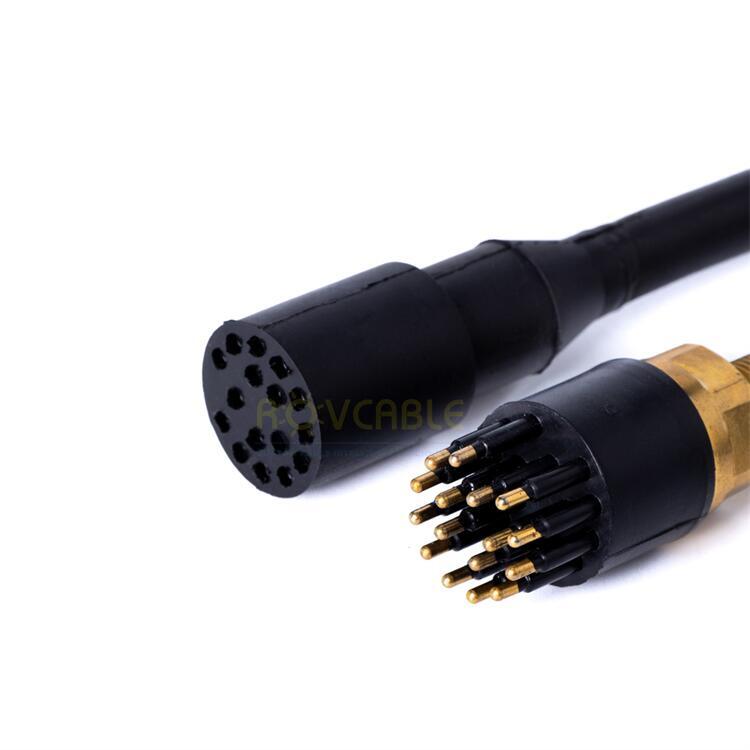

The 16-contact Circular Series from Shanghai Kabel Intelligence Technology Co., Ltd is the highest-density standard configuration in the Circular platform -- 16 contacts in a single pressure housing penetration, rated to 7,000 m depth and IP68. COBH16 bulkhead and COIL16 inline connectors are derated to 8 A per contact to manage thermal load, and are fully interchangeable with SubConn Circular 16-contact connectors.
| Parameter | Value |
|---|---|
| Contact count | 16 |
| Available models | COBH16M, COBH16F, COIL16M, COIL16F |
| Depth rating | 7,000 m |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Current per contact | 8 A (derated) |
| Shell | Anodized aluminium / Titanium option |
| Insulator | PEEK |
| Compatibility | SubConn Circular 16-contact COBH/COIL |
Email: sales@rovcable.com | www.rovconnector.com
More contacts in the same shell diameter reduce the thermal mass available per contact. Derating ensures the connector stays within its IEC thermal operating limits at full simultaneous load. For circuits requiring more than 8 A, route them through a lower-count dedicated power connector used alongside the 16-pin.
Yes. Identical flange, thread, and contact geometry to SubConn Circular 16-contact -- retrofit existing equipment without any panel modification.
