Stable signal transmission underwater waterproof diving umbilical for ROV. Shielded construction for reliable signal in electrically noisy ROV tether environments.

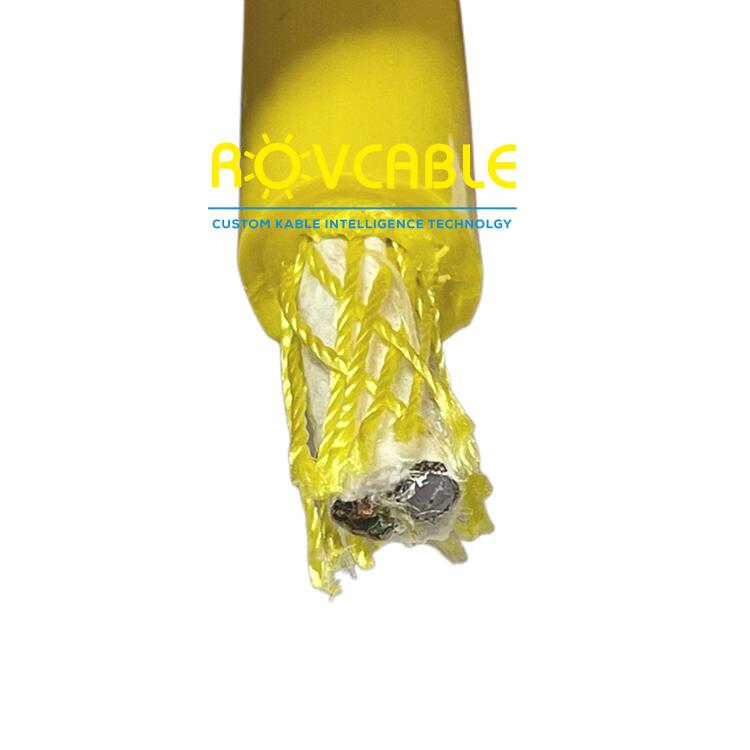

The stable signal underwater waterproof diving umbilical is engineered for reliable signal integrity in the electrically demanding environment of ROV and diving operations. Multi-layer shielding (individual pair foil + drain + overall braid) suppresses electromagnetic interference from thruster motor ESCs, sonar transducers, and power conversion equipment that would corrupt unshielded signal cables. The waterproof PUR jacket (solid or foamed for buoyancy) ensures the cable maintains its electrical performance at the operating depth. The foamed polyurethane (PUR) jacket uses a micro-cellular expanded jacket compound with a bulk density lower than seawater (~1.025 g/cm³), giving the cable near-zero or positive net buoyancy. This eliminates tether sag and reduces drag force on the ROV, improving vehicle manoeuvrability and reducing tether management workload during subsea operations.
| Parameter | Specification |
|---|---|

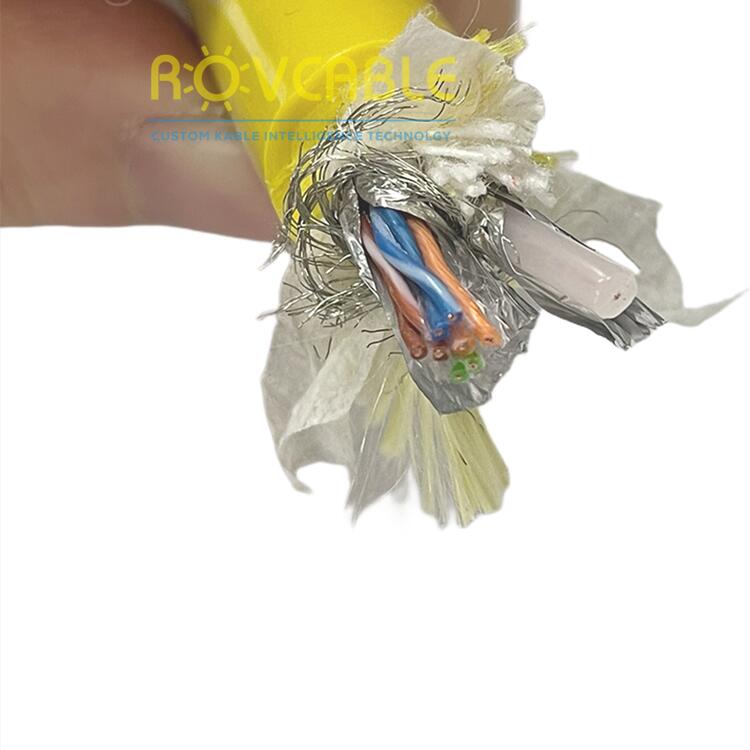

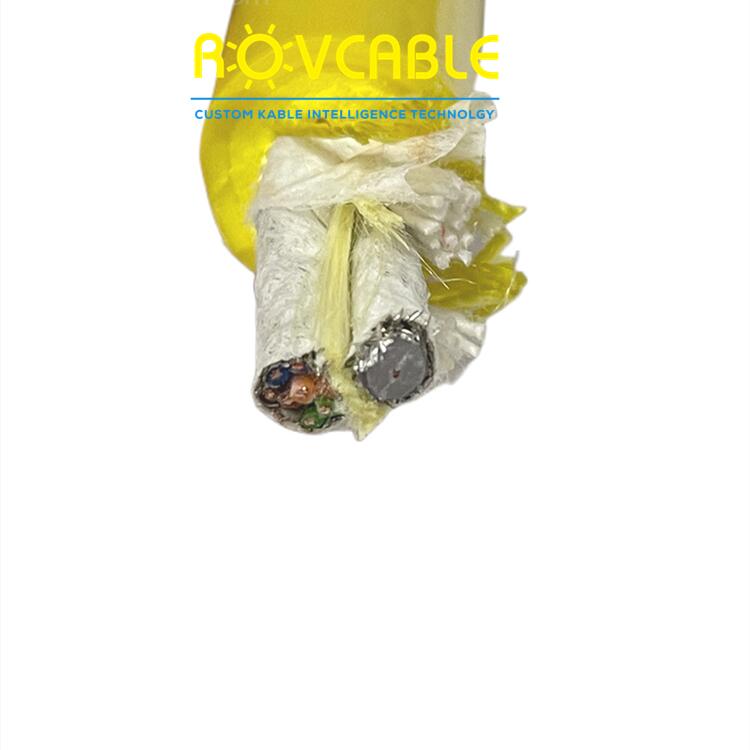

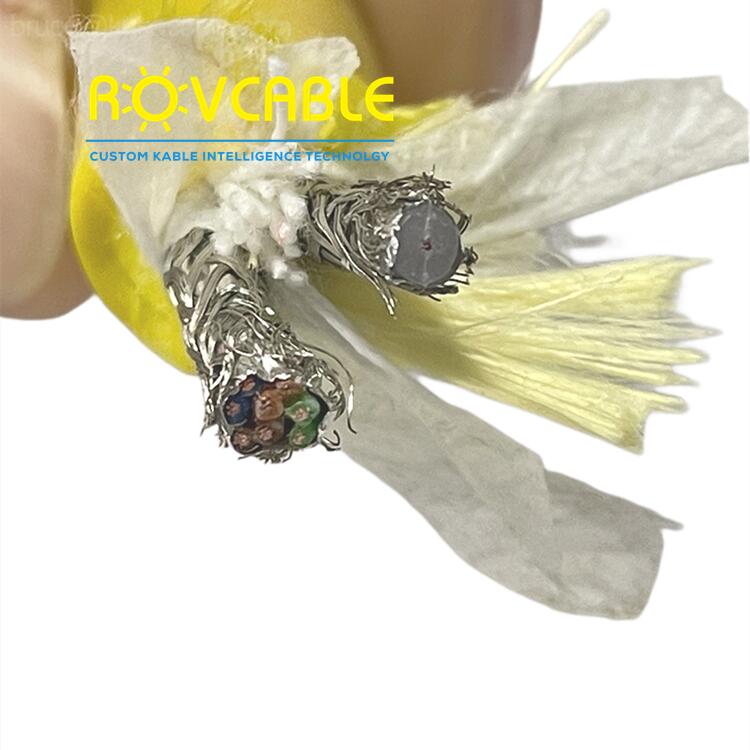

| Shielding | Individual pair foil + drain + overall copper braid |
| Jacket | Foamed PUR (buoyant) or solid PUR (specify) |
| Waterproof | IP68 / depth rated |
| Cores | Per spec (signal + power) |
| Signal Types | RS-485, RS-232, analog, Ethernet, video coaxial |
| Buoyancy | Near-neutral (foamed variant) |
| Custom | Core count, shielding, buoyancy, connector, length |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

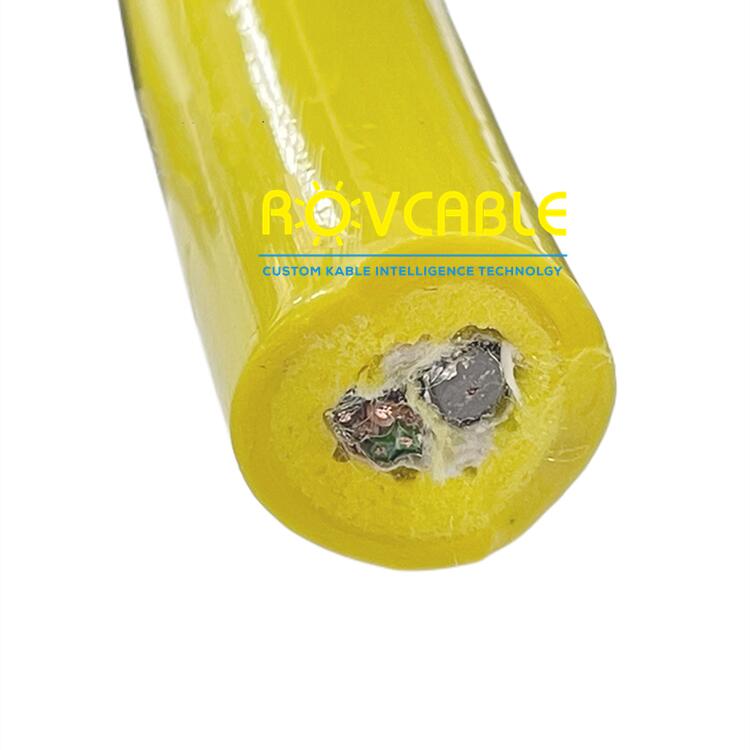

The jacket is manufactured from a micro-cellular expanded (foamed) polyurethane compound. During extrusion, a controlled foaming agent creates millions of tiny closed-cell air pockets within the jacket wall. These air cells reduce the bulk density of the jacket below that of seawater (~1.025 g/cm³), producing positive or neutral net buoyancy. The jacket retains all the abrasion resistance, oil resistance, and flexibility of standard PUR while achieving the buoyancy needed for ROV tether applications.
An individual pair foil shield provides approximately 40--60 dB of EMI rejection at 1 MHz. Adding an overall braid provides an additional 20--30 dB. Combined, the multi-layer shielded construction provides ≥80 dB total noise rejection (CMRR) at typical ROV motor switching frequencies (1 kHz -- 100 kHz), sufficient to maintain RS-485 and analog signal integrity even when running alongside high-current thruster cables.
