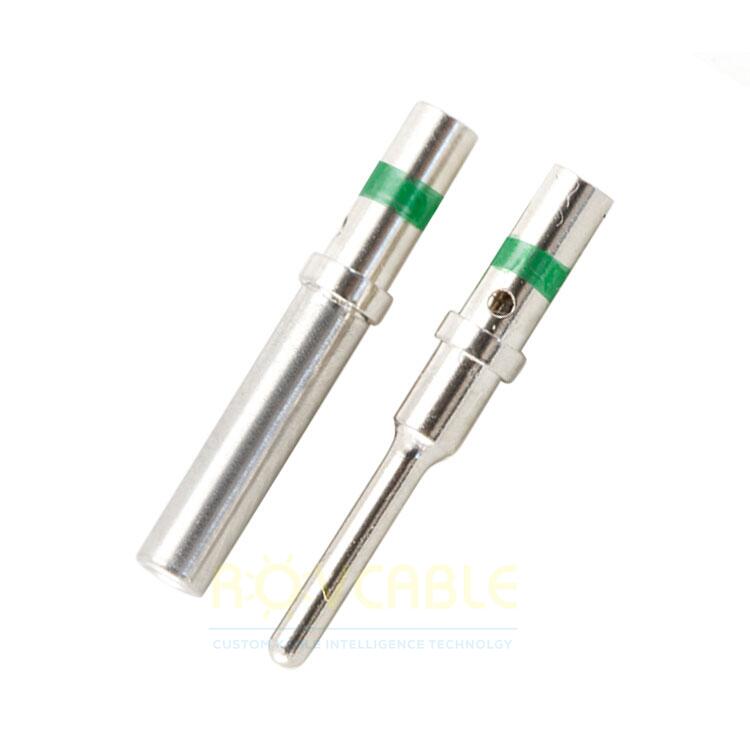

Deutsch DT series waterproof crimping terminals (pins and sockets). Part numbers 0460-215-16141 and 0462-209-16141. For DT 2-way to 12-way connectors, 16 AWG.

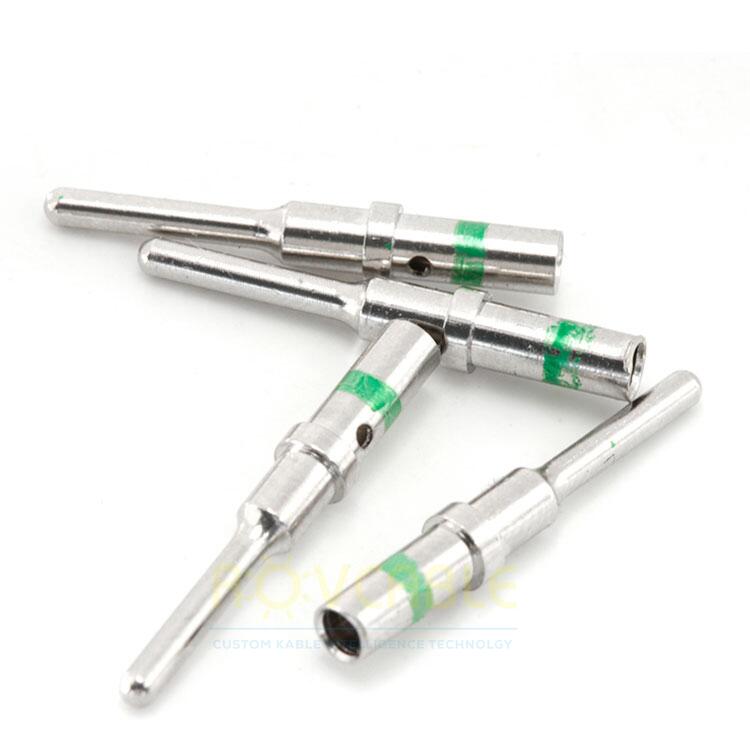

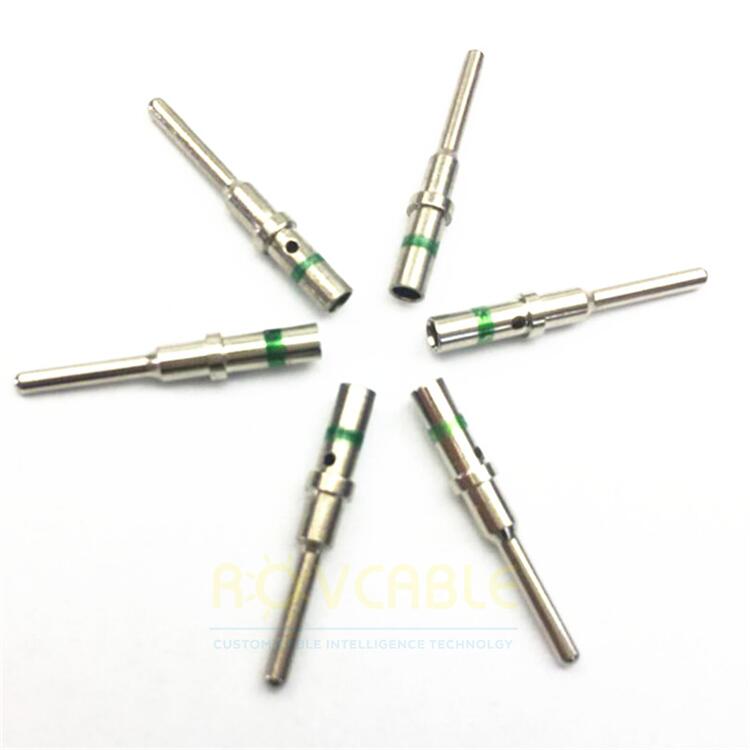

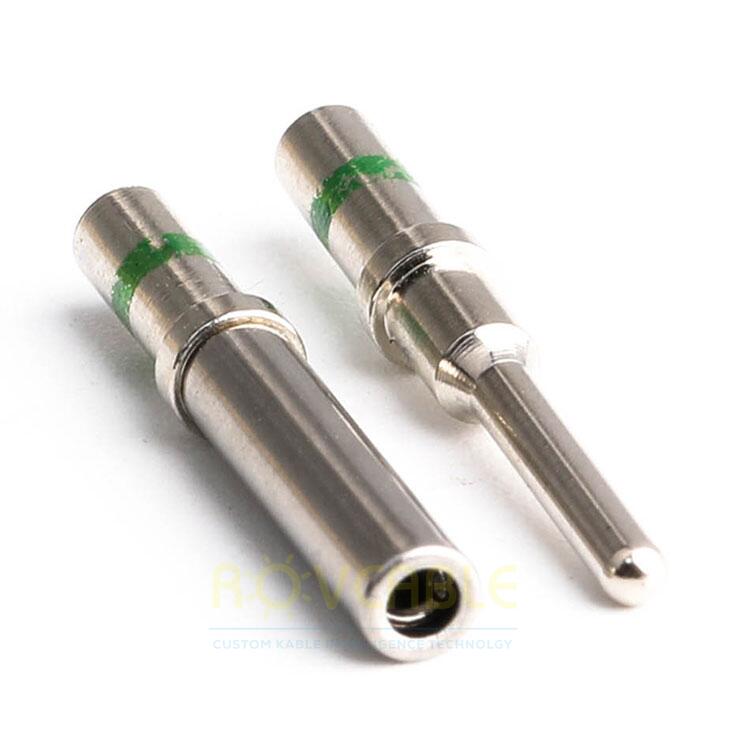

The Deutsch DT series crimping terminal (pins and sockets) are the contact elements for the widely used Deutsch DT waterproof connector family. Compatible with DT 2-way through 12-way connector housings, these gold-plated copper alloy contacts provide reliable, low-resistance connections for automotive, marine, industrial, and ROV control wiring applications. Part numbers 0460-215-16141 (pin) and 0462-209-16141 (socket) cover 16 AWG wire size.
| Parameter | Specification |
|---|---|
| Type | Stamped and formed crimping contact |

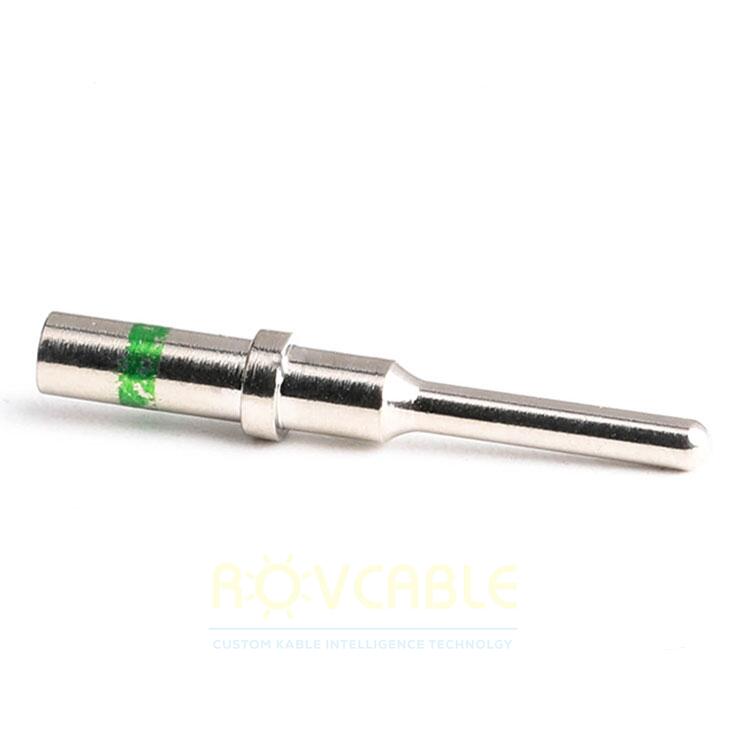

| Pin Part No. | 0460-215-16141 |

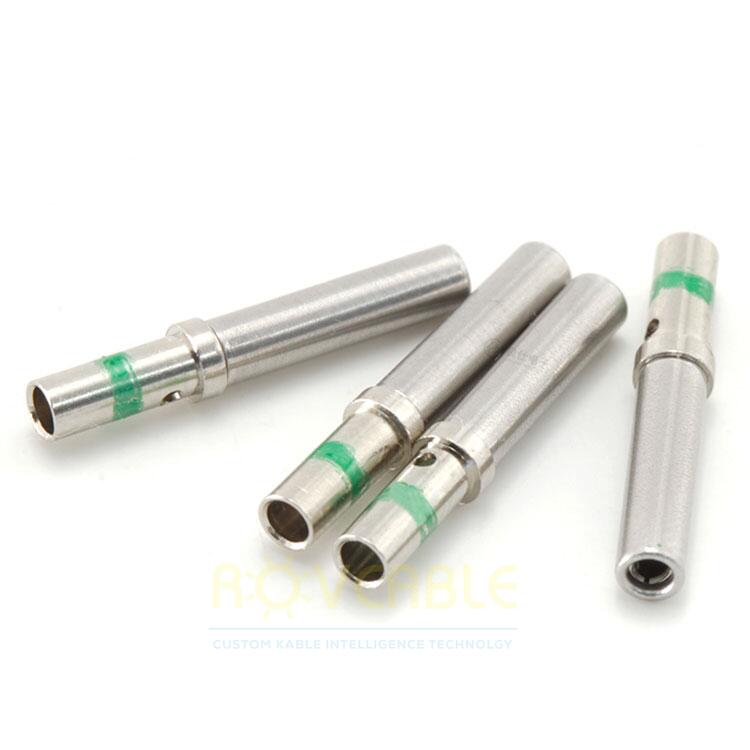

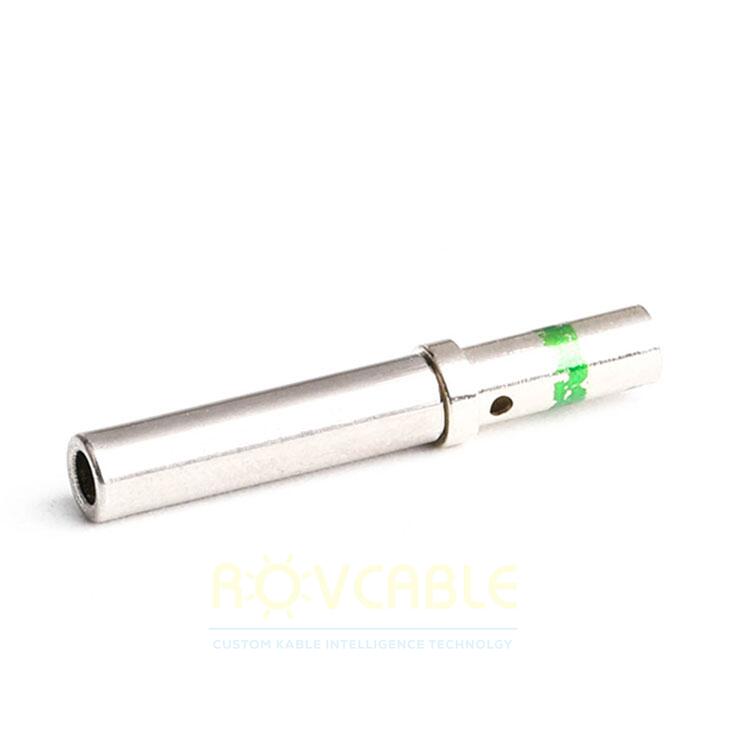

| Socket Part No. | 0462-209-16141 |
| Wire Size | 16 AWG |
| Contact Material | Copper alloy, gold-plated |
| Current Rating | 13A per contact |
| Connector Series | Deutsch DT (2-, 4-, 6-, 8-, 12-way) |
| Crimp Tool | Deutsch HDT-48 or compatible |
| IP Rating (mated) | IP68 |
Order Deutsch DT terminals in bulk with or without connector housings: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The standard Deutsch crimp tool is the HDT-48, which covers the full DT contact series. Alternatives include the ratchet-type HDT-48-00 and compatible third-party crimpers for 16 AWG contacts. Never use a standard wire stripper or non-ratchet pliers -- incorrect crimping will result in high contact resistance and potential connection failure.
Yes. These contacts are dimensionally compatible with all genuine Deutsch DT connector housings (2-way through 12-way). They are also compatible with quality Deutsch-equivalent DT housings from certified manufacturers. Contact us if you need DT housings alongside the terminals.
