Underwater LED lights from 10W to 100W, rated to 100 m depth. Full power range for ROV, subsea survey, aquaculture, and marine camera illumination.

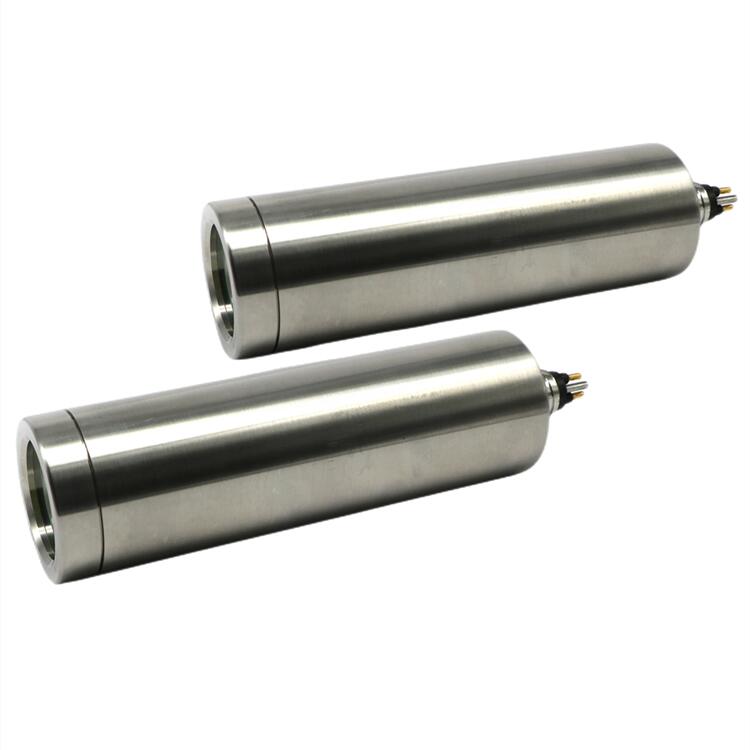

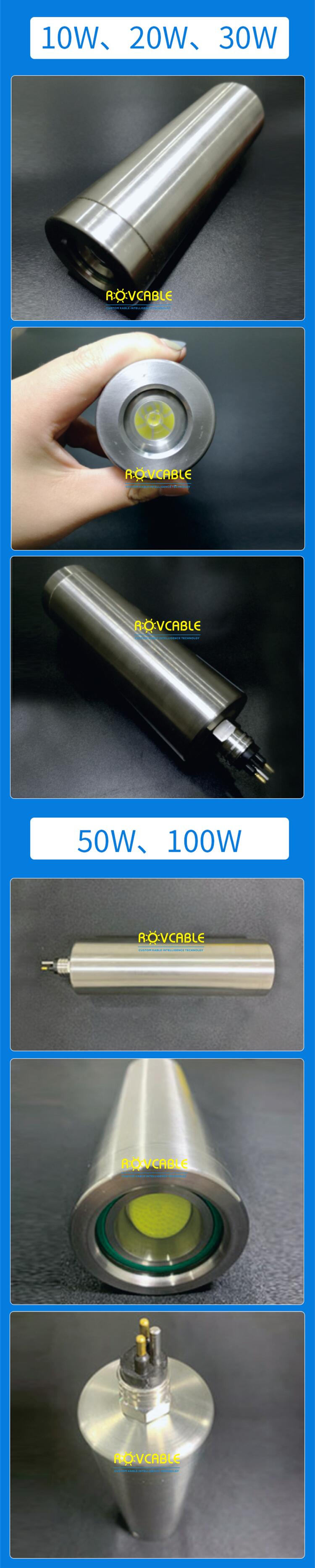

Our underwater LED light range covers 10W, 20W, 30W, 50W, and 100W models, all rated for 100 m depth operation. The full power range allows selection of the right light intensity for each application -- from compact 10W lights for small ROV inspection cameras to 100W high-output lights for large-area underwater illumination in aquaculture, marine survey, and subsea construction. All models use 316L stainless steel or anodised aluminium housings with pressure-rated optical lenses.
| Power | Luminous Flux | Beam Angle | Input Voltage |
|---|---|---|---|
| 10 W | ~900 lm | 120° | 12--24V DC |
| 20 W | ~1,800 lm | 120° | 12--48V DC |
| 30 W | ~2,700 lm | 120° | 24--48V DC |
| 50 W | ~4,500 lm | 120° | 24--48V DC |
| 100 W | ~9,000 lm | 90° / 120° | 48V DC |
All models: 100 m depth rated, 316L SS / anodised aluminium housing, 6,000 K cool white, PUR cable, IP68.
Select your power level and request a quote: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
For small observation-class ROVs (30 cm--60 cm) in clear water, 10W--20W per light is typically sufficient. For larger work-class ROVs in turbid or deep water, 50W--100W per light is recommended. Most ROVs use 2--4 lights. Contact us with your ROV class, water visibility estimate, and camera specifications for a lighting recommendation.
Standard is 6,000 K cool white, which provides the best underwater colour rendering. Warm white (3,000 K) and red spectrum lights are available on request for specific marine biology or aquaculture applications.
