20W underwater LED light rated to 300 m depth. High brightness, compact design for ROV inspection, subsea survey, and underwater camera illumination.

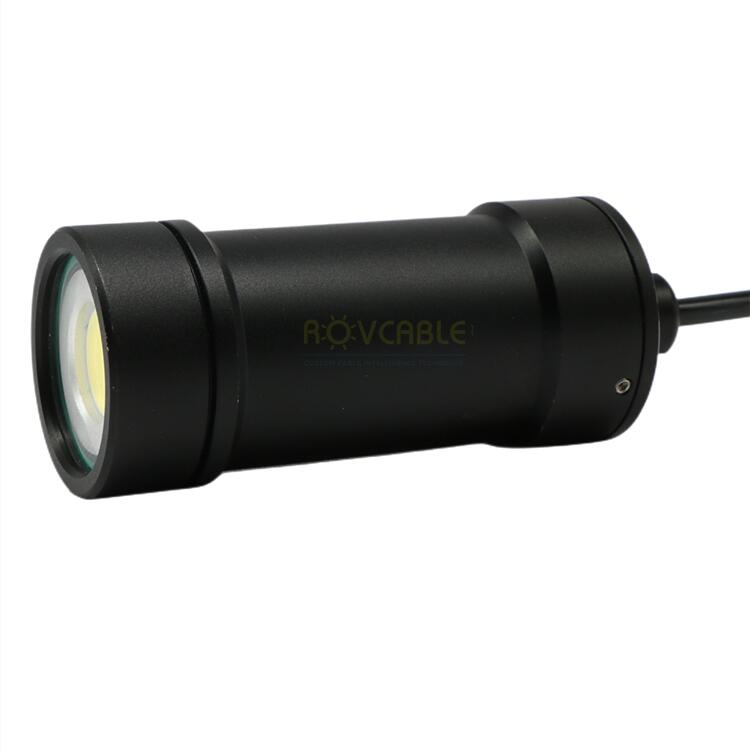

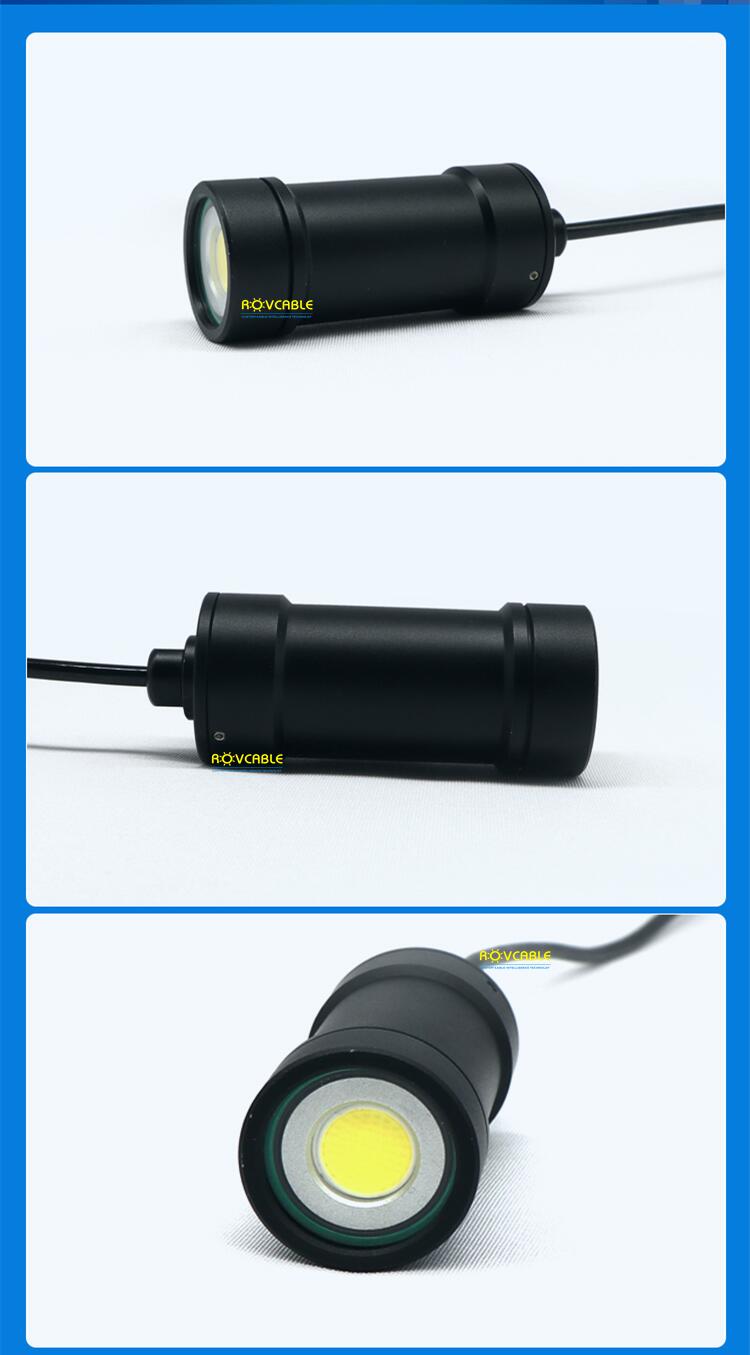

Our 20W underwater LED light is engineered for 300 m depth operation, providing high-intensity illumination for ROV inspection cameras, subsea survey systems, and underwater observation platforms. The compact stainless steel or anodised aluminium housing is pressure-tested and provides reliable light output even in the darkest subsea environments.
| Parameter | Specification |
|---|---|
| Power | 20 W |
| Depth Rating | 300 m |
| Luminous Flux | ~1,800 lm |
| Colour Temperature | 6,000 K (cool white) |
| Input Voltage | 12--48V DC |
| Beam Angle | 120° (standard) |
| Housing Material | 316L Stainless Steel / Anodised Aluminium |
| Cable | 2-core PUR, 1 m standard (custom length) |
| Connector | SubConn-compatible or bare cable end |
| Operating Temperature | -10°C to +40°C |
Request 20W underwater light specifications and pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Standard cable length is 1 m PUR cable. Custom lengths and connector types (SubConn-compatible, MCIL, bare end, or aviation plug) are available on request. Specify your ROV's power supply voltage and connector interface when ordering.
Yes. With an optional PWM dimmer controller, the light output can be adjusted from 10% to 100%. This extends LED life and reduces power consumption during low-demand inspection operations. Contact us for PWM-compatible models.
