Underwater 2-megapixel coaxial camera module for ROV and subsea inspection. Compact, pressure-rated housing, CVBS/analog coaxial output, wide-angle lens option.

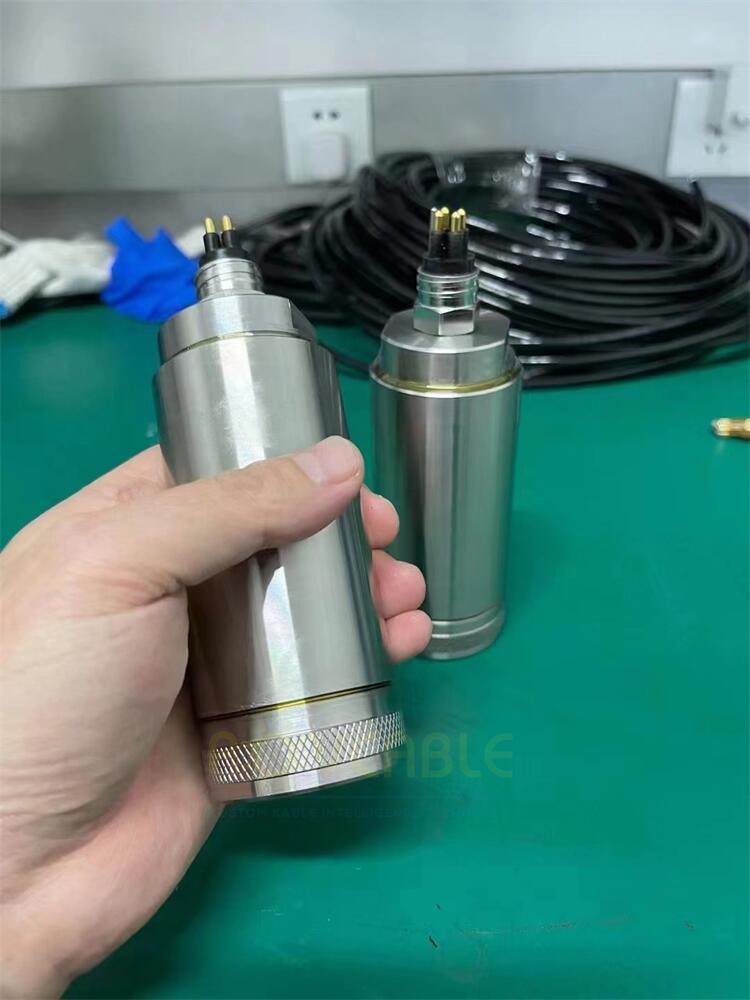

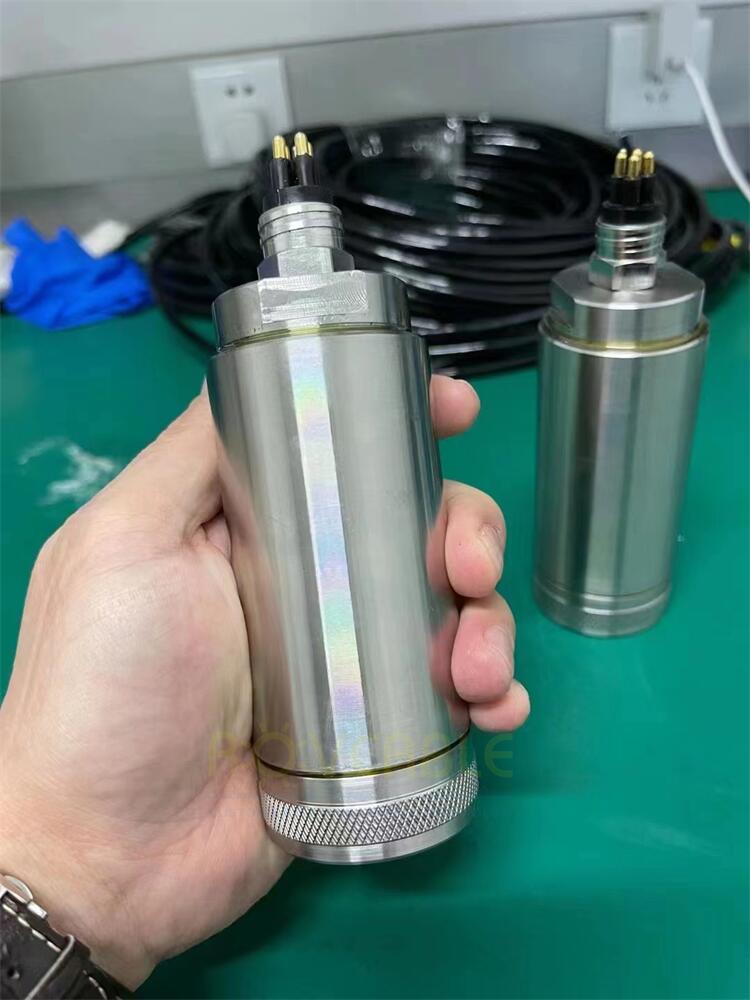

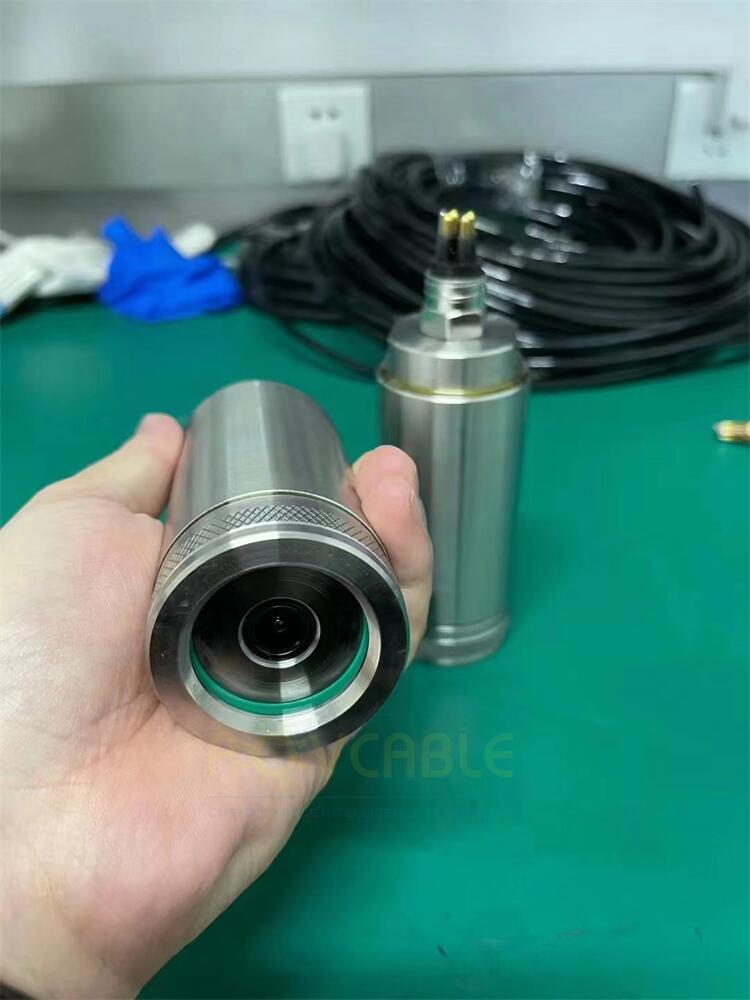

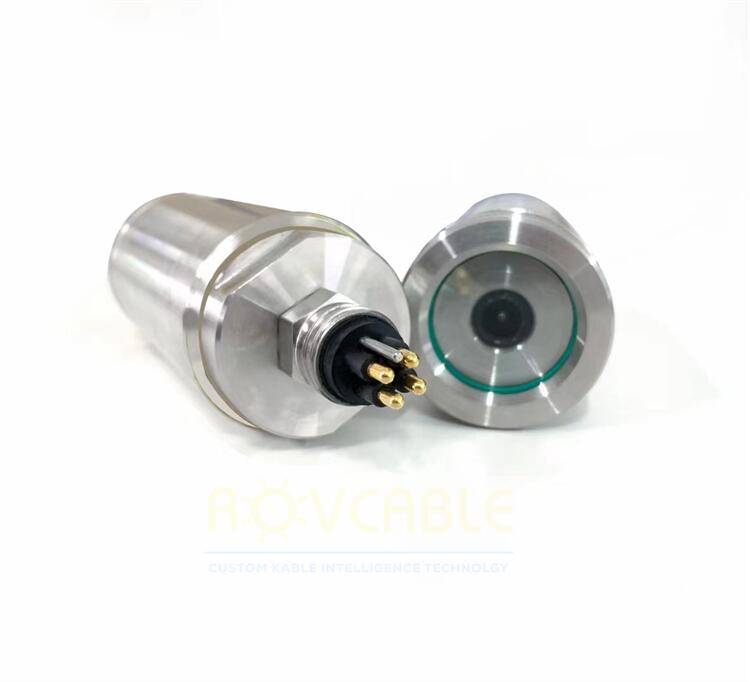

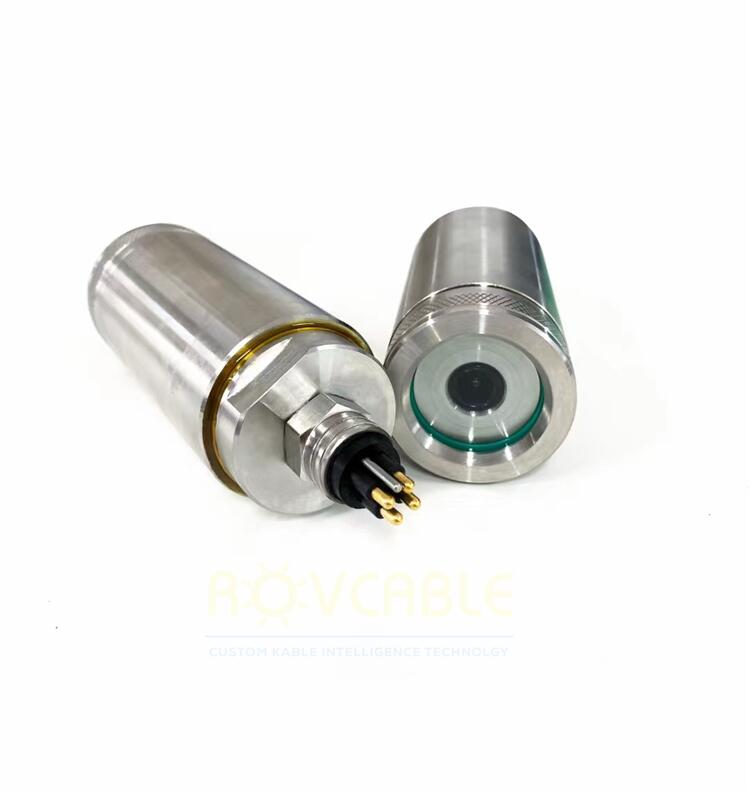

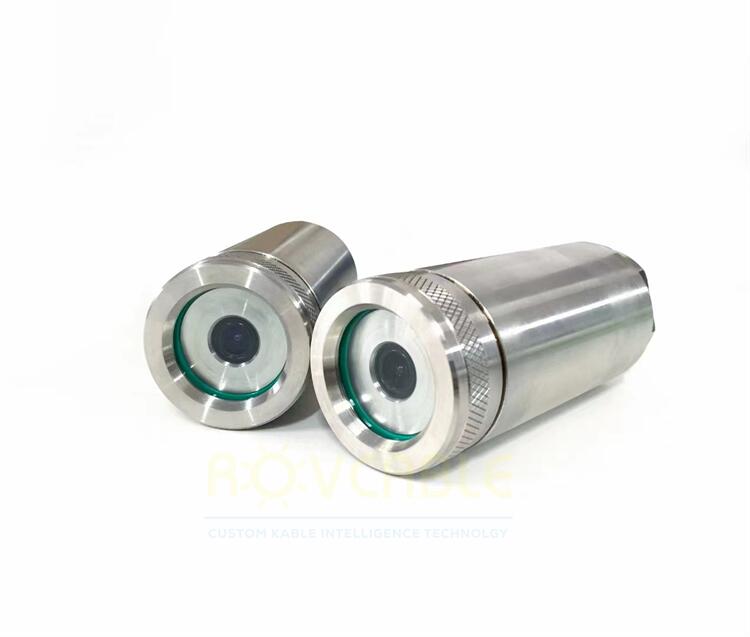

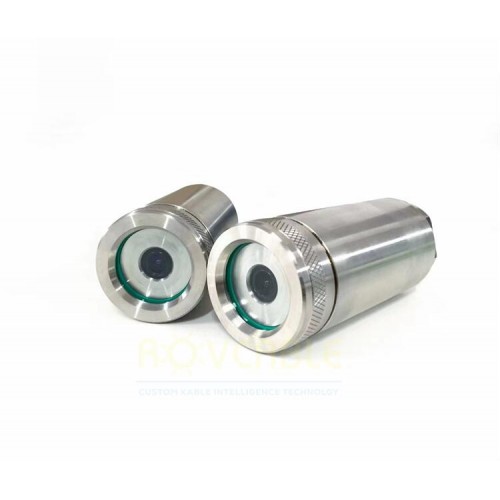

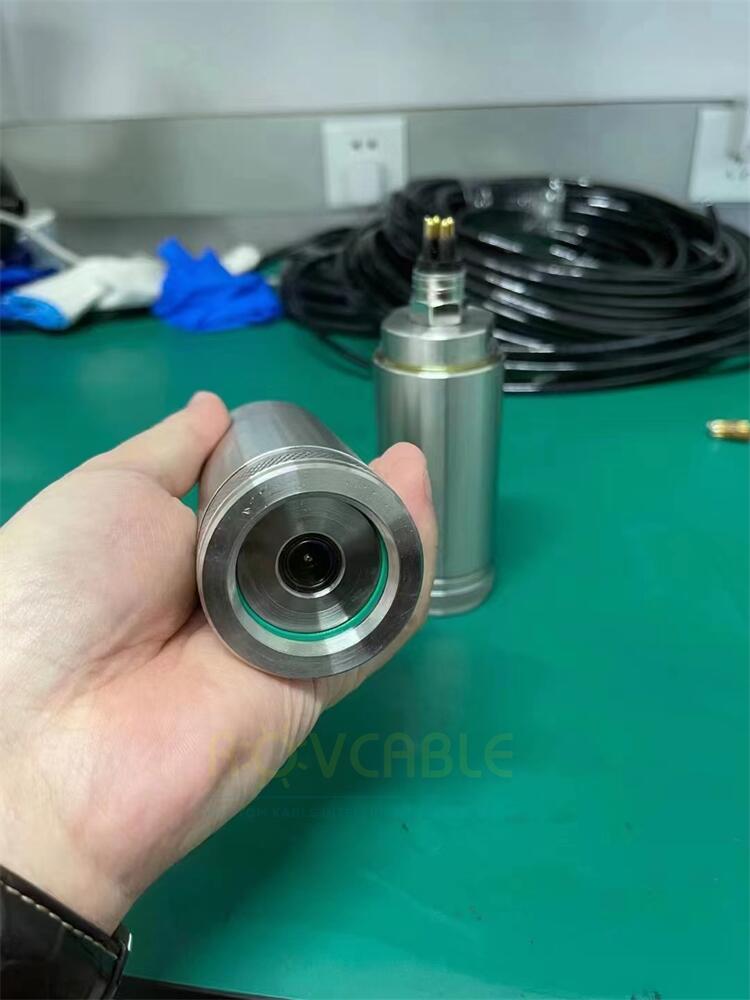

Our underwater 2-megapixel coaxial camera module provides clear, reliable video output for ROV inspection systems, subsea survey platforms, and underwater observation applications. The CVBS analog coaxial output is compatible with standard ROV video transmission systems, tether-integrated coaxial cores, and topside video displays and recording systems. The compact, pressure-rated 316L stainless steel housing protects the camera electronics to the rated depth.
| Parameter | Specification |
|---|---|
| Resolution | 2 Megapixel (2MP) -- 1080p equivalent |
| Video Output | CVBS Analog Coaxial (PAL/NTSC) |
| Sensor | 1/2.7" CMOS |
| Lens | Wide-angle (2.8 mm, 120° FOV) / standard (optional) |
| Low Light | 0.001 Lux (with IR / with external light) |
| Depth Rating | 300 m (standard); 3,000 m (enhanced housing) |
| Housing Material | 316L Stainless Steel |
| Power Supply | 12V DC |
| Cable | Coaxial + power, 1 m standard |
| Dimensions | 32 mm dia. x 50 mm length (approx.) |
Request camera module specifications and integration details: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The CVBS coaxial output is compatible with standard coaxial video transmission cores in ROV tether cables. The video signal can be transmitted over RG-59 or equivalent coaxial cable to the topside monitor and recorder. For long cable runs (>200 m), a video amplifier may be required -- contact us for recommendations.
Yes. IP network camera modules (H.264/H.265) and HDMI output modules are available for integration with modern digital ROV video systems. Contact us with your system interface requirements for the appropriate module selection.
