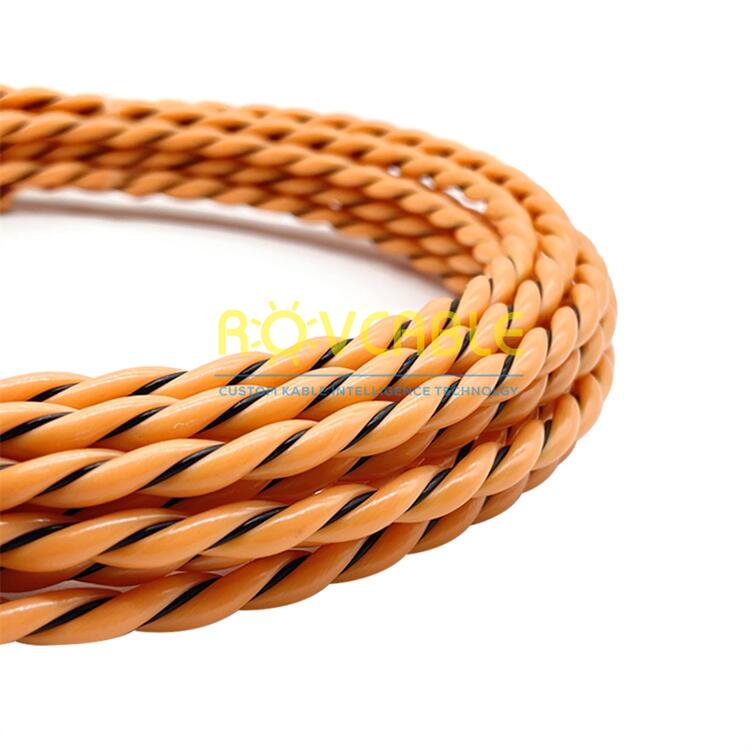

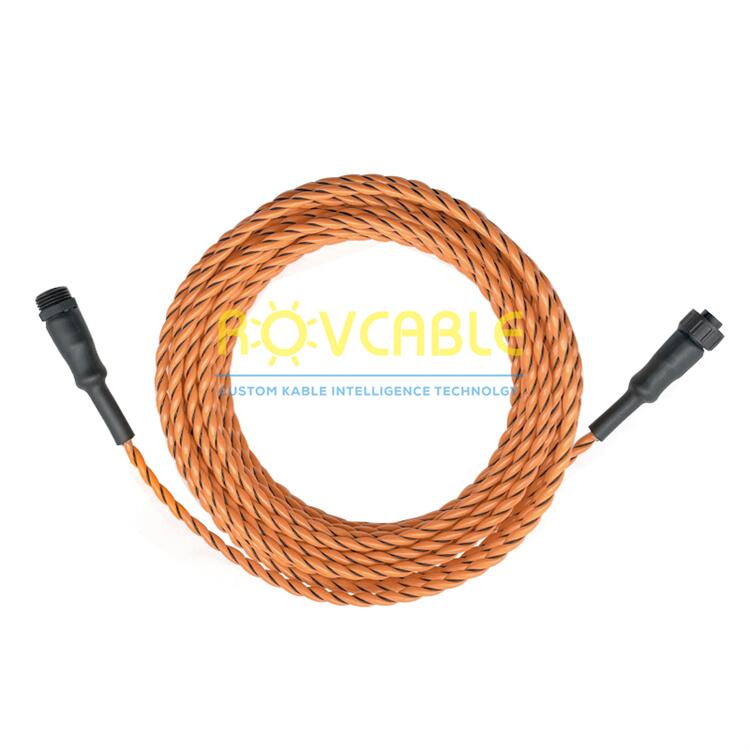

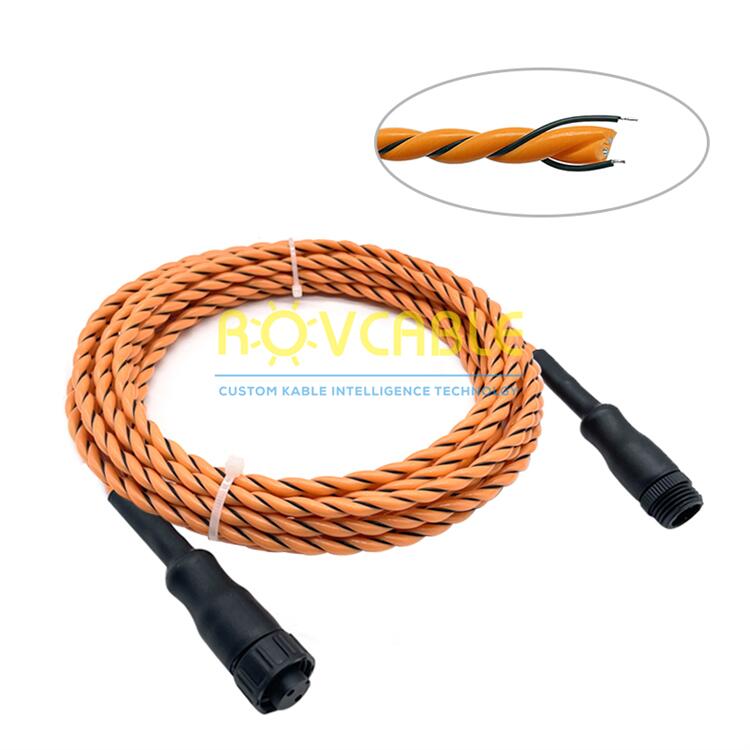

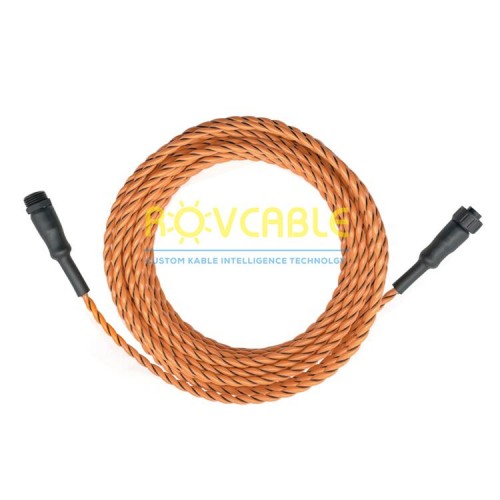

Water leak sensor cable and detection rope for facility and infrastructure protection. Non-positioning or positioning, PVC jacket, compatible with standard controllers.
Our water leak sensor cable and detection rope range provides cost-effective, reliable water leak detection for facilities, infrastructure, and critical equipment rooms. Available in both non-positioning (detects leak presence) and positioning (locates leak to within 1 m) variants, this sensing cable is compatible with all standard resistance-based leak detection controllers and integrates easily into existing BMS and building automation systems.
| Parameter | Specification |
|---|---|
| Variants | Non-positioning (2-core) / Positioning (4-core) |
| Jacket Material | PVC |

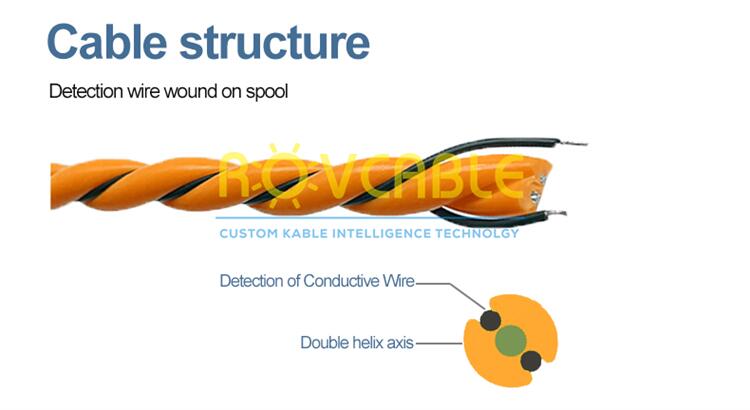

| Sensing Principle | Resistance change on water contact |
| Standard Lengths | 5 m, 10 m, 20 m, 50 m, 100 m (custom) |
| Diameter | 4--6 mm (variant dependent) |
| Response Time | <3 seconds |
| Temperature Range | -10°C to +70°C |
| Reusable | Yes (after drying) |
Order water leak sensor cable in custom lengths and configurations: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

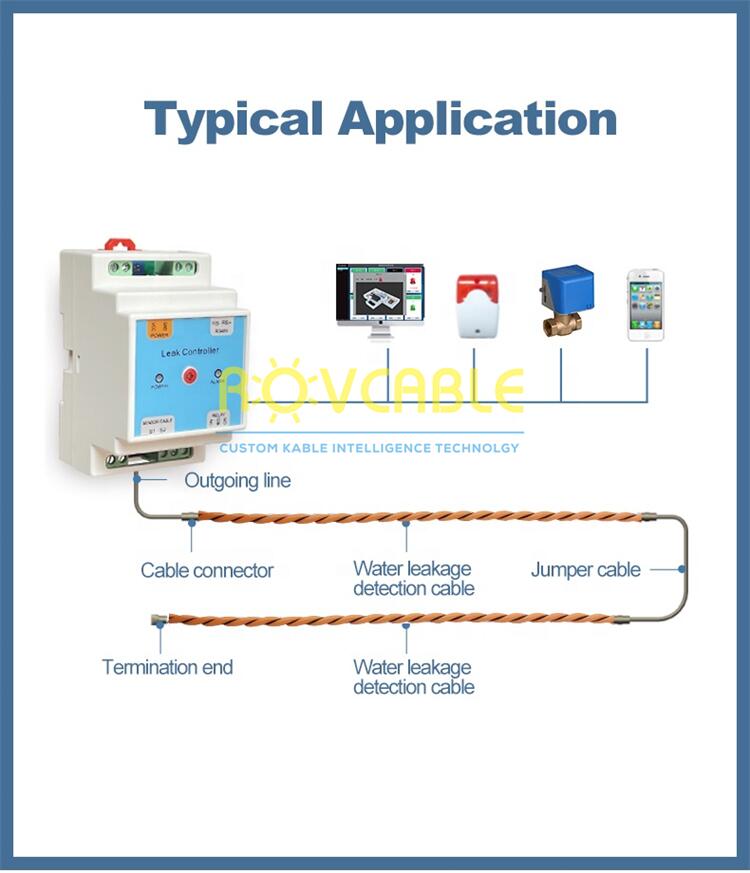

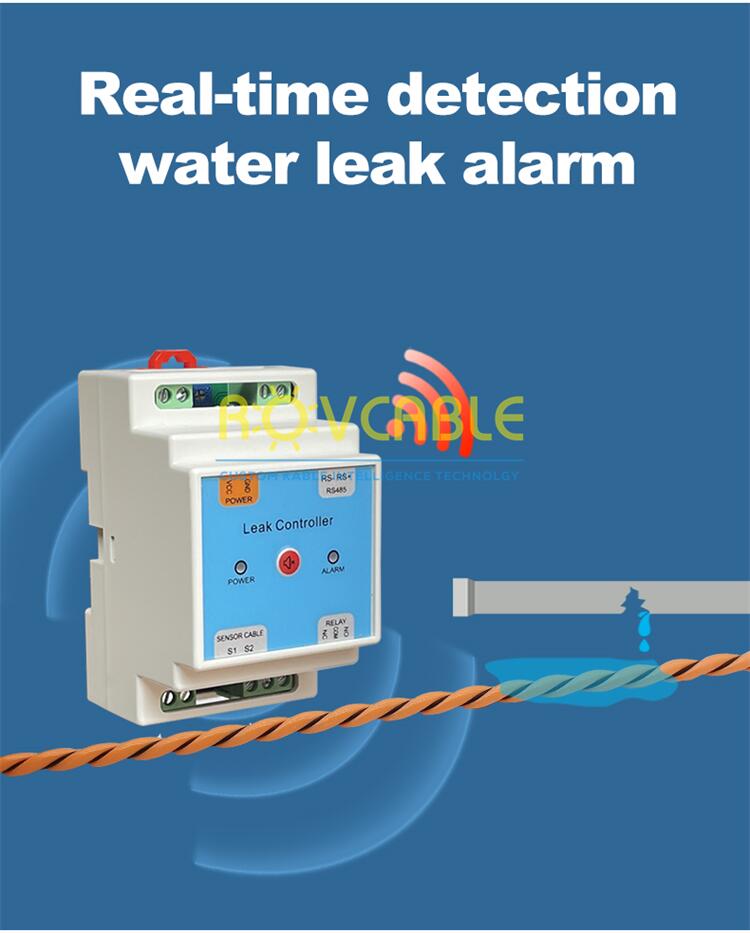

The rope is laid flat on the floor, under raised access floors, or along pipe runs in the area to be monitored. It does not require adhesive -- the rope lies in contact with the surface where water would collect. For overhead pipe monitoring, use cable clips to suspend the rope beneath the pipe.

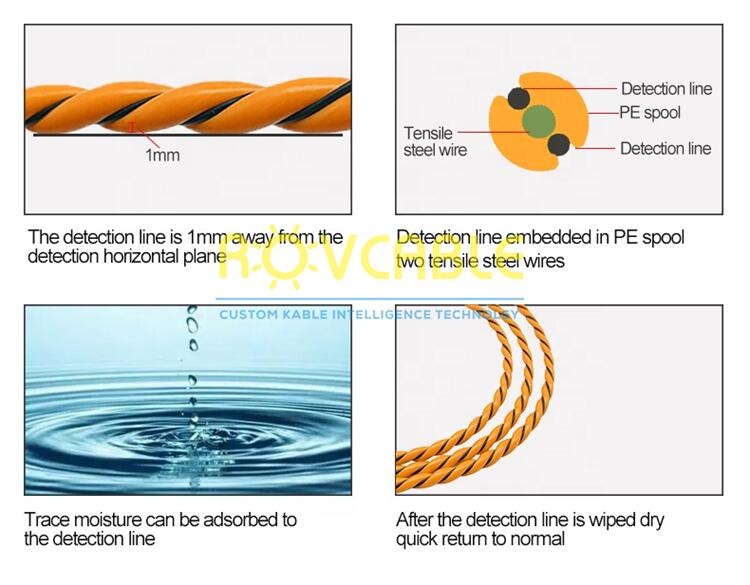

Once the water is removed and the rope is dry, the resistance returns to normal and the alarm resets (after controller acknowledgement). The rope is not damaged by water exposure and can be reused indefinitely, making it significantly more cost-effective than single-use solutions.
Technical parameter
|
Cable material: |

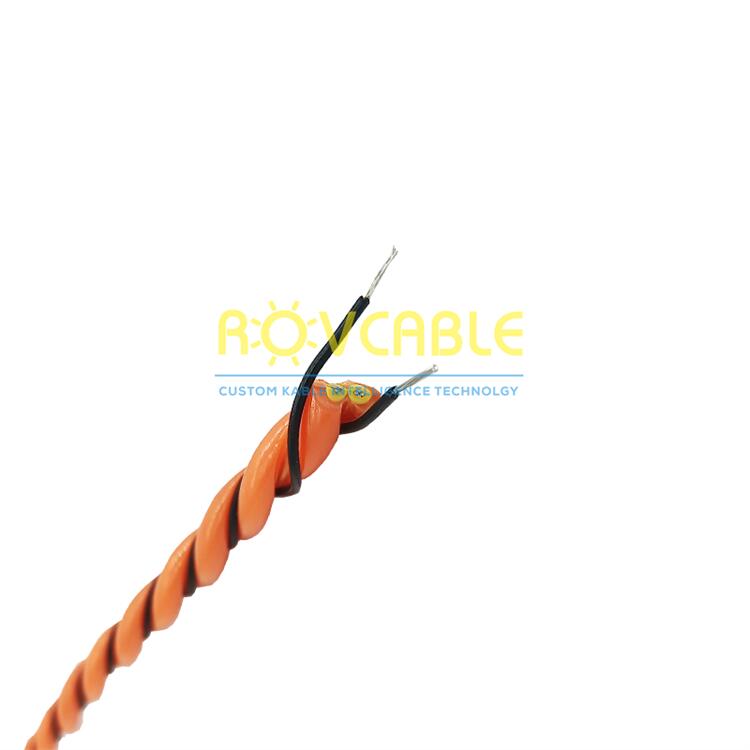

Conductive polyethylene + alloy wire |
|
length: |
Any length can be cut |
|
Connector: |
Can be customized |
|
Cable color: |
Orange/yellow/green(You can choose) |
|
Fire resistance rating: |
Pressure ventilation cable of line II |
|
Cable mass: |
22g/m |
|
Breaking strength: |
60 kg |
|
Cable diameter: |
6.0mm |
|
Exposure temperature: |
85℃ (maximum) |
|
Certification: |
CE,FCC,ROHS |
