Shanghai Kabel Intelligence Technology Co., Ltd Circular Series wet-mateable subsea underwater connectors for ROV, AUV, and offshore instruments. IP68, 7000m depth, PEEK insulator, SubConn compatible.

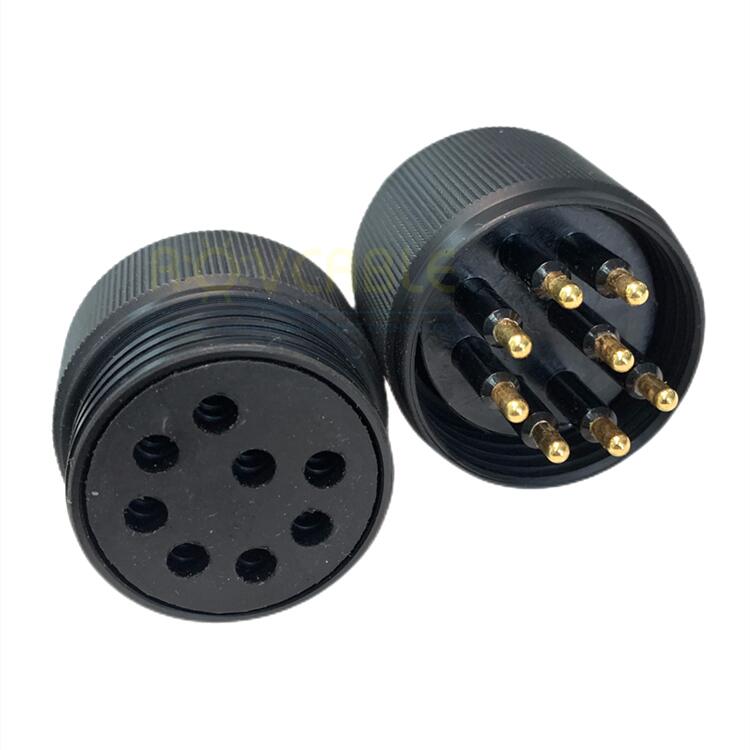

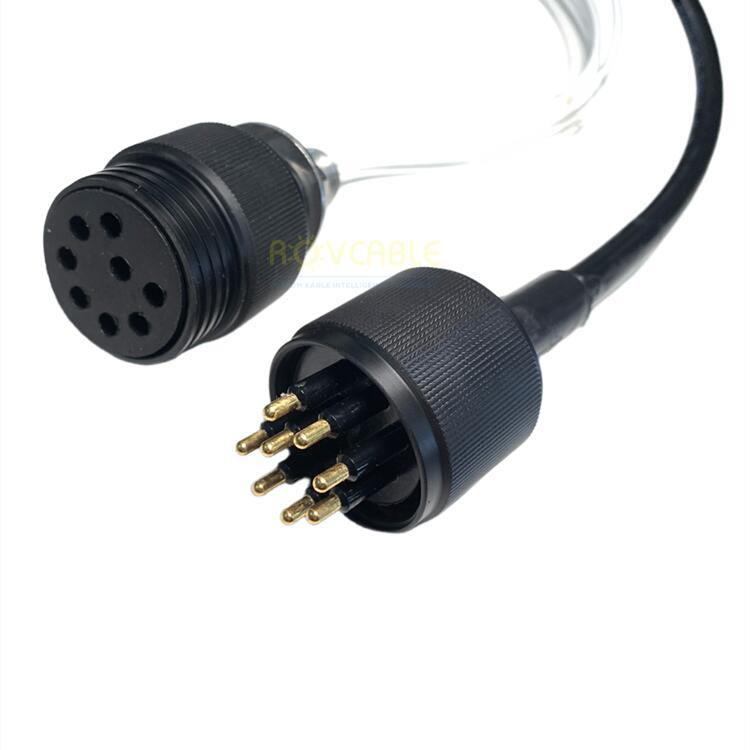

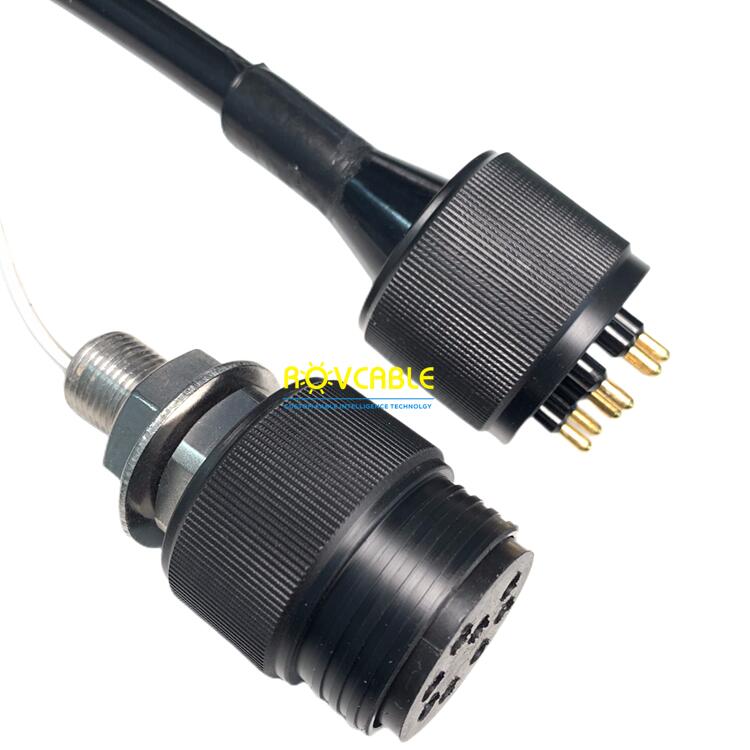

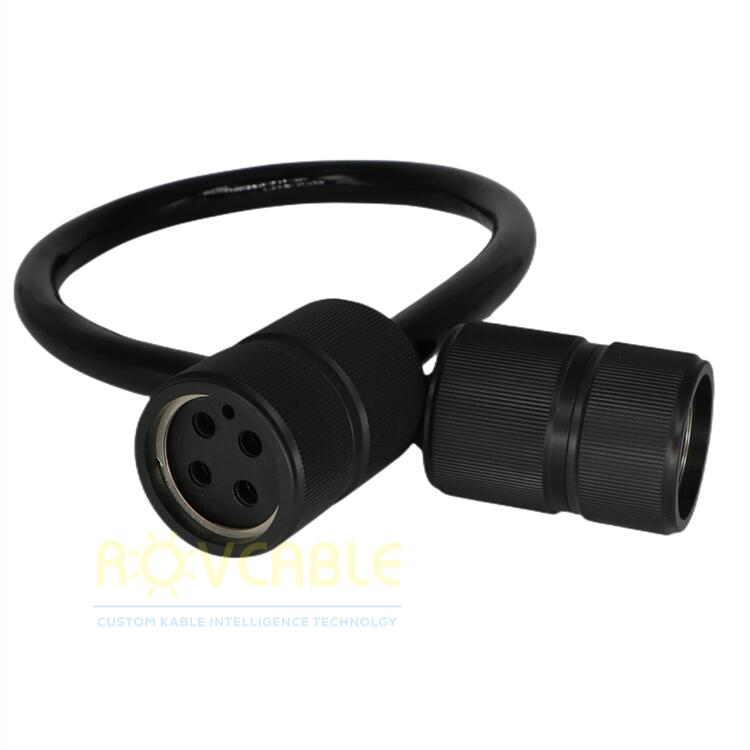

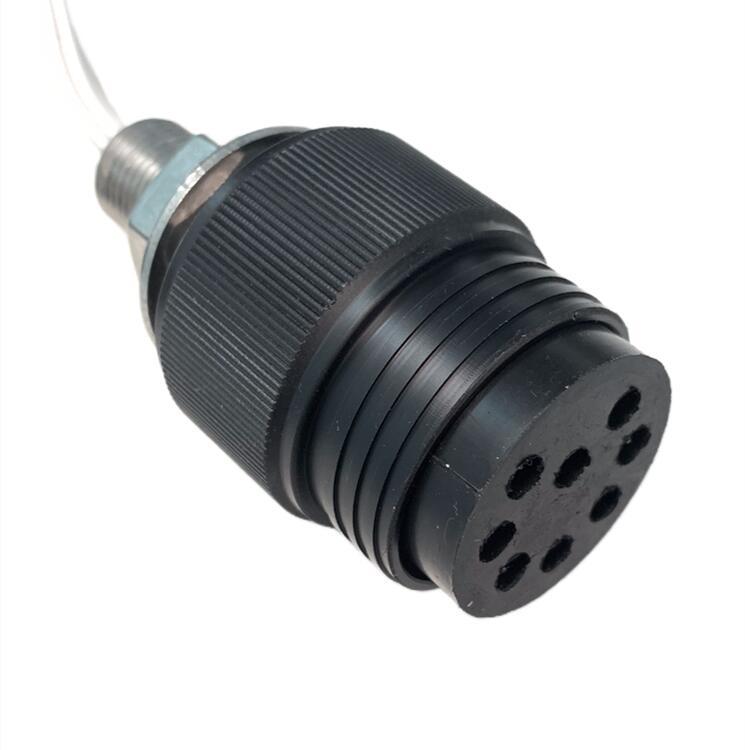

The Circular Series from Shanghai Kabel Intelligence Technology Co., Ltd is engineered for the most demanding subsea connectivity applications -- deep sea ROV operations, long-endurance AUV missions, and permanent offshore seabed instrument installations. Wet-mateability allows connections to be made and broken while submerged, without bringing equipment to the surface. IP68 rated, 7,000 m depth qualified, PEEK insulated, and directly compatible with SubConn® Circular Series.
Wet-mateable means the connector can be engaged and disengaged underwater -- by a diver or an ROV manipulator -- without flooding or shorting. Spring-loaded contacts displace seawater at the moment of mating, and the dual O-ring face seal traps no water inside the mated pair. This is the fundamental advantage of the Circular Series over standard IP68-sealed connectors that must be mated in air.
| Parameter | Value |
|---|---|
| Depth rating | 7,000 m (700 bar hydrostatic) |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Mating | Wet-mateable (subsea, by diver or ROV) |
| Contacts | 2, 3, 4, 5, 6, 8, 10, 12, 16, 25 |
| Shell | Anodized aluminium / Titanium / SS 316L |
| Insulator | PEEK |
| Sealing | Dual O-ring per contact + face seal |
| Mating cycles | 500+ (verified) |
| Hydrostatic test | 600 psig per batch, certificate supplied |
Email: sales@rovcable.com | www.rovconnector.com
The Circular Series is rated for 500+ wet-mating cycles. In ROV operations with daily hot-stabbing, connectors typically remain in service for 2-5 years before scheduled replacement of O-rings and contacts during overhaul.
Yes. The threaded locking coupling is designed with sufficient grip surface for manipulator jaw engagement. Specify the manipulator jaw opening dimension when ordering and we can advise on coupling handle options.
