Shanghai Kabel Intelligence Technology Co., Ltd MCBH21M 21-pin circular marine cable underwater connectors with sockets and plugs. IP68, 7000m depth. For ROV and subsea instrument multi-channel applications.

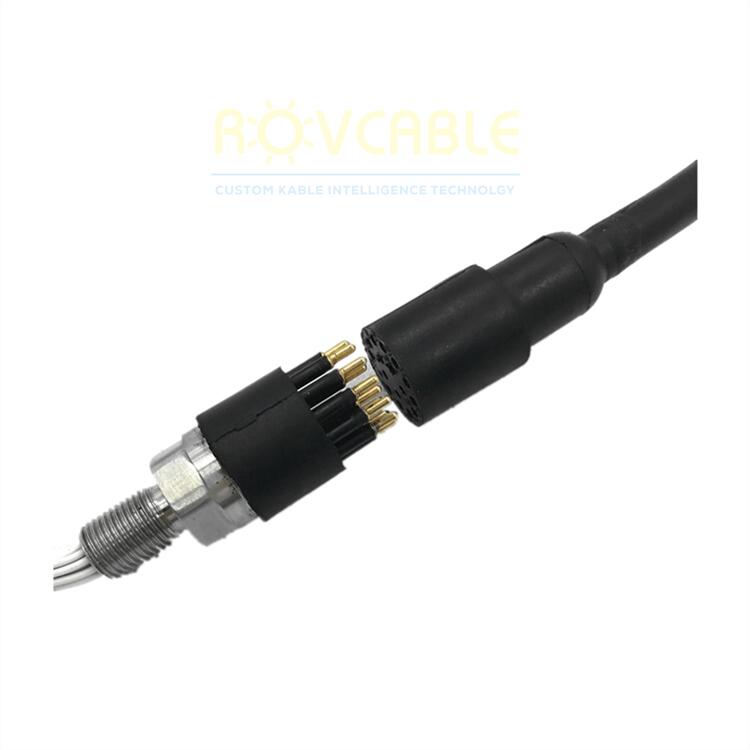

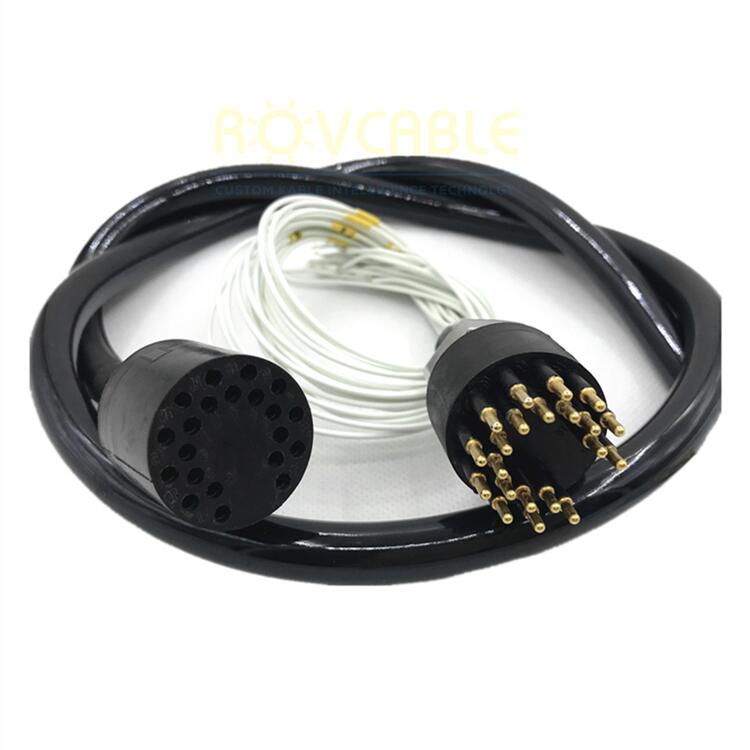

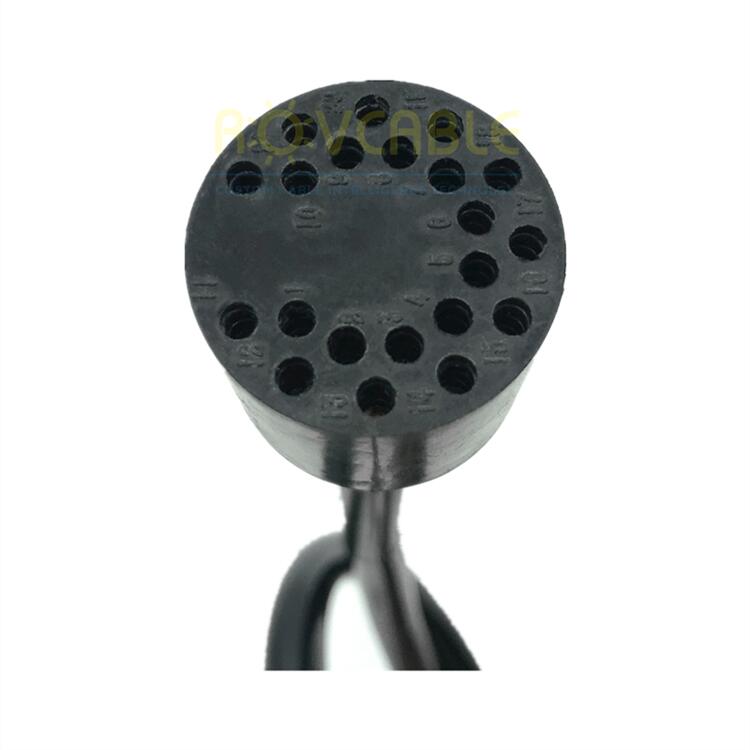

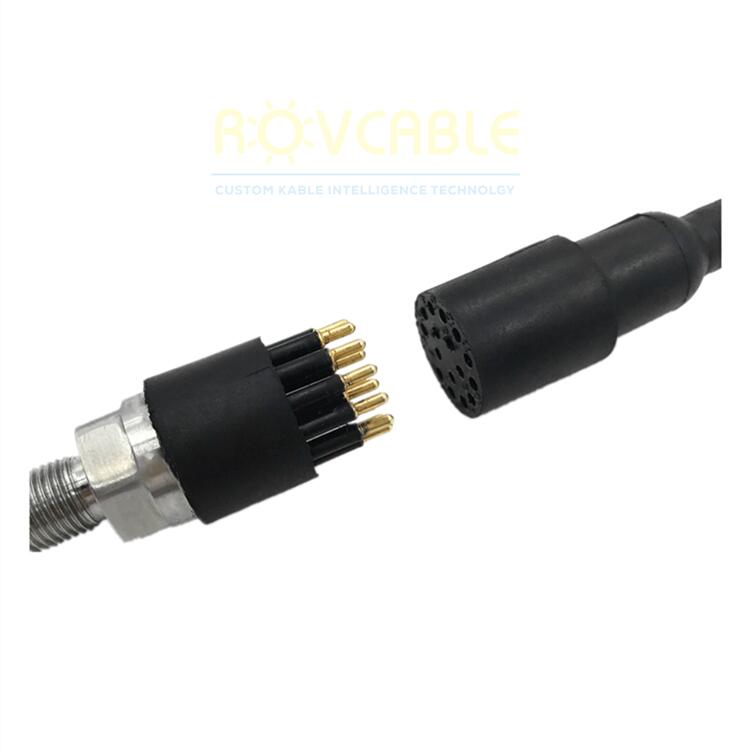

Shanghai Kabel Intelligence Technology Co., Ltd 21-contact circular underwater connectors (model reference MCBH21M and complementary socket/plug variants) provide 21 circuits through a single wet-mateable connection for marine, ROV, and subsea instrument applications. At 7,000 m depth rating and IP68 sealing, this connector delivers reliable multi-channel connectivity in the most demanding subsea environments.
| Parameter | Value |
|---|---|
| Contact count | 21 |
| Key models | MCBH21M (bulkhead pin male), MCBH21F (bulkhead socket female), MCIL21M/F (in-line) |
| Depth rating | 7,000 m |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Current per contact | 5 A (derated) |
| Shell | Hard-anodized aluminium (standard) / Titanium option |
| Insulator | PEEK |
| Sealing | Dual O-ring per contact + face seal |
| Mating cycles | 500+ |
| Hydrostatic test | 600 psig per batch, certificate supplied |
Email: sales@rovcable.com | www.rovconnector.com
These share the same "MCBH21" designation in different series -- the Circular Series variant (listed here) uses a larger shell diameter than the Micro Circular MCBH21 from Cat30 and has different mating dimensions. Always confirm the exact series (Micro Circular vs. Circular) when ordering to ensure correct mating compatibility.
Yes. Dummy caps are available for all 21-pin bulkhead models and should be fitted during transit, storage, and any period when the connector is unmated underwater. Specify quantity when ordering.
