Shanghai Kabel Intelligence Technology Co., Ltd 32-pin high-density circular underwater connector. IP68, high-pressure marine rated, 7000m depth. Male and female bulkhead options. For complex multi-channel subsea systems.

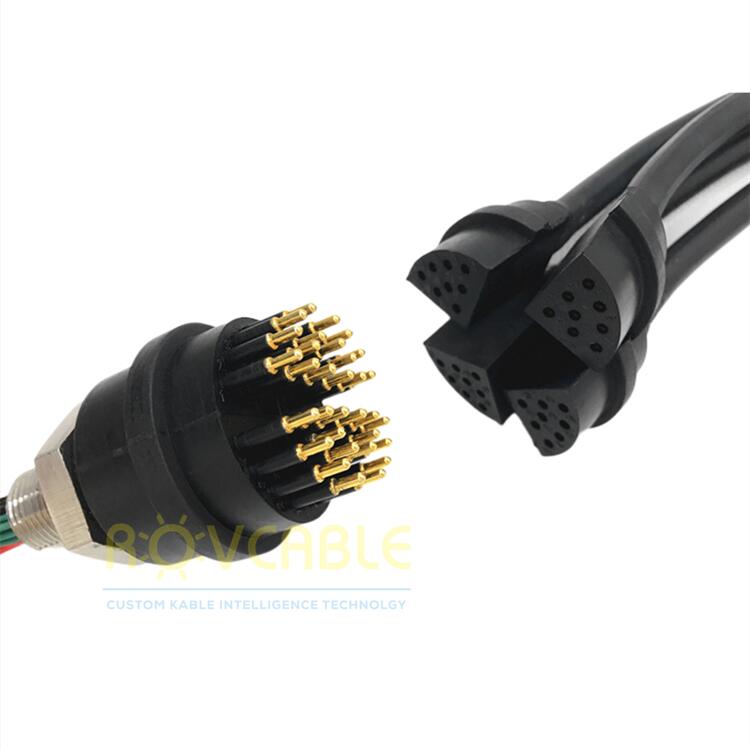

Shanghai Kabel Intelligence Technology Co., Ltd 32-contact circular underwater connector is the highest-density standard configuration in our Circular Series -- 32 contacts in a single wet-mateable circular body, rated to 7,000 m depth and IP68 sealed. This connector serves as a single-penetration solution for the most signal-intensive ROV, AUV, and offshore instrument systems, eliminating multiple smaller connectors and reducing pressure housing complexity.
| Parameter | Value |
|---|---|
| Contact count | 32 |
| Available models | Bulkhead male / Bulkhead female / In-Line male / In-Line female |
| Depth rating | 7,000 m (700 bar) |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Current per contact | 5 A (derated at 32-contact density) |
| Shell | Hard-anodized aluminium (standard) / Titanium Grade 5 (option) |
| Insulator | PEEK |
| Contacts | Gold-plated copper alloy |
| Sealing | Dual O-ring per contact + face seal |
| Hydrostatic test | 600 psig, certificate issued per batch |
| Mating cycles | 300+ |
Email: sales@rovcable.com | www.rovconnector.com
At 32-contact density in a single circular shell, thermal derating to 5 A ensures the connector operates within its thermal envelope at full simultaneous load. For circuits requiring higher current, dedicate a separate 2-pin or 4-pin high-current Circular connector in parallel for those power feeds.
The threaded coupling ring engages finger-tight plus approximately 1/4 turn to seat the locking feature. A specific torque value (typically 1.5-3 Nm depending on lubrication and O-ring condition) is specified on the connector datasheet, available on request with your order.
