Shanghai Kabel Intelligence Technology Co., Ltd circular underwater connector pre-terminated with neoprene cable. IP68, 7000m depth. Pressure-tested potted cable assembly for immediate deployment.

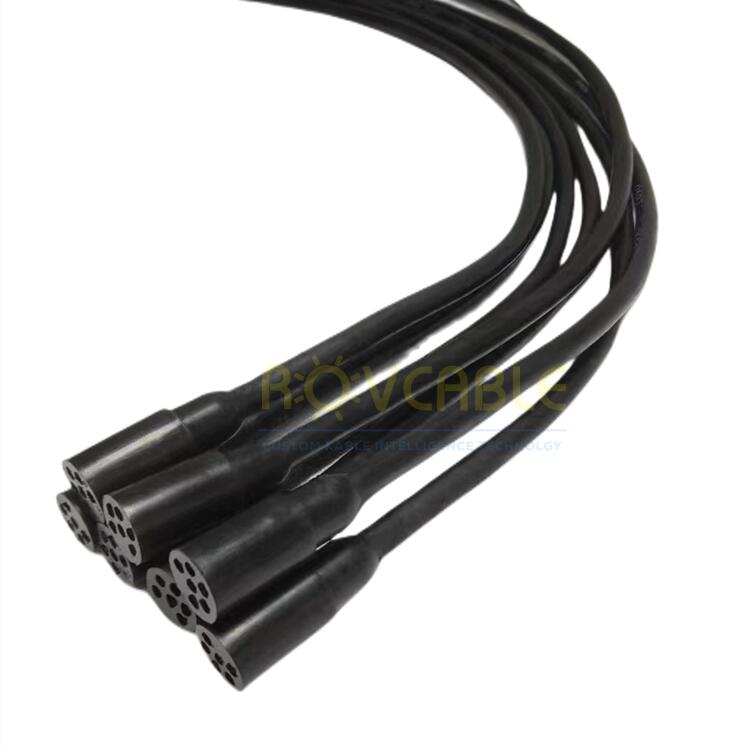

Shanghai Kabel Intelligence Technology Co., Ltd supplies Circular Series connectors pre-terminated with neoprene-jacketed underwater cable as a complete, ready-to-deploy assembly. The cable is potted into the COIL in-line body using our production-grade polyurethane potting process -- all terminations are pressure-tested to 600 psig before dispatch, giving immediate confidence for deployment to 7,000 m.
| Parameter | Standard Option | Alternative |
|---|---|---|
| Connector | Any Circular Series COIL (2-16 pin) | Micro Circular MCIL also available |
| Cable jacket | Neoprene CR | Polyurethane (PU) or TPE |
| Cable OD | 8-22 mm (standard range) | Custom OD on request |
| Cable length | 1 m to 500 m | Non-standard lengths available |
| Strain relief | Potted entry with bend limiter | Overmoulded boot option |
| Test | 600 psig hydrostatic per assembly | Certificate included |
| Depth rating | 7,000 m | -- |
| IP rating | IP68 | -- |
Email: sales@rovcable.com | www.rovconnector.com
Specify: connector type and contact count, cable jacket material, cable OD (or conductor spec), cable length, and which end (or both ends) requires a connector. We will confirm with a drawing before production.

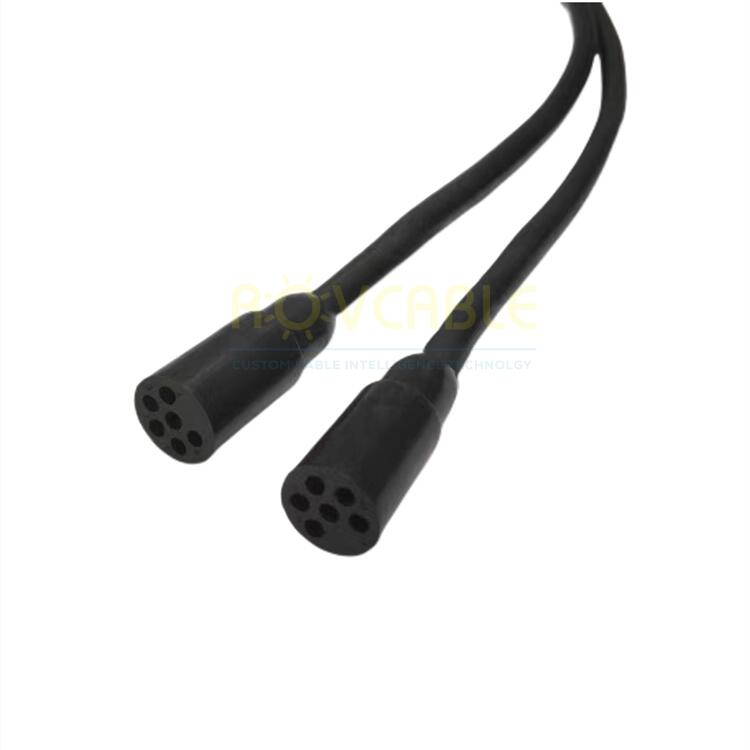

Yes. We supply single-ended (connector one end, free wires other end), double-ended (connector both ends), and extension cables (connector both ends, same gender). Specify your requirement when ordering.
