RMK5F RMK5M 5-pin subsea underwater connector for ROV and AUV cable assemblies. IP68, stainless steel. Contact sales@rovcable.com.

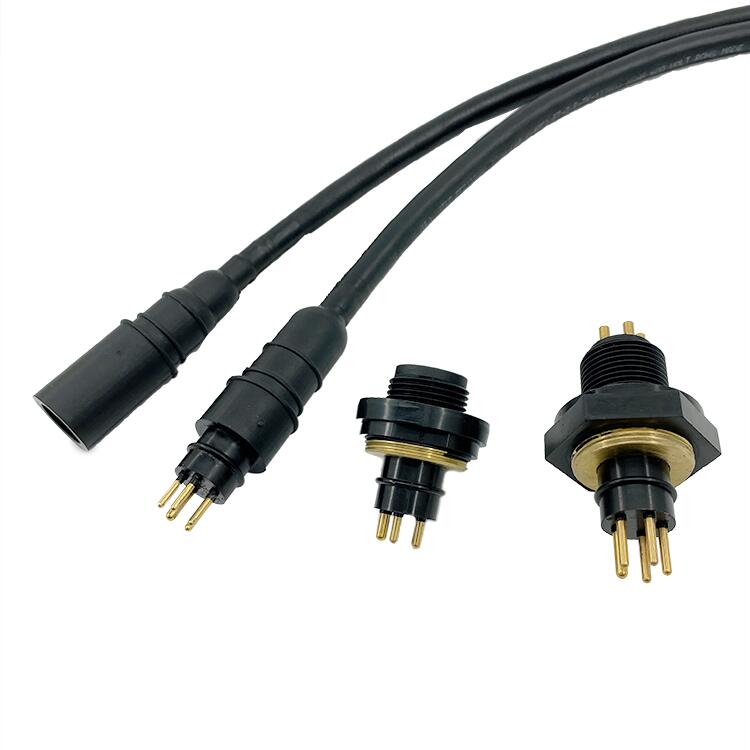

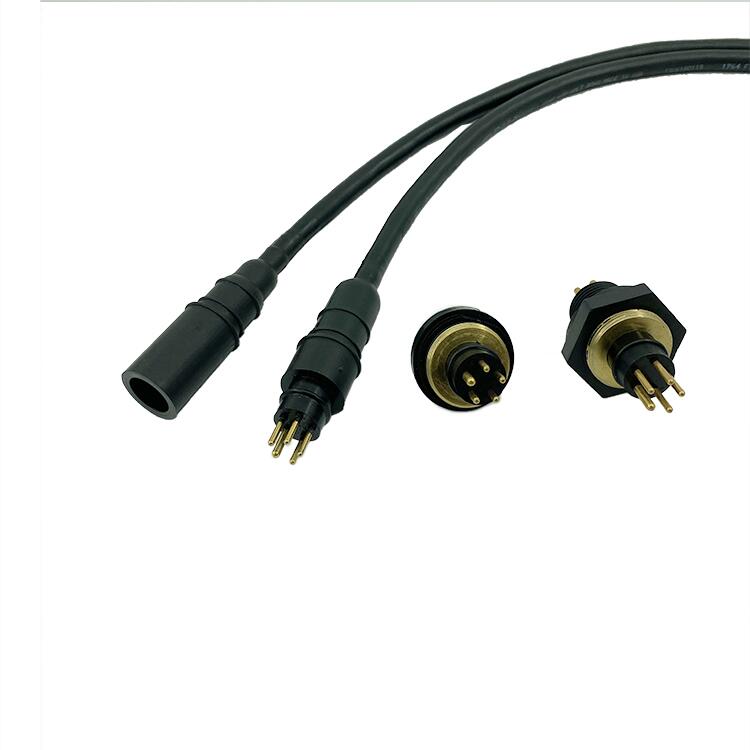

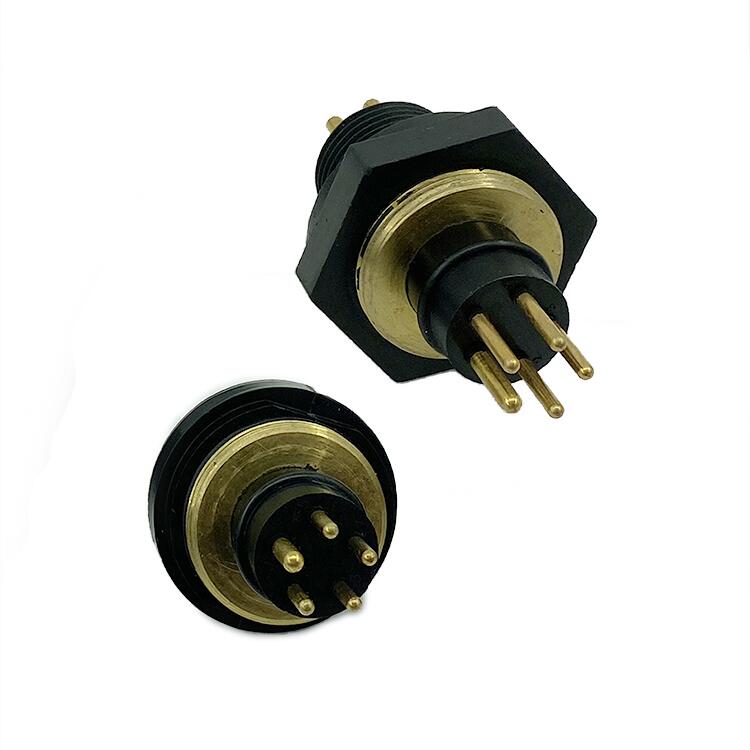

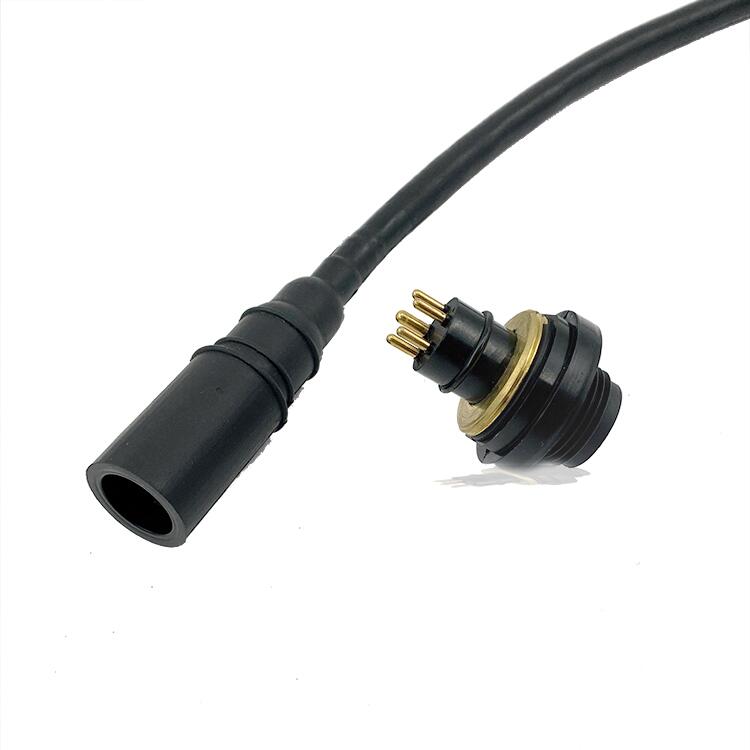

The RMK5M (male) and RMK5F (female) are 5-pin subsea underwater connectors from Shanghai Kabel Intelligence Technology Co., Ltd's RMK Series. Providing 5 independent circuits in an IP68-rated stainless steel body, the RMK5 series is designed for ROV and AUV cable assemblies requiring additional circuits beyond the 4-pin RMG4 -- typically used for 3-phase power + 2 control signals, or 5-channel sensor arrays.
| Parameter | Value |
|---|---|
| Models | RMK5M (Male) / RMK5F (Female) |
| Pin Count | 5 |
| IP Rating | IP68 |
| Contact Material | Gold-plated Beryllium Copper |
| Housing Material | 316L Stainless Steel |
| Current Rating | Up to 20 A per contact |
| Voltage Rating | Up to 600 V DC/AC |
| Sealing | Double O-ring + polyurethane boot |
| Operating Depth | 300 m standard; custom available |
| Locking | Bayonet |
| Mating Cycles | ≥500 |
Order RMK5M/RMK5F pairs or cable assemblies: sales@rovcable.com
The RMG series covers 2, 3, and 4-pin configurations. The RMK series extends to 5-pin (and higher) configurations where additional circuits are needed. Both series share compatible locking mechanisms and sealing standards.
No -- RMK5M and RMK5F connectors are only compatible with each other. They cannot be mated with RMG series connectors. Ensure both ends of a cable assembly use matching RMK5 connectors.
Custom pressure-rated versions of the RMK5 are available up to 3000 m, with titanium housing and additional sealing layers. Hydrostatic test certification is provided with each deep-rated unit.
RMG and RMK series is designed to connect underwater systems and Instrumentation.
We always have RMG-2mp, RMG-2fs,RMG-3mp, RMG-3fs,RMG-4mp, RMG-4fs,RMK-5mp, RMK-5fs and related locking sleeves at the stock.
Application
RMG and RMK series are used for the Helmets and diver umbilical. Underwater Cameras, Lighting systems and Instrumentation.
