RMG Series 2-Pin Subsea Cable Connector -- RMG2M / RMG2F

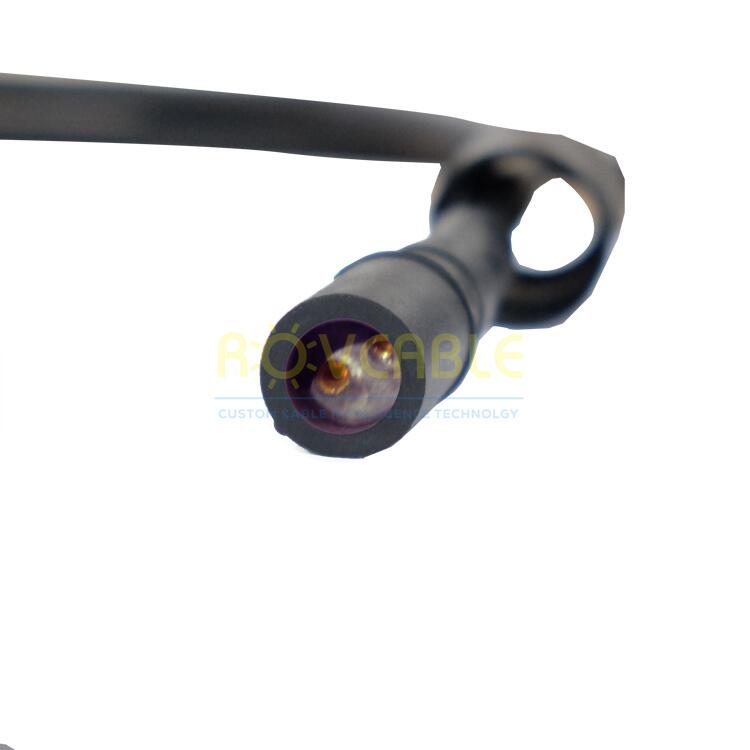

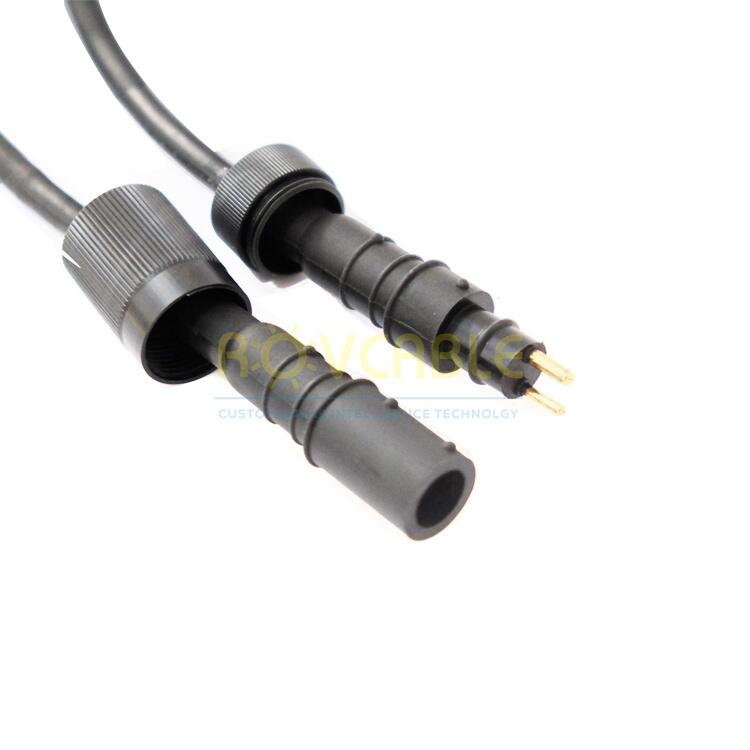

The RMG2M (male) and RMG2F (female) are the simplest and most compact members of the RMG Series from Shanghai Kabel Intelligence Technology Co., Ltd. Providing 2 contacts for DC power, single-phase AC, or basic signal circuits, they offer the smallest form factor in the series while maintaining IP68 sealing and the same gold-plated contact quality as larger RMG variants.

Key Specifications

Applications

• ROV battery and DC power circuit connections
• Single-phase AC subsea equipment feeds
• Subsea sensor 2-wire signal lines
• Underwater LED lighting power
• Cathodic protection cable connectors

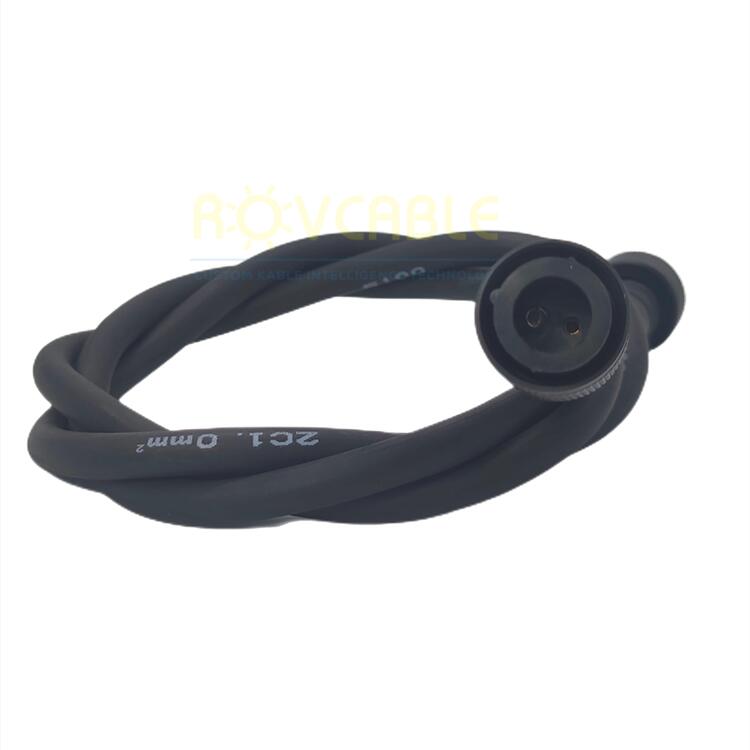

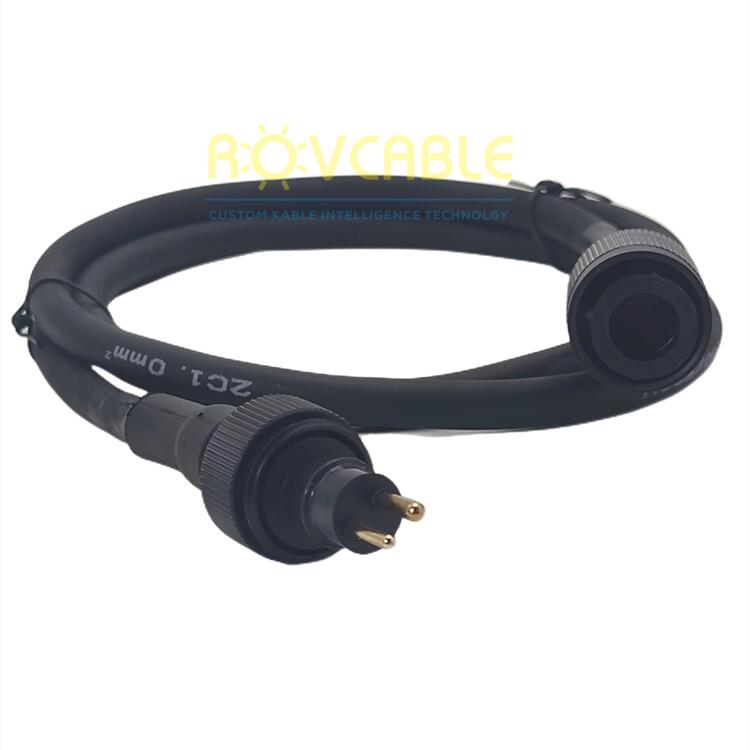

Order RMG2M/RMG2F matched pairs or cable assemblies: sales@rovcable.com

Frequently Asked Questions

Can the 2-pin RMG handle high current?

Yes -- each of the 2 contacts is rated to 25 A, giving a per-connector capacity of 25 A per pole. For higher current (50 A+), consider the 1-contact high-power series or contact us for larger-diameter pin options.

Is the RMG2 polarised to prevent reverse connection?

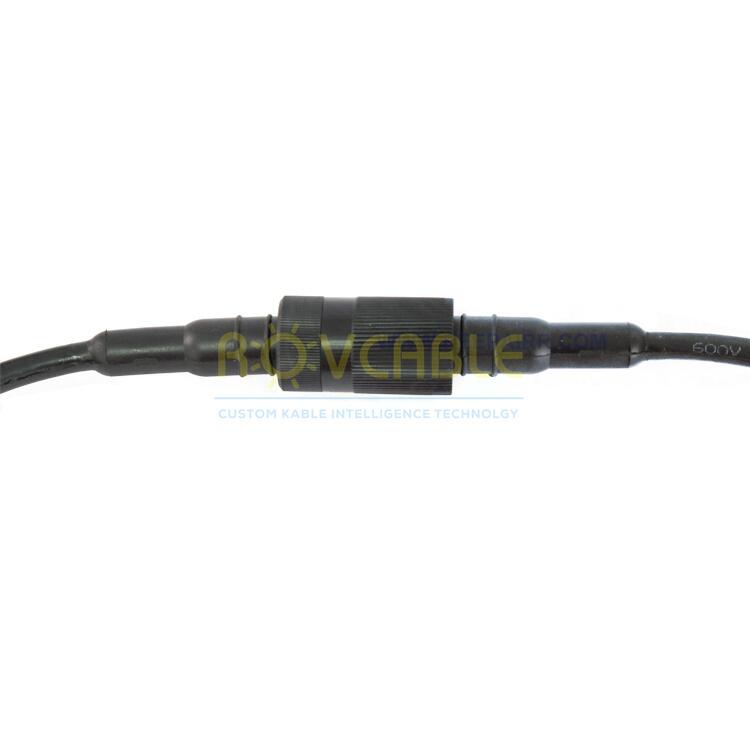

The RMG2 uses a keyed bayonet locking mechanism that provides 2-position polarisation. Positive and negative poles are clearly marked. Custom keying for applications with multiple connectors in proximity is available.

What cable outer diameter does the RMG2 accept?

The standard boot seal accepts cable OD from 5 mm to 12 mm. Larger boot seal options for cable OD up to 20 mm are available on request.

RMG and RMK series is designed to connect underwater systems and Instrumentation.

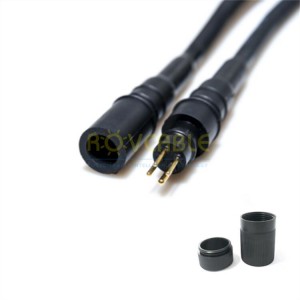

We always have RMG-2mp, RMG-2fs,RMG-3mp, RMG-3fs,RMG-4mp, RMG-4fs,RMK-5mp, RMK-5fs and related locking sleeves at the stock.

Application

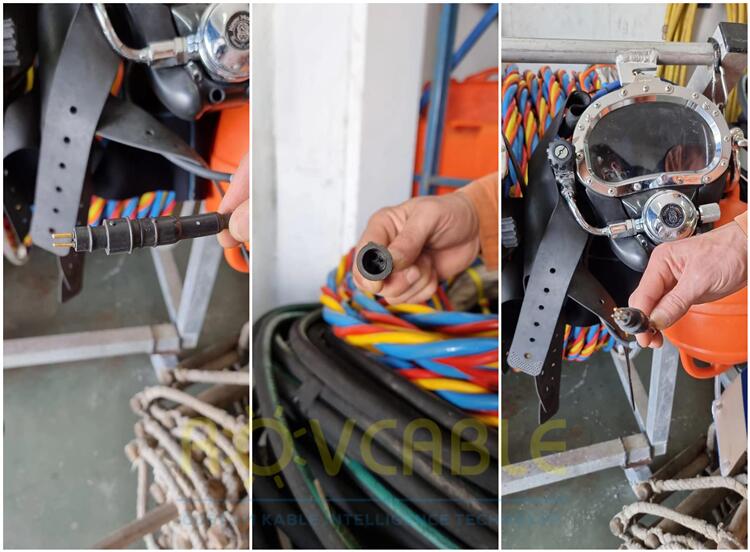

RMG and RMK series are used for the Helmets and diver umbilical. Underwater Cameras, Lighting systems and Instrumentation.

Specifications

• Material: Molded Rubber
• Contacts: Gold Plated Brass
• Voltage Rating: 600 VDC
• Pressure Rating: up to 20,000 PSI

Applications

• RMG-RMK compatible subsea connector systems requiring proven industry interchangeability
• ROV tooling and manipulator connector interfaces for subsea intervention
• Subsea distribution systems requiring standardized RMG-pattern connectors
• Offshore ROV systems needing robust and proven wet-mate connection solutions
• Replacement and upgrade of existing RMG-based subsea connector installations

Customization Options

• Custom cable assemblies moulded directly to RMG-RMK connector terminations
• Alternative shell materials and plating options for enhanced corrosion resistance
• Customer-specified pin configurations and contact arrangements available
• Certified pressure testing to specification with interchangeability verification
