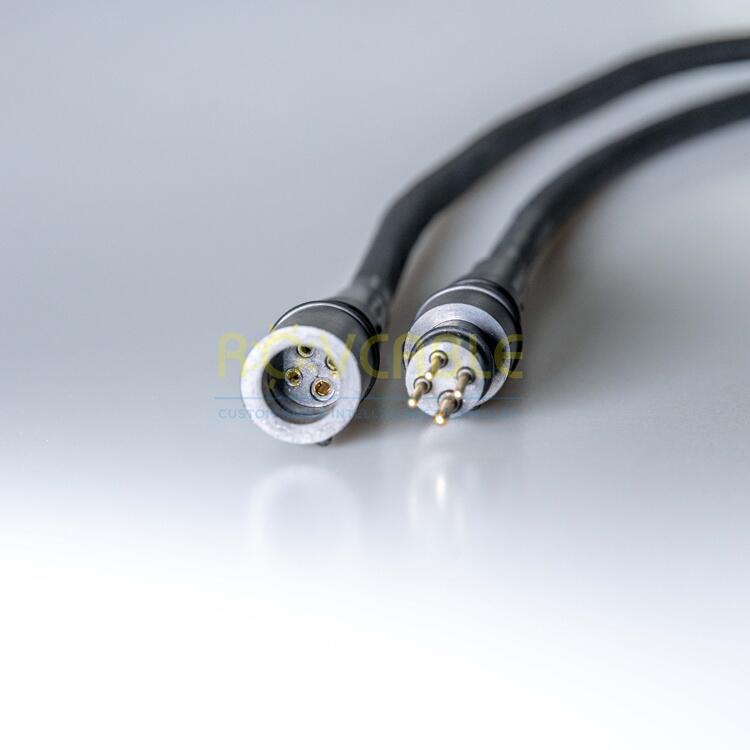

RMG Series 4-Pin Subsea Cable Connector -- RMG4M / RMG4F
The RMG4M (male) and RMG4F (female) are the 4-pin variants of the RMG Series from Shanghai Kabel Intelligence Technology Co., Ltd. The 4-pin configuration is the most popular in the RMG Series, providing balanced coverage for 4-circuit power, signal, and mixed-use subsea cable assemblies. IP68 rated, with gold-plated contacts and a 316L stainless steel body, they are built for ROV and AUV inline cable connections.
Key Specifications
|
Parameter
|
Value
|
|
Models
|
RMG4M (Male) / RMG4F (Female)
|
|
Pin Count
|
4
|
|
IP Rating
|
IP68
|
|
Contact Material
|
Gold-plated Beryllium Copper
|
|
Housing Material
|
316L Stainless Steel
|
|
Sealing
|
Double O-ring + polyurethane boot
|
|
Current Rating
|
Up to 25 A per contact
|
|
Voltage Rating
|
Up to 600 V DC/AC
|
|
Operating Depth
|
300 m standard; custom available
|
|
Mating Cycles
|
≥500
|
|
Locking
|
Bayonet / Threaded (specify)
|
Applications
-
ROV 4-circuit power and signal umbilical splices
-
AUV motor controller power connections
-
Subsea 4-wire sensor cables
-
Underwater lighting with dimmer control circuits
-
Subsea instrumentation 4-channel connections
Order RMG4M/RMG4F pairs or full cable assemblies: sales@rovcable.com
Frequently Asked Questions
Why is the 4-pin RMG the most common configuration?
Four circuits covers the most common requirements: 2 power + 2 signal, 3-phase + neutral, or 4-circuit sensor. This versatility makes the RMG4 the default choice for most ROV auxiliary connections.
What is the locking mechanism?
The standard RMG4 uses a bayonet locking mechanism for fast one-quarter-turn connection and disconnection. A threaded (screw-lock) variant for vibration-prone installations is available on request.
Can a cable assembly be pre-tested before delivery?
Yes -- all RMG4M/RMG4F cable assemblies undergo IP68 immersion testing and continuity/isolation testing before delivery. Test reports are available on request.
RMG series 3 pin Male and Female Subsea Cable connectors RMG3F RMG3M
Published on:2022-05-03 Click:3

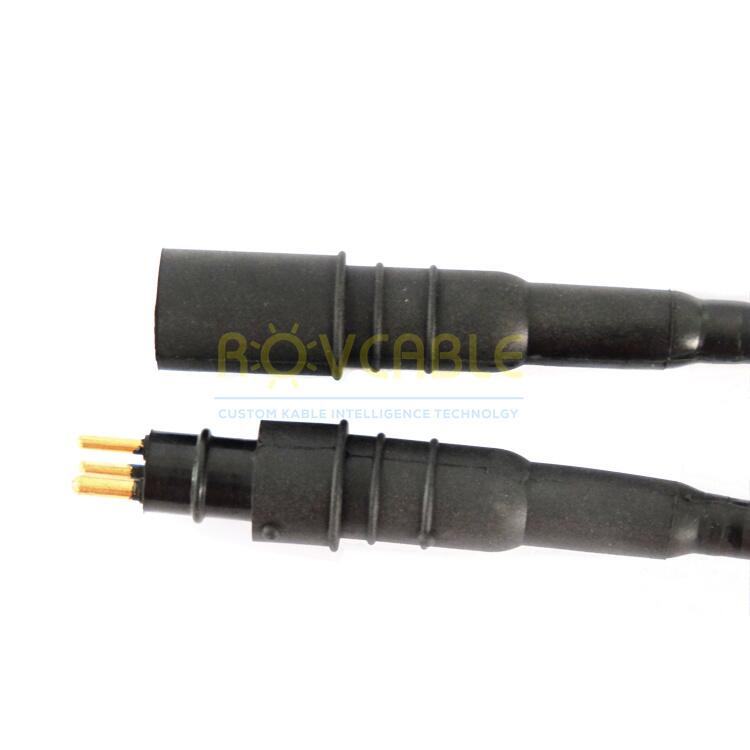

RMG series 3 pin Male and Female Subsea Cable connectors RMG3F RMG3M
Product introduction
RMG and RMK series is designed to connect underwater systems and Instrumentation.

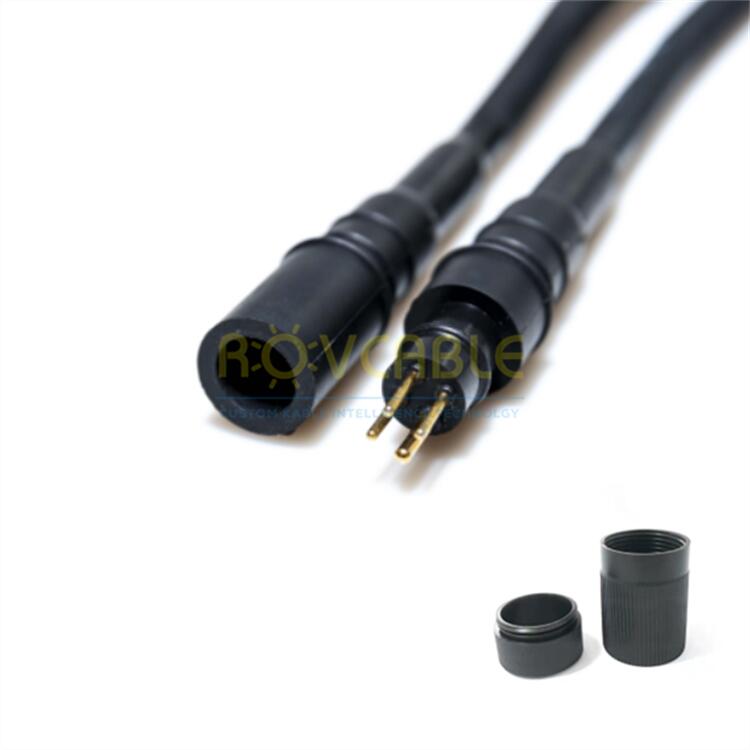

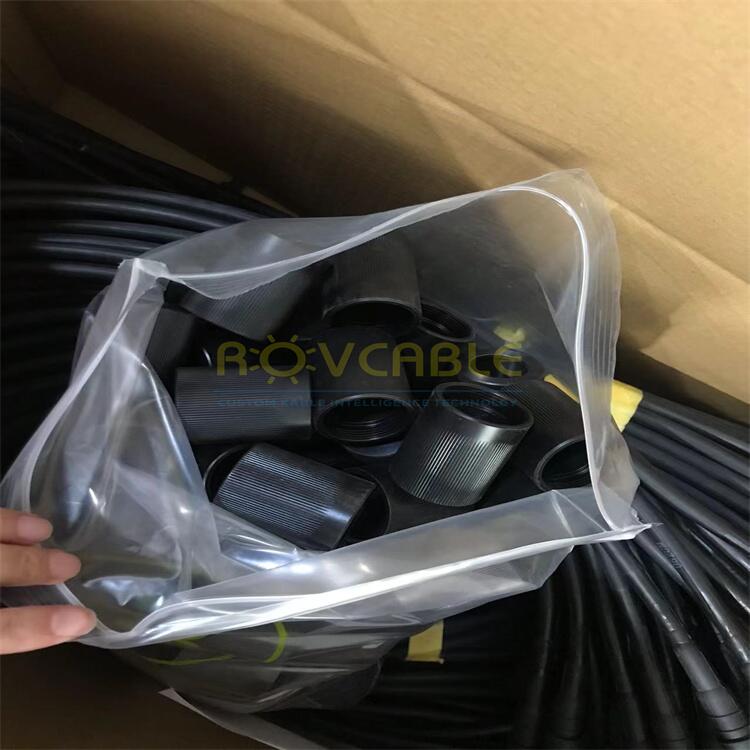

We always have RMG-2mp, RMG-2fs,RMG-3mp, RMG-3fs,RMG-4mp, RMG-4fs,RMK-5mp, RMK-5fs and related locking sleeves at the stock.
Application
RMG and RMK series are used for the Helmets and diver umbilical. Underwater Cameras, Lighting systems and Instrumentation.
Specifications
-
Material: Molded Rubber
-
Contacts: Gold Plated Brass
-
Voltage Rating: 600 VDC
-
Pressure Rating: up to 20,000 PSI
-
Applications
-
RMG-RMK compatible subsea connector systems requiring proven industry interchangeability
-
ROV tooling and manipulator connector interfaces for subsea intervention
-
Subsea distribution systems requiring standardized RMG-pattern connectors
-
Offshore ROV systems needing robust and proven wet-mate connection solutions
-
Replacement and upgrade of existing RMG-based subsea connector installations
Customization Options
-
Custom cable assemblies moulded directly to RMG-RMK connector terminations
-
Alternative shell materials and plating options for enhanced corrosion resistance
-
Customer-specified pin configurations and contact arrangements available
-
Certified pressure testing to specification with interchangeability verification
