Shanghai Kabel Intelligence Technology Co., Ltd MCBH2F bulkhead female and MCIL2M in-line male 2-pin micro circular underwater connectors. IP68, 7000m depth. SubConn MCBH2/MCIL2 compatible. Marine subsea power and signal.

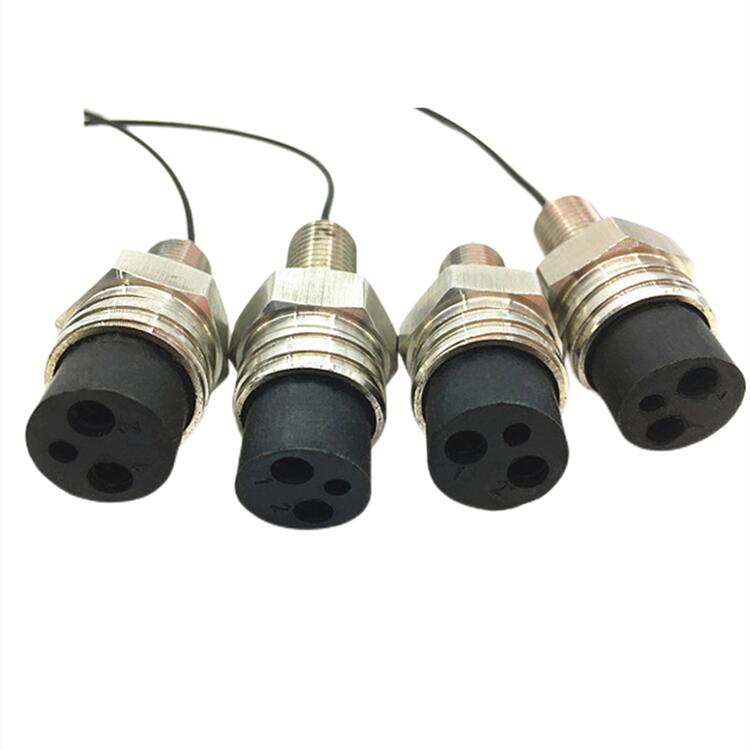

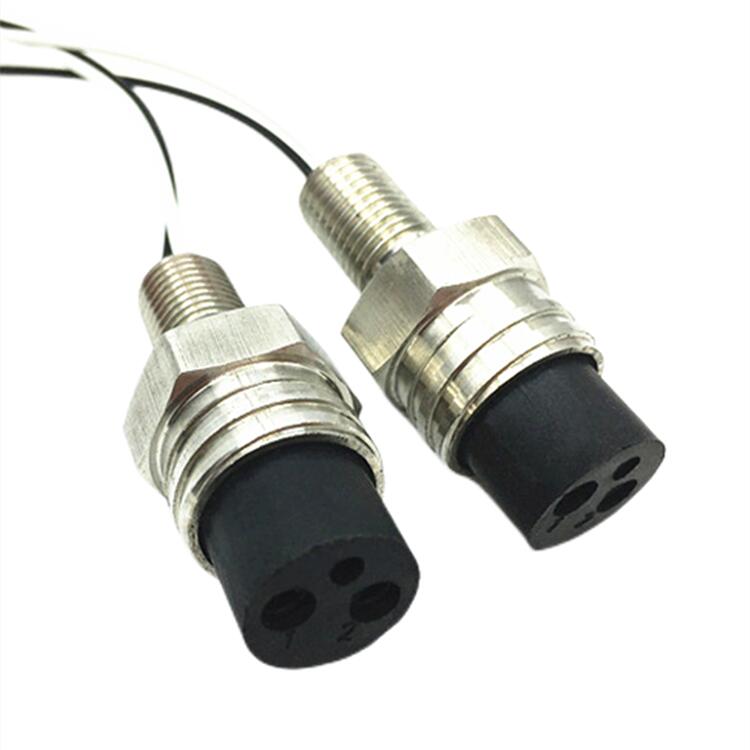

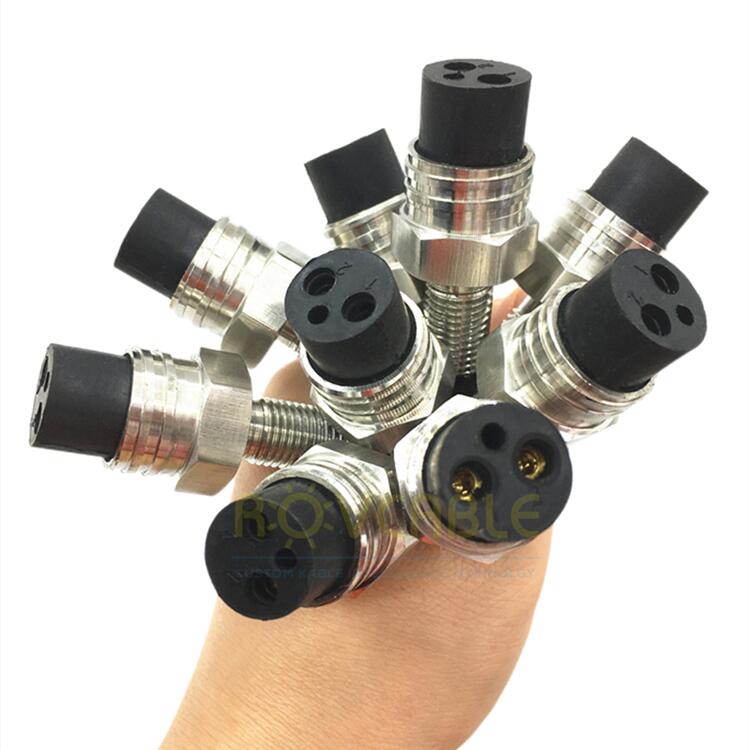

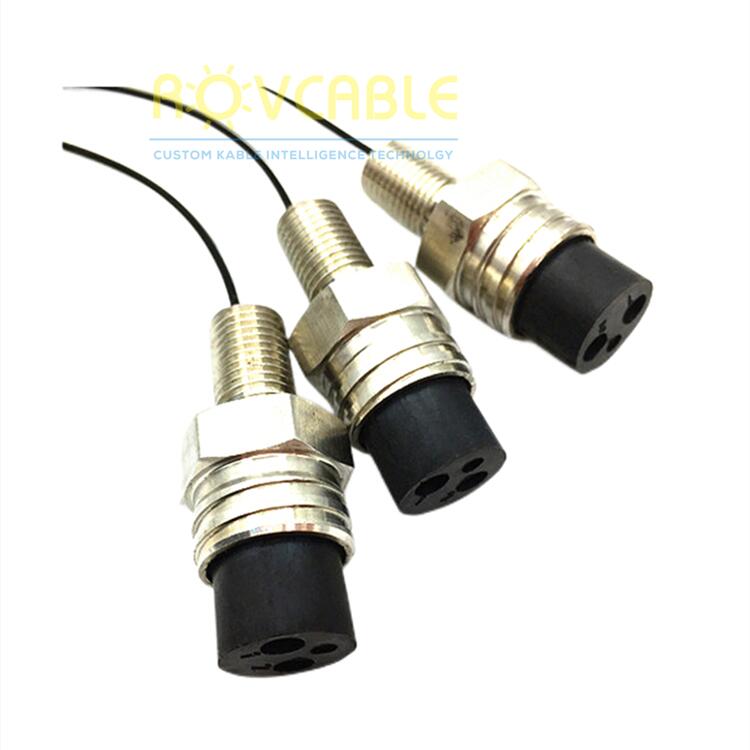

Shanghai Kabel Intelligence Technology Co., Ltd supplies MCBH2F (2-pin bulkhead female) and complementary MCIL2M (in-line male) underwater wet-mateable connectors for marine and subsea power and signal circuits. The 2-pin format is the most compact and lightest connector in the Micro Circular platform -- optimised for dedicated single-circuit applications where only one positive and one return conductor are required.
Rated to 7,000 m depth, IP68, SubConn® MCBH2/MCIL2 compatible. Can also be configured with IP69K sealing for pressure-wash applications.
| Parameter | MCBH2F Specification |
|---|---|
| Type | Bulkhead female (socket contacts) |
| Contact count | 2 |
| Mating connector | MCIL2M (in-line male) |
| Depth rating | 7,000 m |
| IP rating | IP68 (IP69K option) |
| Voltage rating | 600 V AC/DC |
| Current per contact | 10 A |
| Shell material | Anodized aluminium / SS 316 / Titanium |
| Insulator | PEEK |
| Contacts | Gold-plated copper alloy |
| Sealing | Dual O-ring + face seal |
| Hydrostatic test | 600 psig, certificate supplied |
| Compatibility | SubConn MCBH2F / MCIL2M |
| Part Number | Type | Gender | Shell Options |
|---|---|---|---|
| MCBH2M | Bulkhead | Male (pins) | Al / SS / Ti |
| MCBH2F | Bulkhead | Female (sockets) | Al / SS / Ti |
| MCIL2M | In-Line | Male (pins) | Al / SS / Ti |
| MCIL2F | In-Line | Female (sockets) | Al / SS / Ti |
| MCBHRA2M | Right-Angle Bulkhead | Male (pins) | Al / Ti |
| MCDC2F | Dummy Cap | -- | Al |
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Yes. Shanghai Kabel MCBH2F mates directly with OEM SubConn MCIL2M -- identical mating interface, no modification required.
Yes. The connector is rated at 600 V AC/DC, so 48 V DC is well within its electrical rating.
Dummy caps (MCDC2F) are available separately. We recommend ordering one dummy cap per installed bulkhead to protect unmated receptacles between operational dives. Specify quantity when ordering.
MCBH2F has socket (female) contacts -- it accepts pin contacts from MCIL2M. MCBH2M has pin contacts -- it mates with socket contacts in MCIL2F. The F/M designation refers to the contact type, not the housing.
