Published on:2026-05-24 Click:20
Shanghai Kabel Intelligence Technology Co., Ltd deep sea stainless steel (316L) micro circular underwater connectors in 2-12 contacts, male and female. IP68+IP69K, 7000m depth. For long-term, tropical, and corrosion-critical deployments.

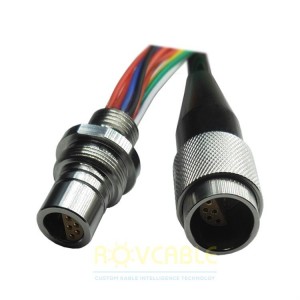

Shanghai Kabel Intelligence Technology Co., Ltd supplies a dedicated deep sea stainless steel variant of the Micro Circular underwater connector platform -- male and female, bulkhead and in-line, in 2 to 12 contact counts. The stainless steel (316L, electropolished) shell is specified for the most demanding subsea environments: full ocean depth deployments, extended long-term mooring campaigns, tropical and biologically active seawater zones, and mixed-metal ROV frames where galvanic corrosion is a primary design risk.
Rated to 7,000 m depth, IP68 sealed, SubConn® Micro Circular compatible.
| Property | Anodized Aluminium | 316L Stainless Steel | Titanium Grade 5 |
|---|---|---|---|
| Seawater corrosion resistance | Good | Excellent | Outstanding |
| Galvanic compatibility | Risk with titanium/SS frames | Good with steel frames | Best (noble metal) |
| Long-term deployment (>12 months) | Monitor | Recommended | Best |
| Weight vs aluminium | 1x (reference) | ~2.8x heavier | ~1.7x heavier |
| Cost | Standard | +20-30% | +50-80% |

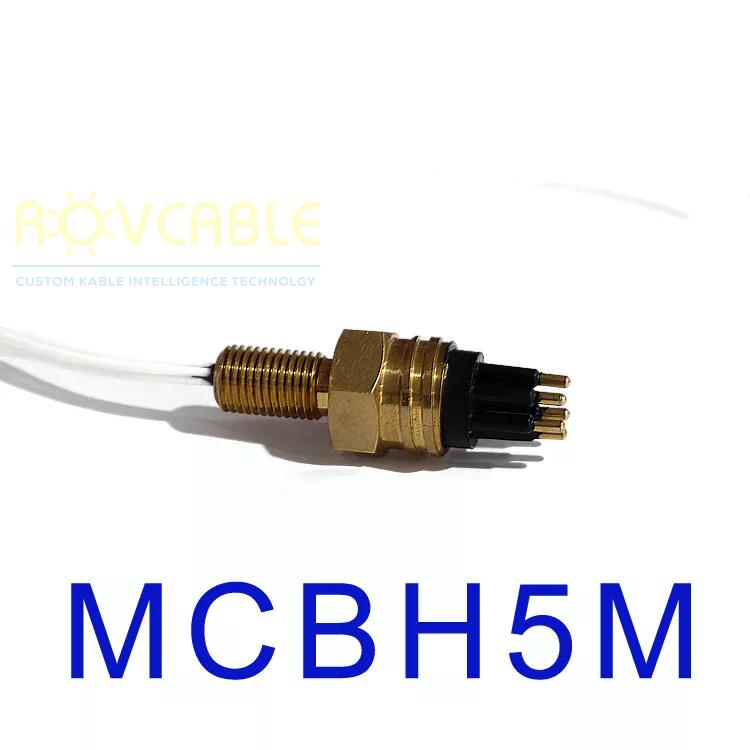

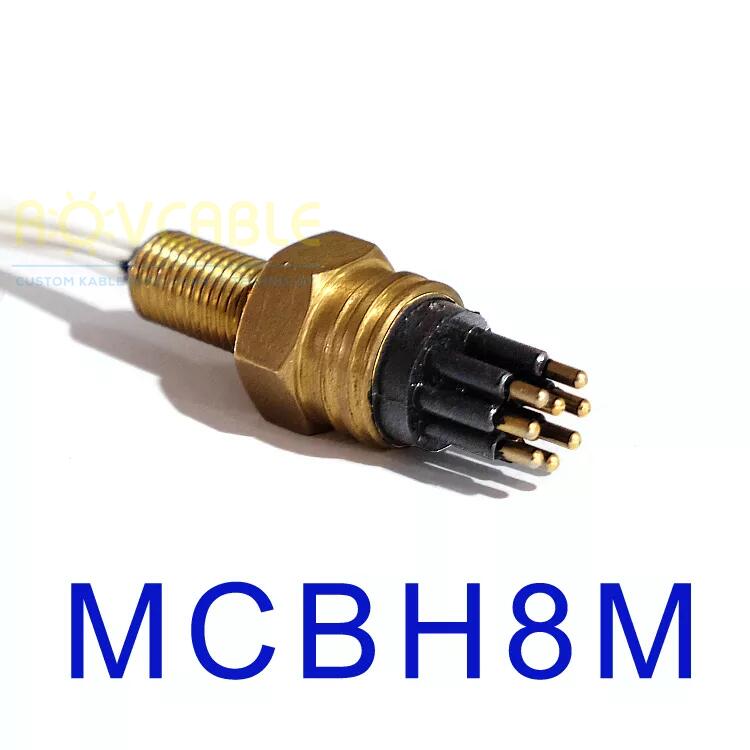

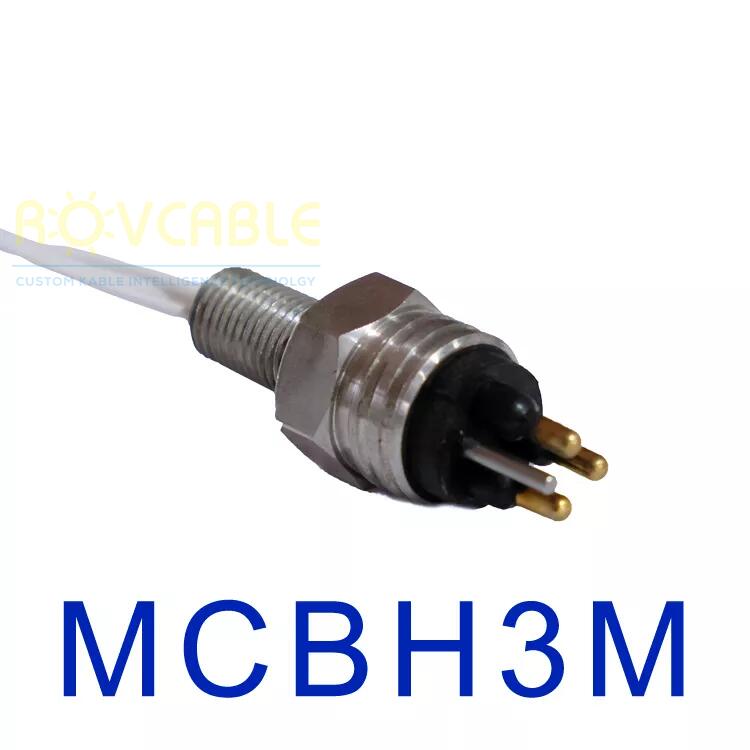

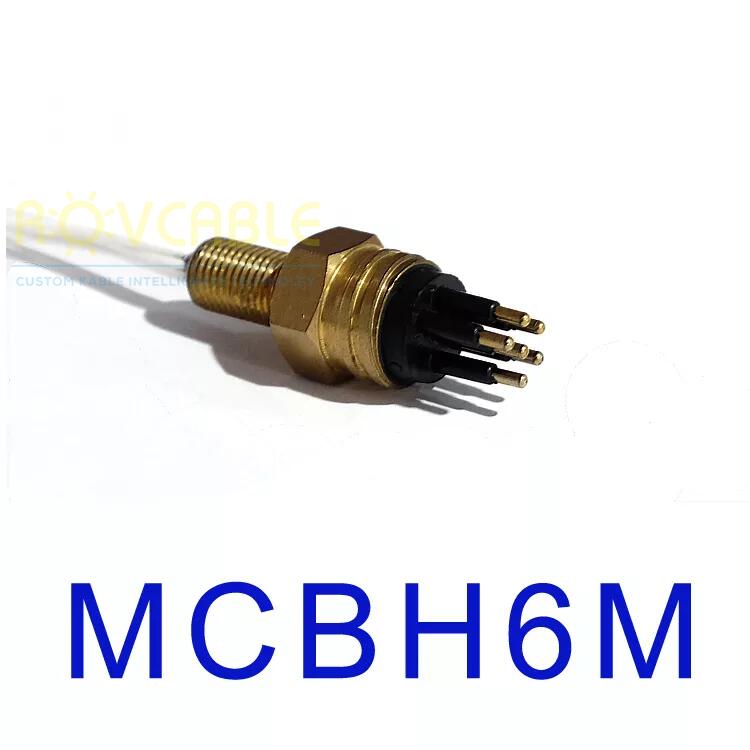

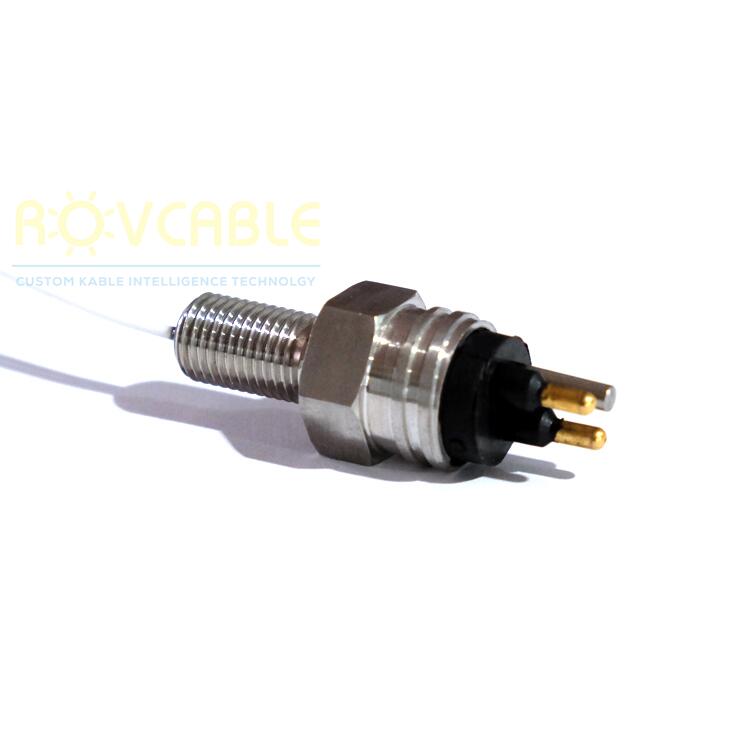

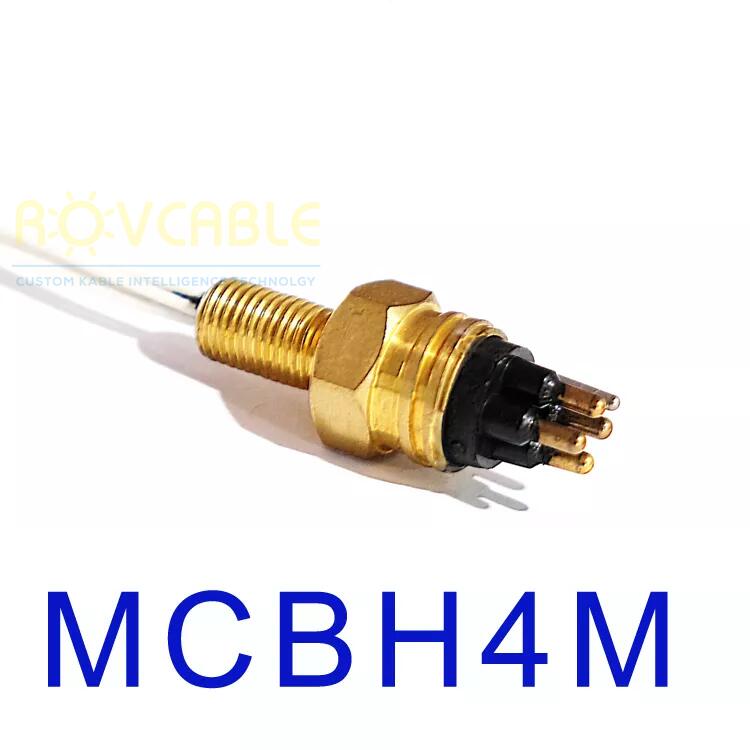

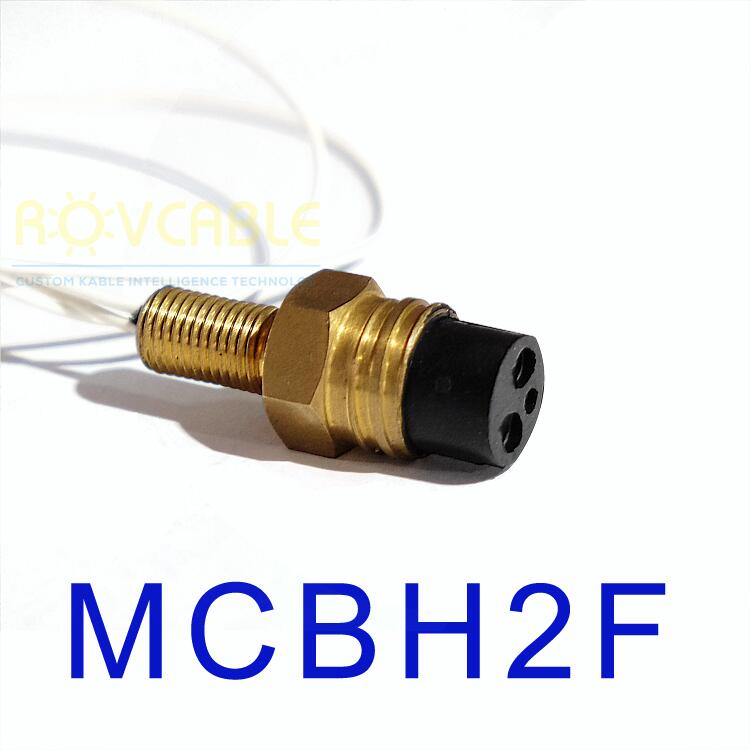

| Contact Count | Bulkhead Male | Bulkhead Female | In-Line Male | In-Line Female |
|---|---|---|---|---|
| 2 | MCBH2M-SS | MCBH2F-SS | MCIL2M-SS | MCIL2F-SS |
| 3 | MCBH3M-SS | MCBH3F-SS | MCIL3M-SS | MCIL3F-SS |
| 4 | MCBH4M-SS | MCBH4F-SS | MCIL4M-SS | MCIL4F-SS |
| 5 | MCBH5M-SS | MCBH5F-SS | MCIL5M-SS | MCIL5F-SS |
| 6 | MCBH6M-SS | MCBH6F-SS | MCIL6M-SS | MCIL6F-SS |
| 8 | MCBH8M-SS | MCBH8F-SS | MCIL8M-SS | MCIL8F-SS |
| 10 | MCBH10M-SS | MCBH10F-SS | MCIL10M-SS | MCIL10F-SS |
| 12 | MCBH12M-SS | MCBH12F-SS | MCIL12M-SS | MCIL12F-SS |
All stainless steel shells are electropolished and passivated to maximize corrosion resistance. Threaded mating surfaces are treated to minimize thread galling -- a common failure mode when stainless steel threads are torqued repeatedly in seawater. An anti-galling compound is available on request for long-term deepwater deployments.
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Yes. The stainless steel shell does not change the contact face or thread geometry. MCBH-SS mates with any MCIL of matching contact count, regardless of shell material.
Electropolishing removes surface irregularities and contamination from the stainless steel surface, creating a chromium-oxide passive layer that dramatically improves corrosion resistance -- especially important in high-salinity and biologically active seawater.
Yes. FKM (Viton) O-rings are available as an upgrade option for applications involving elevated temperature seawater or exposure to hydraulic fluids and oils. Specify when ordering.
Most contact counts (2-8) ship within 2-3 weeks. 10 and 12-contact may require 3-4 weeks. Contact sales@rovcable.com for current stock status.
