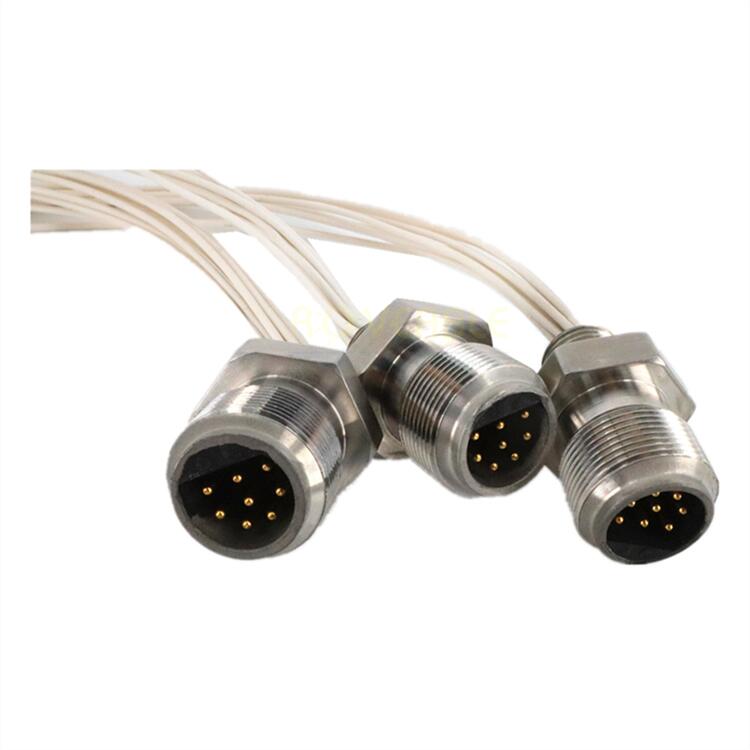

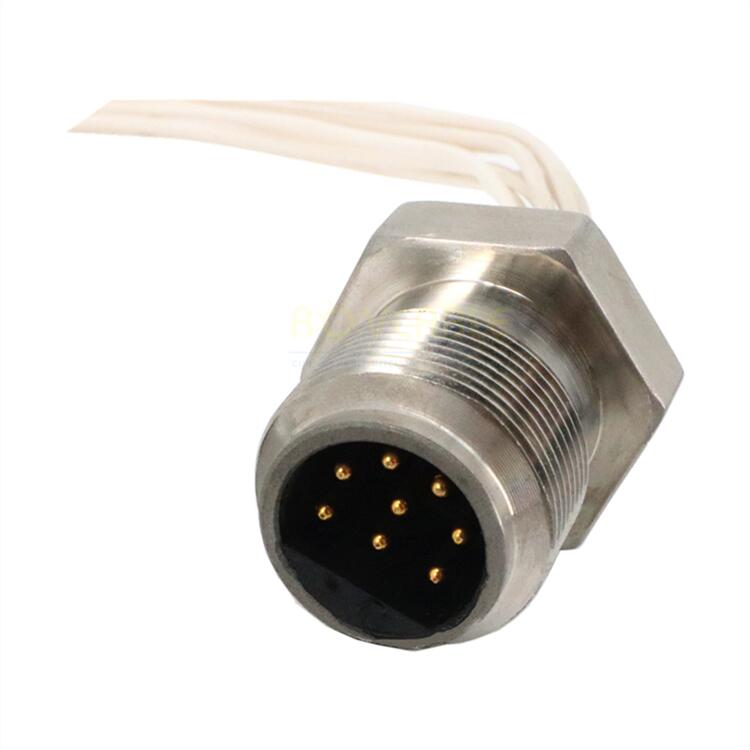

Model Number:
|

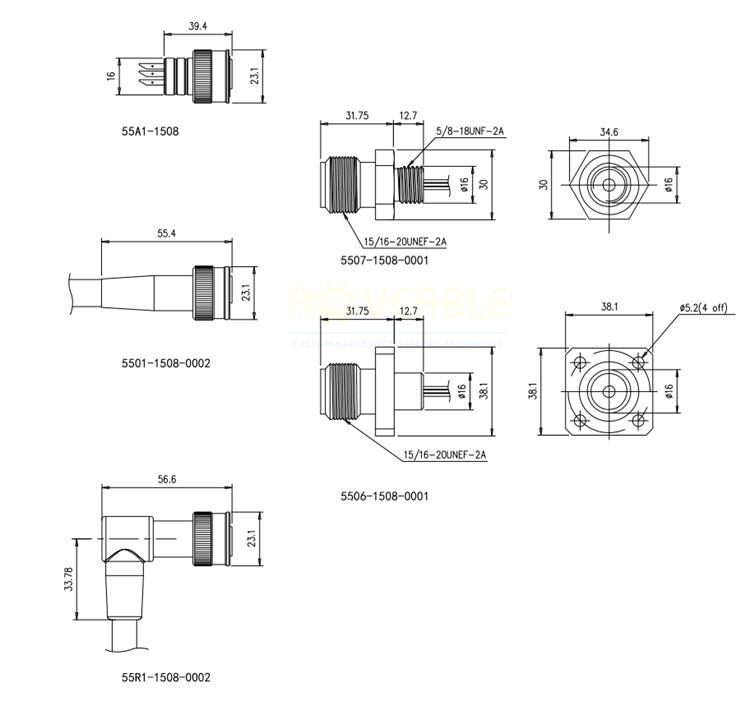

5507-1508-0001
|
|
Voltage rating
|
400 V AC rms
|
|
DC rating
|
85% of above AC rating
|
|
6 and 8 contacts current rating
|
5 A per contact (max 20 A per connector)
|
|
Insulation resistance
|
> 200 Mohm
|
|
Contact resistance
|
< 0.01 ohm
|
|
Wet matings
|
> 500
|
|
Temperature rating (water)
|
- 4 to 90˚C, 25 to 194˚F
|
|
Temperature rating (air)
|
- 40 to 90˚C, - 40 to 194˚F
|
|
Storage temperature rating
|
- 40 to 90˚C, - 40 to 194˚F
|
|
Depth rating
|
10,000 PSI (Approx. 689 Bar)
|
|
Connector body
|
Chloroprene rubber
|
|
Bulkhead body
|
stainless steel, titanium
|
|
5, 6, 8 contacts
|
Female sockets in gold plated brass - UNS C36000
Male pins in gold plated beryllium copper
|
|
Location pin:
|
Stainless steel AISI 316
|
