Metal Shell 1500 Series -- 2 3 4 5 6 10 Contact Underwater Connector

Name: Metal Shell 1500 Series Underwater Connector (2/3/4/5/6/10 Contacts)
Brand: Shanghai Kabel Intelligence Technology Co., Ltd
Availability: InStock

Published on:2026-05-24 Click:35

Metal Shell 1500 Series -- 2 3 4 5 6 10 Contact Underwater Connector

Metal Shell 1500 underwater connectors in 2, 3, 4, 5, 6, and 10-contact versions. IP68, stainless steel. Contact sales@rovcable.com.

E-mail: sales@rovcable.com

Website: http://www.rovconnector.com

Product introduction

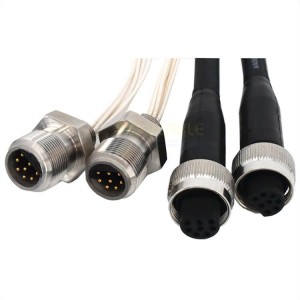

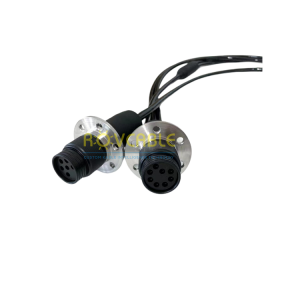

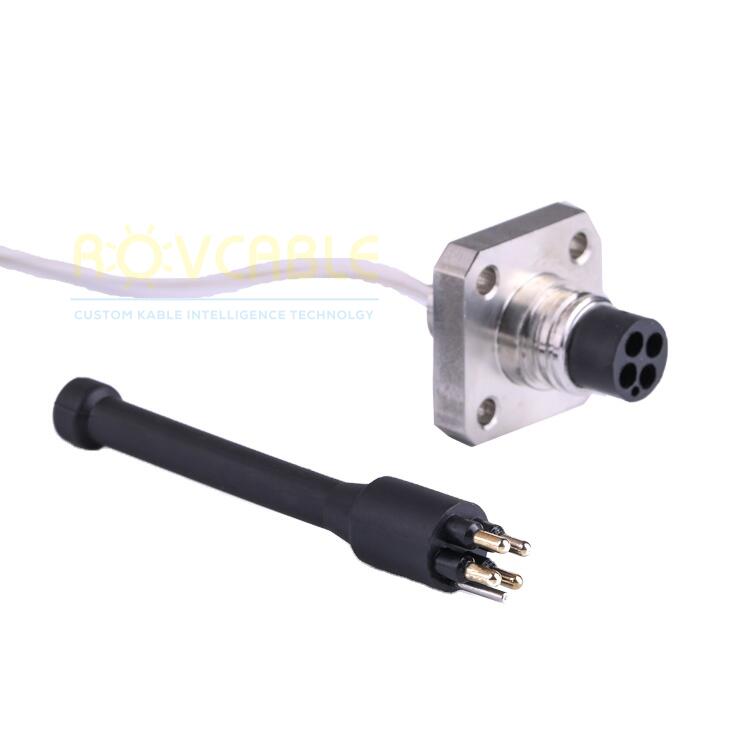

Metal Shell 1500 Series Underwater Connector -- 2 to 10 Contacts

This listing covers the extended range of Metal Shell 1500 series connectors from Shanghai Kabel Intelligence Technology Co., Ltd, including the 10-contact variant for higher pin count requirements. All share the same IP68-rated 316L stainless steel shell, gold-plated contacts, and subsea-proven sealing system.

Key Specifications

Parameter	Value
Series	Metal Shell 1500
Contact Count Options	2, 3, 4, 5, 6, 10
IP Rating	IP68
Shell Material	316L Stainless Steel
Contact Material	Gold-plated Beryllium Copper
Current Rating	Up to 20 A per contact
Voltage Rating	Up to 600 V DC/AC
Operating Depth	300 m standard; custom available
Mating Cycles	≥500

Applications

ROV 10-circuit auxiliary control
AUV battery management + sensor interface
Subsea 10-channel monitoring systems
Offshore instrument multi-circuit connections

Specify contact count and order matched pair or cable assembly: sales@rovcable.com

Frequently Asked Questions

When should I choose the 10-contact over 8-contact variant?

The 10-contact variant is recommended when you need 8 signal channels + 2 dedicated power contacts, or a 10-circuit control system in a single connector. It avoids the need for two separate connectors and reduces hull penetration count.

Are all contacts rated equally in the 10-pin version?

Yes -- all 10 contacts in the Metal Shell 1500-10 are rated to 20 A each, providing maximum flexibility for power and signal allocation without pre-defined circuit roles.

What is the depth rating for the 10-contact variant?

Standard is 300 m. Deep-rated versions to 1000 m, 2000 m, and 3000 m are available on request with hydrostatic pressure test certification.

Application

1 Remotely Operated Vehicle (ROV) and AutonomousUnderwater Vehicle (AUV) systems

2Underwater video, cameraandlighting systems

3Diving equipment and systems

4 Sonarsystems

5 Oilrig, offshoreoilandgas,andrenewableenergy systems applications

Oceanographic systems and equipment

Customized Solutions

1 Customers can specify the specification, material and reserved length ofsupporting

wires and cables

2 Customersspecifiedmainmaterialoftheunderwater connector

3 Makesystematictestplanfordifferentapplication environment

Connector specifications and property

1Voltagerating 600V DC/AC

2 Current rating 10A

3 Insulationresistance >200MΩ 4 Contactresistance <0.01Ω

Connector material specification

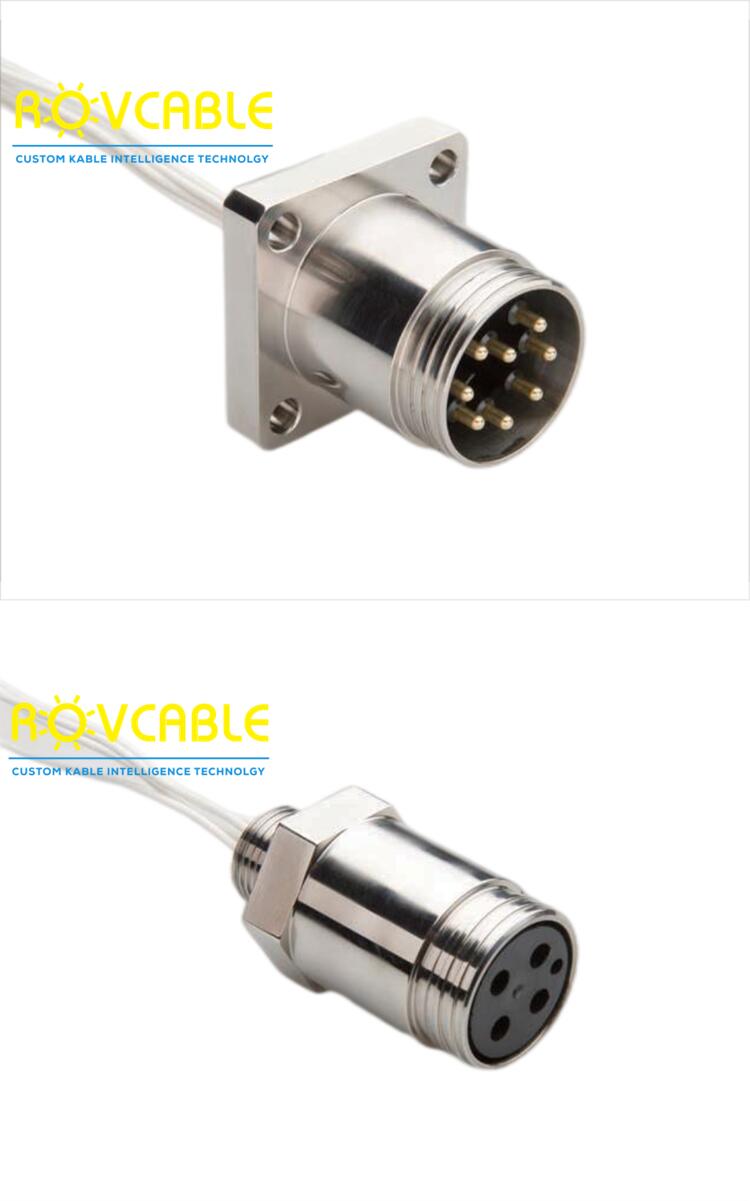

1 Connector housing

SUS316L stainlesssteel / Titanium

2 Pin Gold-plated bras

Applications

Extreme deep-sea environments requiring rugged metal-shell connector protection

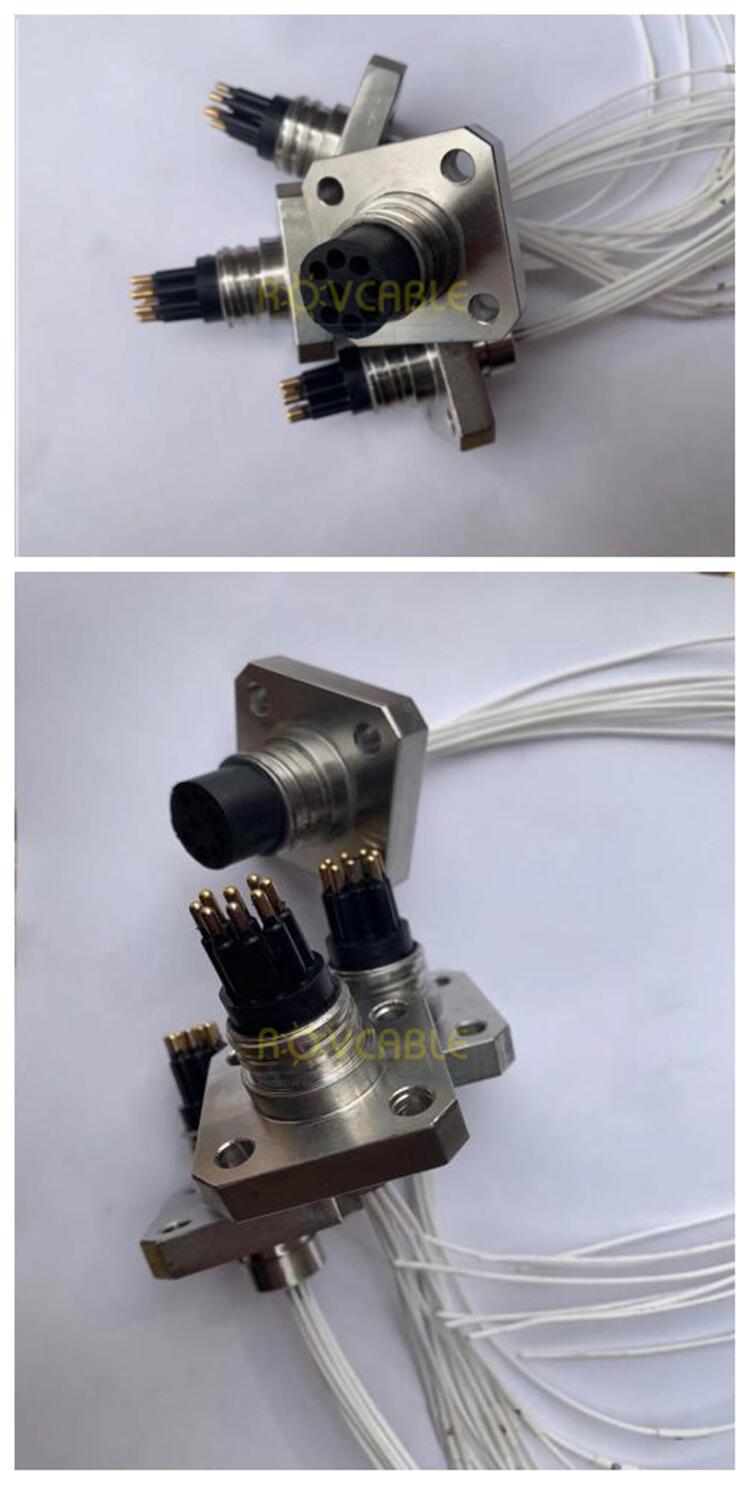

Pressure vessel feed-through and airtight cabin connector applications
Subsea equipment housings where connector structural strength is critical
Offshore drilling and production systems in high-vibration environments
Naval underwater systems requiring MIL-spec grade connector durability

Customization Options

Stainless steel, titanium or specialized alloy shell materials for corrosion resistance

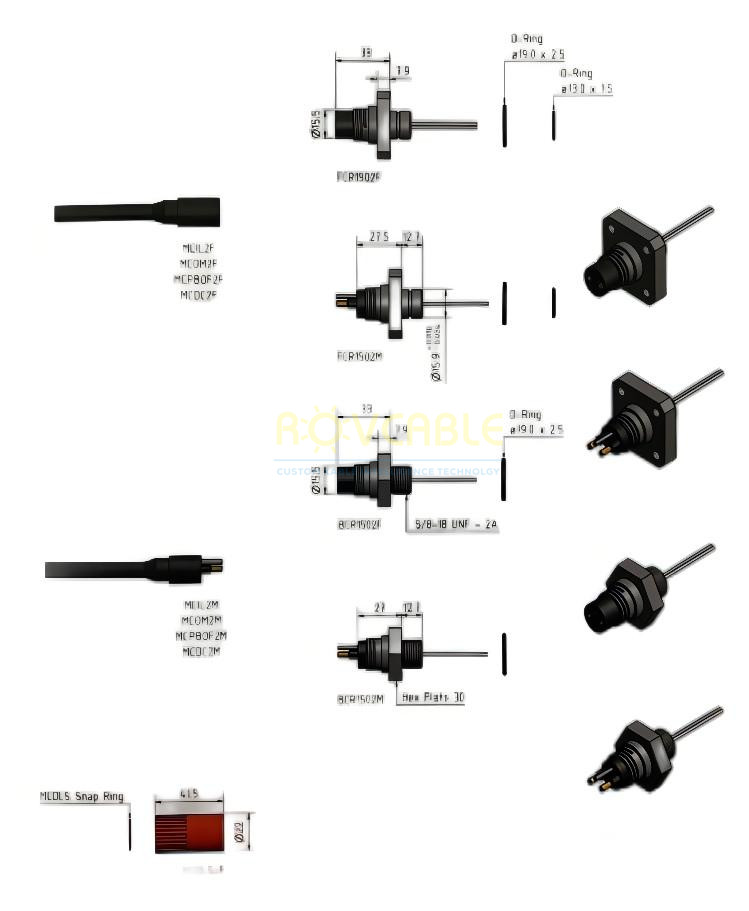

Custom flange mounting patterns and bulkhead sealing configurations
Customer-specified O-ring materials for extreme temperature or chemical exposure
Certified pressure testing to maximum rated depth with material certifications
