Metal Shell 1500 series underwater connectors in 2, 3, 4, 5, 6, and 8-contact configurations. IP68, stainless steel. Contact sales@rovcable.com.
The Metal Shell 1500 series from Shanghai Kabel Intelligence Technology Co., Ltd is a range of robust metal-shelled subsea connectors available in 2, 3, 4, 5, 6, and 8-contact configurations. Each connector features an IP68-rated 316L stainless steel shell, gold-plated beryllium copper contacts, and a proven locking mechanism designed for reliable subsea deployment on ROV, AUV, and industrial underwater systems.
| Parameter | Value |
|---|---|
| Series | Metal Shell 1500 |
| Contact Count Options | 2, 3, 4, 5, 6, 8 |
| IP Rating | IP68 |
| Shell Material | 316L Stainless Steel |
| Contact Material | Gold-plated Beryllium Copper |
| Current Rating | Up to 20 A per contact |
| Voltage Rating | Up to 600 V DC/AC |
| Sealing | Double O-ring + polyurethane boot |
| Operating Depth | 300 m standard; custom available |
| Locking | Threaded / Bayonet |
| Mating Cycles | ≥500 |
Select contact count and order: sales@rovcable.com
Choose the contact count that matches your circuit requirement: for a simple DC power pair, use 2 contacts; for a 3-phase motor, use 3 contacts; for power + signal mixed use, use 4 to 8 contacts depending on circuit count.
The Metal Shell 1500 is our proprietary series and is not directly cross-compatible with SubConn or Burton connectors. However, we offer compatible series on request. Contact us with your mating connector details.

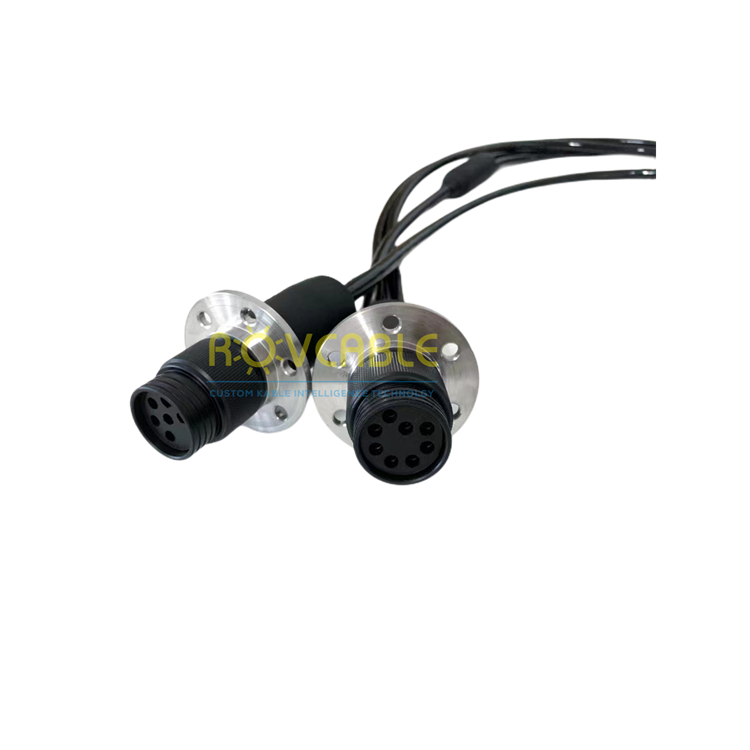

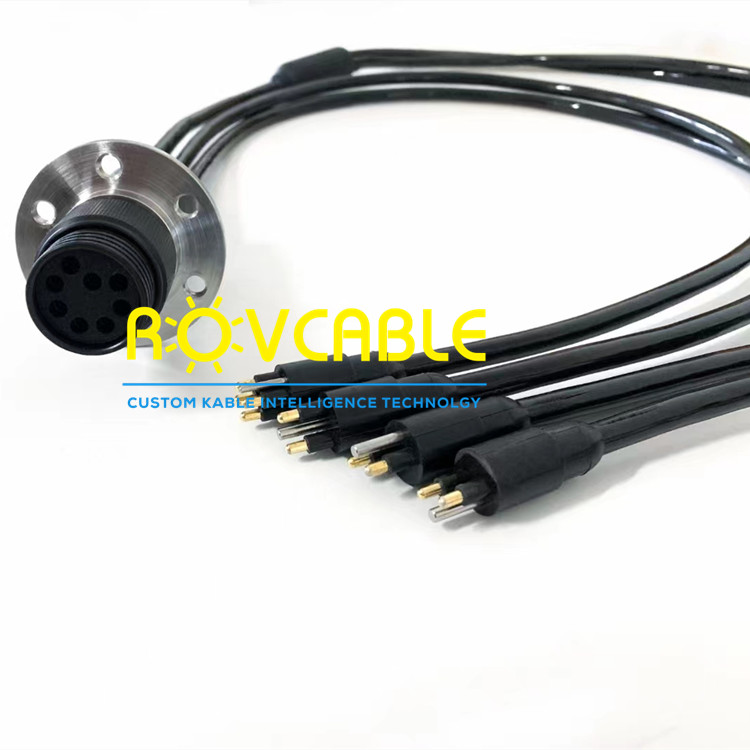

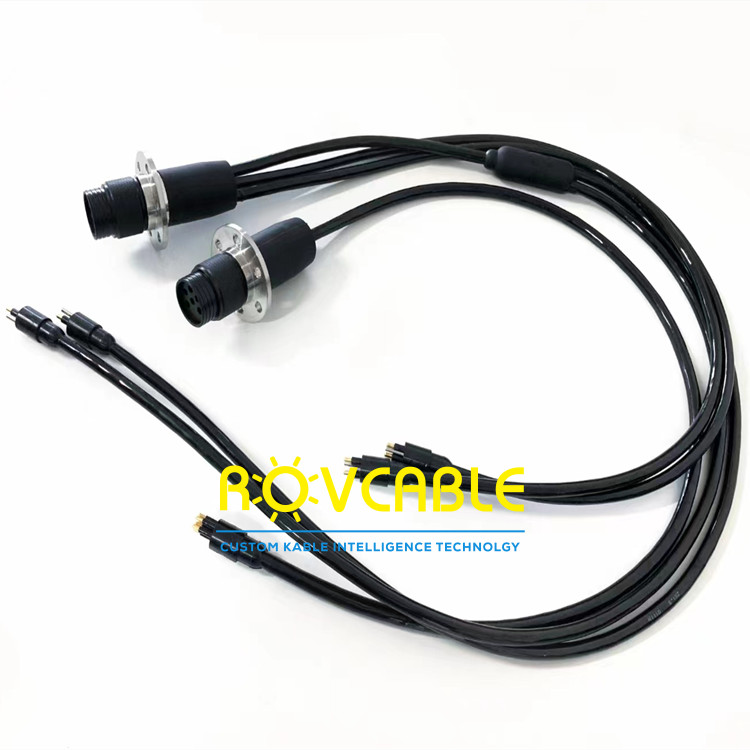

Yes -- all Metal Shell 1500 variants are available as complete cable assemblies with specified cable type, length, and overmoulded termination.
Customized Solutions
Connector specifications and property
Connector material specification
1 Connector housing
SUS316L stainlesssteel / Titanium
