Power Ethernet Low Profile 13-contact subsea connector (4P+8E+1S) variant. IP68, compact form for ROV AUV. Contact sales@rovcable.com.

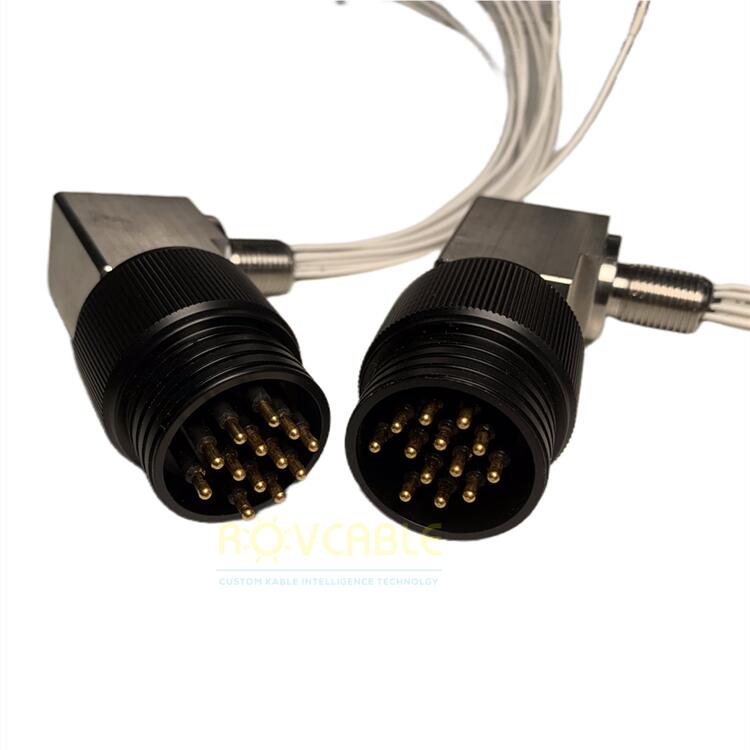

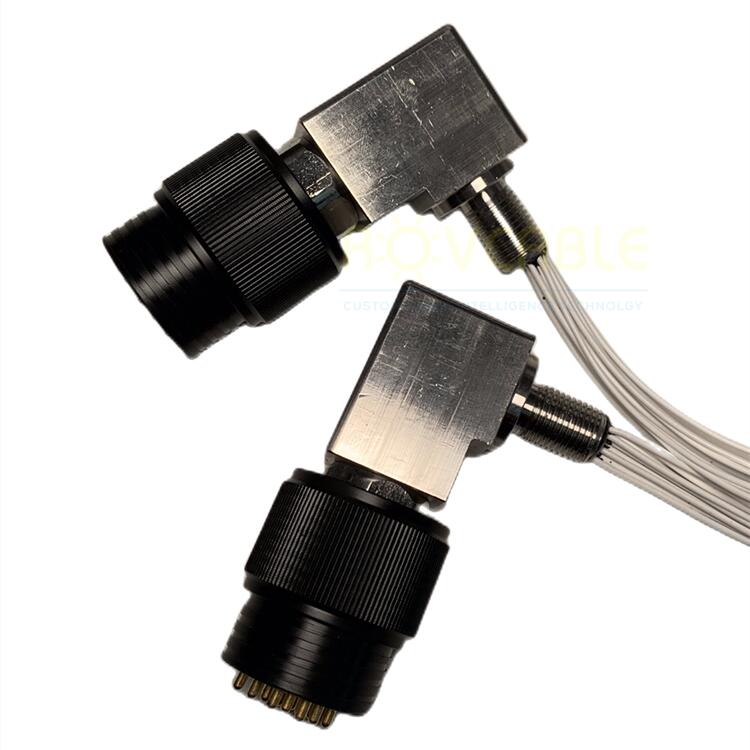

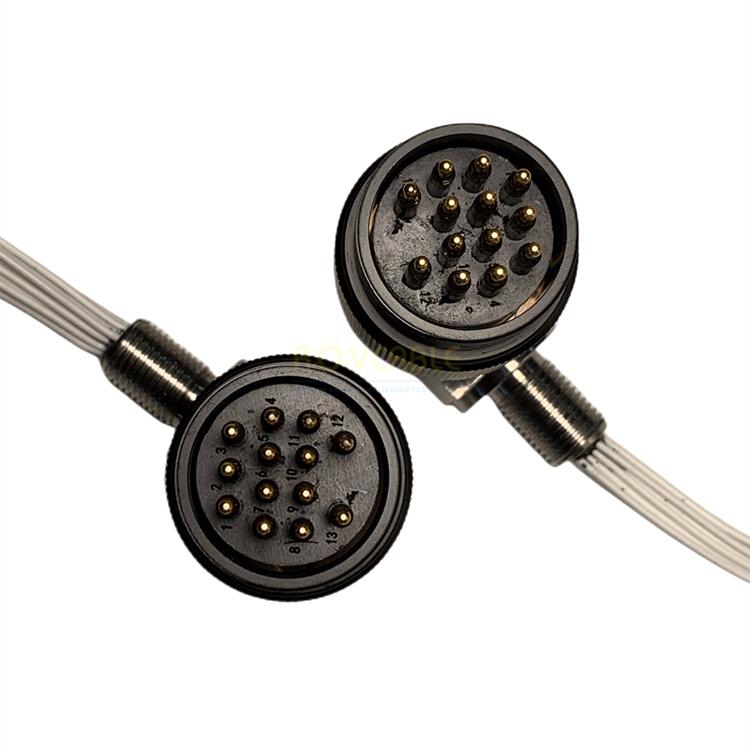

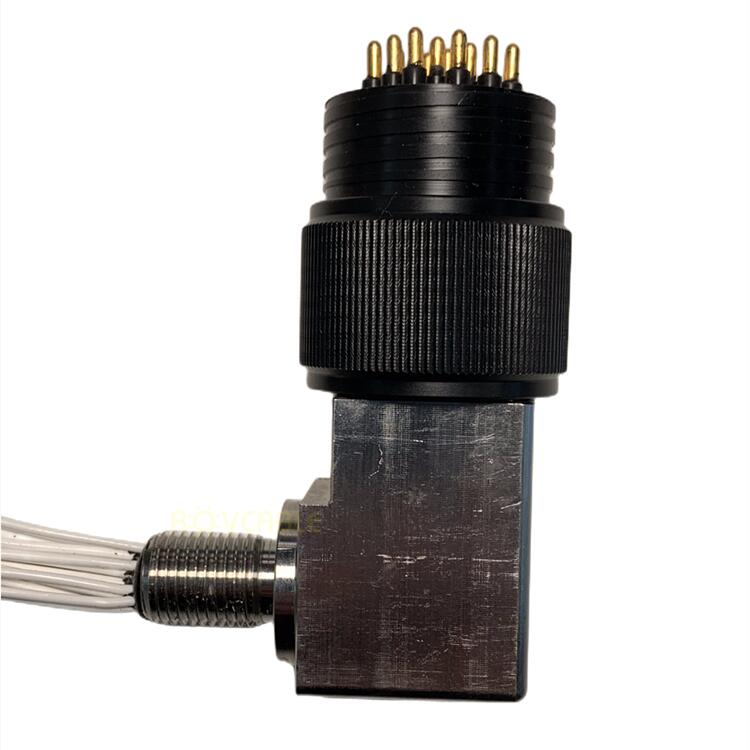

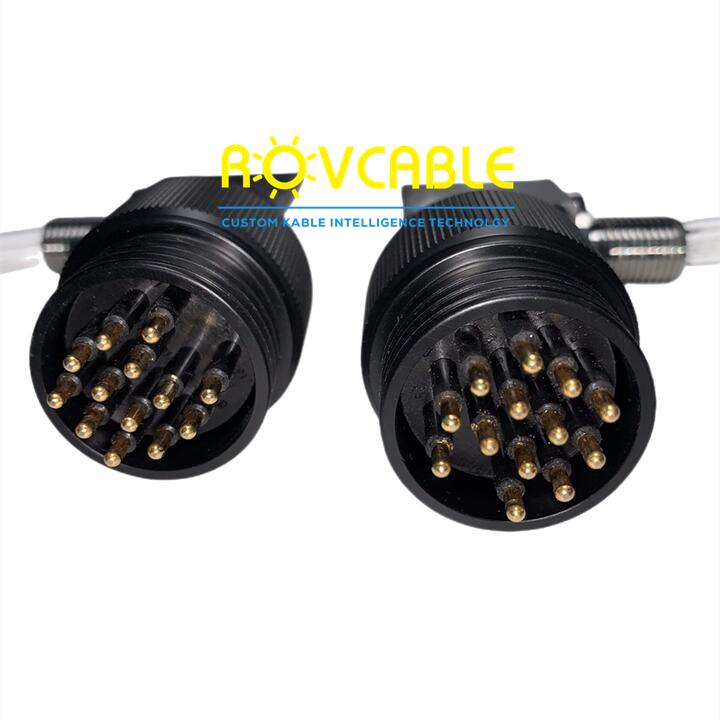

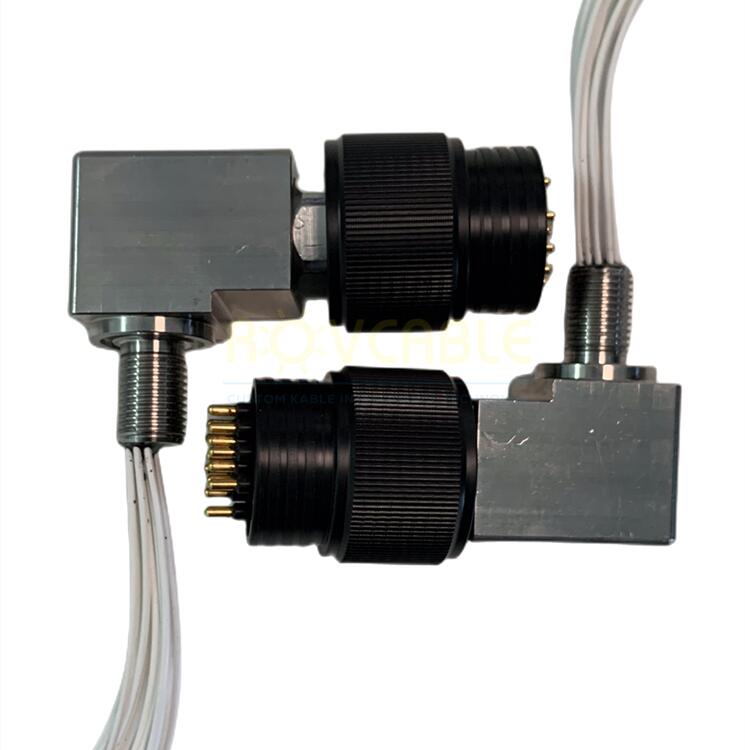

This Power Ethernet Low Profile 13-Contact variant from Shanghai Kabel Intelligence Technology Co., Ltd provides the same 4 power + 8 Ethernet + 1 screen contact configuration as the standard LP-13, in an alternative low-profile housing for specific installation geometries. IP68 rated, it is designed for ROV and AUV systems requiring the smallest possible profile at the connector panel penetration.
| Parameter | Value |
|---|---|
| Total Contacts | 13 |
| Contact Breakdown | 4 Power + 8 Ethernet + 1 Screen |
| IP Rating | IP68 |
| Power Contact Rating | Up to 20 A per contact |
| Ethernet Standard | 100BASE-TX / 1000BASE-T |
| Form Factor | Low Profile (alternative geometry) |
| Housing Material | 316L Stainless Steel |
| Operating Depth | 300 m standard |
| Mating Cycles | ≥500 |
Request connector drawing or engineering sample: sales@rovcable.com
This variant uses an alternative low-profile housing footprint suited to different panel geometries or tighter clearance requirements. The electrical performance and contact configuration are identical. Contact us for dimensional drawings of both variants to select the best fit.
No -- each variant requires its own matched mating counterpart. Specify the variant (n=516 or n=628 housing style) when ordering both sides of the connector pair.
Yes -- the low-profile housing can be adapted to alternative contact arrangements. Submit your circuit requirements for a custom configuration quotation.
