Underwater right angle connector for subsea and ROV applications. 90-degree low profile design reduces cable bending. IP68. Contact sales@rovcable.com.

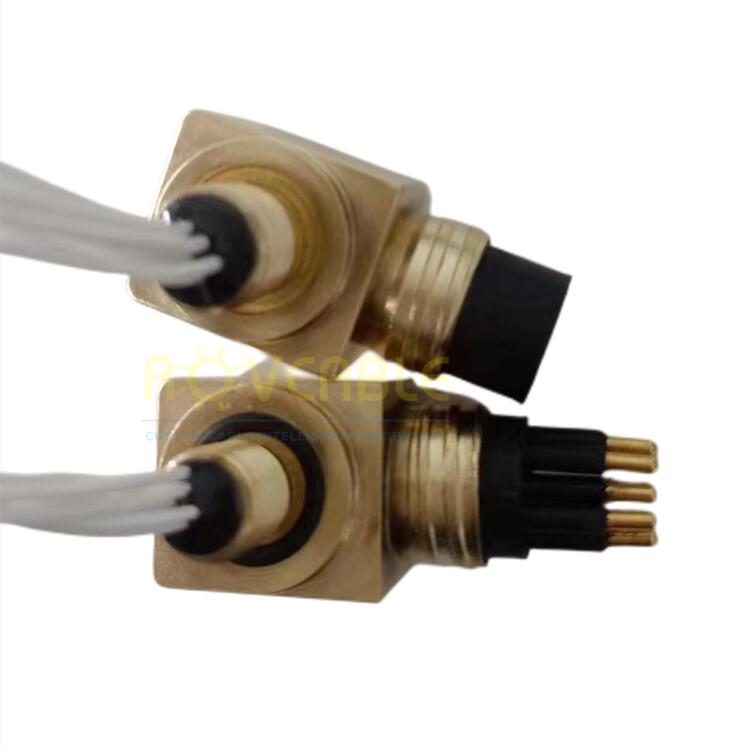

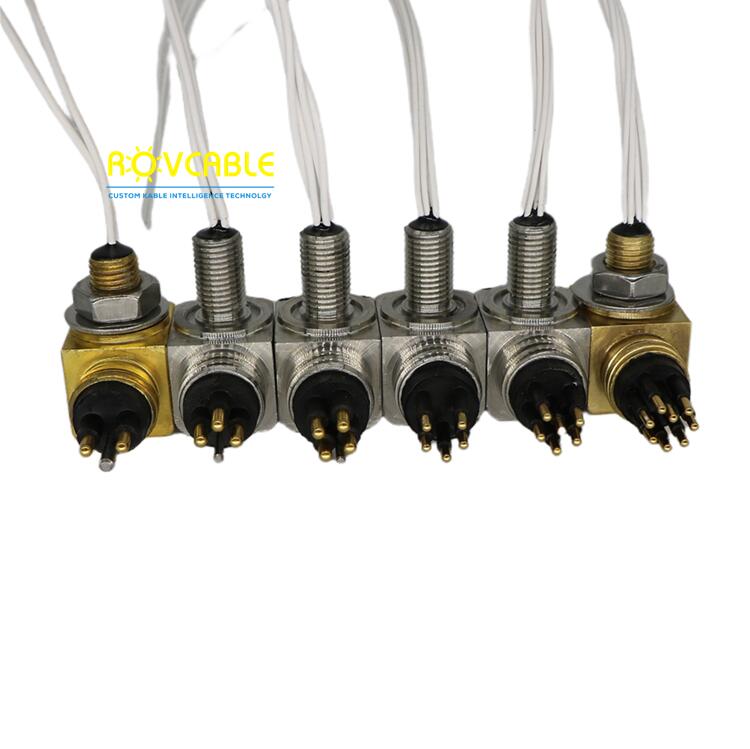

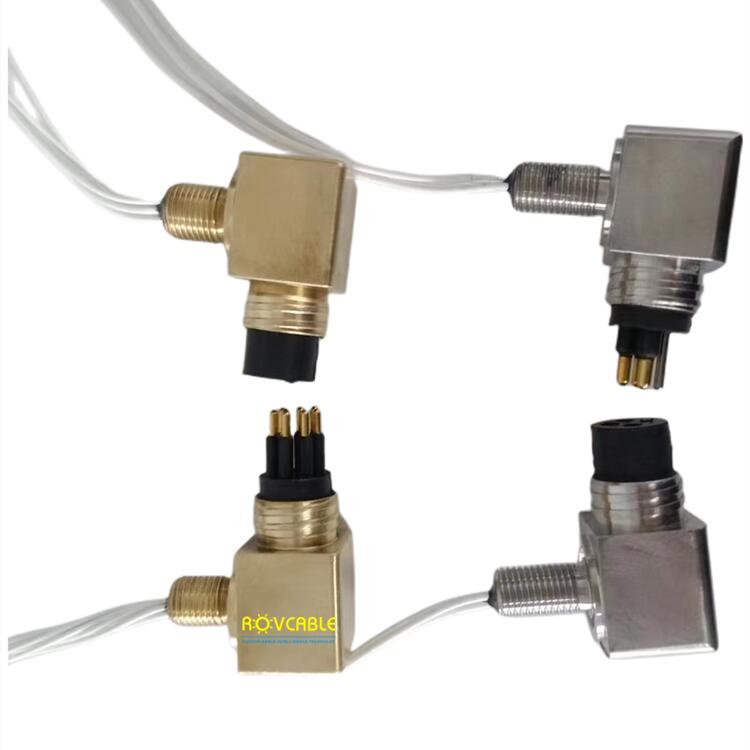

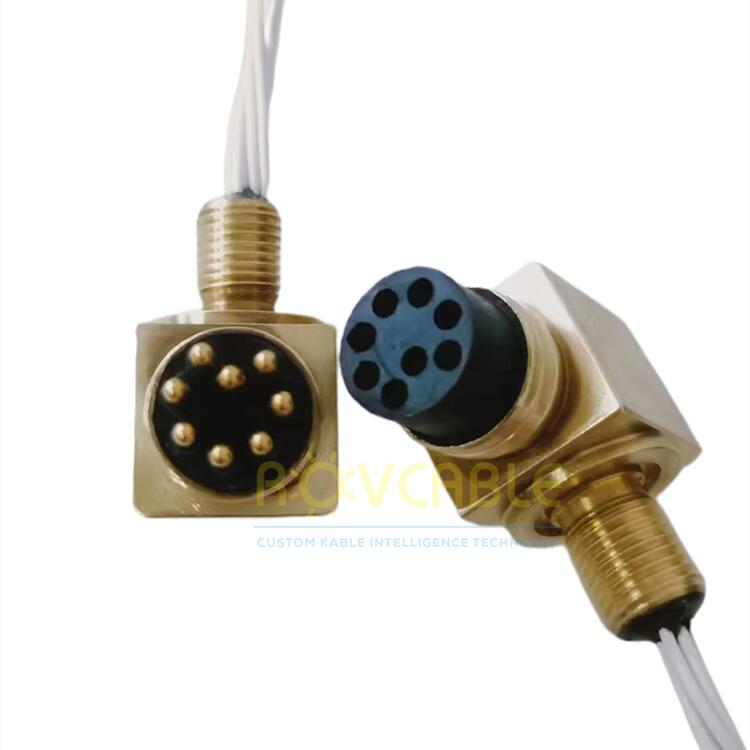

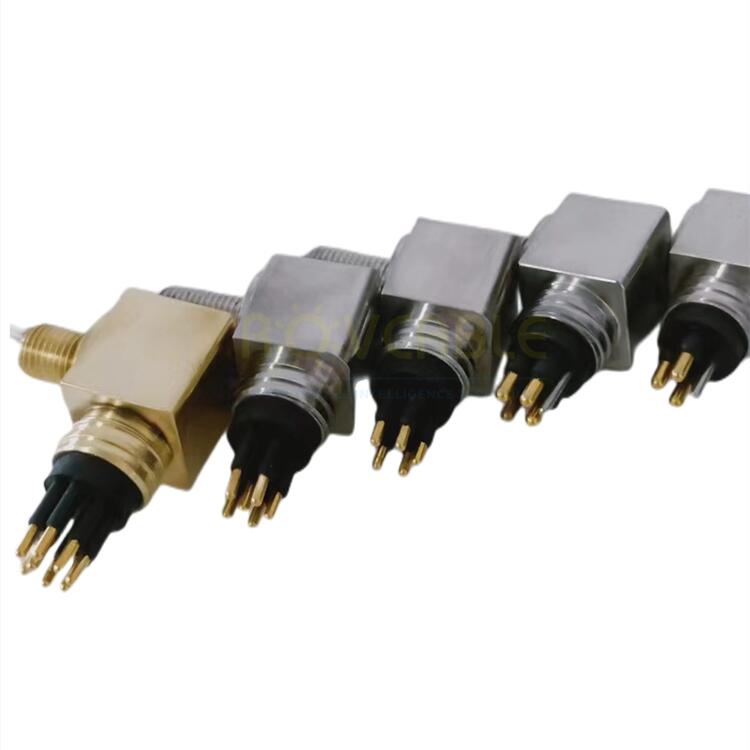

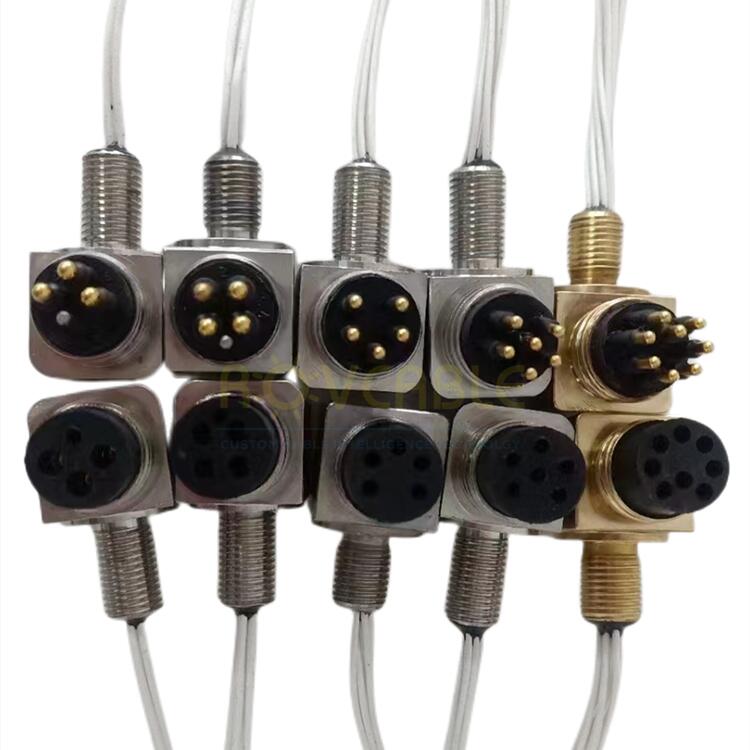

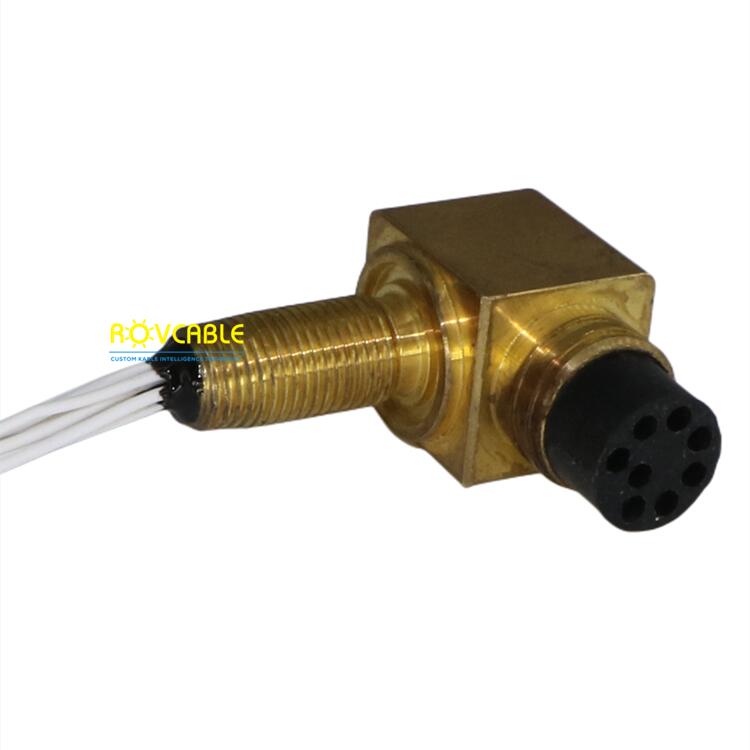

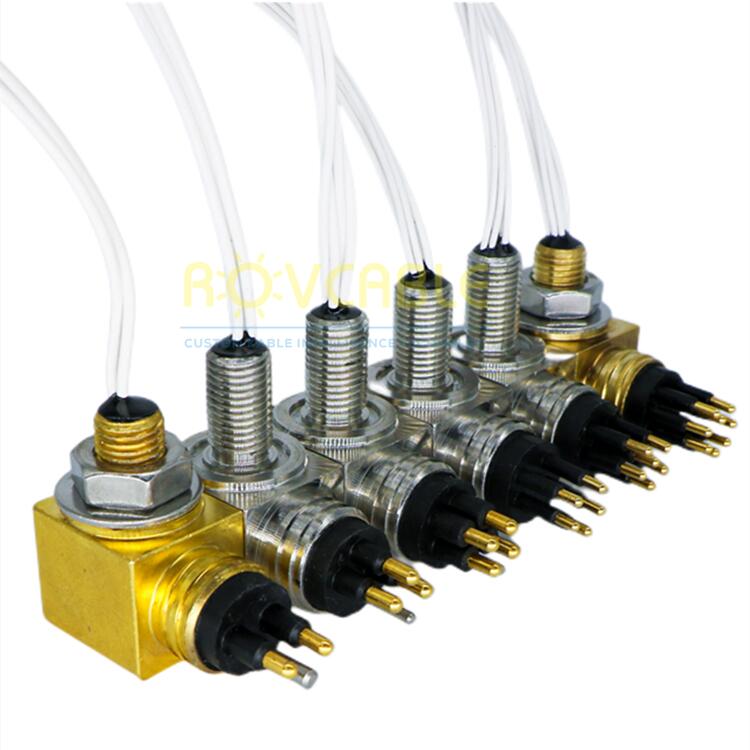

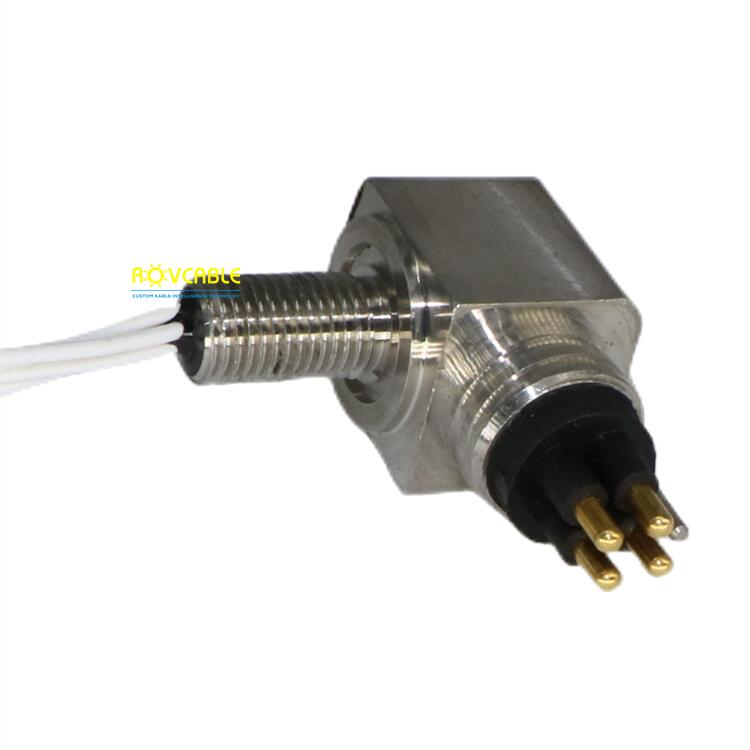

The Underwater Right Angle connector from Shanghai Kabel Intelligence Technology Co., Ltd routes the cable exit at 90 degrees to the mating face, reducing the installed height and eliminating tight cable bends at the connector body. IP68 rated and available in multiple contact configurations, it is ideal for ROV, AUV, and instrument enclosures where a straight connector would create excessive panel projection or cable routing problems.
| Parameter | Value |
|---|---|
| Cable Exit Angle | 90° Right Angle |
| IP Rating | IP68 |
| Contact Count | Available in 3, 6, 8, 9, 13 (specify) |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold |
| Operating Depth | 300 m standard; custom available |
| Form Factor | Low Profile / Right Angle |
| Mating Cycles | ≥500 |
Contact us for right angle connector contact count and depth rating options: sales@rovcable.com
No -- the right angle elbow is fully sealed and rated to the same depth as the straight version. Double O-ring sealing is maintained throughout the elbow body.
Standard units have a fixed exit direction. Rotatable variants allowing 360° cable exit orientation are available as a custom option for installations where cable routing direction is not fixed at design time.
Yes -- a panel-mount bulkhead version with a straight (non-elbow) mating face and a right-angle cable exit is available. Specify panel thickness and hole diameter when ordering.
