Low profile 9-contact subsea connector variant for ROV and AUV. Compact, IP68 sealed. Contact sales@rovcable.com.

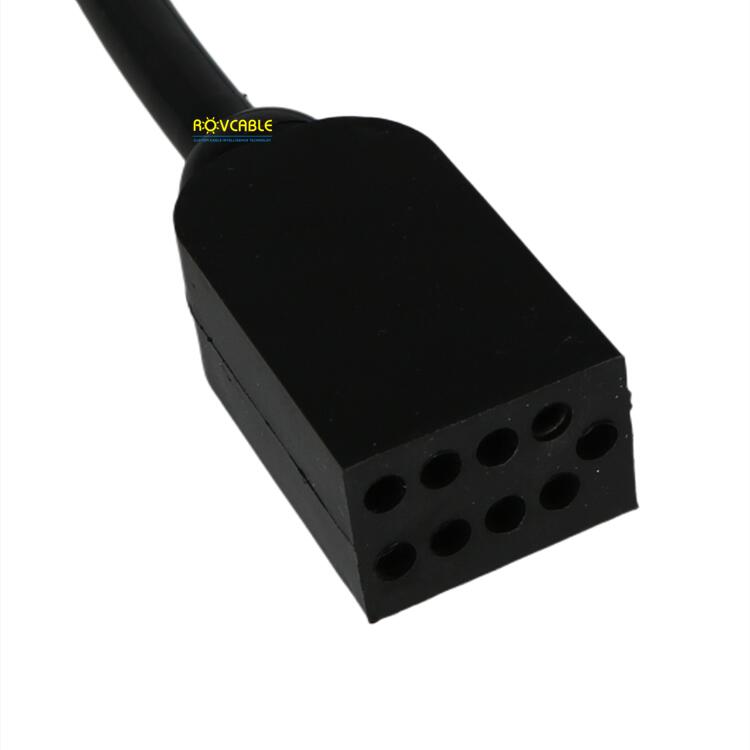

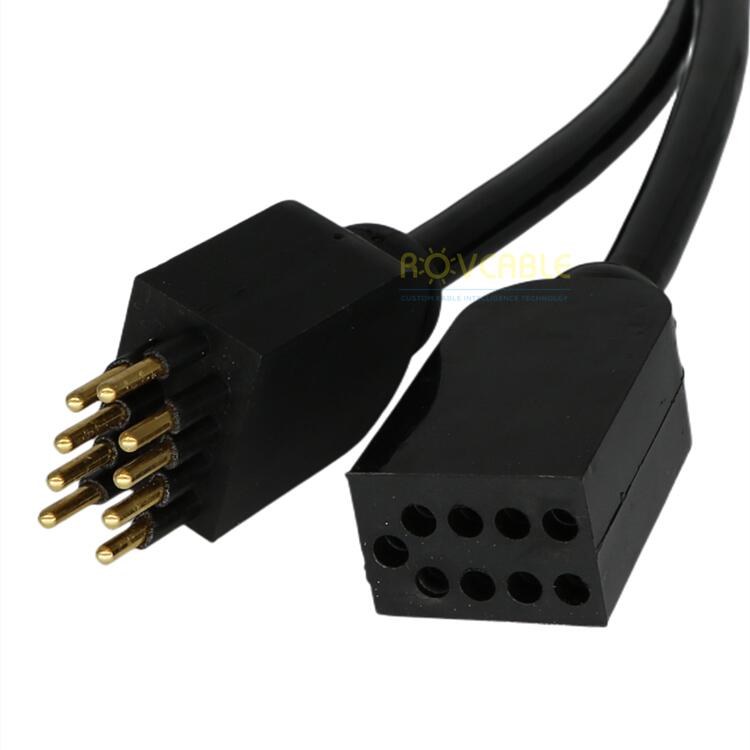

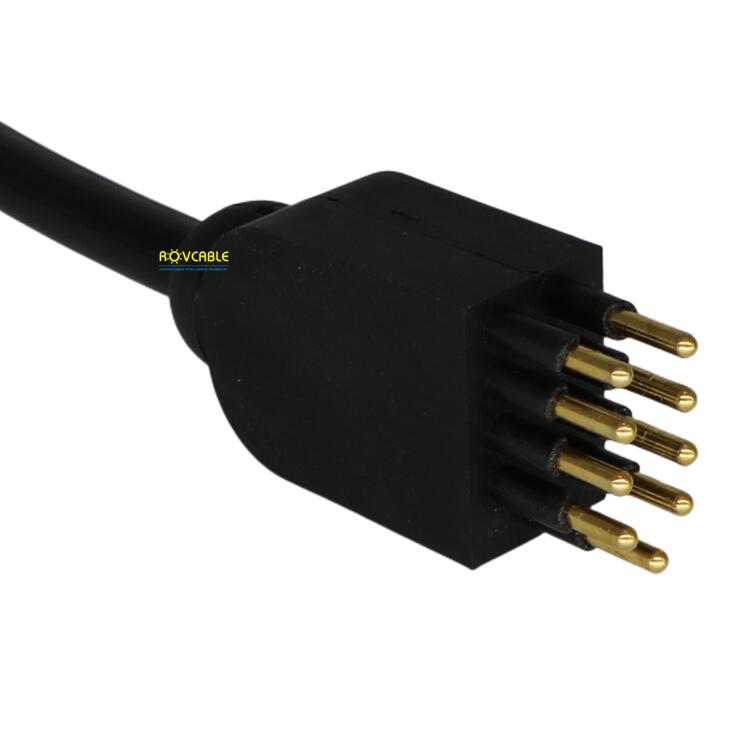

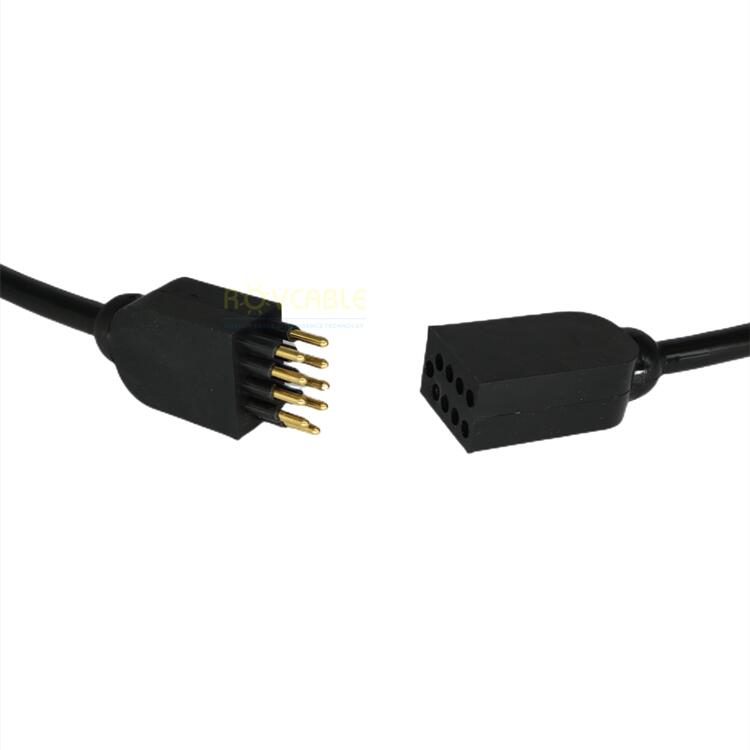

This Low Profile 9-Contact (Variant) subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd provides 9 independent contacts in an alternative compact low-profile housing geometry. IP68 rated with gold-plated contacts, it is suited to ROV and AUV installations where the standard LP-9 body does not fit the available panel cutout or cable routing constraints.
| Parameter | Value |
|---|---|
| Contact Count | 9 |
| IP Rating | IP68 |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold |
| Form Factor | Low Profile (alternative geometry) |
| Contact Rating | Up to 10 A per contact |
| Operating Depth | 300 m standard |
| Mating Cycles | ≥500 |
Request dimensional drawings or engineering sample: sales@rovcable.com
This variant uses an alternative housing footprint with different external dimensions. The contact count (9) and electrical performance are identical. Contact us for dimensional drawings to confirm which variant fits your panel cutout.
Yes -- 9 contacts support an 8 Ethernet + 1 screen wiring arrangement for Gigabit Ethernet. Specify wiring standard (T568B standard) when ordering.
Yes -- complete cable assemblies with Cat5e, Cat6, or custom cable, specified length, and overmoulded boot are available.
