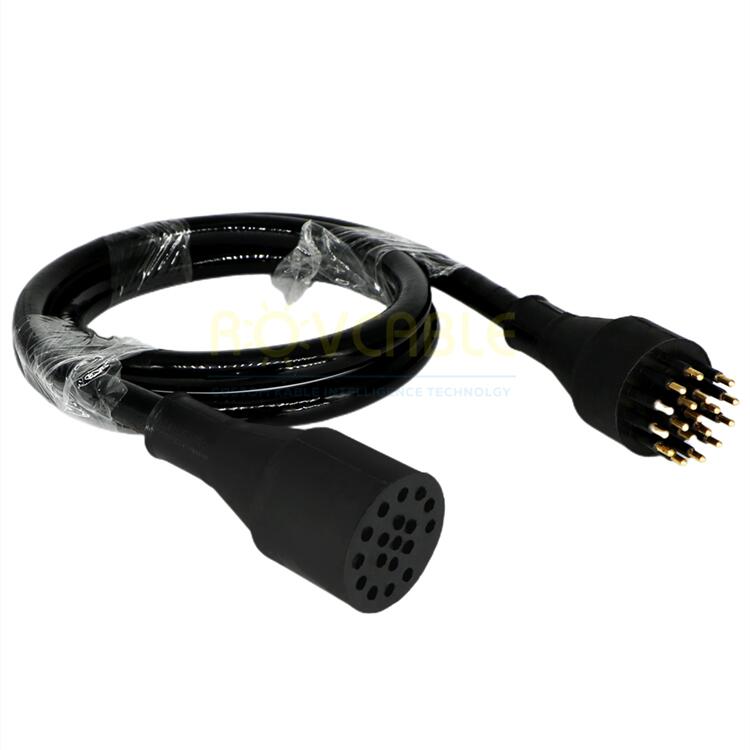

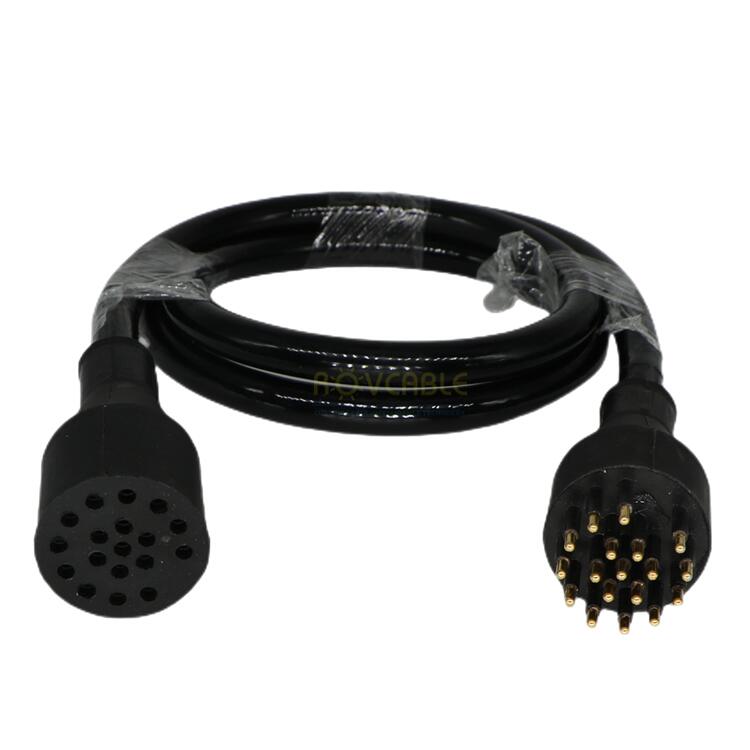

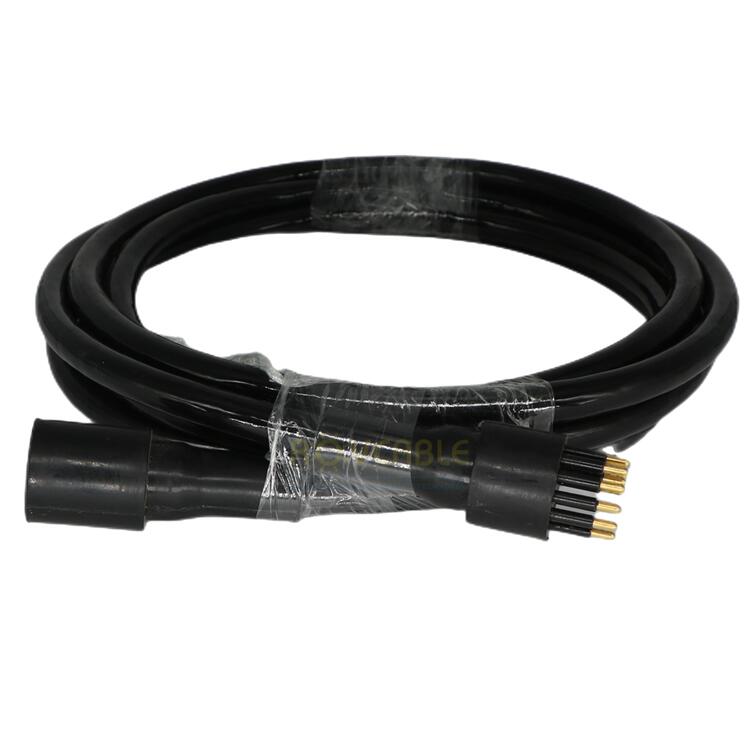

High Power 18-Core Subsea Underwater Connector

The High Power 18-Core subsea connector is Shanghai Kabel Intelligence Technology Co., Ltd's largest standard power connector, providing 18 high-current contacts rated up to 600 V DC/AC in a single IP68-sealed stainless steel body. It is designed for large ROV systems, offshore winch drives, and subsea power distribution infrastructure requiring high channel counts in a single penetration.

Key Specifications

Applications

• Large work-class ROV power umbilicals
• Subsea power distribution units
• Offshore winch and drive systems
• AUV multi-motor power management
• Subsea observatory power nodes

For high-core-count power connectors or custom depth ratings: sales@rovcable.com

Frequently Asked Questions

How does an 18-core connector handle heat dissipation?

At 25 A per contact, the 316L stainless steel body and polyurethane boot dissipate heat effectively into the surrounding seawater. For continuous high-current operation, we recommend calculating total heat load and confirming with our engineering team.

Is this available in a panel-mount (bulkhead) version?

Yes -- both inline (cable-to-cable) and bulkhead (panel-mount) configurations are available. Specify when ordering.

Can contacts be mixed (power + signal) within the 18 positions?

Yes -- a common configuration uses 12 power contacts + 6 signal contacts. Custom mix arrangements are available; contact us with your circuit diagram.

Application

1 Remotely Operated Vehicle(ROV) and Autonomous Underwater

Vehicle(AUV) systems

2 Underwater video, camera and lighting systems

3 Diving equipment and systems

4 Sonar systems

5 Oil rig, offshore oil and gas,and renewable energy systems applications

6 Oceanographic systems and equipment

Customized Solutions

1 Customers can specify the specification, material and reserved length of

supporting wires and cables

2 Customers specified main material of the underwater connector

3 Make systematic test plan for different application environment

Connector specifications and property

1Voltagerating 800V DC/AC

2 Current rating 25A

3 Insulation resistance >200MΩ 4 Contact resistance  <0.01Ω

Connector material specification

1 Connector body Neoprene

2 Pin Gold-plated brass

Applications

• High-current power supply for ROV thrusters, subsea pumps and hydraulic systems
• Marine battery pack charging connections for AUV and underwater vehicle fleets
• Subsea trenching machines, cable laying equipment and heavy-duty ROV tools
• Offshore platform high-power distribution and subsea processing equipment
• Underwater welding systems, intervention tools and high-amperage applications

Customization Options

• Customer-specified cable sizes and conductor gauges for specific current requirements
• Alternative shell materials and high-temperature insulator options available
• Field-installable versions for on-site connector termination and repair
• Certified high-voltage and high-current testing with detailed test reports
