High current subsea connector available 2 to 18 cores for ROV, AUV and subsea power systems. IP68, stainless steel. Contact sales@rovcable.com.

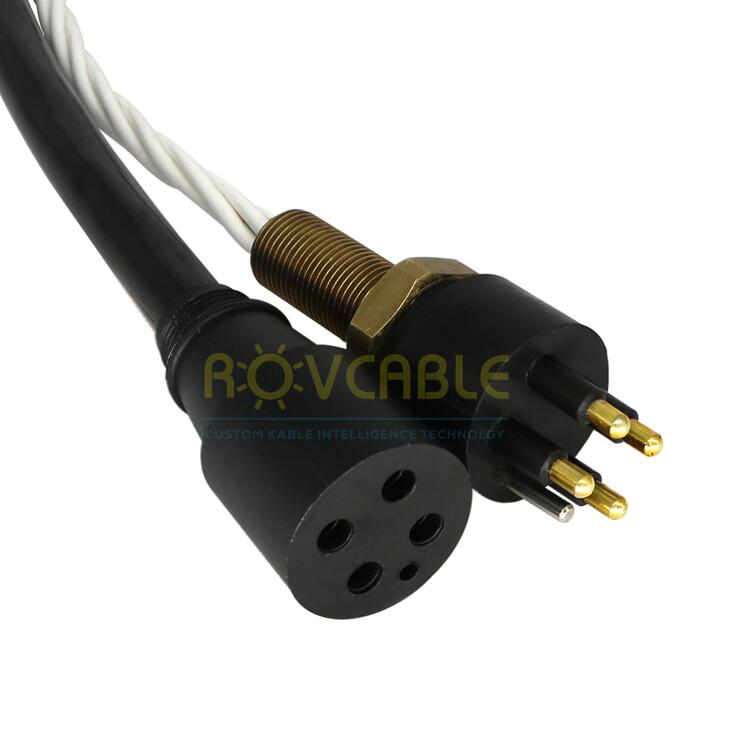

Shanghai Kabel Intelligence Technology Co., Ltd's High Current underwater connector series is available in 2 to 18 contact configurations, providing a scalable solution for any subsea power distribution requirement. Each connector is IP68 sealed with gold-plated contacts and a 316L stainless steel body, rated for high-current ROV, AUV, and offshore power applications.
| Parameter | Value |
|---|---|
| Contact Count Options | 2, 3, 4, 6, 8, 10, 12, 14, 16, 18 |
| Current Rating | Up to 30 A per contact (standard) |
| Voltage Rating | Up to 600 V DC/AC rms |
| IP Rating | IP68 |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold over Nickel |
| Operating Depth | 300 m standard; custom available |
| Mating Cycles | ≥500 |
Specify core count and current requirement when enquiring: sales@rovcable.com
Choose based on your circuit count: each contact carries one phase or circuit. For 3-phase power, use a 3-core connector; for a 3-phase + neutral + earth system use 5-core. Mixed power and signal configurations are also possible.
Core counts of 2, 3, 4, 6, and 8 are typically in stock. Counts of 10-18 are made to order with a standard lead time of 4-6 weeks. Express production is available -- contact us.
Yes -- hybrid configurations with power and signal (or Ethernet) contacts in one body are available as a custom option. Specify your circuit mix when enquiring.
