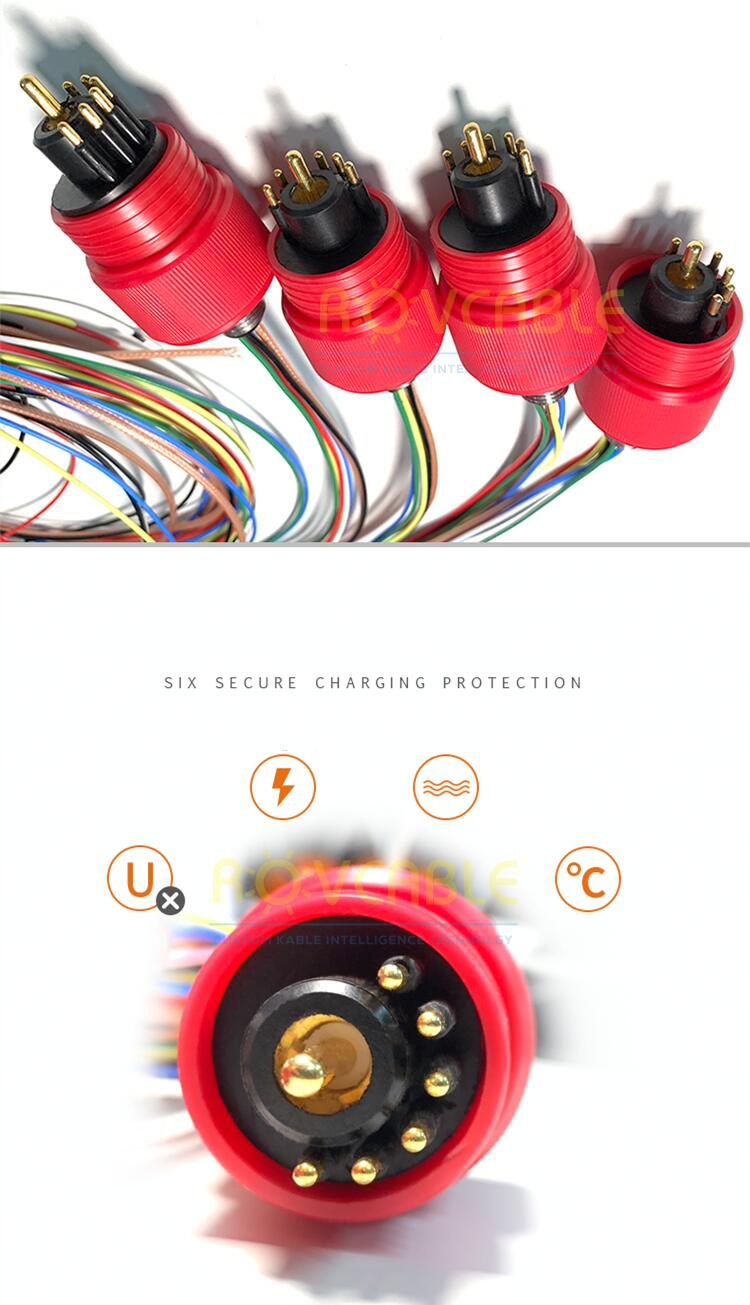

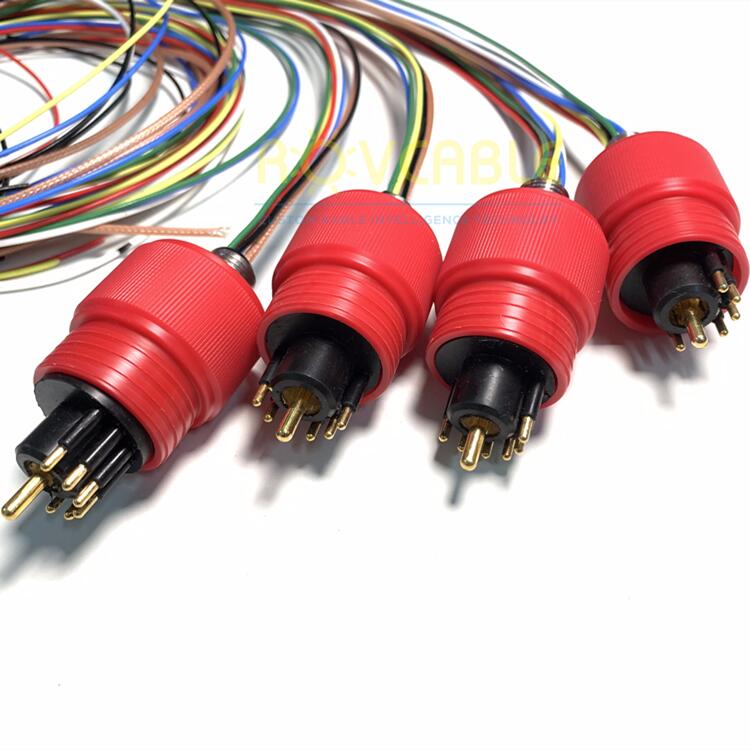

6 Power 1 Coaxial Hybrid Subsea Underwater Connector

A compact hybrid subsea connector integrating 6 power contacts and 1 coaxial RF contact in a single IP68-sealed waterproof body. Manufactured by Shanghai Kabel Intelligence Technology Co., Ltd, this connector simplifies ROV and AUV designs by eliminating the need for separate power and signal penetrations.

Key Specifications

Applications

• ROV camera power and video signal
• AUV thruster and sensor cabling
• Subsea observation systems
• Hybrid umbilical termination

Enquiries and custom quotes: sales@rovcable.com

Frequently Asked Questions

What is the current rating of the power contacts?

Power contacts are rated up to 25 A each in standard configuration. Higher-current variants are available on request.

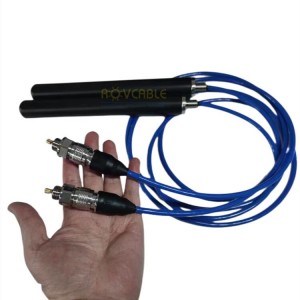

Is a cable assembly available for this connector?

Yes -- we supply complete cable assemblies with appropriately rated multi-core power and coaxial cables, overmoulded for subsea use.

Can the coaxial impedance be chosen?

Yes -- specify 50 ohm for sonar/data or 75 ohm for video applications when ordering.

Applications

• High-definition video signal transmission for ROV camera systems and subsea observation
• RF communication links for underwater telemetry, antenna and wireless systems
• Subsea inspection systems requiring coaxial video and data signal integrity
• Offshore platform CCTV monitoring and underwater surveillance installations
• Sonar system coaxial signal connections for naval and oceanographic applications

Customization Options

• 50 ohm or 75 ohm impedance options to match system requirements
• Custom cable assembly lengths with specified coaxial cable types
• Combined coax and electrical contact configurations for hybrid applications
• Certified VSWR and insertion loss testing available upon request
