Microminiature coaxial underwater connector for compact ROV, AUV and subsea sensor integration. IP68, stainless steel, minimal footprint. sales@rovcable.com.

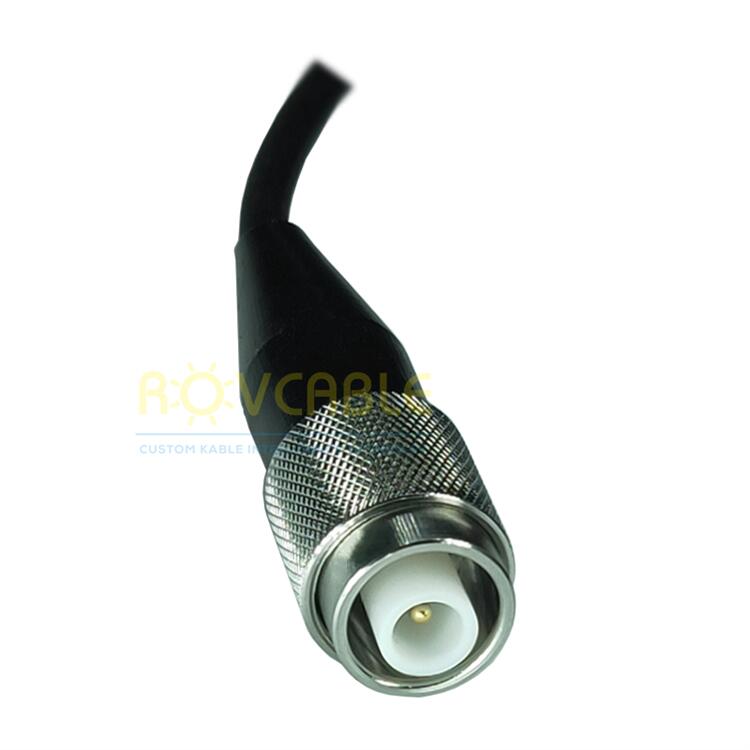

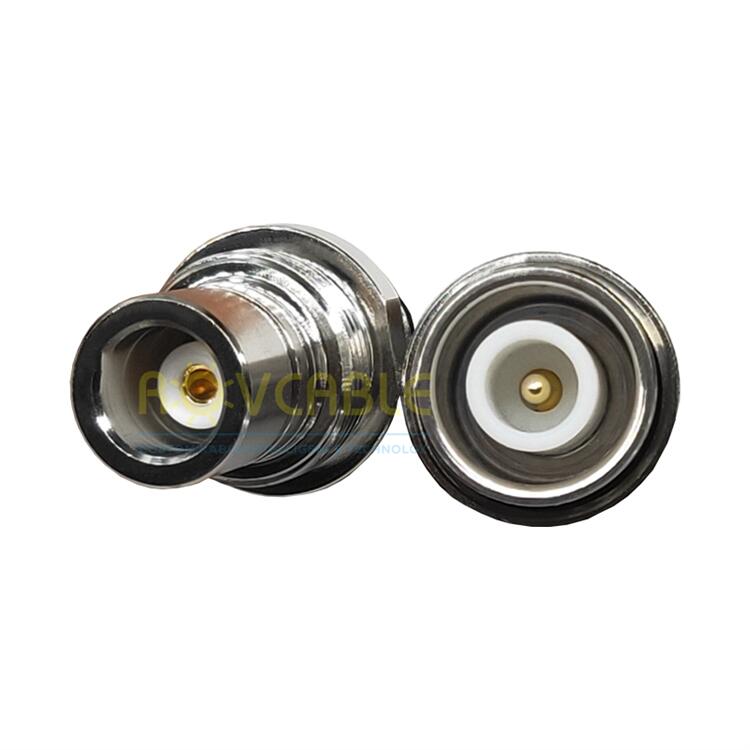

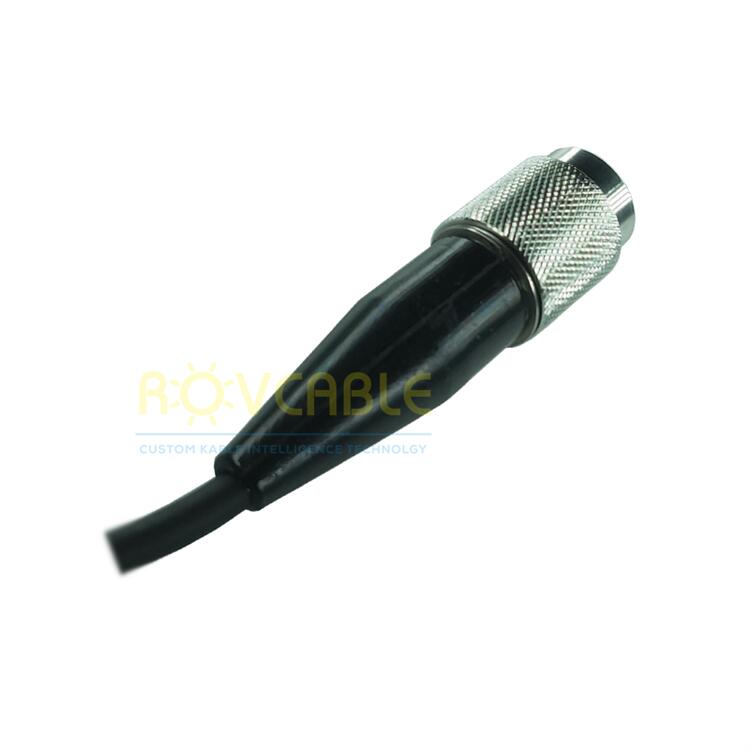

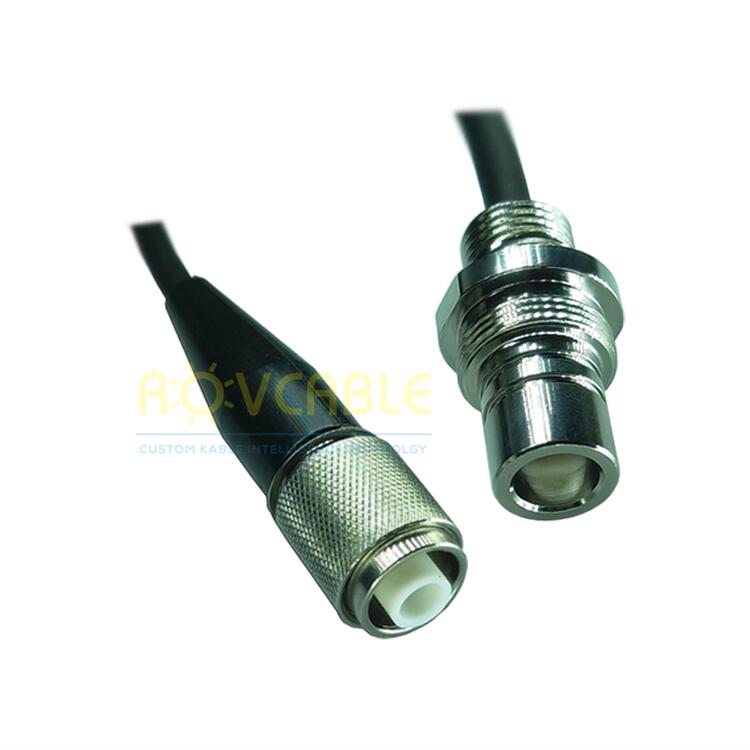

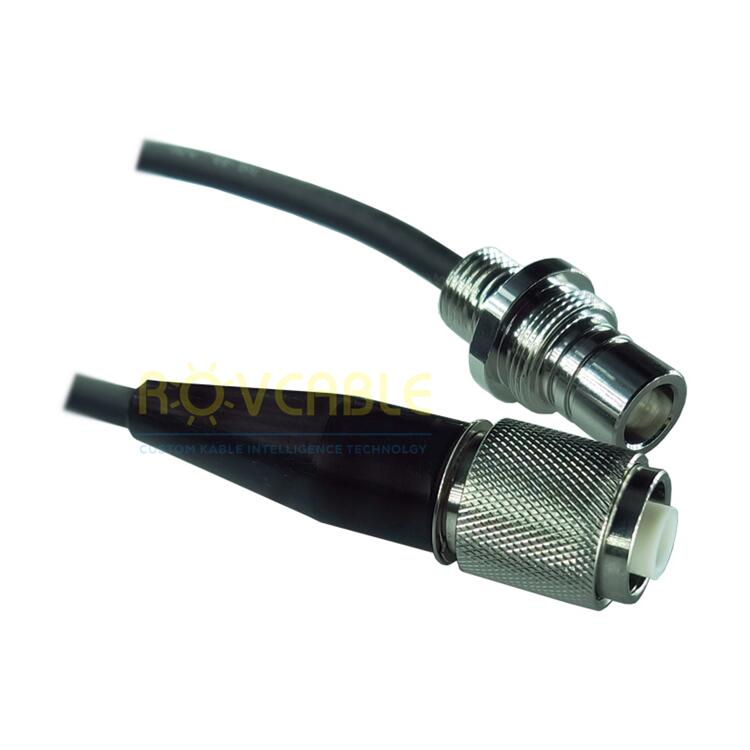

The microminiature coaxial underwater connector from Shanghai Kabel Intelligence Technology Co., Ltd is engineered for space-constrained subsea applications where a full-size coaxial connector is impractical. With an ultra-compact footprint, IP68 sealing, and gold-plated contacts, it delivers reliable RF performance in ROV, AUV, and miniature oceanographic sensor systems.
| Parameter | Value |
|---|---|
| Type | Microminiature Coaxial |
| IP Rating | IP68 |
| Impedance | 50 Ohm / 75 Ohm |
| Contact Plating | Gold |
| Housing Material | 316L Stainless Steel |
| Form Factor | Ultra-compact / Panel-mount |
| Operating Depth | 300 m standard; custom available |
| Frequency Range | DC to 3 GHz |
| Mating Cycles | ≥200 |
Miniature connector solutions and custom housings -- contact: sales@rovcable.com
The standard microminiature Coax Series connector has a mating face diameter of approximately 5--8 mm, making it suitable for compact enclosures with limited panel space. Exact dimensions are available in the datasheet -- contact us to request.
Yes -- the gold-plated contacts and precision machined inserts maintain low VSWR and consistent impedance to 3 GHz, comparable to standard full-size subsea coaxial connectors.

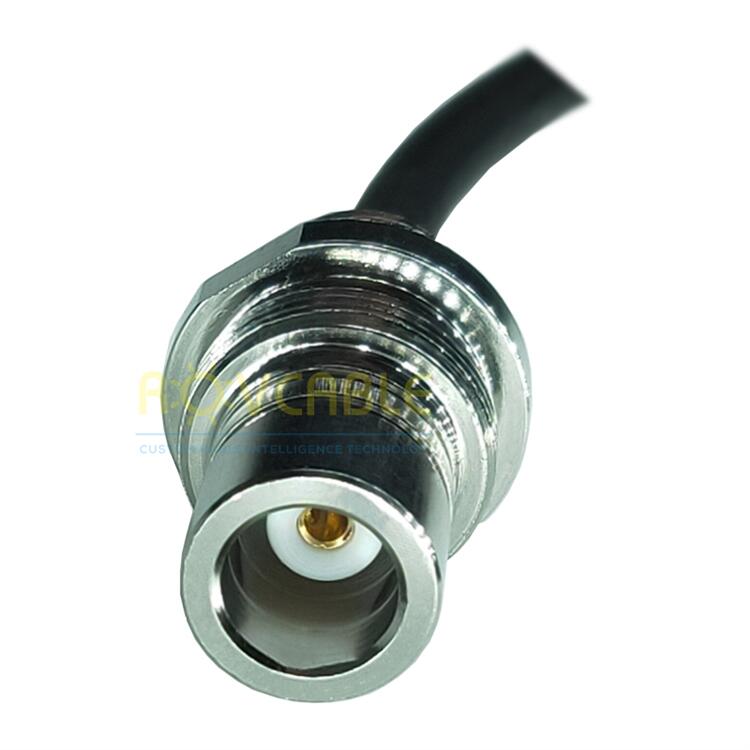

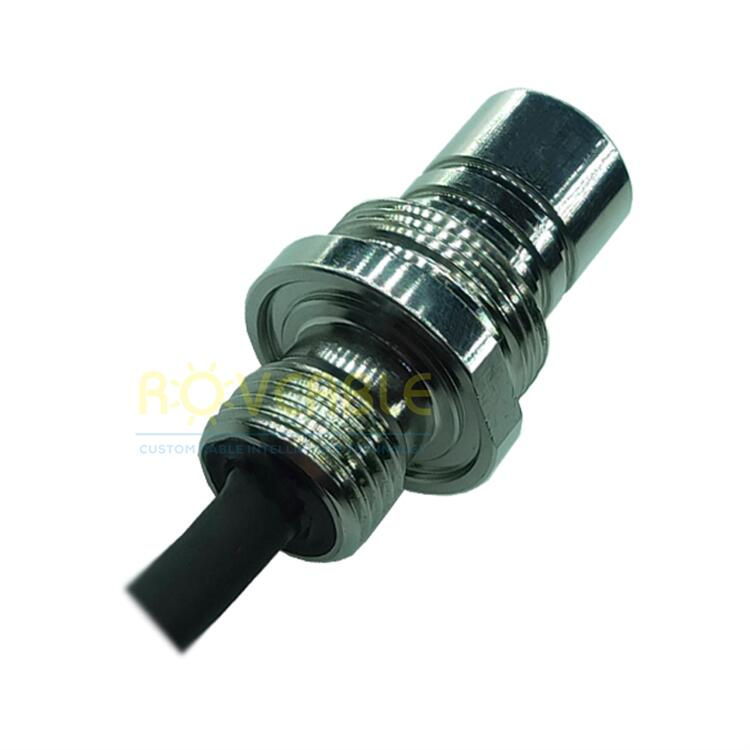

Yes -- the connector is designed for panel-mount installation. Custom bulkhead configurations for titanium, aluminium, and PEEK housings are available on request.
