Coax Series Subsea Coaxial Underwater Connector

Shanghai Kabel Intelligence Technology Co., Ltd's Coax Series provides a comprehensive range of subsea coaxial connectors engineered for reliable RF signal integrity at depth. Available in 50 ohm and 75 ohm impedance, with IP68 sealing and 316L stainless steel housings, these connectors serve the most demanding ROV, AUV, and oceanographic applications.

Key Specifications

Applications

• ROV and AUV sonar and video payloads
• Subsea inspection camera systems
• Oceanographic instrument arrays
• Underwater acoustic communication
• Offshore data acquisition and monitoring
• Subsea observatory networks

Full datasheets, 3D models, and customisation options available -- contact: sales@rovcable.com

Frequently Asked Questions

What connector styles are available in the Coax Series?

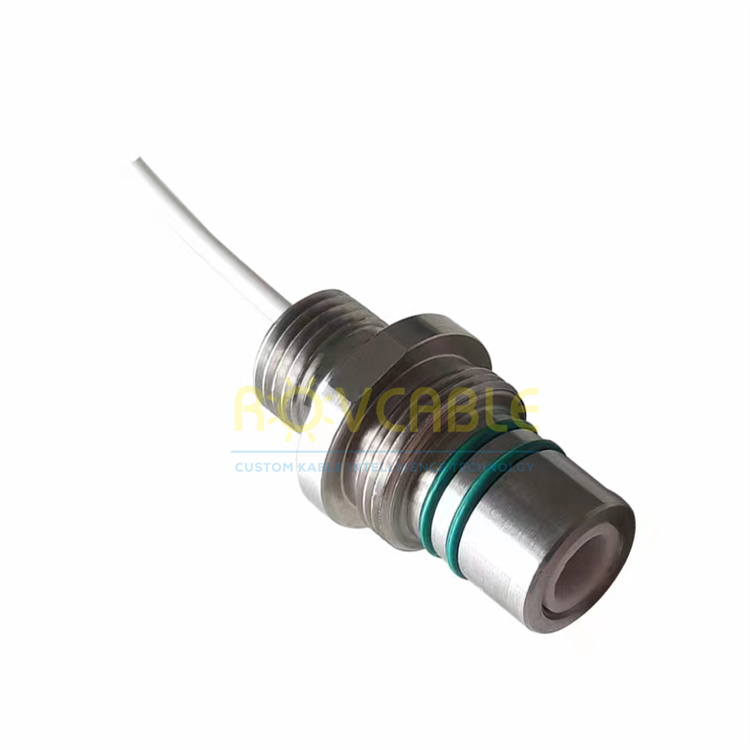

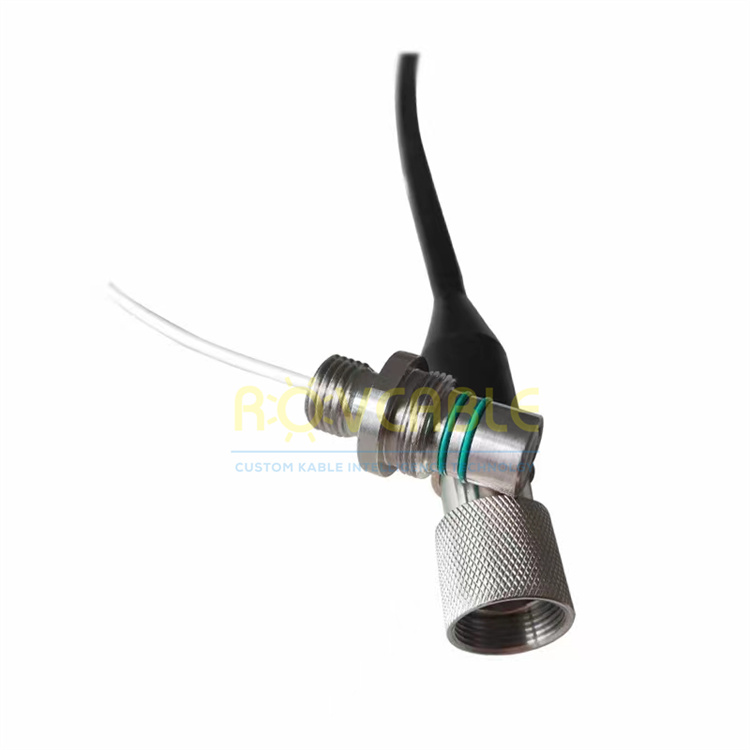

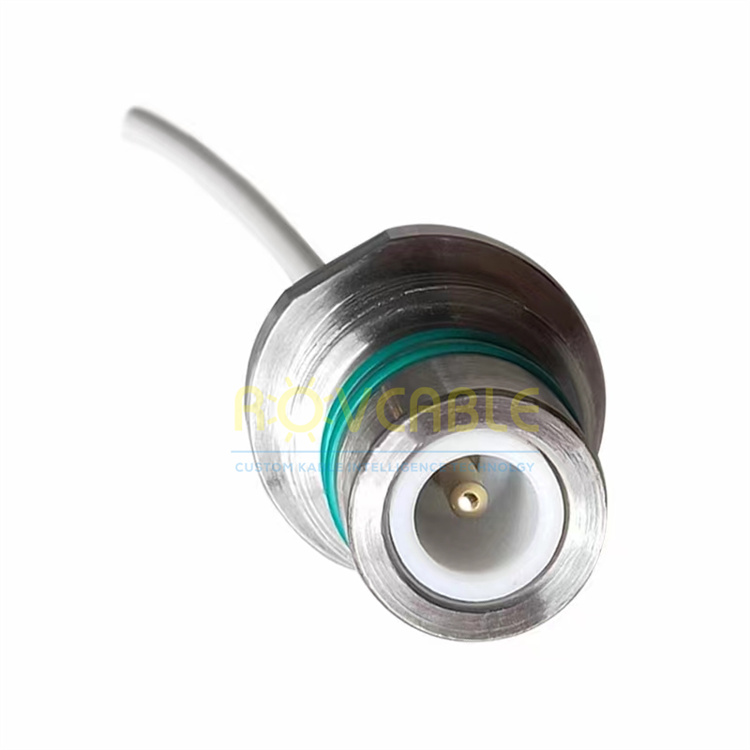

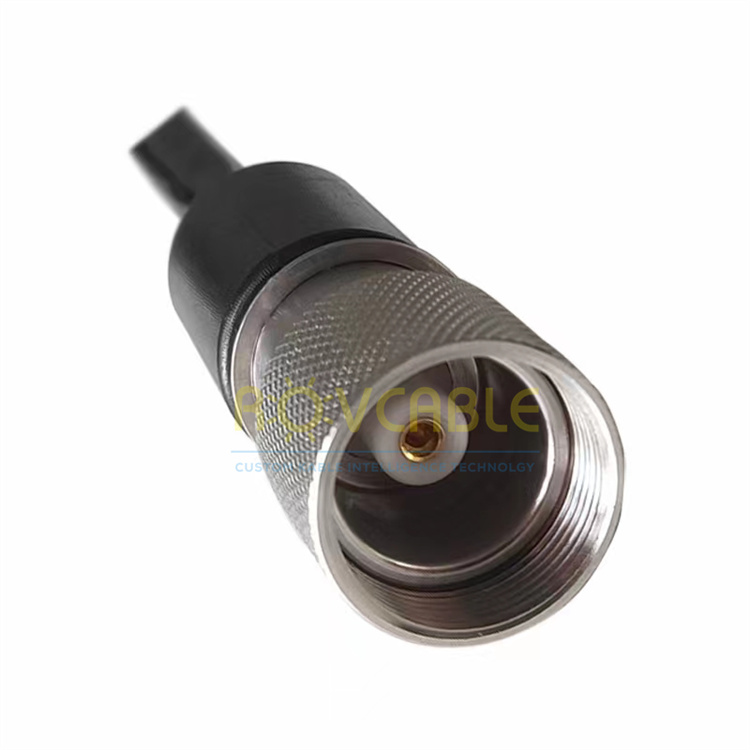

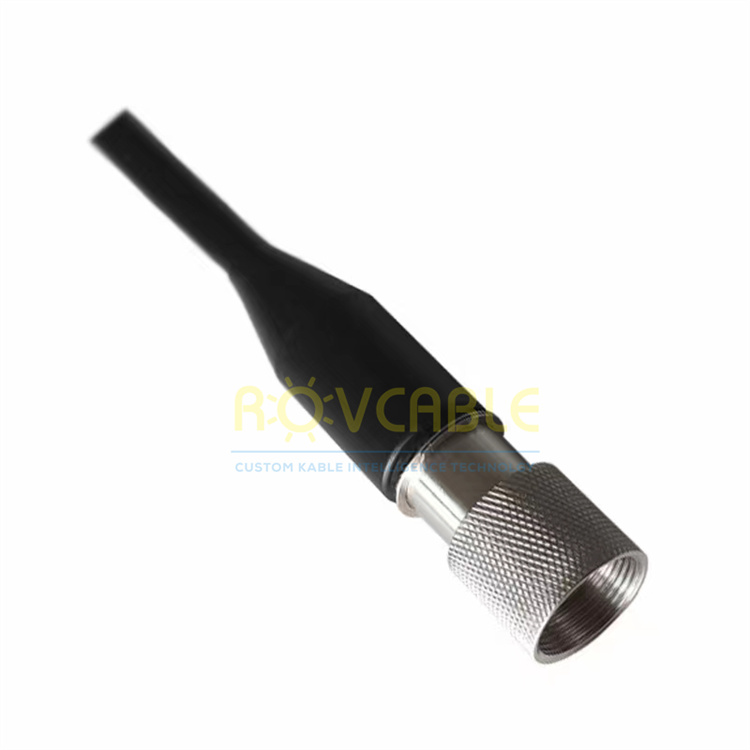

The Coax Series includes BNC-type, SHV-type, and fully custom configurations. Both panel-mount and cable-end versions are available in male and female arrangements.

How deep can Coax Series connectors operate?

Standard units are qualified to 300 m. Custom pressure-compensated versions for depths up to 6000 m are manufactured on request, with appropriate hydrostatic test certification.

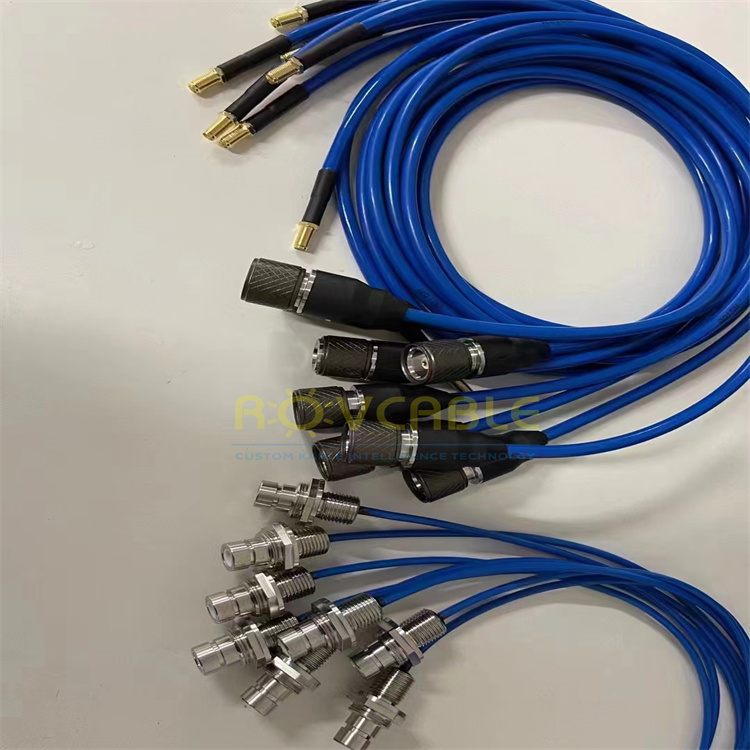

Can you supply matched cable assemblies?

Yes -- we offer complete coaxial cable assemblies with moulded polyurethane boots, specified cable types (RG58, RG59, LMR, etc.), and custom lengths. Plug-and-play assemblies reduce topside installation time significantly.

Application

1 Remotely Operated Vehicle (ROV) and AutonomousUnderwater Vehicle(AUV) systems

2Underwater video, cameraandlighting systems

3Diving equipment and systems

4 Sonarsystems

5 Oilrig, offshoreoilandgas,andrenewableenergy systems applications

6 Oceanographic systems and equipment

Customized Solutions

1 Customers can specify the specification, material and reserved length of supporting

wires and cables

2 Customers specified main material of the underwater connector

3 Makesystematictestplanfordifferentapplication environment

Connector specifications and property

1 Voltagerating  600V DC/AC

2 Current rating  10A

3 Insulationresistance  >200MΩ 4 Contactresistance  <0.01Ω

4 Characteristic impedance 50Ω/75Ω

Connector material specification

1 Connector body  Neoprene

2 Pin   Gold-plated brass

Applications

• High-definition video signal transmission for ROV camera systems and subsea observation
• RF communication links for underwater telemetry, antenna and wireless systems
• Subsea inspection systems requiring coaxial video and data signal integrity
• Offshore platform CCTV monitoring and underwater surveillance installations
• Sonar system coaxial signal connections for naval and oceanographic applications

Customization Options

• 50 ohm or 75 ohm impedance options to match system requirements
• Custom cable assembly lengths with specified coaxial cable types
• Combined coax and electrical contact configurations for hybrid applications
• Certified VSWR and insertion loss testing available upon request
