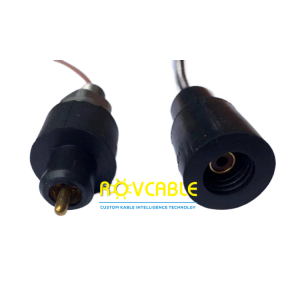

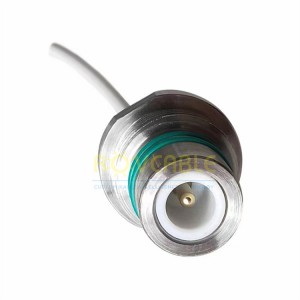

Coax Series 50 Ohm Subsea Coaxial Underwater Connector

The Coax Series 50 Ohm subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd delivers reliable RF coaxial signal transmission in demanding underwater environments. With 50 ohm impedance, IP68 sealing, and a depth-rated pressure-resistant housing, it is engineered for ROV systems, AUV payloads, and subsea sensor integration.

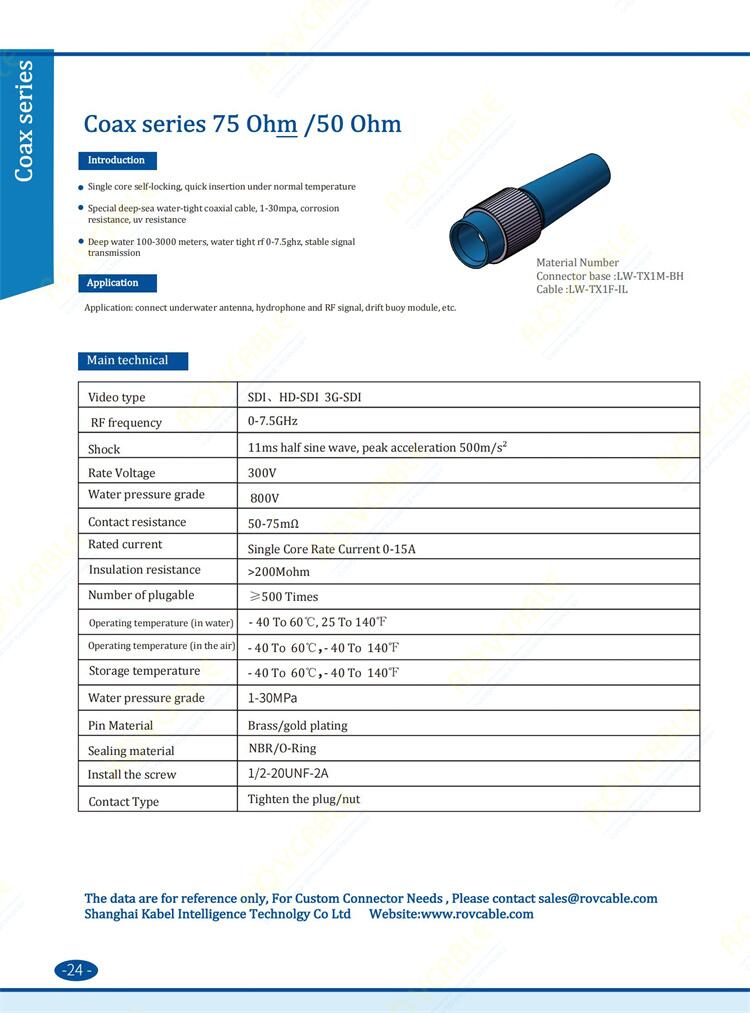

Key Specifications

Applications

• ROV and AUV sonar systems
• Subsea video and data transmission
• Oceanographic sensor arrays
• Underwater inspection cameras
• Offshore instrumentation

For custom depth ratings, cable lengths, or connector configurations, contact our engineering team: sales@rovcable.com

Frequently Asked Questions

What impedance does this connector support?

This series is designed for 50 ohm RF coaxial signal lines, suitable for sonar, video, and data applications. 75 ohm variants are available on request.

What is the maximum operating depth?

Standard units are rated to 300 m. Custom pressure-rated housings for depths up to 6000 m can be manufactured to order.

Can mating connectors be supplied?

Yes -- we supply matched male/female pairs. Custom cable assemblies with moulded boots are also available.

Applications

• High-definition video signal transmission for ROV camera systems and subsea observation
• RF communication links for underwater telemetry, antenna and wireless systems
• Subsea inspection systems requiring coaxial video and data signal integrity
• Offshore platform CCTV monitoring and underwater surveillance installations
• Sonar system coaxial signal connections for naval and oceanographic applications

Customization Options

• 50 ohm or 75 ohm impedance options to match system requirements

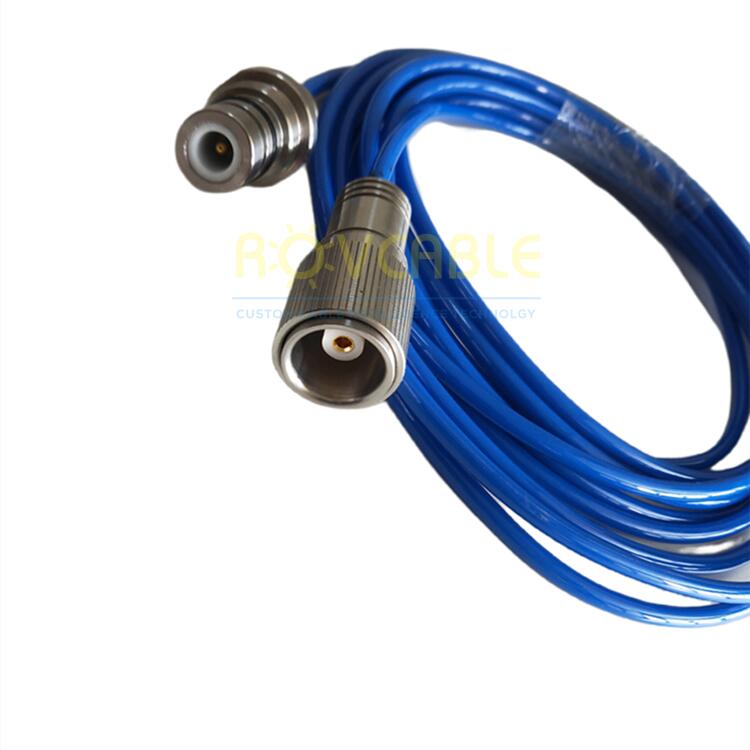

• Custom cable assembly lengths with specified coaxial cable types
• Combined coax and electrical contact configurations for hybrid applications
• Certified VSWR and insertion loss testing available upon request
