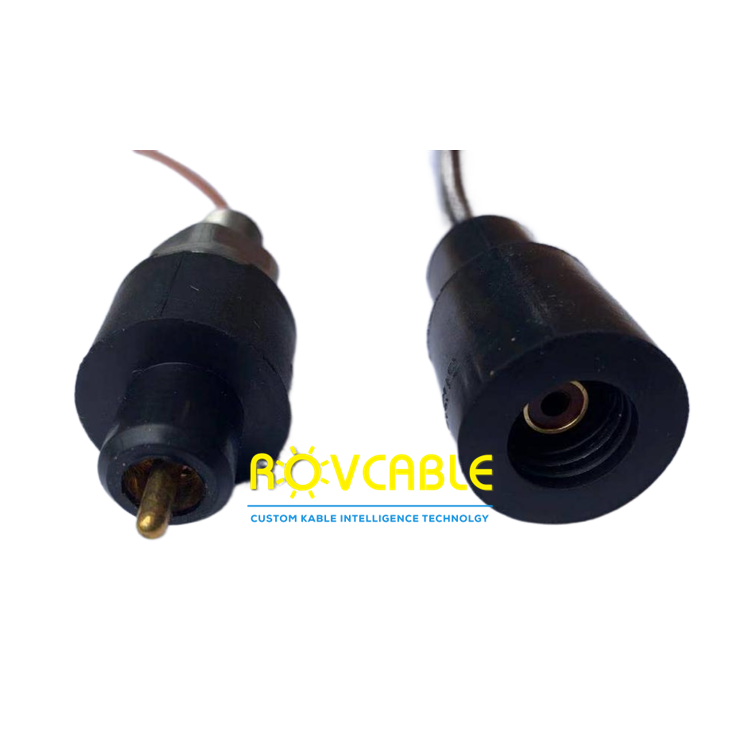

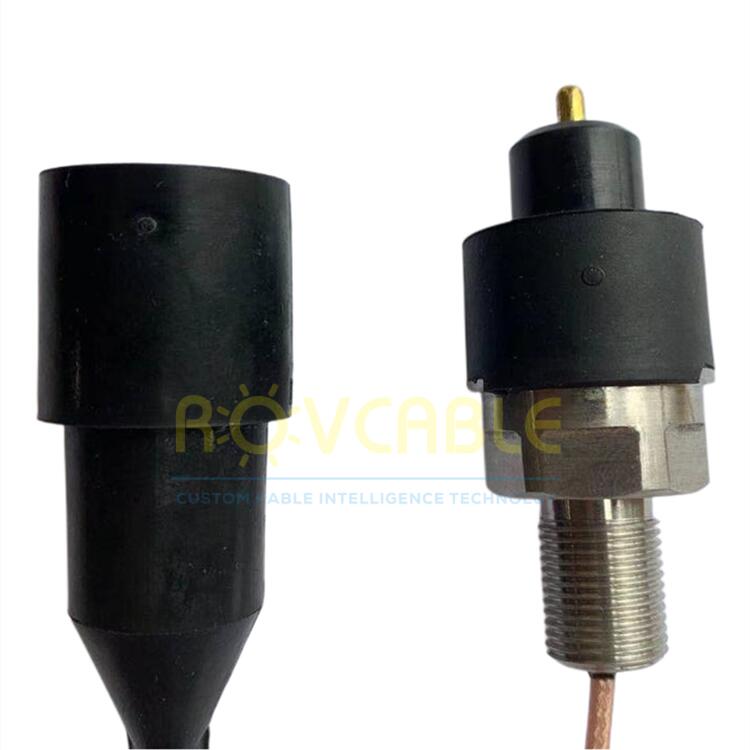

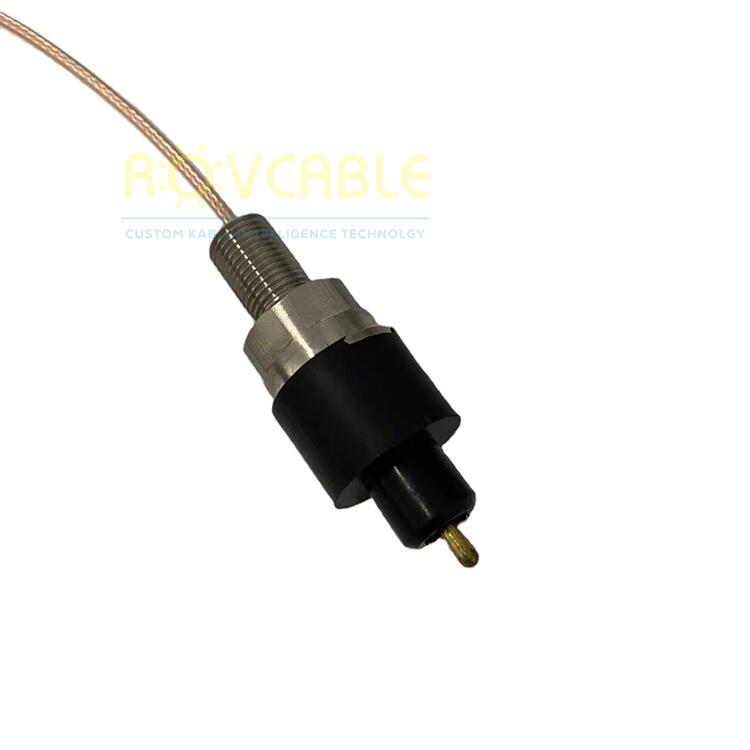

Coax Series 50/75 Ohm Dual-Impedance Subsea Coaxial Connector

The Coax Series 50/75 Ohm connector from Shanghai Kabel Intelligence Technology Co., Ltd supports both 50 ohm and 75 ohm RF coaxial circuits in a single subsea-rated assembly. Ideal for ROV video systems, sonar payloads, and AUV instrumentation requiring flexible impedance matching.

Key Specifications

Applications

• ROV HD video and sonar systems
• AUV navigation sensor arrays
• Subsea CCTV and inspection cameras
• Offshore data acquisition systems
• Underwater acoustic modems

Contact us for datasheet, custom impedance, or cable assembly quotes: sales@rovcable.com

Frequently Asked Questions

Can I order 75 ohm or 50 ohm versions separately?

Yes. Both 50 ohm and 75 ohm variants are available individually. Combined dual-impedance assemblies can also be produced to your specification.

What frequency range does this connector cover?

The standard series covers DC to 3 GHz, making it suitable for HD video, sonar, and broadband data links. Higher-frequency variants up to 6 GHz are available on request.

Is the connector suitable for wet-mate operation?

The standard series is dry-mate. Wet-mate coaxial connectors designed for in-situ subsea mating are available as a separate custom product -- contact us for details.

Application

1 Remotely Operated Vehicle (ROV) and AutonomousUnderwater Vehicle(AUV) systems

2Underwater video, cameraandlighting systems

3Diving equipment and systems

4 Sonarsystems

5 Oilrig, offshoreoilandgas,andrenewableenergy systems applications

6 Oceanographic systems and equipment

Customized Solutions

1 Customers can specify the specification, material and reserved length of supporting

wires and cables

2 Customers specified main material of the underwater connector

3 Makesystematictestplanfordifferentapplication environment

Connector specifications and property

1 Voltagerating  600V DC/AC

2 Current rating  10A

3 Insulationresistance  >200MΩ 4 Contactresistance  <0.01Ω

4 Characteristic impedance 50Ω/75Ω

Connector material specification

1 Connector body  Neoprene

2 Pin   Gold-plated brass

Applications

• High-definition video signal transmission for ROV camera systems and subsea observation
• RF communication links for underwater telemetry, antenna and wireless systems
• Subsea inspection systems requiring coaxial video and data signal integrity
• Offshore platform CCTV monitoring and underwater surveillance installations
• Sonar system coaxial signal connections for naval and oceanographic applications

Customization Options

• 50 ohm or 75 ohm impedance options to match system requirements

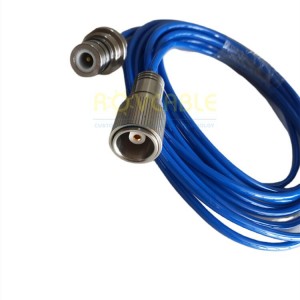

• Custom cable assembly lengths with specified coaxial cable types
• Combined coax and electrical contact configurations for hybrid applications
• Certified VSWR and insertion loss testing available upon request
