MCDLSM and MCDLSF waterproof locking sleeve set for underwater electrical connector pairs. 316L stainless steel, full retention system for ROV and subsea connectors.

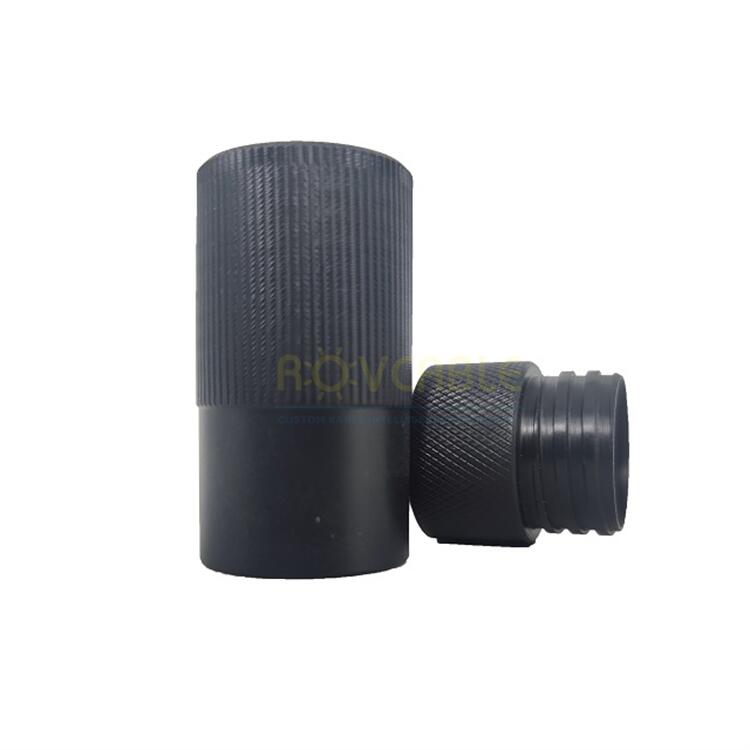

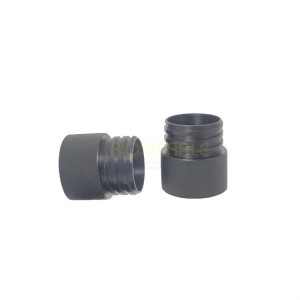

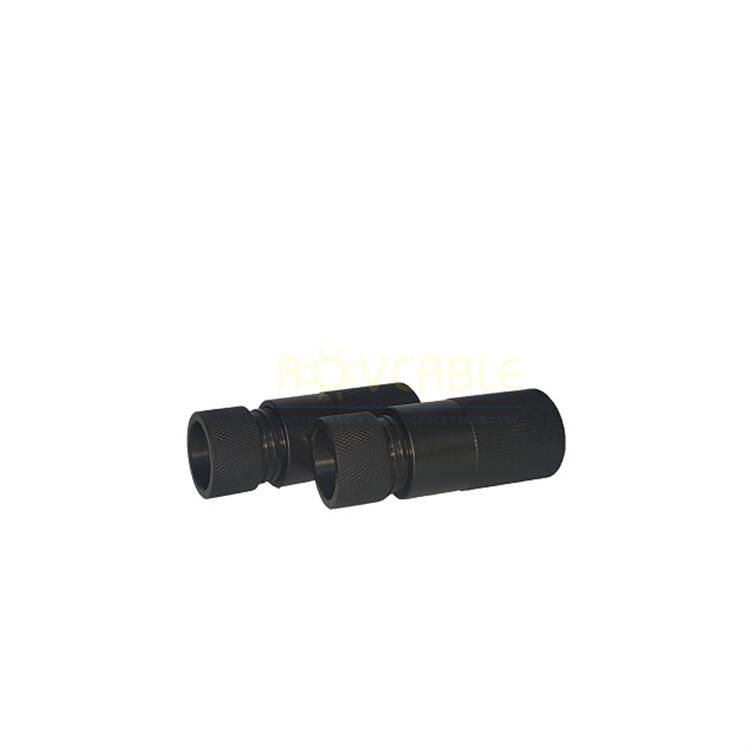

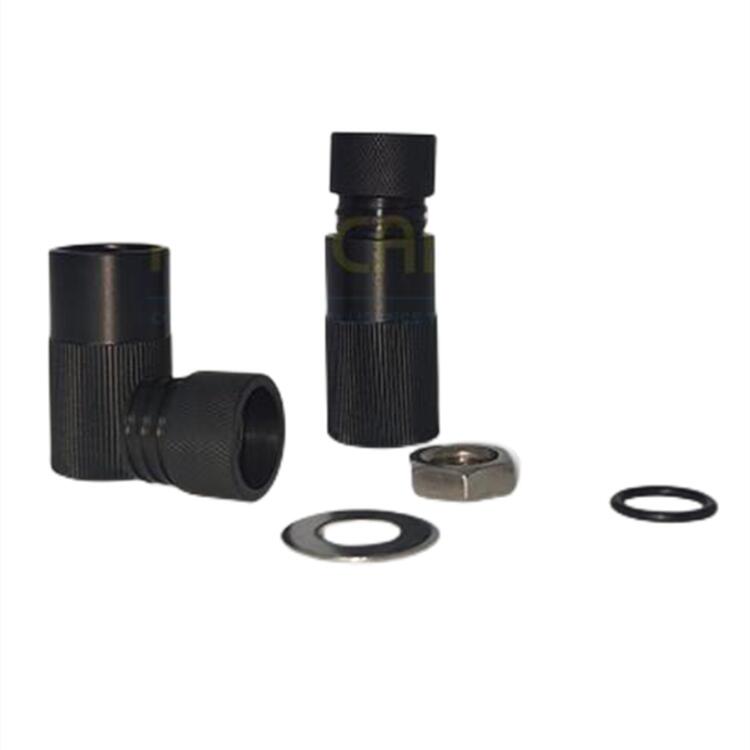

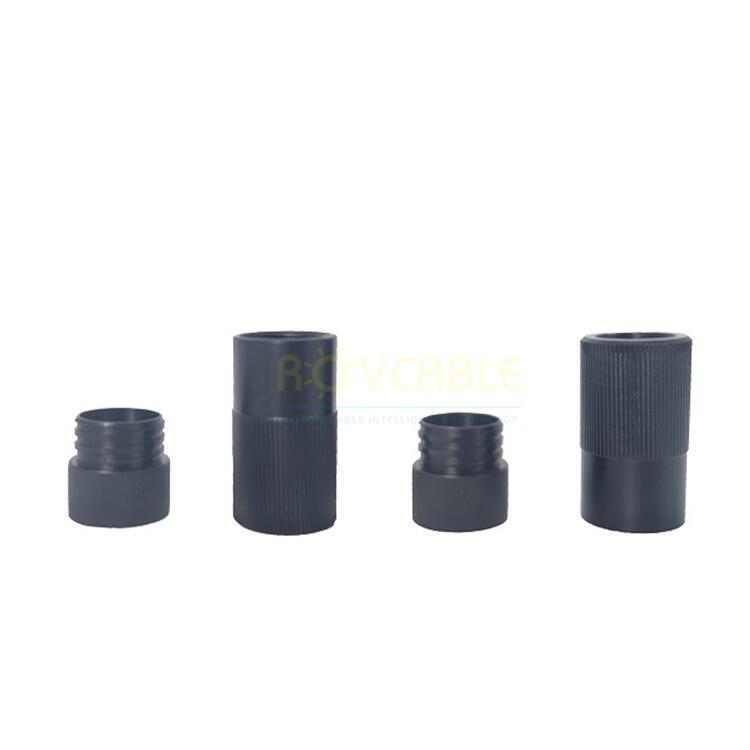

The MCDLSM + MCDLSF locking sleeve set provides the complete retention system for a mated underwater electrical connector pair. The male sleeve (MCDLSM) and female sleeve (MCDLSF) work together to create a positive-locking, vibration-proof connection that prevents accidental decoupling in ROV operations, subsea instrument deployments, and deep-sea applications. Both sleeves are machined from 316L stainless steel.
| Parameter | Specification |
|---|---|
| Set Contents | 1x MCDLSM + 1x MCDLSF sleeve |
| Material | 316L Stainless Steel (both) |
| Compatibility | SubConn-equivalent MCIL/MCBH connector series |
| Finish | Electropolished / passivated |
| Depth Rating | Matches connector pair rating (up to 6,000 m) |
| Locking | Positive double-lock -- prevents accidental separation |
Order locking sleeve sets with your connector series and shell size: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Slide the MCDLSM sleeve onto the male connector body before mating. After mating the connector pair, slide the MCDLSF sleeve from the female side and engage the two sleeves together by rotating or pushing to lock position. The locking engagement mechanism varies by design -- contact us for the specific installation procedure for your connector size.
Yes. MCDLSM and MCDLSF sleeves are also available individually (see separate product pages). Order the set for new connector pairs, or order individual sleeves as replacements.
