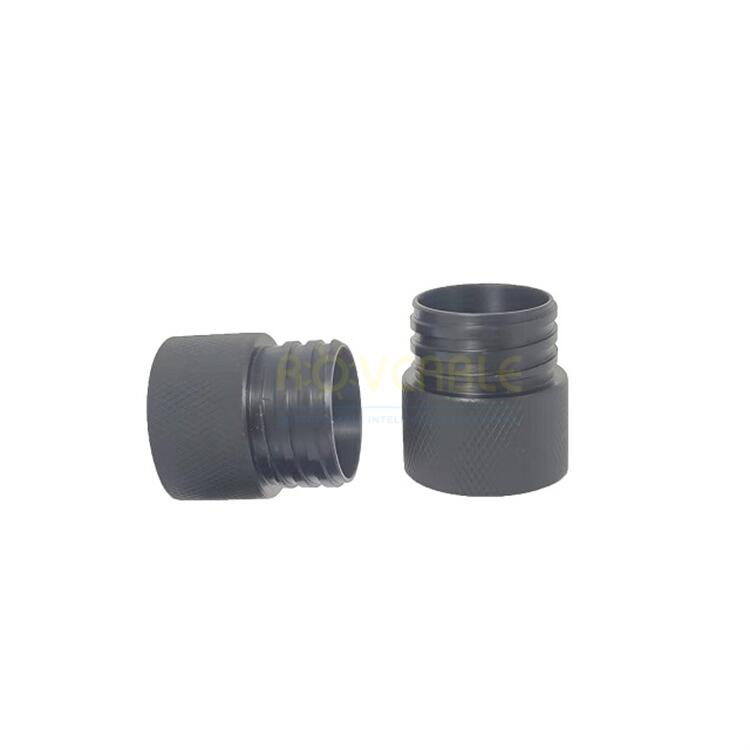

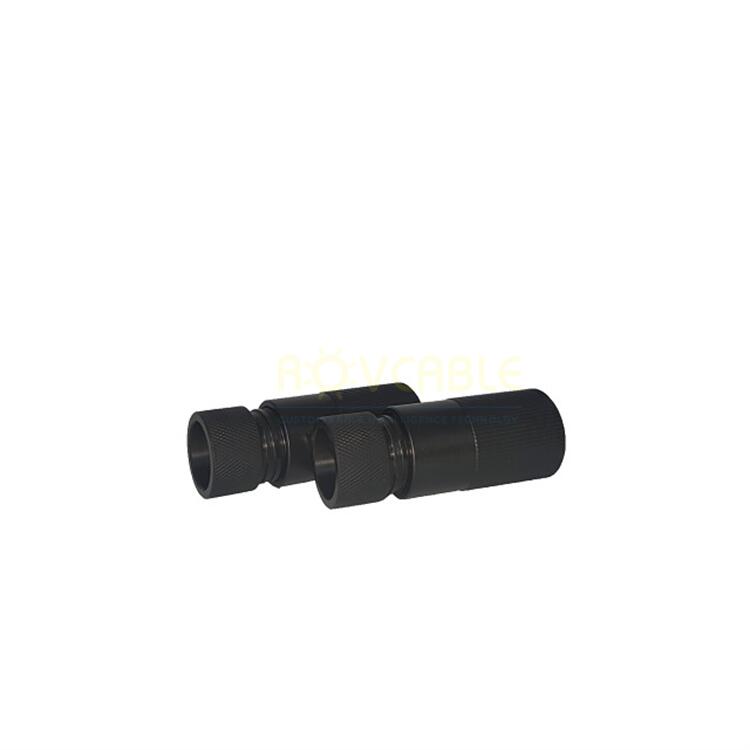

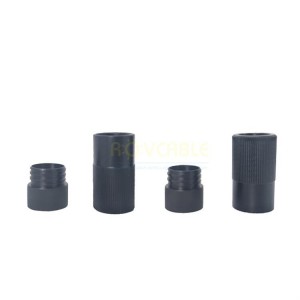

MCDLSM male outer locking sleeve for subsea waterproof connectors. 316L stainless steel, secures connector mating in ROV, subsea instrument, and ocean sensor applications.
The MCDLSM male outer locking sleeve is installed on the male connector half and works with the MCDLSF female sleeve to provide a positive-locking retention system for mated underwater connector pairs. Machined from 316L stainless steel for exceptional seawater corrosion resistance, the MCDLSM prevents accidental connector separation in high-current, high-vibration, or ROV work-class environments.
| Parameter | Specification |
|---|---|
| Model | MCDLSM (male outer locking sleeve) |
| Material | 316L Stainless Steel |
| Compatibility | SubConn-equivalent MCIL/MCBH connectors |
| Finish | Electropolished / passivated |
| Depth Rating | Matches connected pair rating (up to 6,000 m) |
| Function | Outer sleeve -- locks mated connector pair |
Order MCDLSM locking sleeves with size specification: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
For the full double-locking retention system, both MCDLSM (male) and MCDLSF (female) sleeves are used together. However, some installation designs use a single locking sleeve on one side only. Consult your ROV or instrument system design to determine the correct configuration.
Yes. MCDLSM sleeves are dimensioned to fit SubConn-equivalent (MCIL/MCBH) connector bodies from multiple manufacturers. Provide your connector series and shell size when ordering to confirm fit.
