Shanghai Kabel Intelligence Technology Co., Ltd micro circular underwater connectors in 10, 12, and 16 contacts. MCBH/MCIL, IP68, 7000m depth. SubConn 10/12/16-contact drop-in compatible.

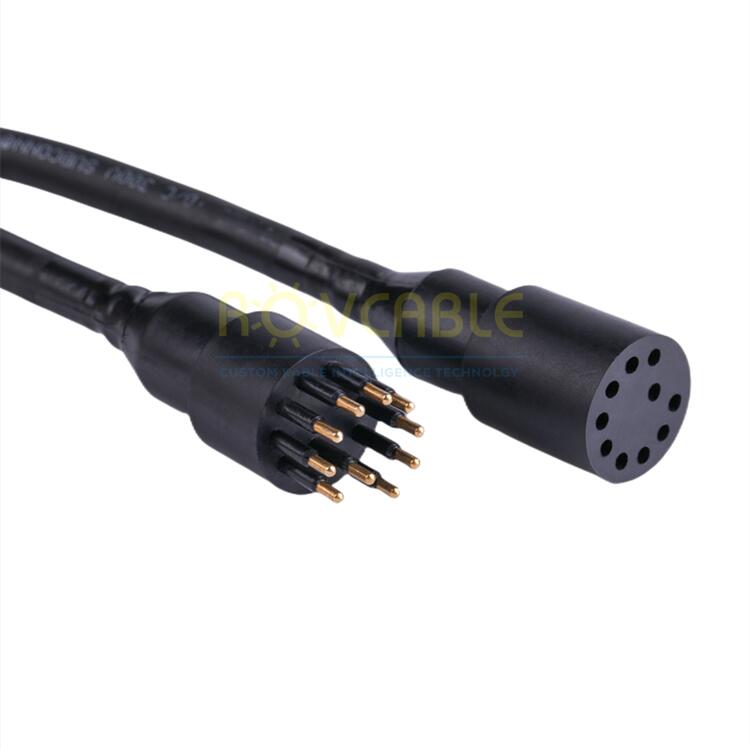

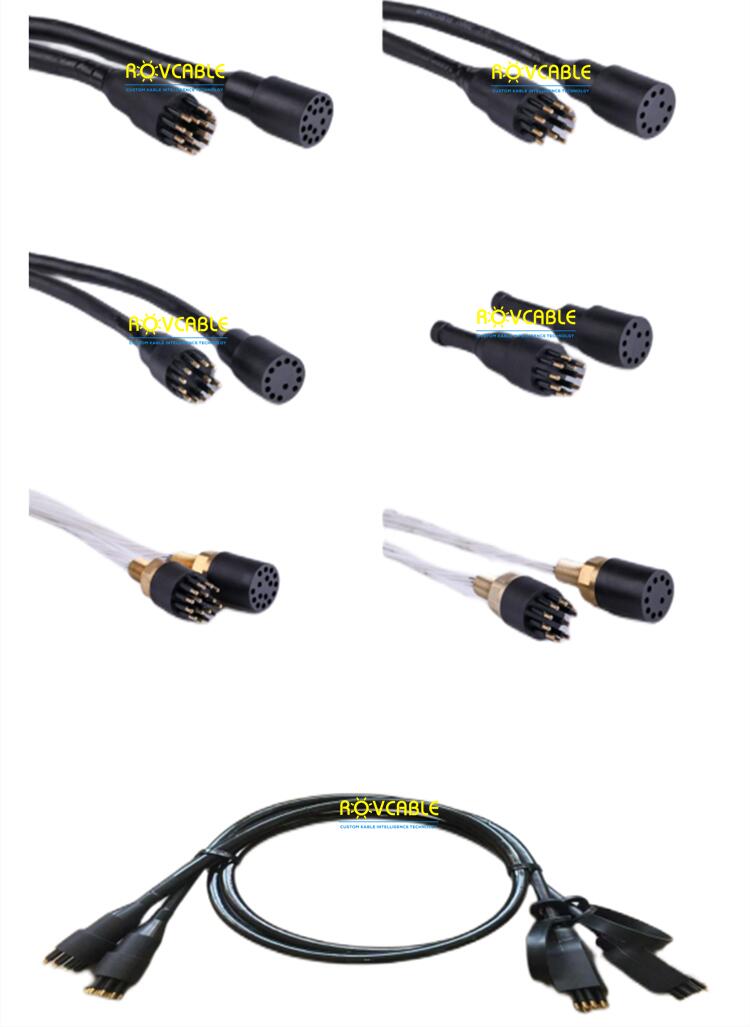

Shanghai Kabel Intelligence Technology Co., Ltd supplies MCBH and MCIL micro circular underwater connectors in 10-contact, 12-contact, and 16-contact configurations -- the high-contact-density options of the Micro Circular platform. These connectors carry more conductors in the same compact Micro Circular shell, making them ideal for ROV camera systems, multi-axis thrusters, and complex sensor suites where space is constrained but many circuits must pass through a single penetration point.
Rated to 7,000 m, IP68, PEEK insulator. Direct drop-in replacement for SubConn® MCBH10, MCBH12, MCBH16, MCIL10, MCIL12, MCIL16.
| Contact Count | Typical Use Case | Current per Contact | Models Available |
|---|---|---|---|
| 10 | Multi-function camera + lighting + control | 10 A | MCBH10M/F, MCIL10M/F, MCBHRA10M/F |
| 12 | Multi-axis sensor packages, complex data + power | 10 A | MCBH12M/F, MCIL12M/F |
| 16 | High-density control umbilicals, vehicle-wide signal bus | 5 A (derated) | MCBH16M/F, MCIL16M/F |
| Parameter | Specification |
|---|---|
| Depth rating | 7,000 m |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Shell material | Anodized aluminium / Titanium / Stainless Steel 316L |
| Insulator | PEEK |
| Contacts | Gold-plated copper alloy |
| Sealing | Dual O-ring per contact + face seal |
| Temperature range | -20 to +85 degC |
| Mating cycles | 500+ |
| Hydrostatic test | 600 psig, certificate issued per batch |
| Compatibility | SubConn MCBH10 / MCIL10 / MCBH12 / MCIL12 / MCBH16 / MCIL16 |
Contact assignment templates for 10, 12, and 16-pin configurations available on request -- ask our engineering team when placing an enquiry.
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
With 16 contacts in the same shell diameter, thermal dissipation per contact is reduced. The 5 A per contact limit ensures the connector runs safely within its thermal rating at full simultaneous load. For higher-current circuits, use a 10-pin or fewer connector in parallel.
Yes. A standard practice is to assign 2-4 contacts for power supply at rated current, then route all remaining contacts for signal/data. Contact our engineering team for a recommended pin assignment for your specific application.
Yes, direct cross-compatibility. Our MCBH12 shell, thread, and contact dimensions are identical to SubConn MCBH12. The mating face and thread pattern allow direct mating with OEM SubConn MCIL12 connectors in the field.
