Airtight cabin connector and housing for ROV, AUV and subsea pressure vessel applications. IP68 sealed, stainless steel. Contact sales@rovcable.com.

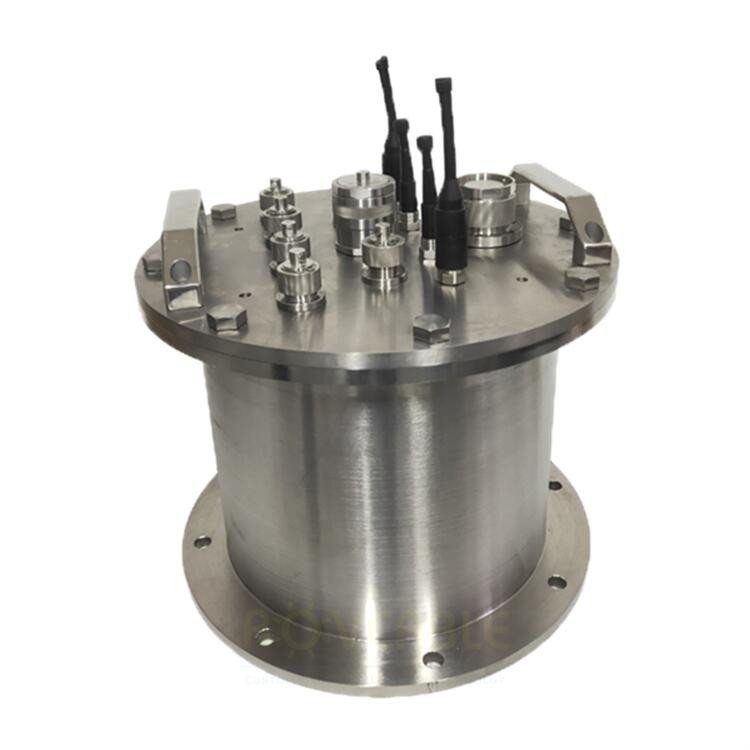

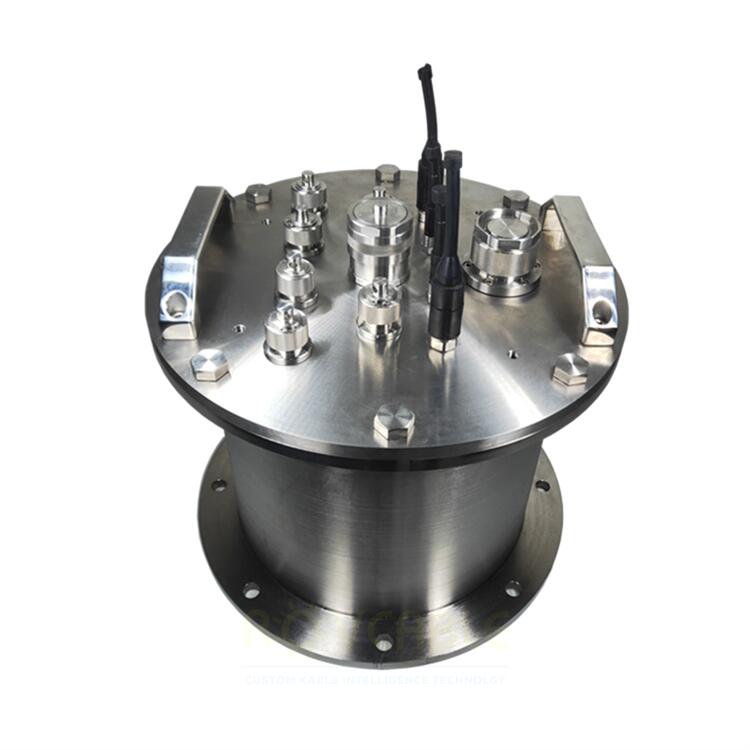

The Airtight Cabin from Shanghai Kabel Intelligence Technology Co., Ltd is a sealed enclosure and connector housing designed for ROV, AUV, and subsea instrument pressure vessel integration. Providing an IP68-rated airtight cavity for electronics or connection terminations, the cabin maintains an air or dry nitrogen atmosphere at depth, protecting sensitive components from seawater ingress while enabling external electrical connections through sealed feed-through connectors.
| Parameter | Value |
|---|---|
| IP Rating | IP68 |
| Housing Material | 316L Stainless Steel / Anodised Aluminium |
| Internal Atmosphere | Air / Dry Nitrogen (at depth) |
| Feed-Through Connectors | Configurable (specify contact count and type) |
| Operating Depth | 300 m standard; custom available |
| Sealing | Double O-ring on all penetrations |
| Internal Volume | Configurable (specify) |
| Pressure Relief | Optional integrated pressure relief valve |
Specify dimensions, depth rating, and connector configuration: sales@rovcable.com
The cabin is sealed at atmospheric pressure (1 bar). At depth, the external hydrostatic pressure is resisted by the housing wall and O-ring seals. An optional pressure relief valve can be fitted to allow safe venting if internal pressure builds due to outgassing.

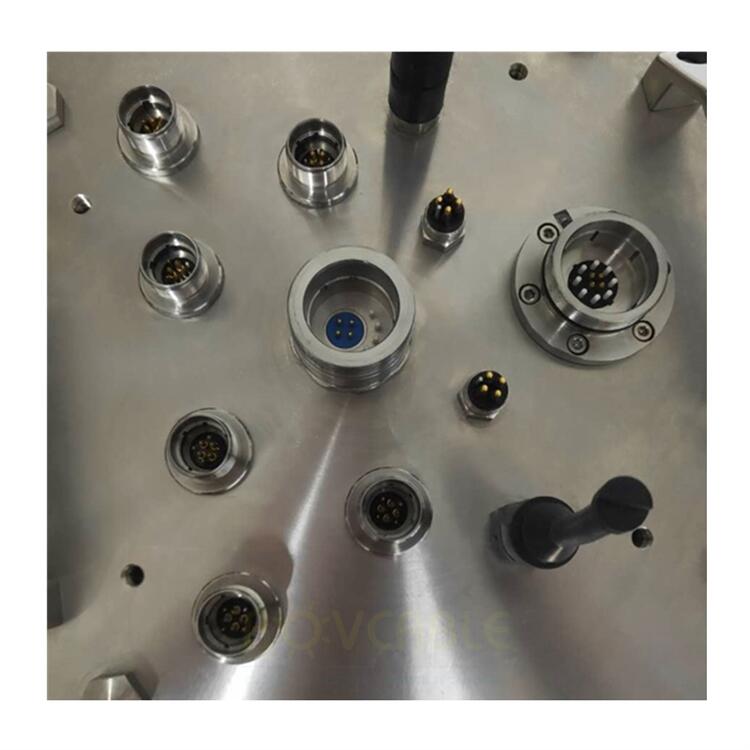

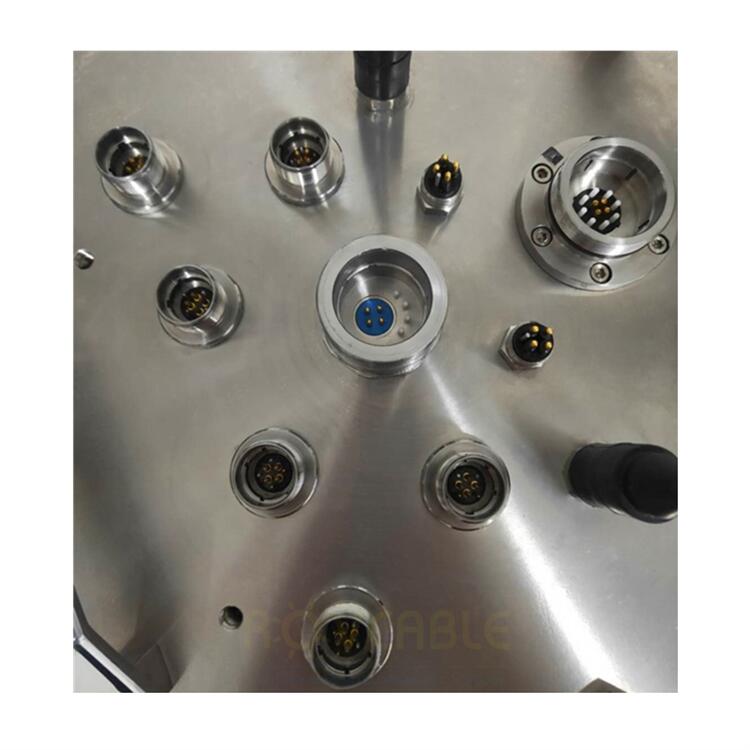

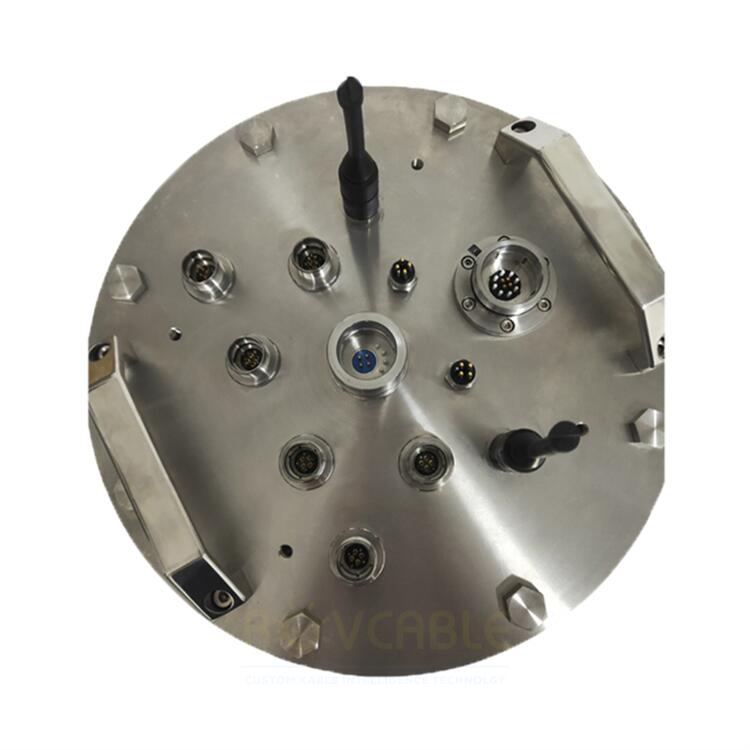

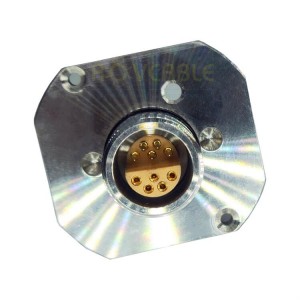

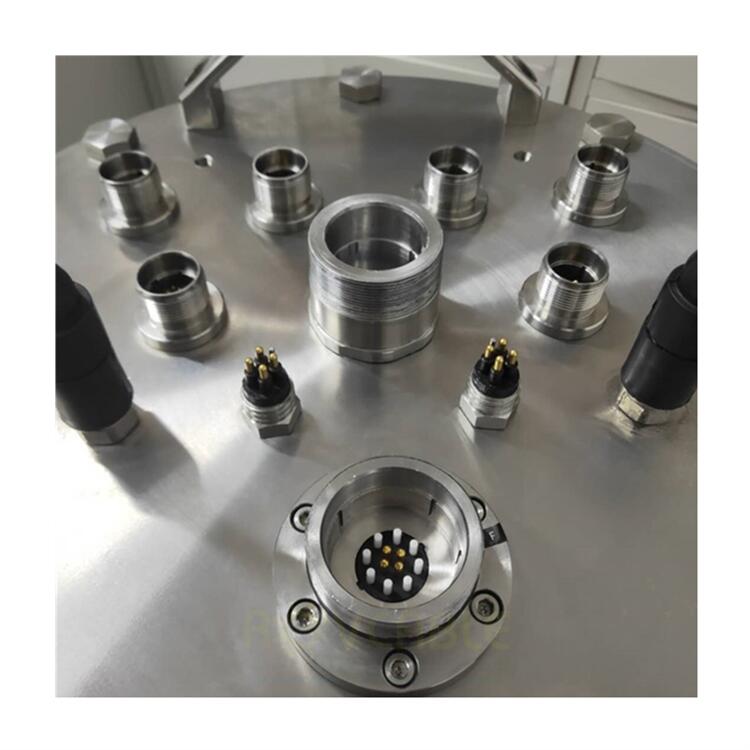

Yes -- the cabin can be configured with multiple feed-through connectors (power, signal, fibre optic, coaxial) through the end caps or side walls. Each penetration is individually O-ring sealed. Specify the number and type of connectors required when ordering.
Standard cabins are rated to 300 m. Deep-rated versions for 1000 m, 3000 m, or 6000 m are available with thicker walls and titanium hardware. Hydrostatic test certification is supplied with each deep-rated unit.
