Flange metal shell underwater connector for subsea panel penetrations. IP68, stainless steel, various contact counts. Contact sales@rovcable.com.

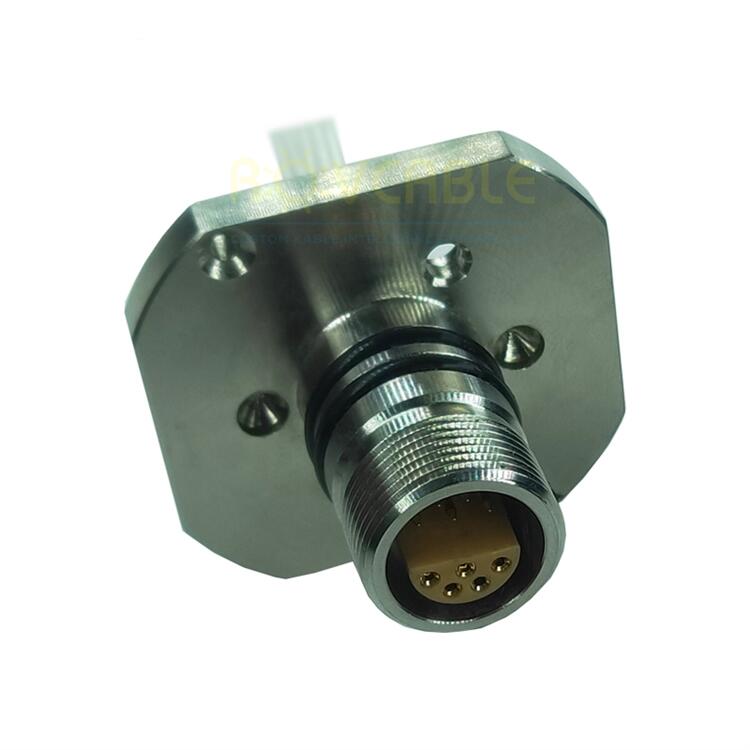

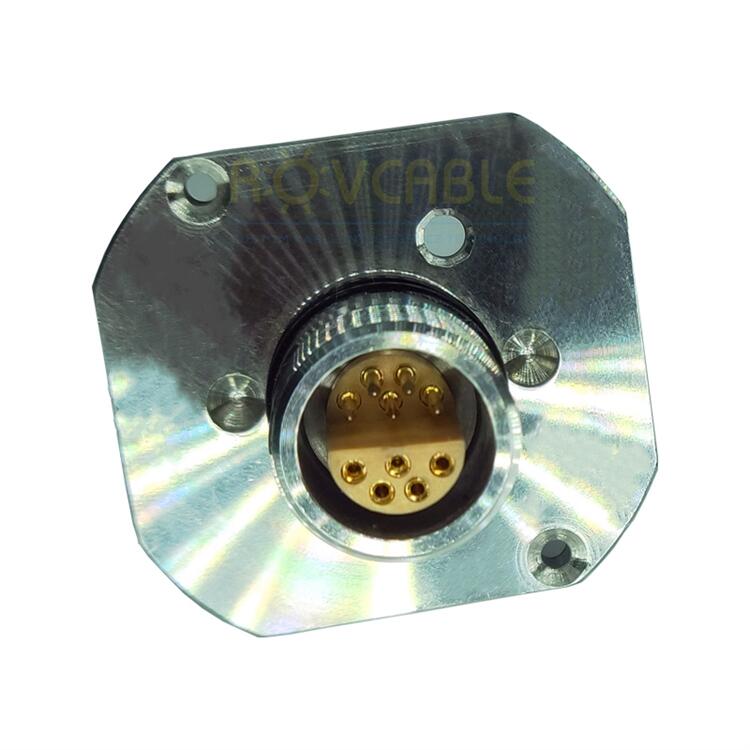

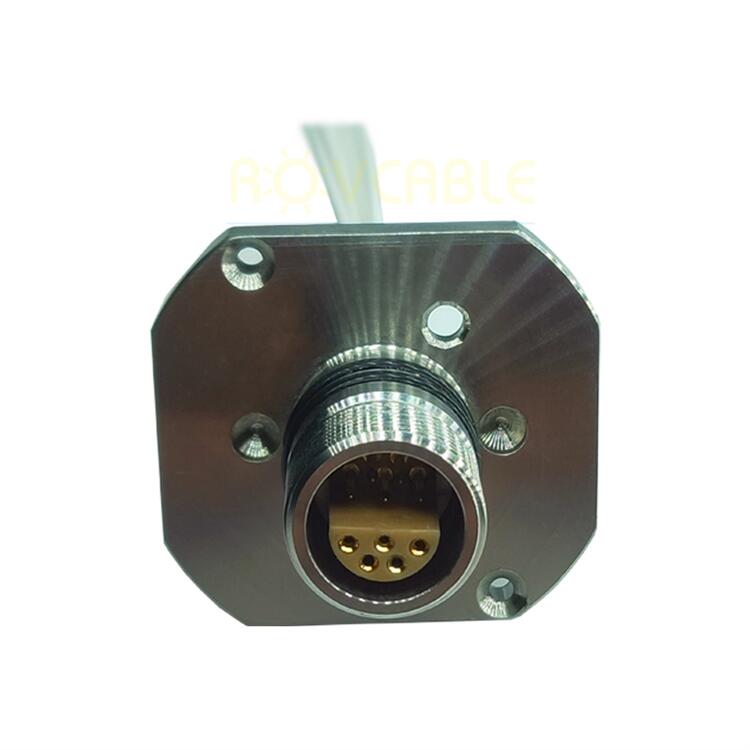

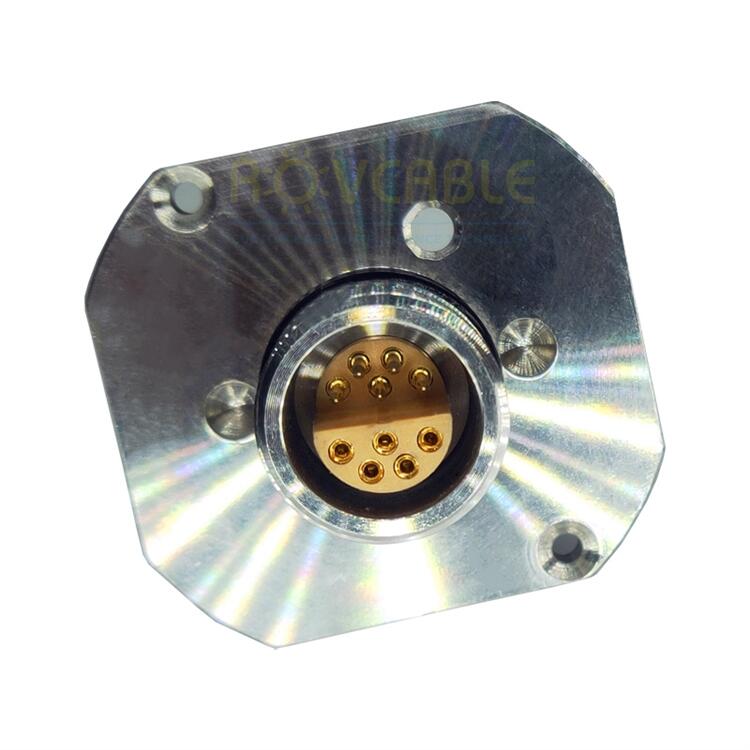

The Flange Metal Shell underwater connector from Shanghai Kabel Intelligence Technology Co., Ltd provides a bolted flange mounting for ROV, AUV, and instrument housing panel penetrations. Available in multiple contact counts, the stainless steel flange body distributes sealing load evenly, providing reliable IP68 protection at depth while enabling simple panel installation and removal.
| Parameter | Value |
|---|---|
| Mount Type | Flange (bolted) |
| IP Rating | IP68 |
| Contact Count | Available from 2 to 18+ (specify) |
| Shell Material | 316L Stainless Steel |
| Contact Plating | Gold over Nickel |
| Current Rating | Up to 20 A per contact |
| Operating Depth | 300 m standard; custom available |
| Mating Cycles | ≥500 |
Request datasheet or specify contact count: sales@rovcable.com
Standard flanges use 4 bolts (M3 or M4) on a circular bolt pattern. Custom bolt counts (2, 6, or 8 bolts) are available for larger flanges or panels with existing bolt holes.

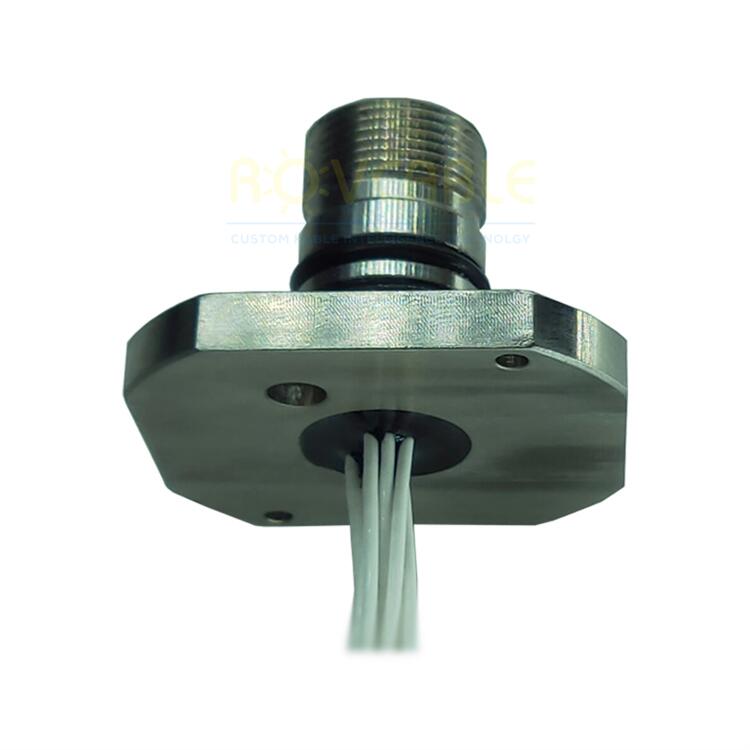

Yes -- the flange connector is designed specifically for panel-mount feed-through use. The body seals against the panel face, and the mating plug connects from the external side.
Standard is 300 m. Custom depth-rated versions with titanium hardware and reinforced sealing are available for deeper applications.
