9-pin right angle marine underwater connector rated to 7000m depth for ROV and deep-sea applications. IP68, titanium/stainless. Contact sales@rovcable.com.

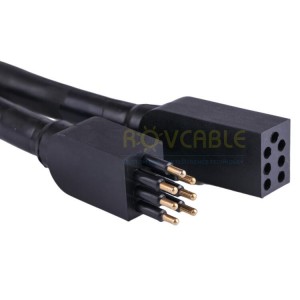

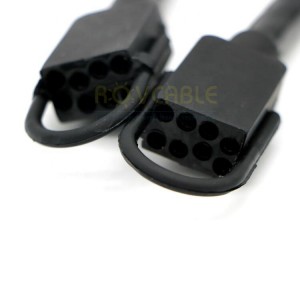

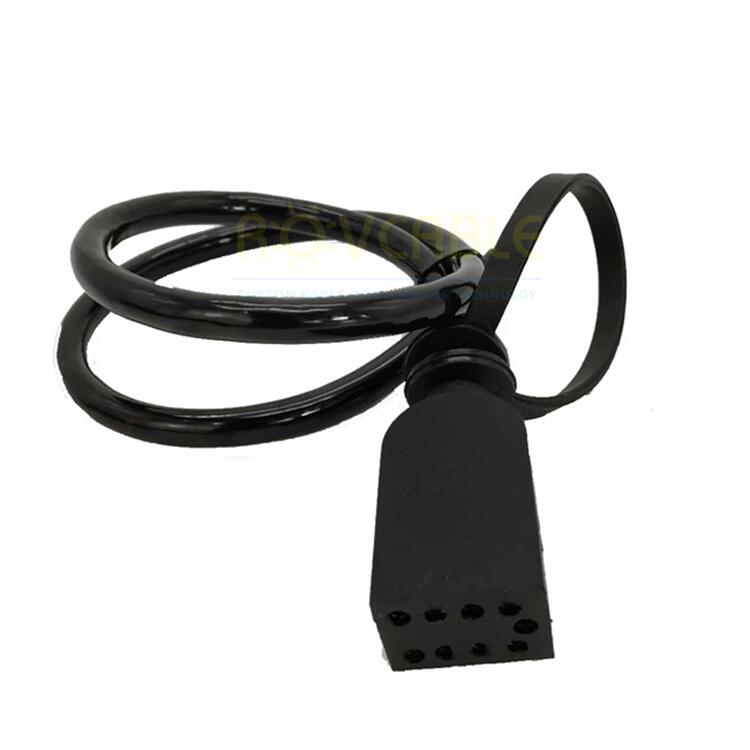

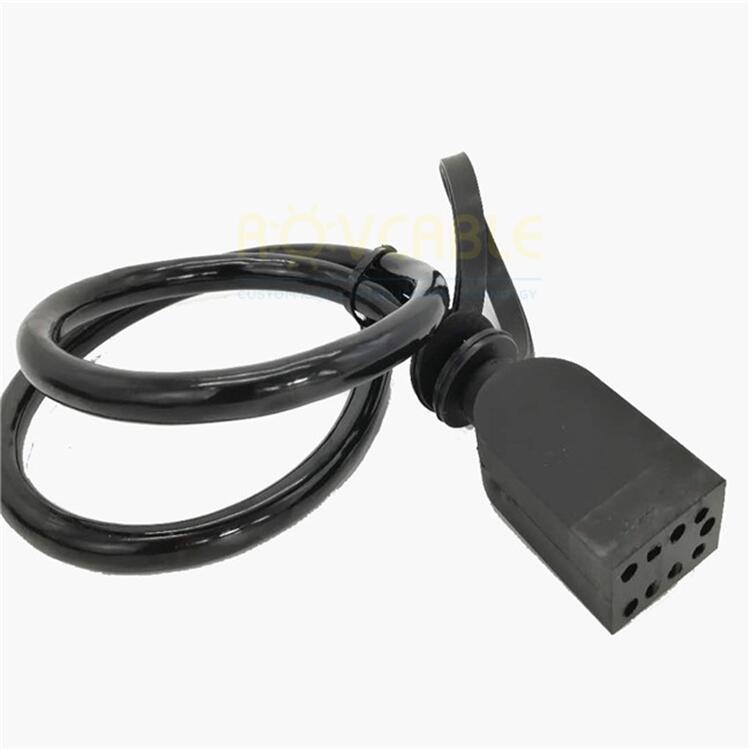

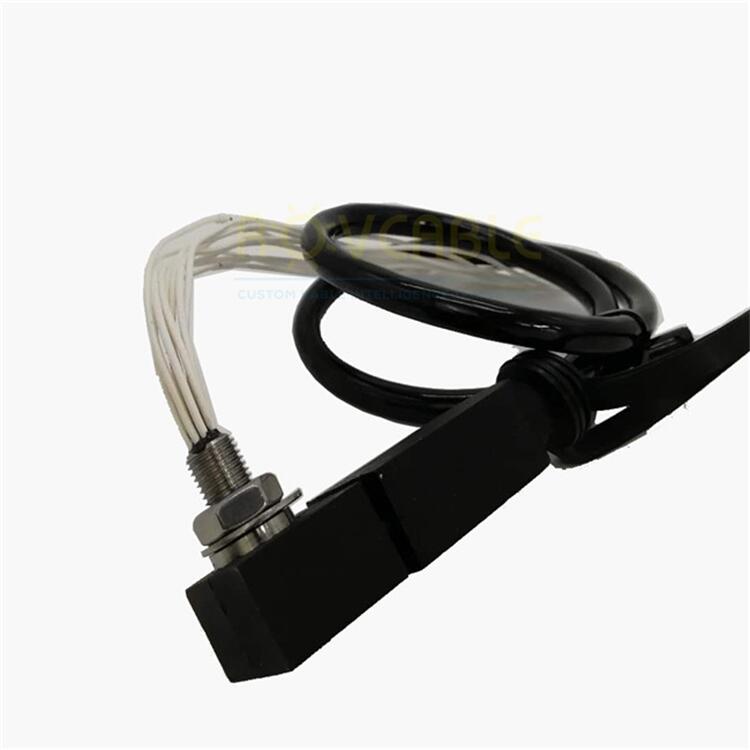

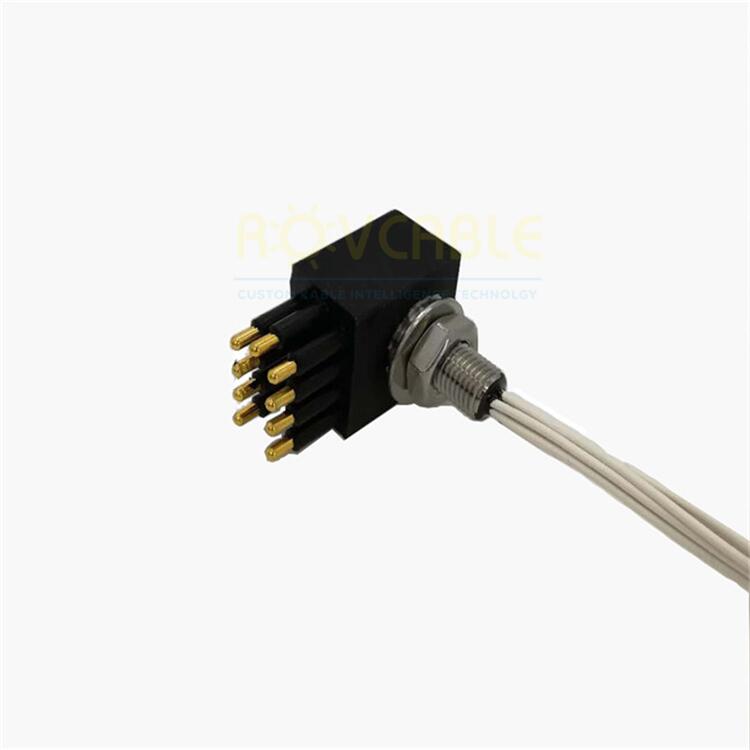

This 9-pin right angle marine underwater connector from Shanghai Kabel Intelligence Technology Co., Ltd is depth-rated to 7000 m, meeting the most demanding requirements for deep-sea ROV, AUV, and oceanographic equipment. The right-angle body routes the cable parallel to the mounting surface, saving space and reducing bending stress on the cable exit. Built from titanium or 316L stainless steel with double O-ring sealing and full hydrostatic pressure testing.
| Parameter | Value |
|---|---|

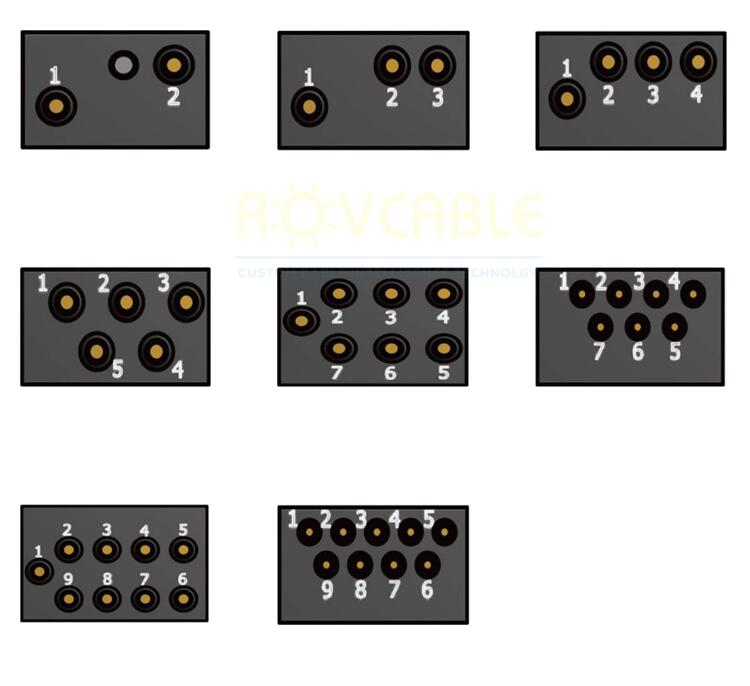

| Contact Count | 9 |
| Depth Rating | 7000 m (700 bar hydrostatic test) |

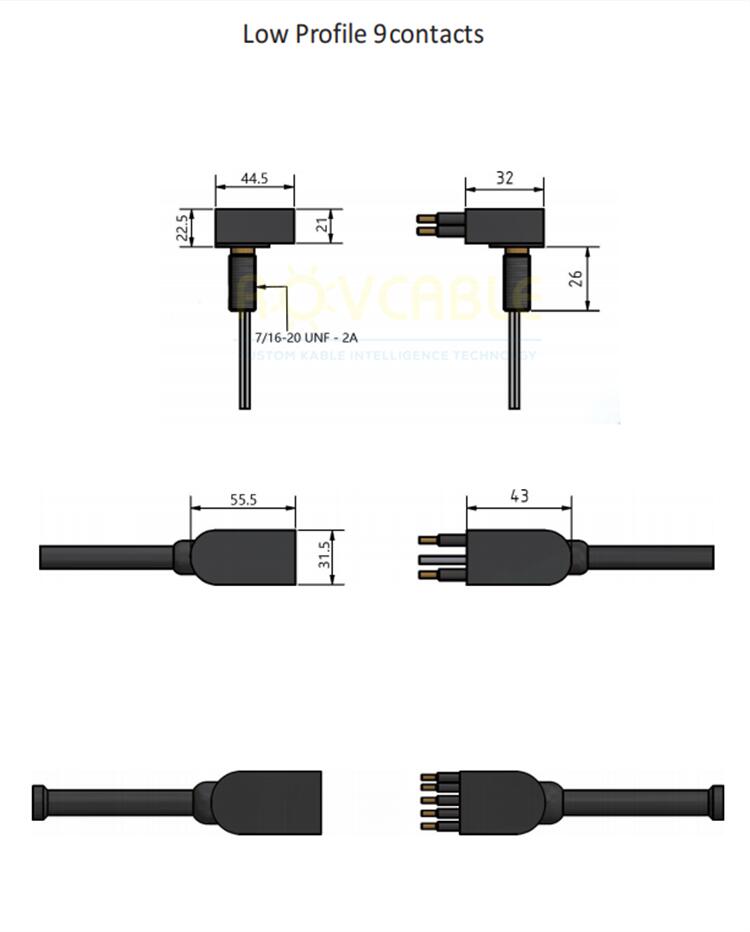

| Orientation | Right Angle (90°) |
| IP Rating | IP68 |
| Housing Material | Titanium / 316L Stainless Steel |
| Sealing | Triple O-ring + pressure-compensated boot |
| Contact Plating | Gold |
| Contact Rating | Up to 10 A per contact |
| Mating Cycles | ≥500 |
| Test Certification | Hydrostatic pressure test report supplied |
For 7000 m depth-rated connectors and cable assemblies: sales@rovcable.com
At 7000 m (700 bar), we use titanium Grade 5 (Ti-6Al-4V) or 316L stainless steel bodies with triple O-ring sealing and a pressure-compensated polyurethane boot. All sealing materials are qualified for long-term seawater immersion.
Yes -- all deep-rated connectors are hydrostatically tested to 1.5x rated pressure (1050 bar for 7000 m units) and supplied with a signed test report for project QA documentation.
Right-angle connectors reduce cable bending radius at the connector exit, protecting the cable from fatigue in dynamic applications. They also reduce the installed depth profile on panel-mounted instruments where straight connectors would protrude excessively.
