Waterproof square port cable connector for subsea and industrial underwater use. IP68, compact square form factor. Contact sales@rovcable.com.

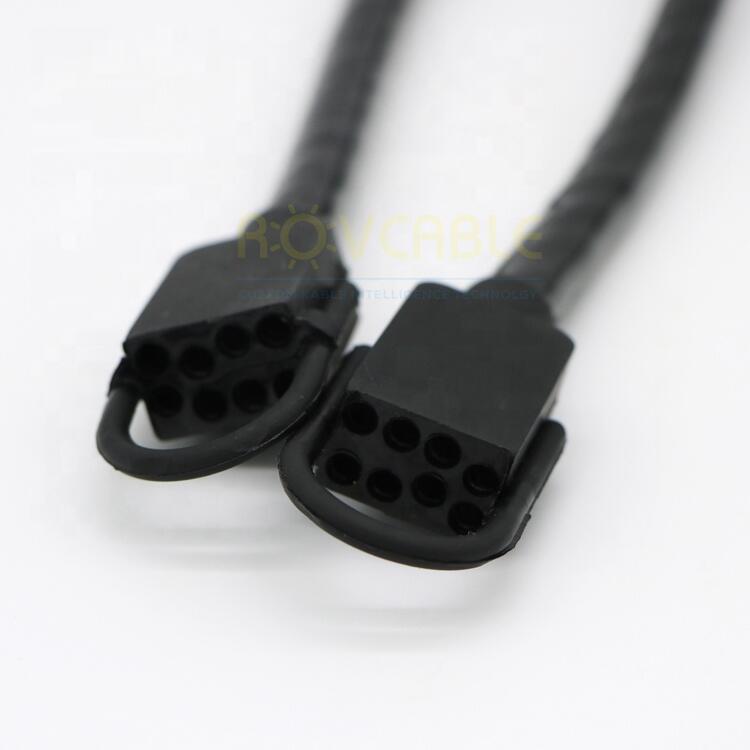

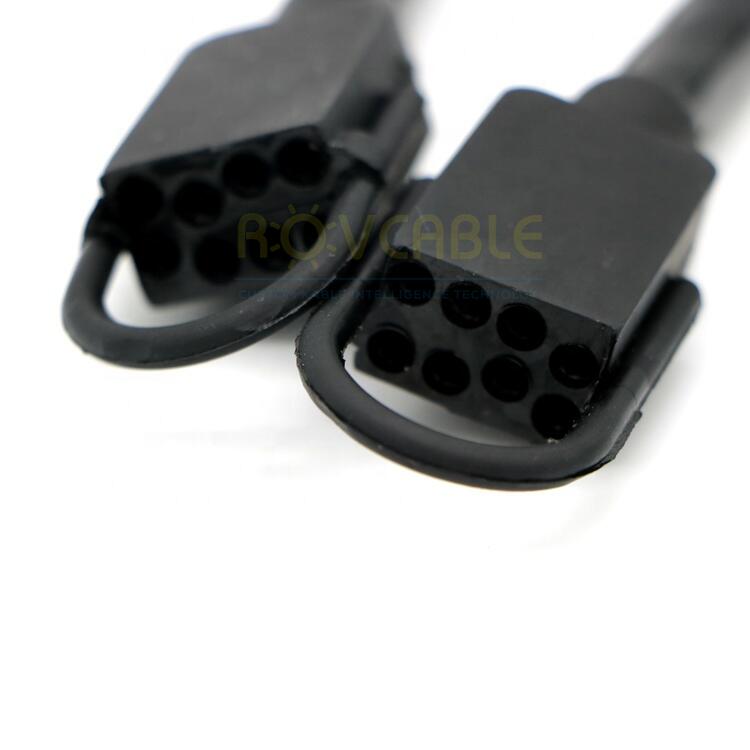

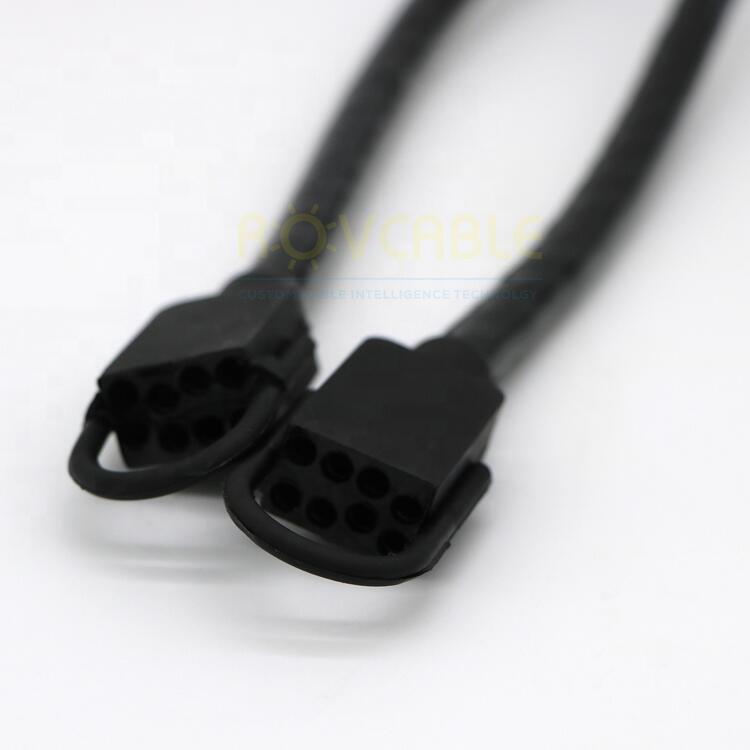

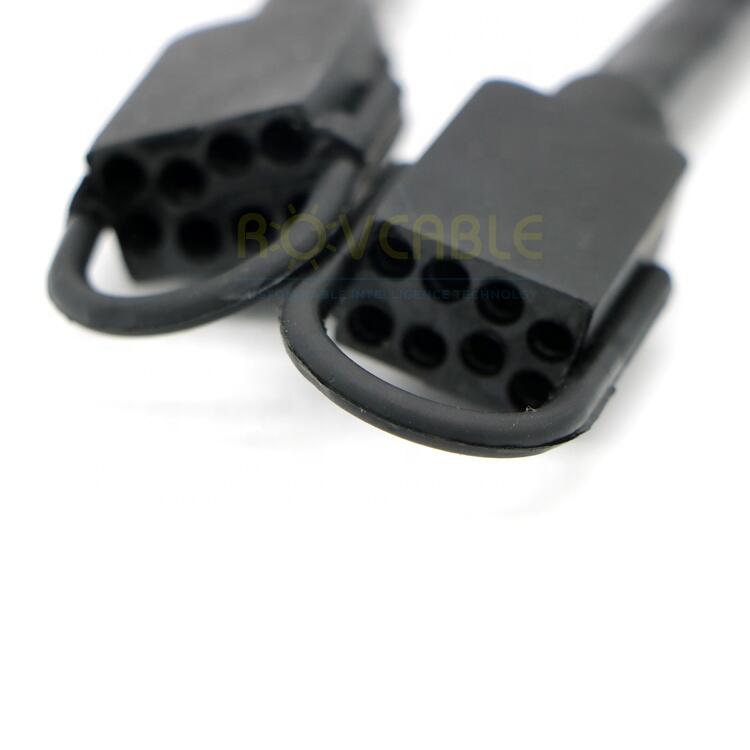

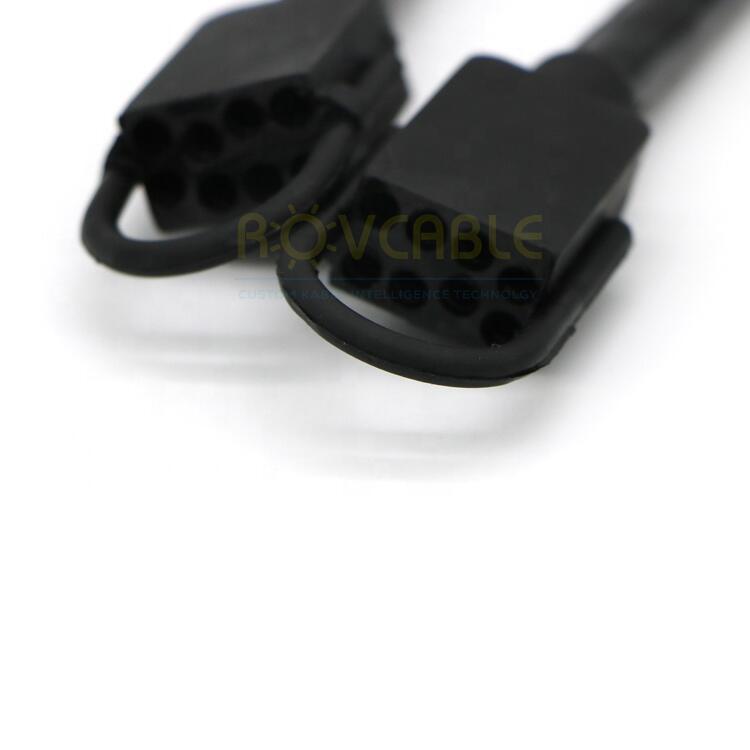

The Waterproof Square Port Cable Connector from Shanghai Kabel Intelligence Technology Co., Ltd provides an IP68-sealed square-format cable connection for subsea and industrial underwater applications. The square port body enables easy panel alignment, compact installation, and positive locking in confined spaces where circular connectors are difficult to locate and align.
| Parameter | Value |
|---|---|
| Form Factor | Square Port |
| IP Rating | IP68 |
| Housing Material | 316L Stainless Steel / Engineering Polymer |
| Contact Options | 2, 4, 8, 9 (specify) |
| Contact Plating | Gold |
| Operating Depth | 300 m standard |
| Mounting | Panel-mount / Inline |
| Mating Cycles | ≥500 |
Contact us for square port connector configurations: sales@rovcable.com
Square connectors offer easier panel alignment (less rotation required), more compact grid spacing for multi-port panels, and visual orientation indication -- reducing assembly errors in low-visibility subsea environments.
The square body itself prevents rotation when panel-mounted. An optional retention clip provides additional positive lock-out for vibration-prone installations.
Standard contact counts are 2, 4, 8, and 9. Custom layouts are available -- contact us with your circuit requirements.
