Low profile hybrid 13-contact subsea connector: 4 power + 8 Ethernet + 1 screen. IP68, compact for ROV AUV. Contact sales@rovcable.com.

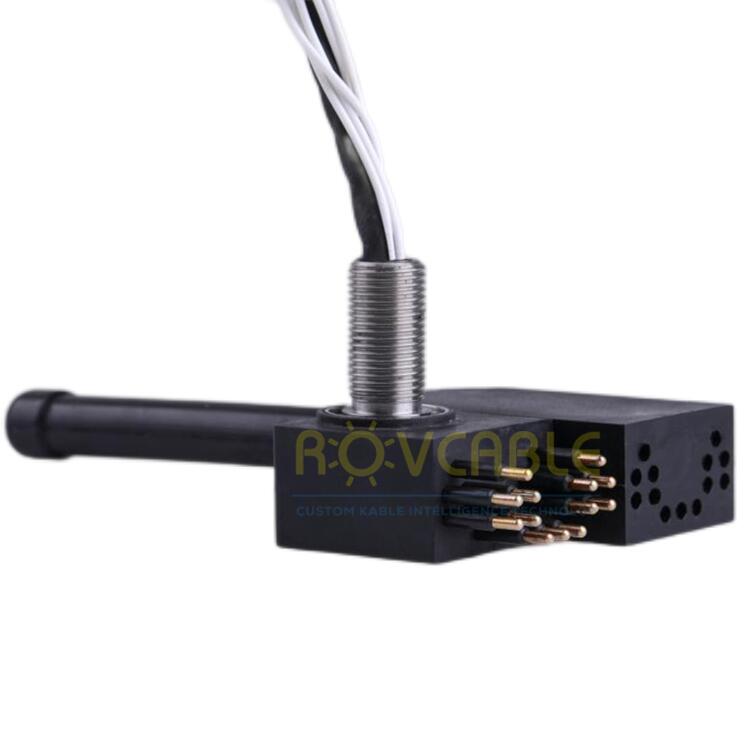

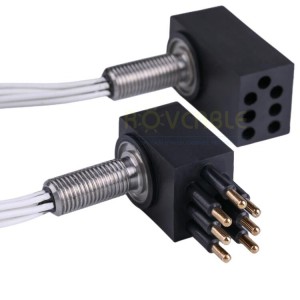

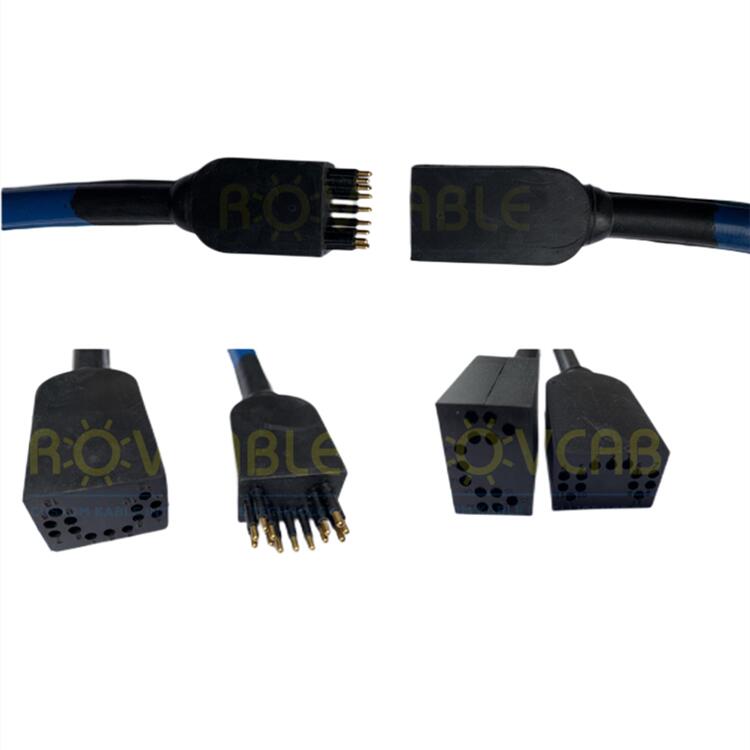

This Power Ethernet Low Profile 13-Contact subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd combines 4 power contacts, 8 Ethernet contacts, and 1 screen contact in a compact low-profile body. IP68 rated, it reduces installation footprint on ROV and AUV frames where space is at a premium, while delivering full Gigabit Ethernet and high-current power capability.
| Parameter | Value |
|---|---|
| Total Contacts | 13 |
| Contact Breakdown | 4 Power + 8 Ethernet + 1 Screen |
| IP Rating | IP68 |
| Power Contact Rating | Up to 20 A per contact |
| Ethernet Standard | 100BASE-TX / 1000BASE-T |
| Form Factor | Low Profile |
| Housing Material | 316L Stainless Steel |
| Operating Depth | 300 m standard |
| Mating Cycles | ≥500 |
Request datasheet or configuration options: sales@rovcable.com

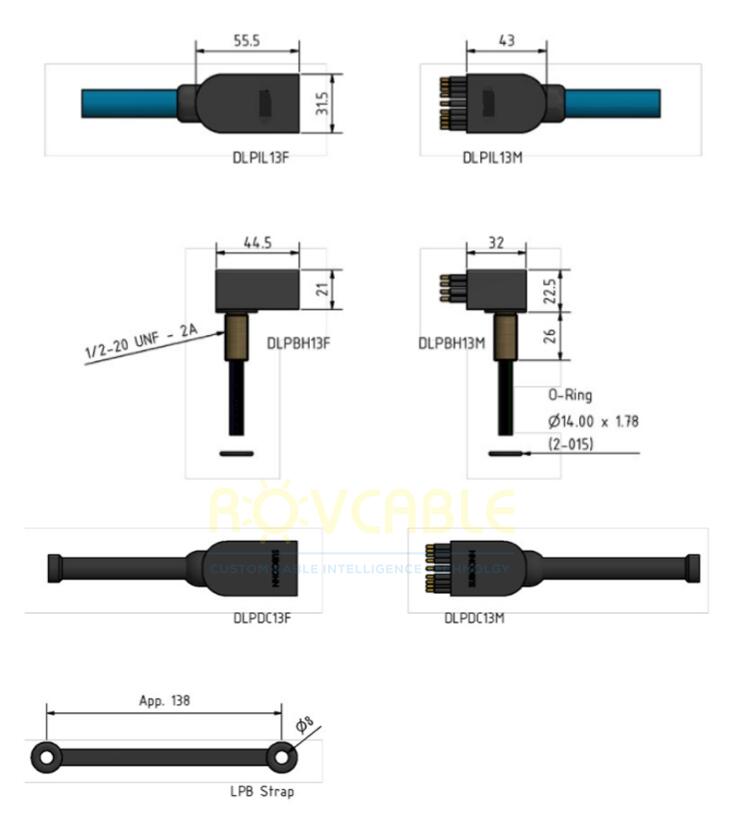

The contact configuration is identical (4P + 8E + 1S), but the low profile body is significantly more compact -- typically 30-50% shorter mating face height. Choose this version when panel clearance is limited.
Yes -- all 13 contacts are fully independent. Power (up to 20 A per contact) and Gigabit Ethernet operate simultaneously with the screen contact providing EMI shielding for the data lines.
Standard rating is 300 m. Custom versions for greater depths are available on request.
