Low profile 9-contact Ethernet subsea connector: 8 Ethernet + 1 screen. IP68, compact form factor for space-constrained ROV and AUV installations. sales@rovcable.com.

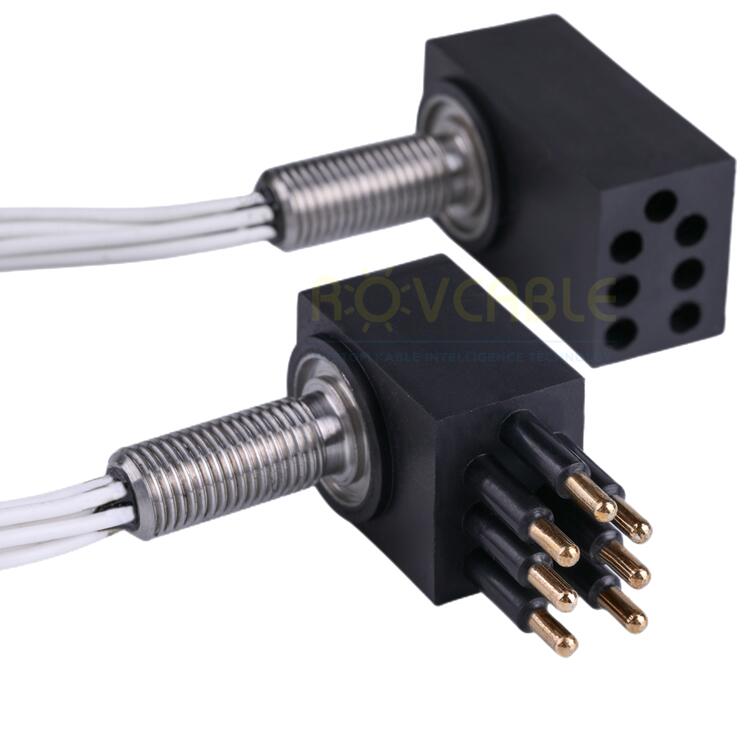

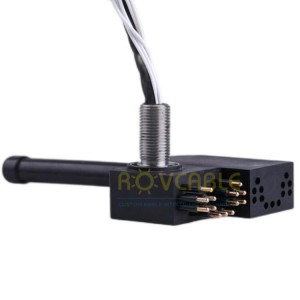

The Low Profile Ethernet 9-Contact connector from Shanghai Kabel Intelligence Technology Co., Ltd offers 8 Ethernet contacts plus 1 dedicated screen contact in an ultra-compact low profile body. IP68 rated, it is designed for ROV and AUV applications where connector height and footprint must be minimised without sacrificing Gigabit Ethernet performance.

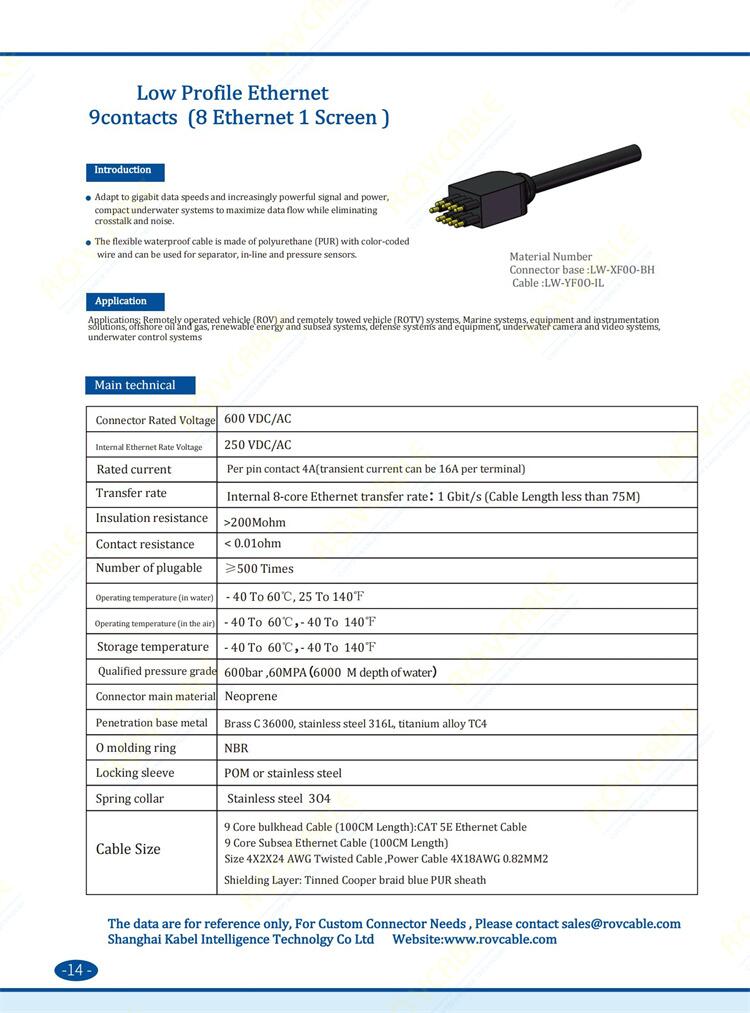

| Parameter | Value |
|---|---|
| Contact Count | 9 (8 Ethernet + 1 Screen) |
| IP Rating | IP68 |
| Ethernet Standard | 100BASE-TX / 1000BASE-T |
| Form Factor | Low Profile |
| Housing Material | 316L Stainless Steel / PEEK |
| Contact Plating | Gold |
| Operating Depth | 300 m standard |
| Mating Cycles | ≥500 |
Enquiries for low profile Ethernet connector configurations: sales@rovcable.com
The 8 contacts support 100BASE-TX (100 Mbps) and 1000BASE-T (Gigabit) with standard T568B wiring. The screen contact provides a low-impedance EMI ground reference.
Compared to standard circular connectors, the Low Profile series typically reduces mating face height by 30-50%, making it ideal for panel-mount installations with limited clearance.
Yes -- complete shielded cable assemblies with the screen contact bonded to the drain wire are available. Specify cable type and length when ordering.
