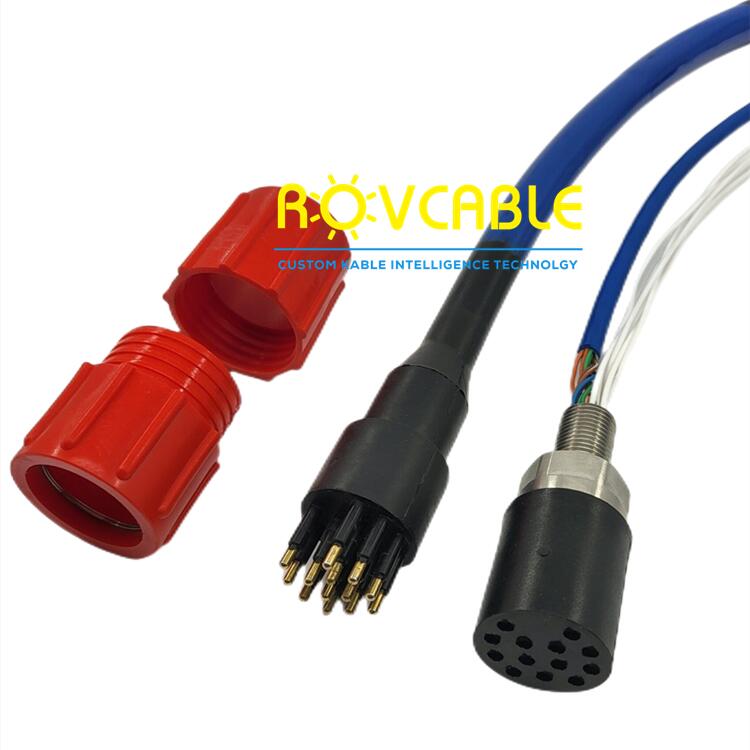

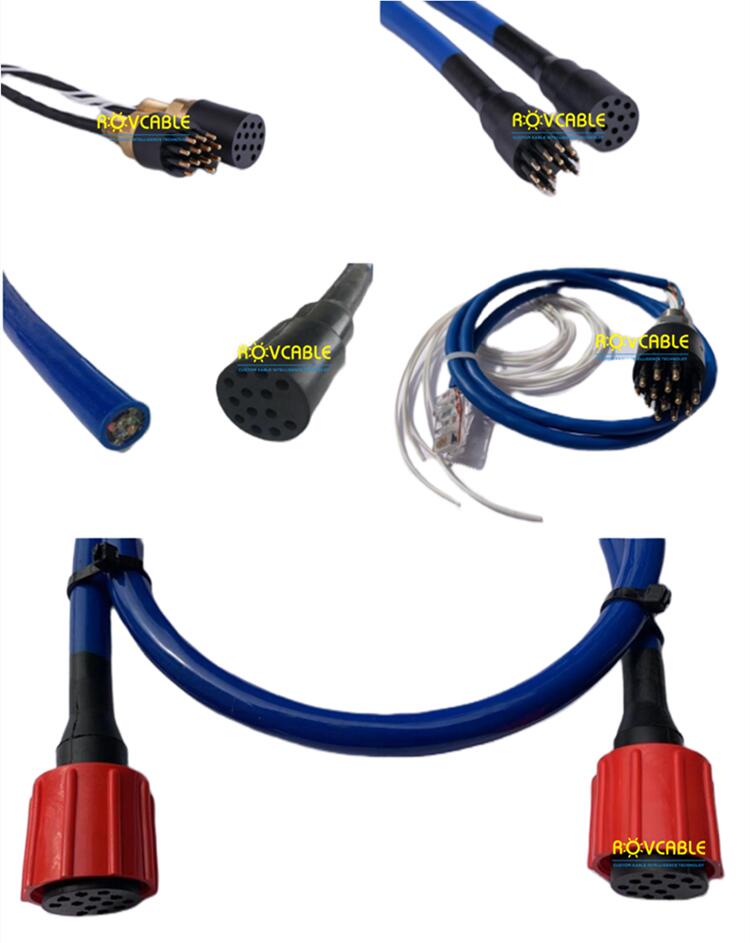

Ethernet Circular 13-contact subsea connector: 4 power + 8 Ethernet + 1 screen in one IP68 body. For ROV and AUV systems. Contact sales@rovcable.com.

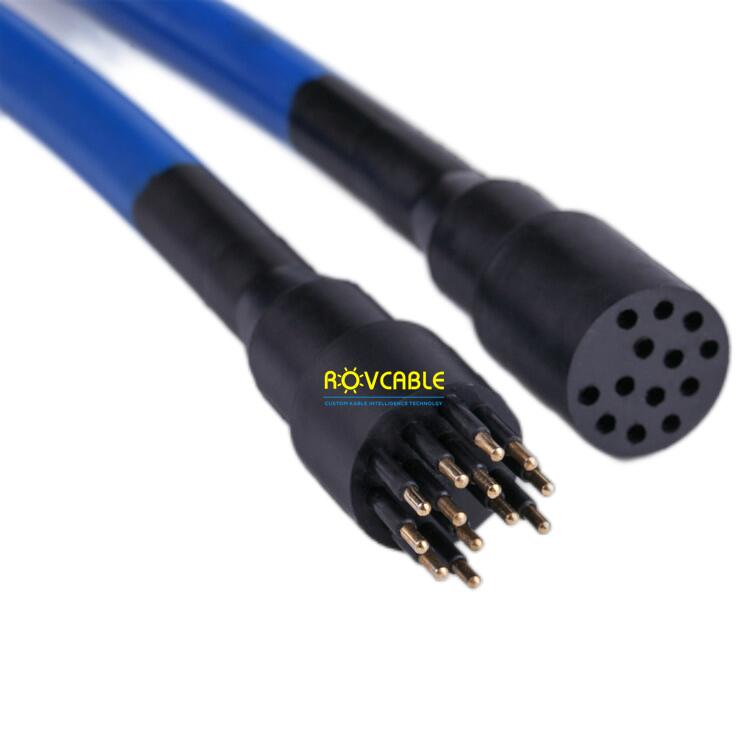

This Ethernet Circular 13-contact subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd integrates 4 power contacts, 8 Ethernet contacts (supporting 100BASE-TX or 1000BASE-T), and 1 screen/shield contact in a single compact IP68-sealed circular body. Designed for ROV, AUV, and subsea network infrastructure where combining power delivery and high-speed data in one waterproof penetration is critical.
| Parameter | Value |
|---|---|
| Total Contacts | 13 |
| Contact Breakdown | 4 Power + 8 Ethernet + 1 Screen |
| IP Rating | IP68 |
| Ethernet Standard | 100BASE-TX / 1000BASE-T compatible |
| Power Contact Rating | Up to 25 A per contact |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold |
| Operating Depth | 300 m standard; up to 3000 m custom |
| Operating Voltage | Up to 600 V DC |
| Mating Cycles | ≥500 |
| Sealing | Double O-ring + polyurethane over-mould |
Contact us for custom contact arrangements, depth ratings, or panel-mount configurations: sales@rovcable.com
The 8 Ethernet contacts are wired for 100BASE-TX (100 Mbps) and 1000BASE-T (Gigabit) operation using standard Cat5e/Cat6 twisted-pair mapping. Signal integrity is maintained through shielded contacts and the dedicated screen pin.
Yes -- all 13 contacts are fully independent. Power (up to 25 A per contact) and Ethernet data can be carried simultaneously without crosstalk, thanks to the shielded Ethernet insert design.
The screen contact can be configured as either an isolated shield drain or connected to the stainless steel body ground. Specify your preferred arrangement when ordering.
