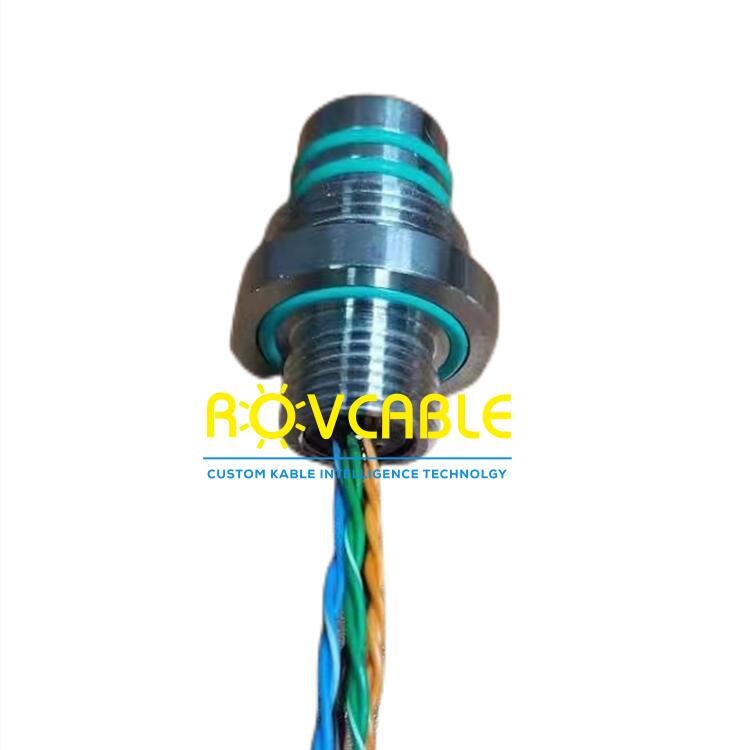

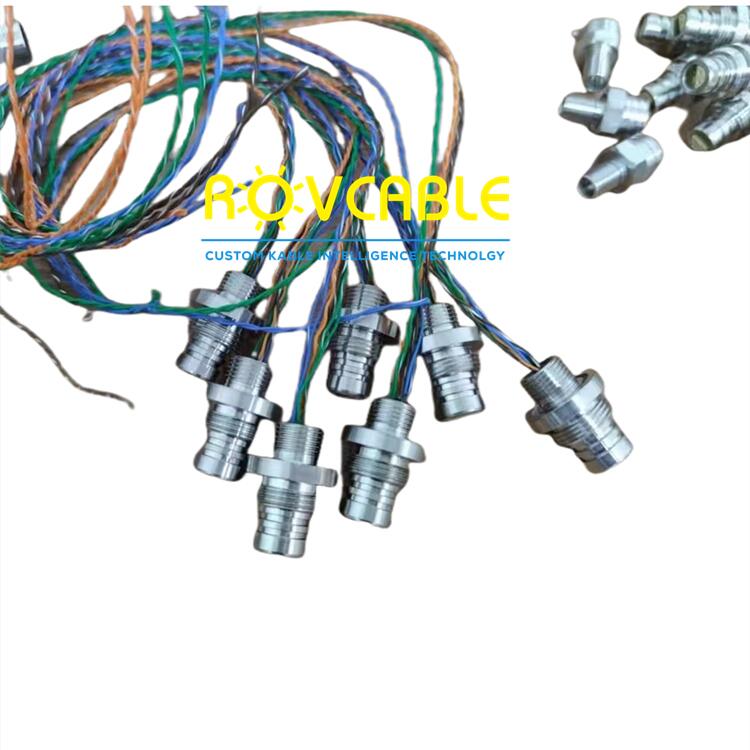

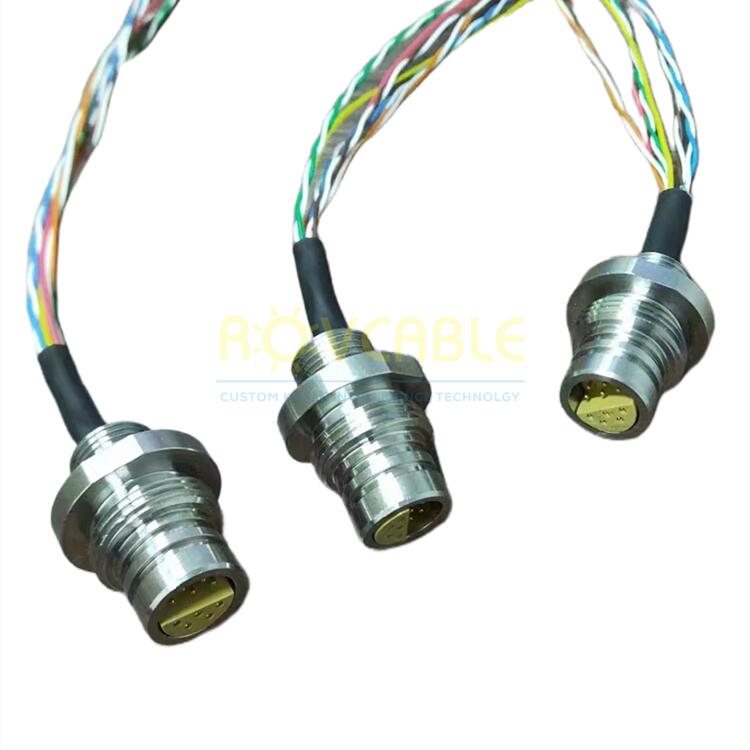

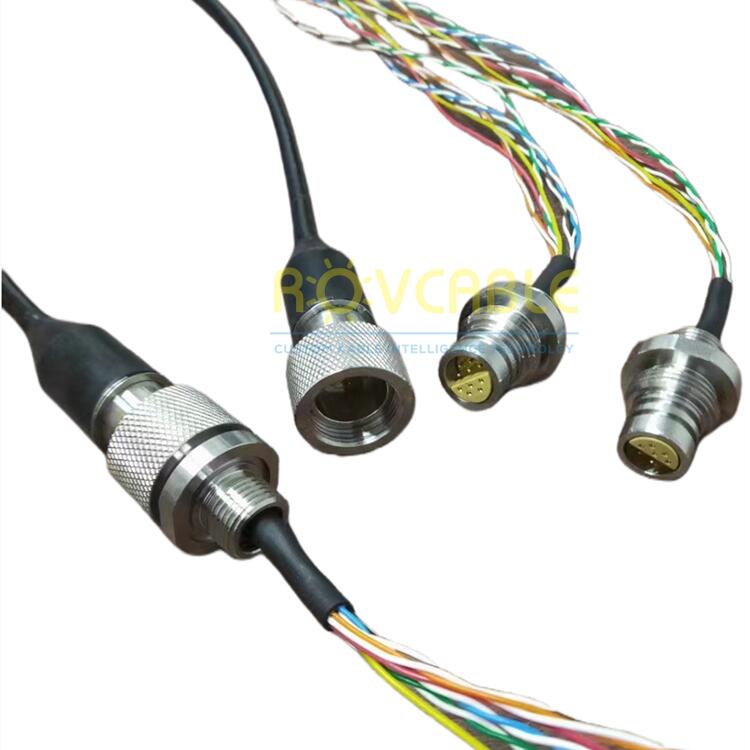

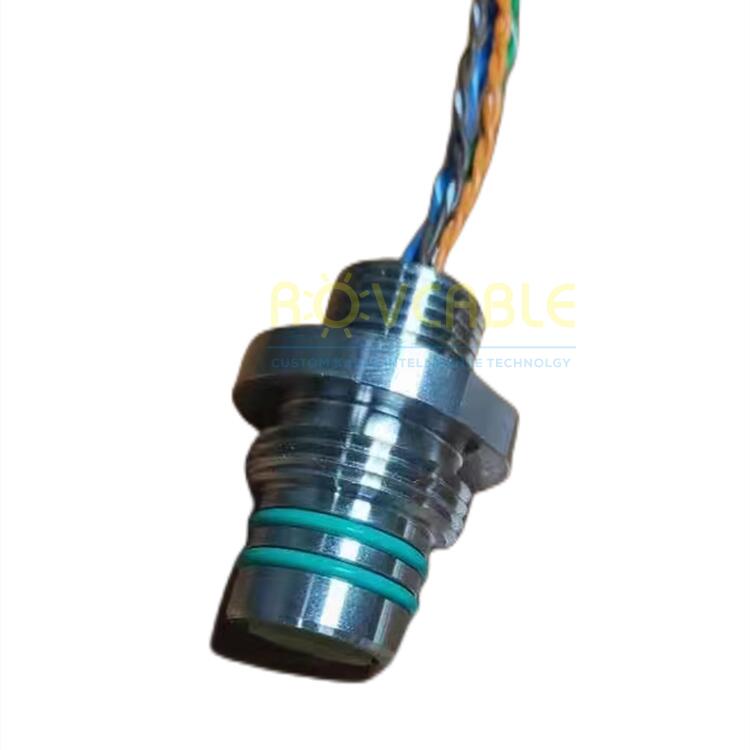

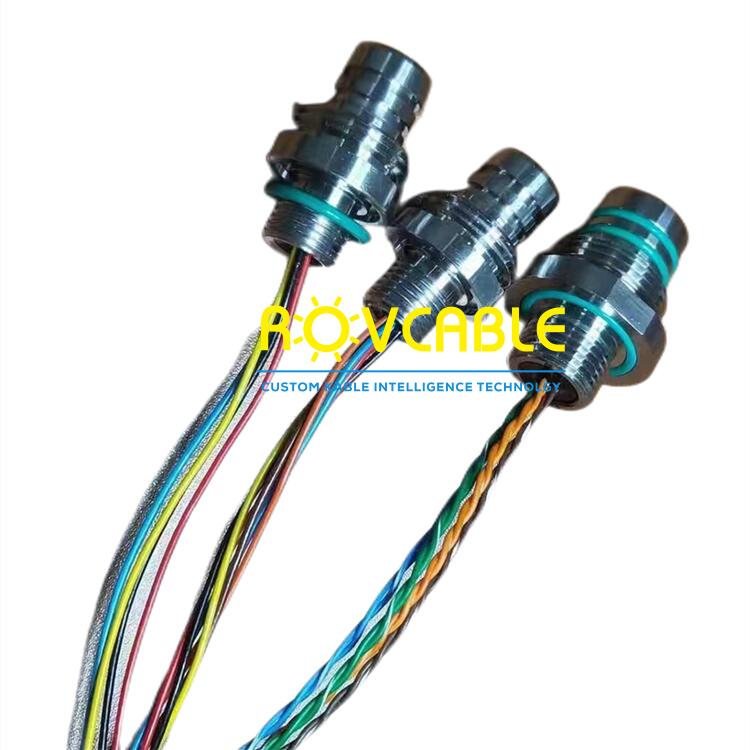

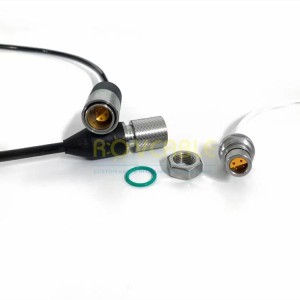

Subsea watertight plug connector for ROV and underwater instrument applications. PUR over-moulded, depth-rated, available in multiple pin counts and configurations.
Our subsea watertight plug connector is a versatile, depth-rated circular connector with polyurethane over-moulded sealing, suitable for ROV tether terminations, subsea instrument pods, sensor interfaces, and underwater junction boxes. Available in multiple pin count and depth rating configurations, this connector is engineered to maintain a reliable, pressure-proof electrical connection throughout its operational life.
| Parameter | Specification |
|---|---|
| Sealing Method | Polyurethane over-moulding |
| Shell Material | 316L Stainless Steel or Acetal |
| Depth Rating | Up to 6,000 m (model dependent) |
| Pin Count | 2--16 (standard), custom available |
| Contact Rating | 5A per contact |
| Voltage Rating | 300V DC |
| Mating Interface | Push-pull or screw lock |
| Temperature Range | -10°C to +60°C |
Discuss depth rating and pin count requirements: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

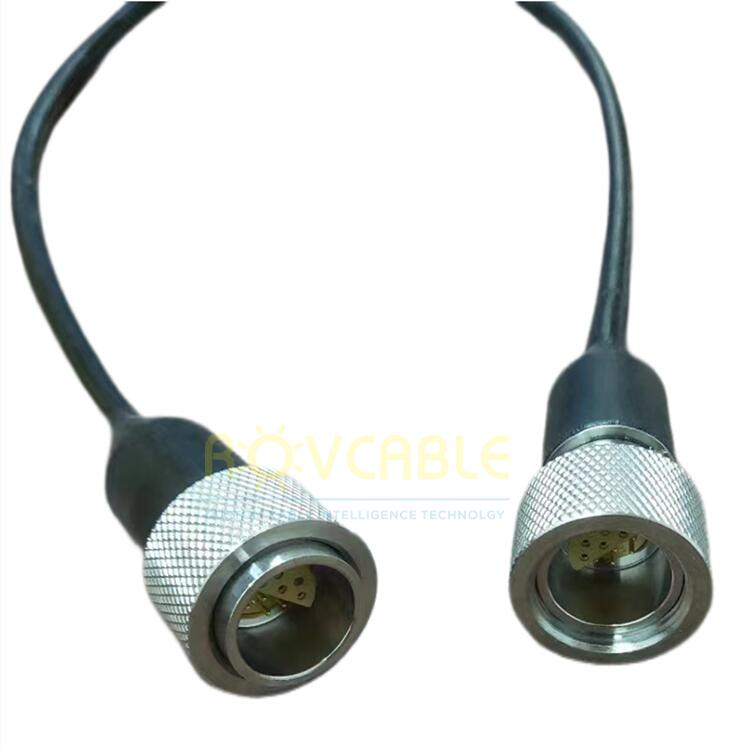

Yes. We supply complete cable assemblies with the watertight plug factory-moulded onto the cable, pressure-tested to the rated depth. Specify the cable type, length, pin count, and depth rating when ordering.
Yes. Panel-mount bulkhead sockets are available for all plug models, enabling installation in instrument housings, ROV chassis, and subsea junction boxes. Contact us for flange dimensions and mounting details.
