Custom deep sea wire harness male and female underwater industrial cable connectors for ROV and offshore systems. IP68, depth-rated. Contact sales@rovcable.com.

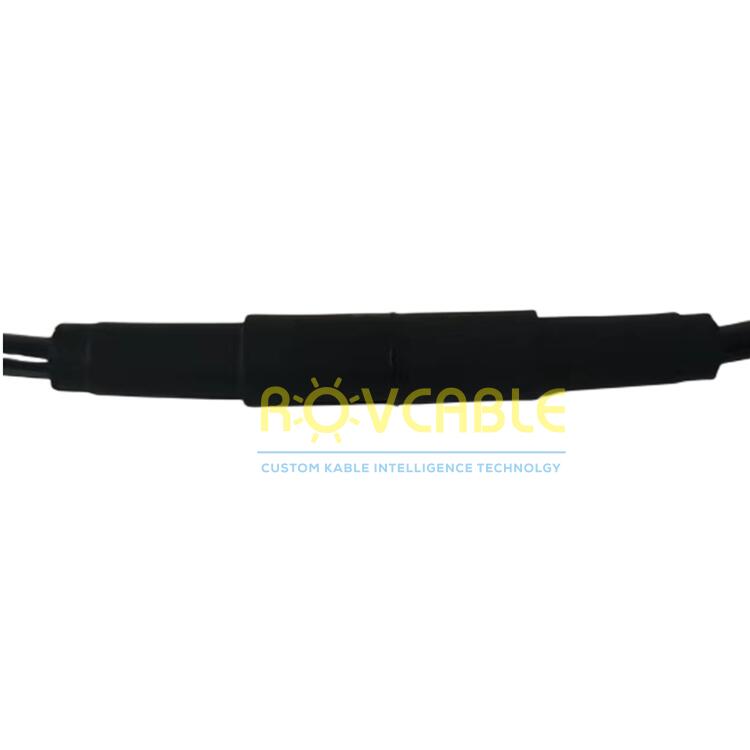

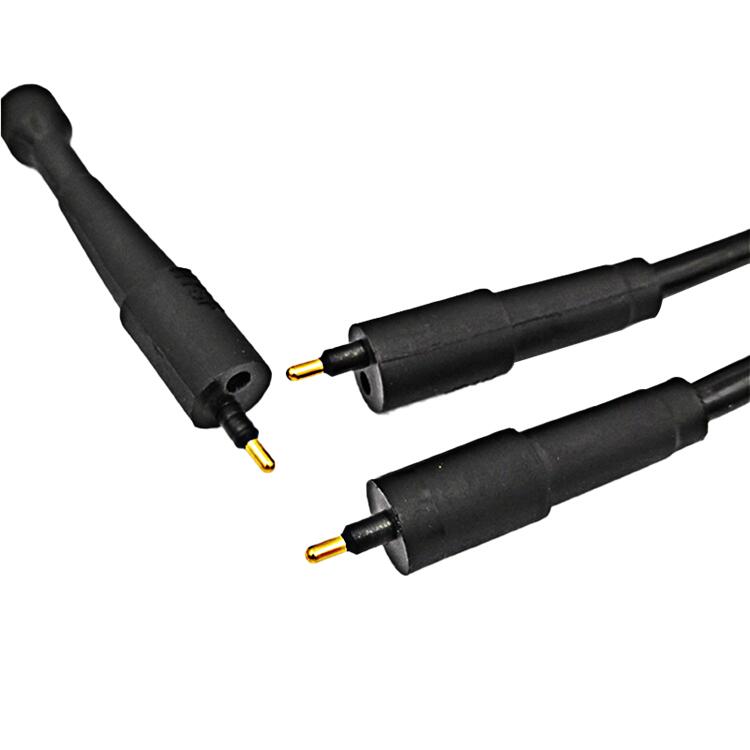

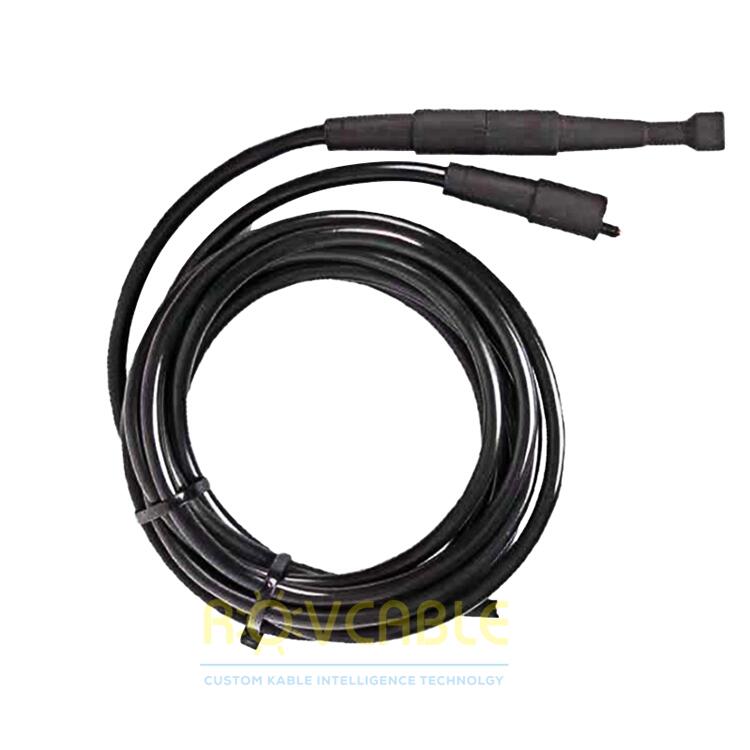

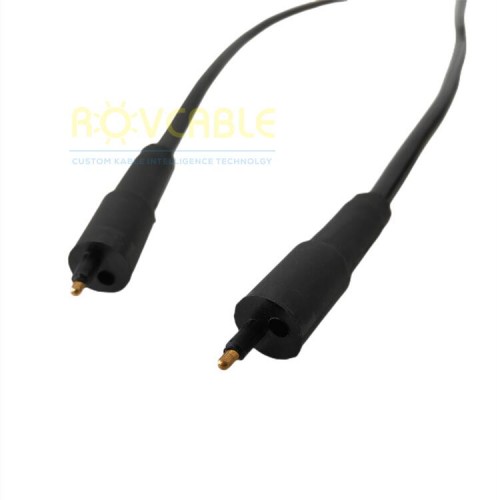

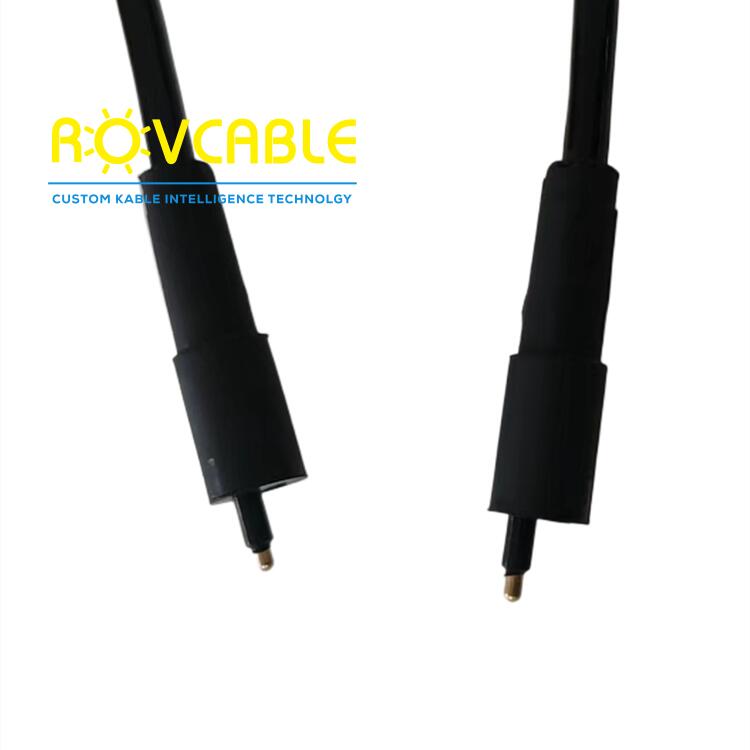

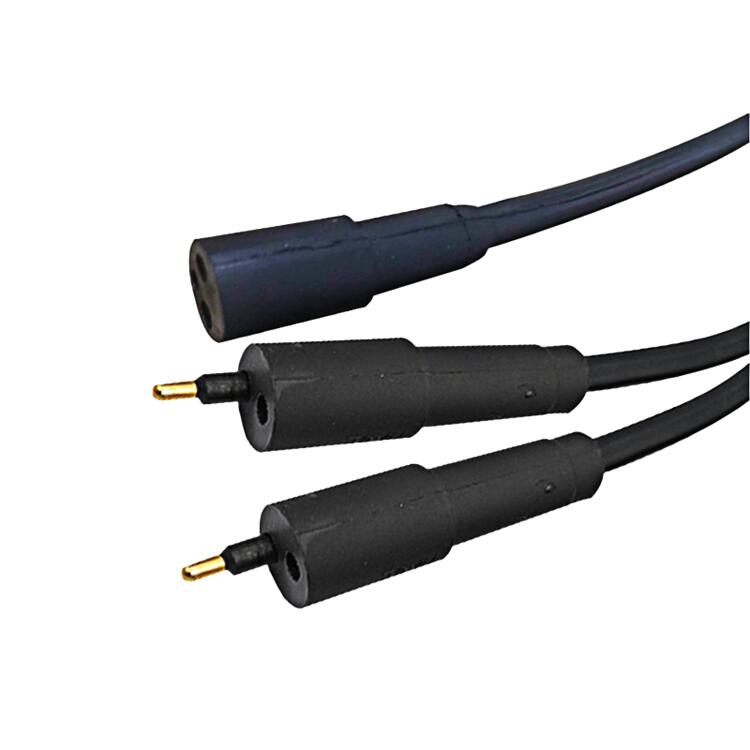

Shanghai Kabel Intelligence Technology Co., Ltd manufactures custom deep sea wire harness connectors for underwater industrial applications. Available as matched male and female pairs, these connectors are produced to customer-supplied wire harness diagrams, with any combination of power, signal, data, and coaxial circuits in a single IP68-rated overmoulded assembly. Suitable for ROV, AUV, offshore platforms, and deep-sea scientific instruments.
| Parameter | Value |
|---|---|
| Configuration | Male / Female (matched pair) |
| Circuit Count | Custom (2 to 50+ conductors) |
| IP Rating | IP68 |
| Housing / Boot Material | 316L Stainless Steel body + Polyurethane over-mould |
| Contact Types | Power, Signal, Ethernet, Coaxial (combinable) |
| Operating Depth | 300 m standard; up to 6000 m custom |

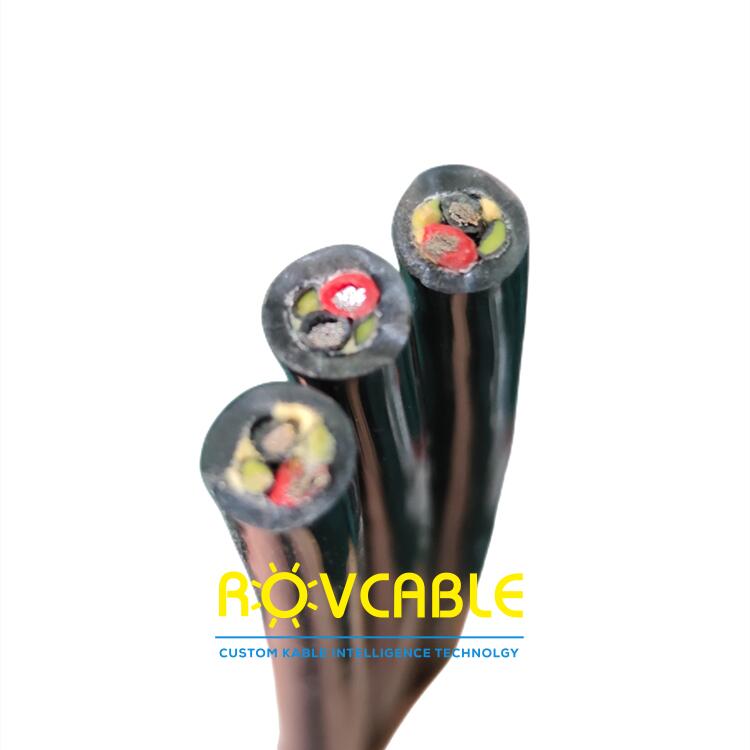

| Cable Type | Multi-core, hybrid, armoured (specify) |
| Mating Cycles | ≥500 |
| Test Certification | IP68 immersion + hydrostatic test report |
Submit wire harness specification for quotation: sales@rovcable.com
Provide: (1) conductor count and circuit types (power, signal, Ethernet, coax), (2) cable outer diameter and conductor sizes, (3) required depth rating, (4) connector body material preference, and (5) expected quantity. A schematic or harness diagram is ideal but not mandatory for initial enquiry.
Yes -- if you supply a sample or detailed dimensional drawing, we can produce a functional equivalent. We evaluate IP compatibility and sealing requirements before committing to reverse-engineering work.
Prototypes: 4-6 weeks. Serial production (after prototype approval): 6-8 weeks for quantities up to 100 pcs. Express production is available on request.
