RMG Series 3-pin male (RMG3M) and female (RMG3F) subsea cable connectors for ROV and underwater cable assemblies. IP68. Contact sales@rovcable.com.

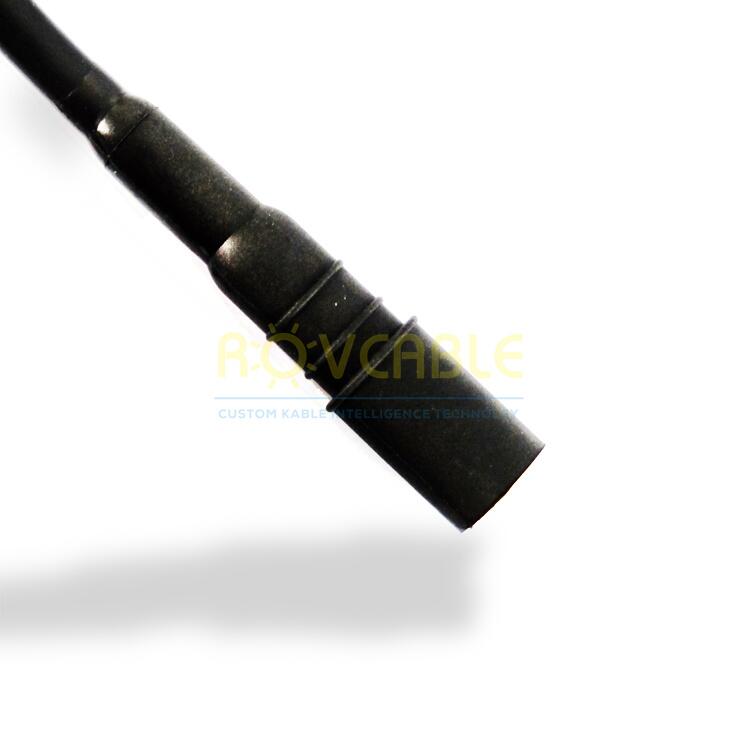

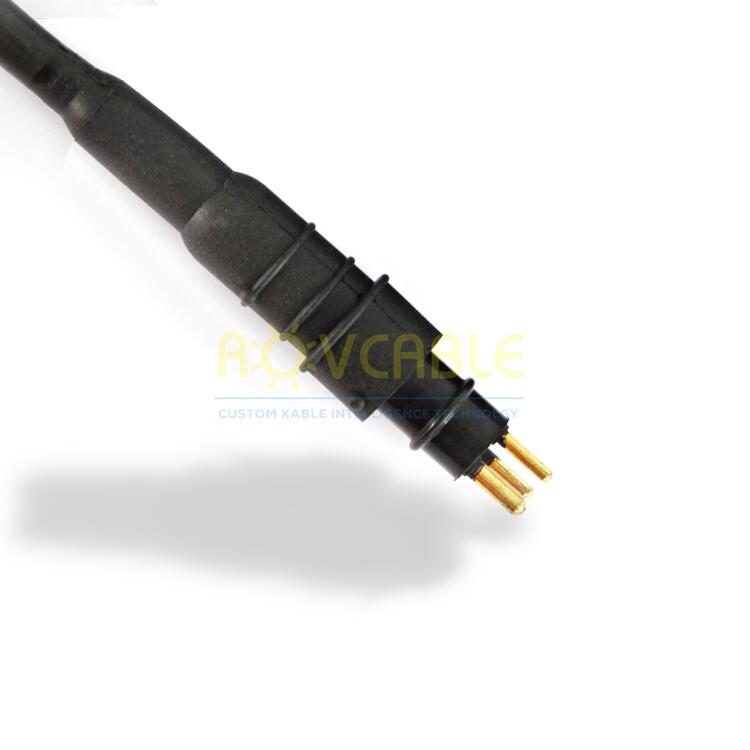

The RMG3M (male) and RMG3F (female) are the 3-pin variants of the RMG Series subsea cable connector from Shanghai Kabel Intelligence Technology Co., Ltd. Designed for inline cable-to-cable connections on ROV umbilicals, sensor tails, and AUV cable assemblies, they combine IP68 sealing, a 316L stainless steel body, and gold-plated contacts for reliable underwater performance.
| Parameter | Value |
|---|---|
| Models | RMG3M (Male) / RMG3F (Female) |
| Pin Count | 3 |
| IP Rating | IP68 |
| Contact Material | Gold-plated Beryllium Copper |
| Housing Material | 316L Stainless Steel |
| Sealing | Double O-ring + polyurethane boot |
| Current Rating | Up to 25 A per contact |
| Voltage Rating | Up to 600 V DC/AC |
| Operating Depth | 300 m standard; custom available |
| Mating Cycles | ≥500 |
Order RMG3M/RMG3F as a matched pair or specify cable assembly: sales@rovcable.com
Yes -- they are available as a matched male + female pair. Individual connectors (male-only or female-only) can also be ordered separately. Specify which configuration when enquiring.
The RMG3 series accepts cable outer diameters from 6 mm to 16 mm depending on the boot seal selected. Specify your cable OD when ordering to ensure the correct seal is fitted.
Yes -- the RMG series uses a bayonet-style locking mechanism that includes polarisation keying to prevent incorrect mating. Custom keying positions are available for applications using multiple identical connectors.
RMG and RMK series is designed to connect underwater systems and Instrumentation.
We always have RMG-2mp, RMG-2fs,RMG-3mp, RMG-3fs,RMG-4mp, RMG-4fs,RMK-5mp, RMK-5fs and related locking sleeves at the stock.
Application
RMG and RMK series are used for the Helmets and diver umbilical. Underwater Cameras, Lighting systems and Instrumentation.
