Shanghai Kabel Intelligence Technology Co., Ltd optical fiber and power hybrid underwater connectors. Full range: 1-4 fiber channels with 2-4 power contacts. IP68, 7000m. SubConn hybrid photoelectric compatible.

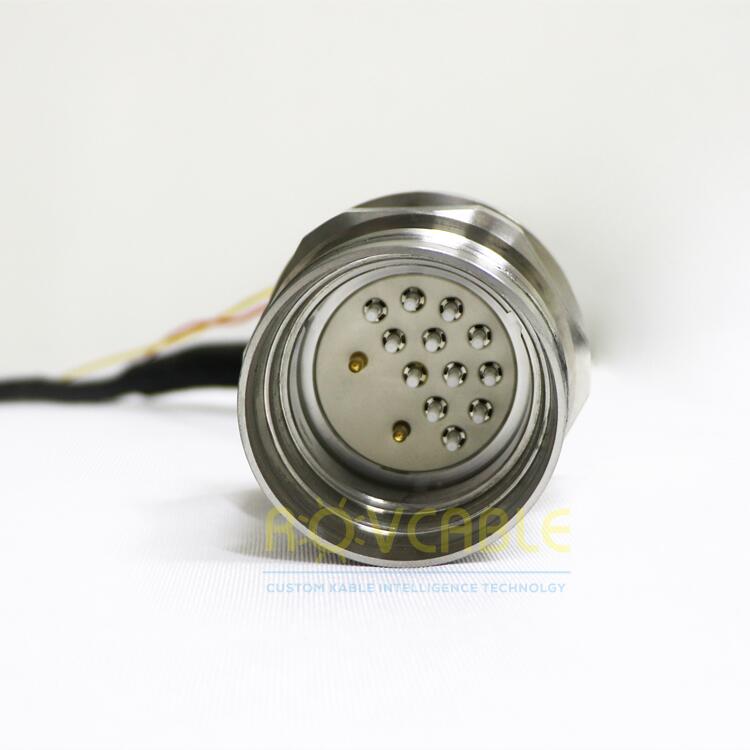

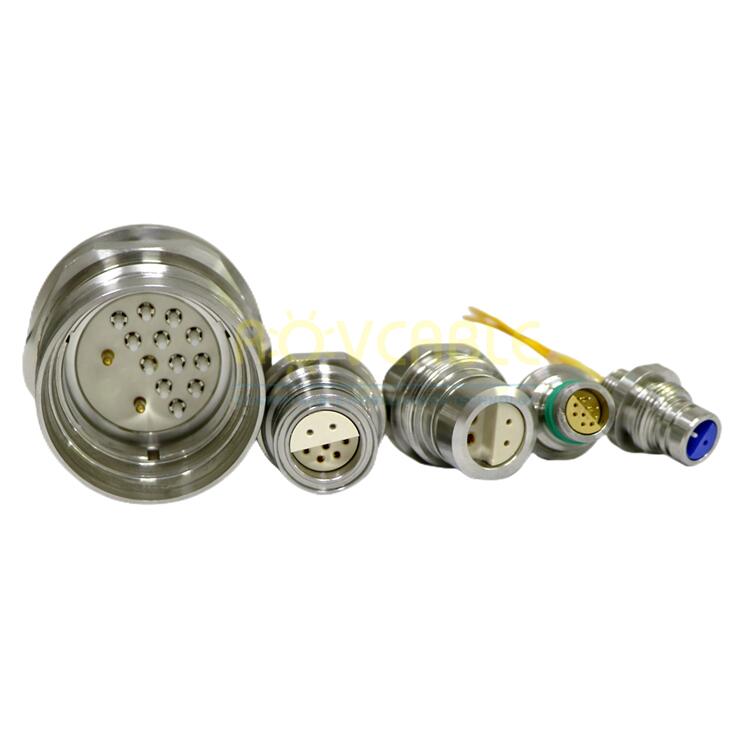

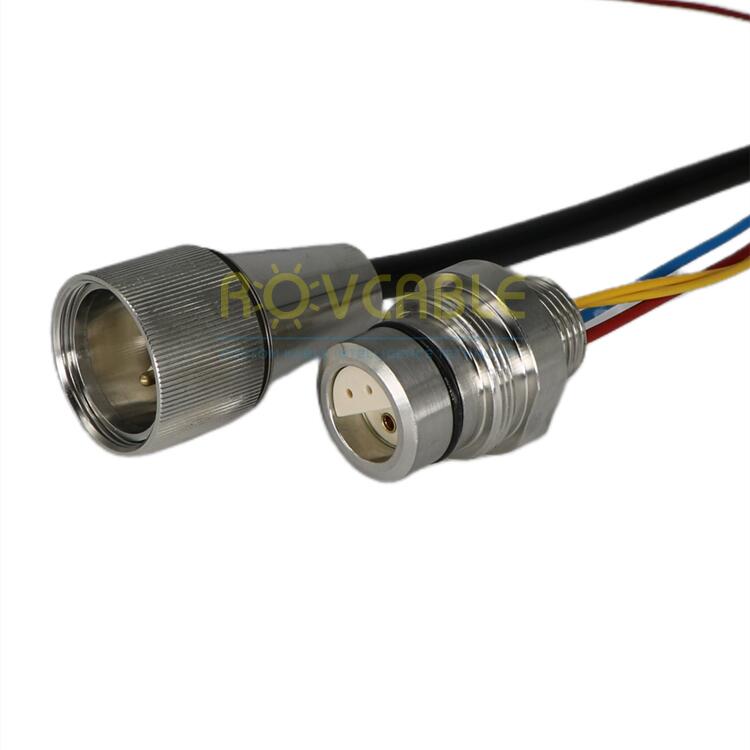

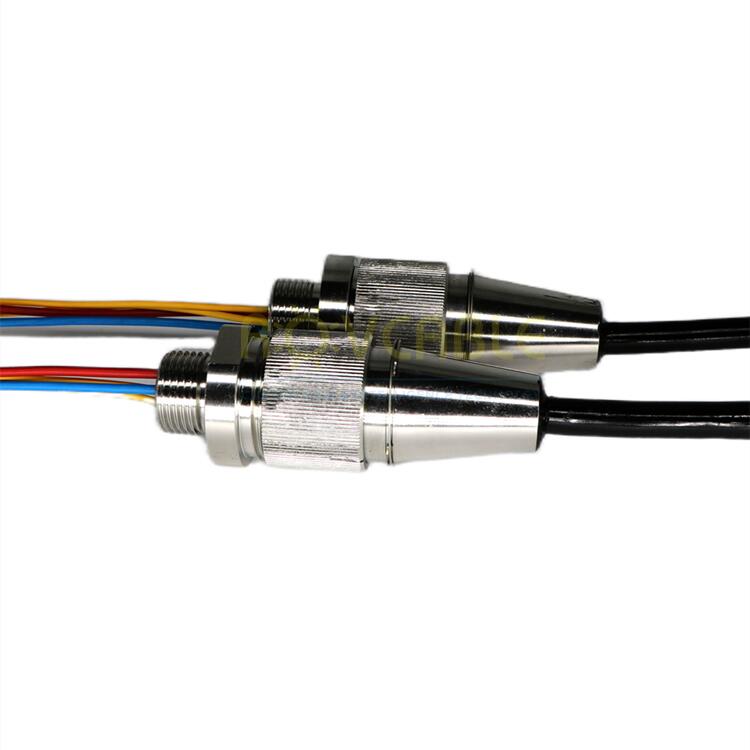

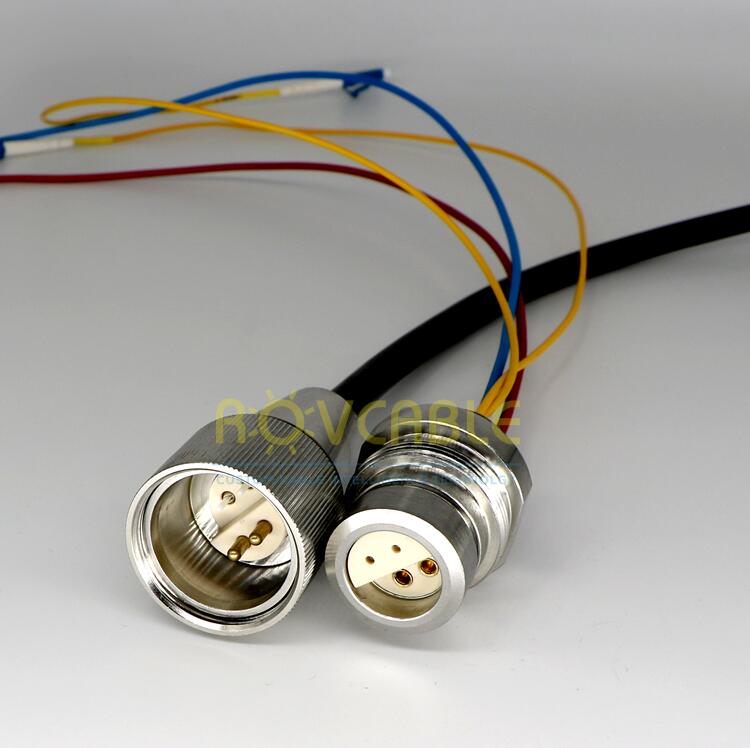

Shanghai Kabel Intelligence Technology Co., Ltd Optical Fiber and Power Series is a complete platform of hybrid wet-mateable underwater connectors that integrate optical fiber data channels and electrical power contacts in a single pressure housing penetration. The series spans 1 to 4 fiber channels (single-mode or multimode) combined with 2 or 4 power contacts, covering every hybrid connectivity requirement from simple single-channel video to complex multi-link subsea networks. All configurations are rated to 7,000 m depth, IP68 sealed, and compatible with SubConn® Hybrid Photoelectric Series.
| Model | Fiber Channels | Power Contacts | Max Power Current | Best For |
|---|---|---|---|---|
| PH-1F2P | 1 (simplex) | 2 | 10 A | Single-channel fiber sensor + power |
| PH-2F2P | 2 (duplex) | 2 | 10 A | Duplex Ethernet/comms + power |
| PH-4F2P | 4 (2x duplex) | 2 | 10 A | Dual independent fiber links + power |
| PH-2F4P | 2 (duplex) | 4 | 10 A | Duplex comms + dual voltage rails |
| PH-4F4P | 4 (2x duplex) | 4 | 10 A | High-density fiber + full power bus |
| Parameter | Value |
|---|---|
| Depth rating | 7,000 m (700 bar hydrostatic) |
| IP rating | IP68 |
| Power voltage | 600 V AC/DC |
| Power current | 10 A per power contact |
| Fiber type options | SM 9/125 um (PC or APC) / MM 50/125 um / MM 62.5/125 um |
| Ferrule material | Zirconia ceramic (ZrO2), precision-lapped |
| Insertion loss | < 0.5 dB typical, < 1.0 dB max per mating |
| Return loss (SM APC) | > 60 dB |
| Mating cycles | 200+ (fiber); 500+ (power) |
| Shell | Hard-anodized aluminium (standard) / Titanium Grade 5 (option) |

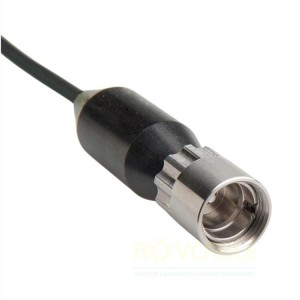

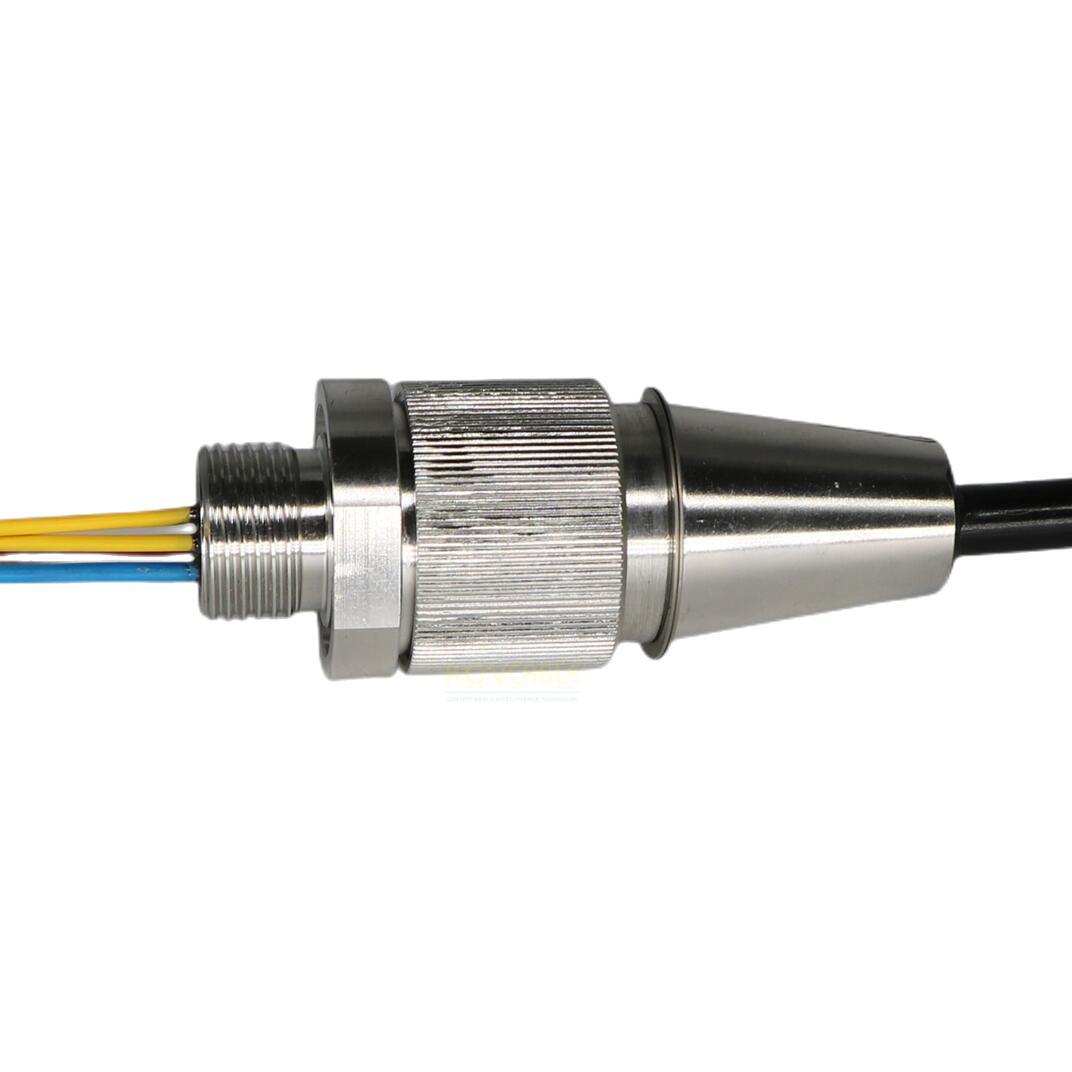

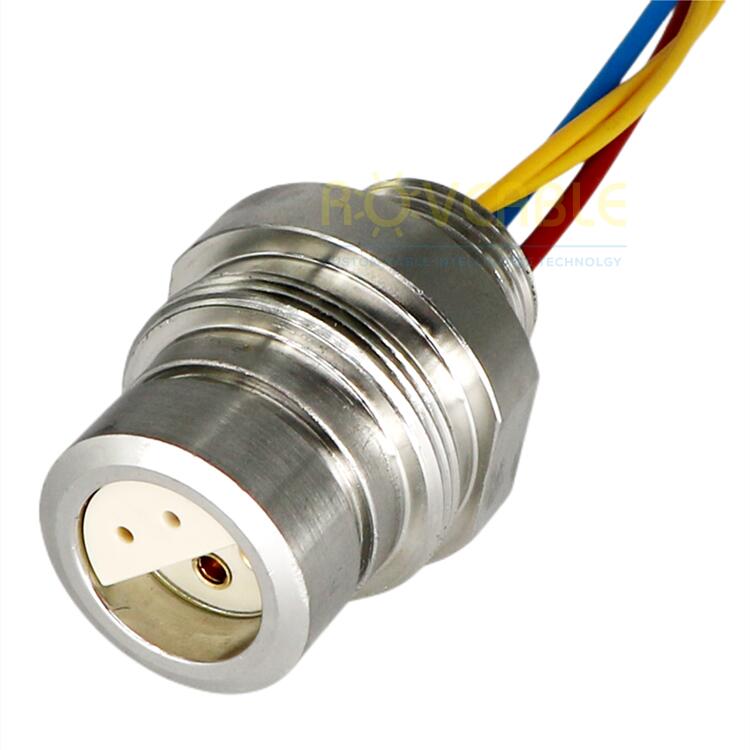

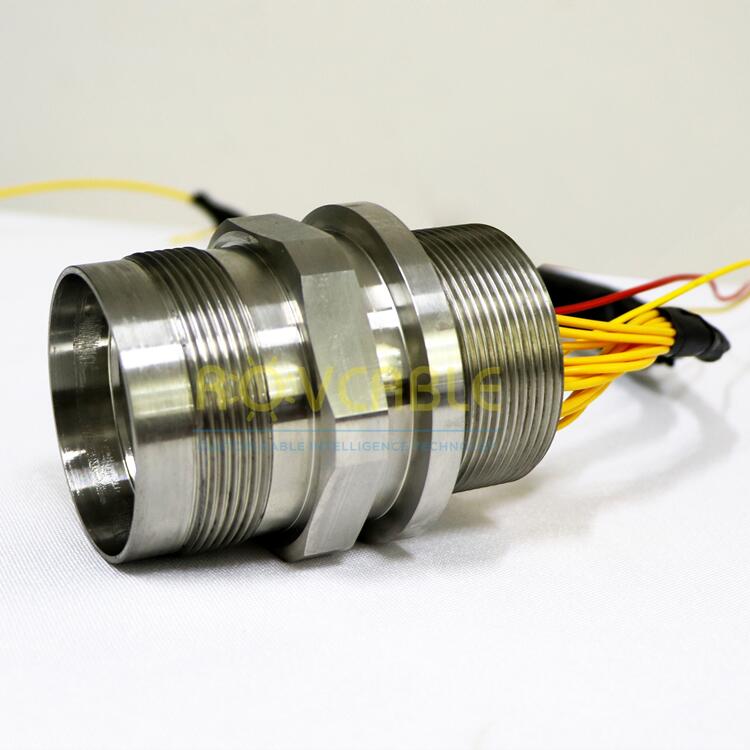

| Mount styles | Bulkhead (panel) / In-line (cable) |
| Hydrostatic test | 600 psig per batch, certificate supplied |
| Temperature range | -20 to +85 degC |
| Compatibility | SubConn Hybrid Photoelectric Series (same mating interface) |
Email: sales@rovcable.com | www.rovconnector.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Yes. The mating face geometry and thread pattern are identical to SubConn Hybrid Photoelectric Series connectors of the same configuration. You can mix Shanghai Kabel and SubConn hybrid connectors of the same model within the same system.
There is no distance limit imposed by the connector itself -- the insertion loss (< 0.5 dB typical) is the only connector-related contribution to your link budget. Maximum link distance is governed by your transceiver and cable specifications. Consult your optical link budget calculation to confirm margin.
Yes. Custom configurations (e.g., 3 fiber + 3 power, or 6 fiber + 2 power) are available on request. Contact sales@rovcable.com with your requirements. Non-standard configurations carry a minimum order quantity and extended lead time.
