18-pin flange subsea connector for ROV and underwater instrument housing penetrations. IP68, stainless steel, metal shell. Contact sales@rovcable.com.

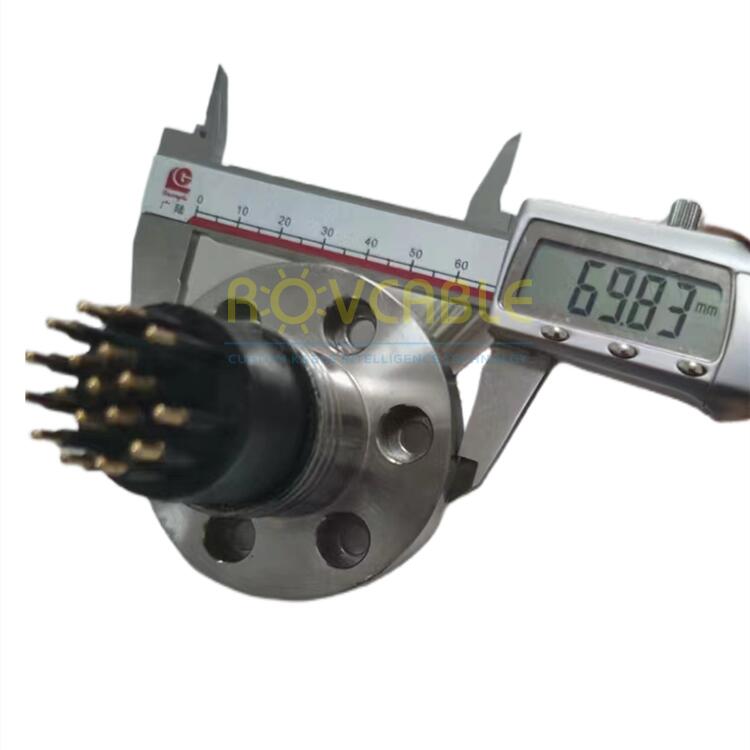

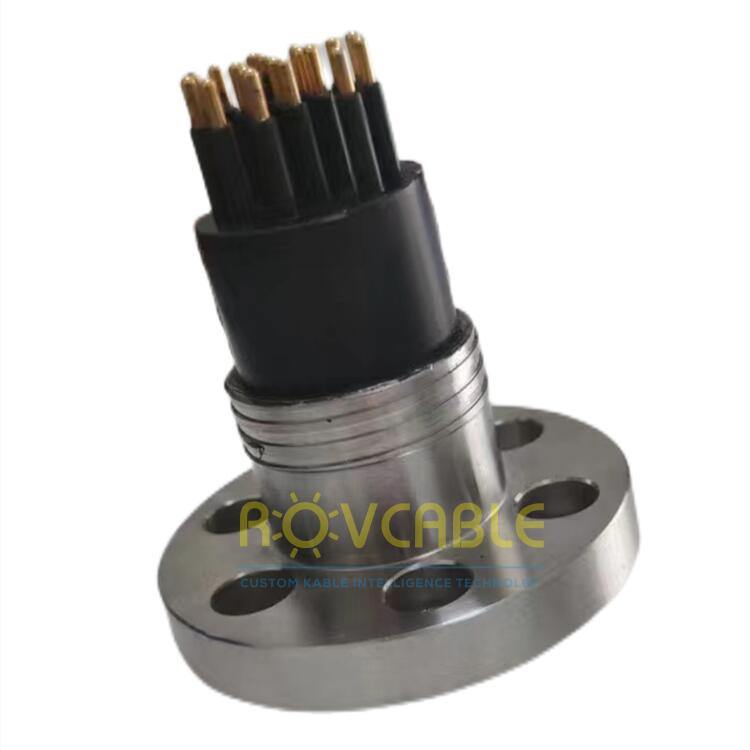

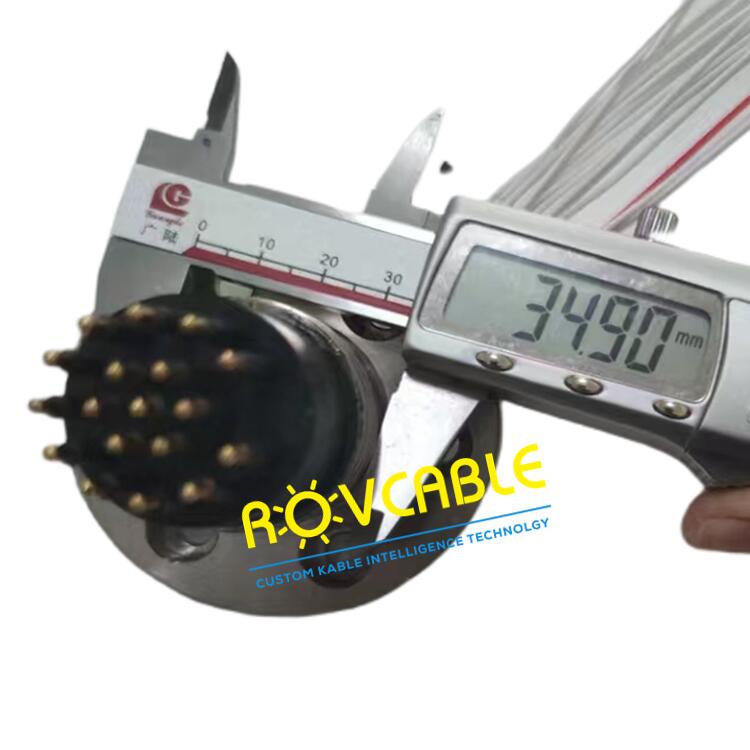

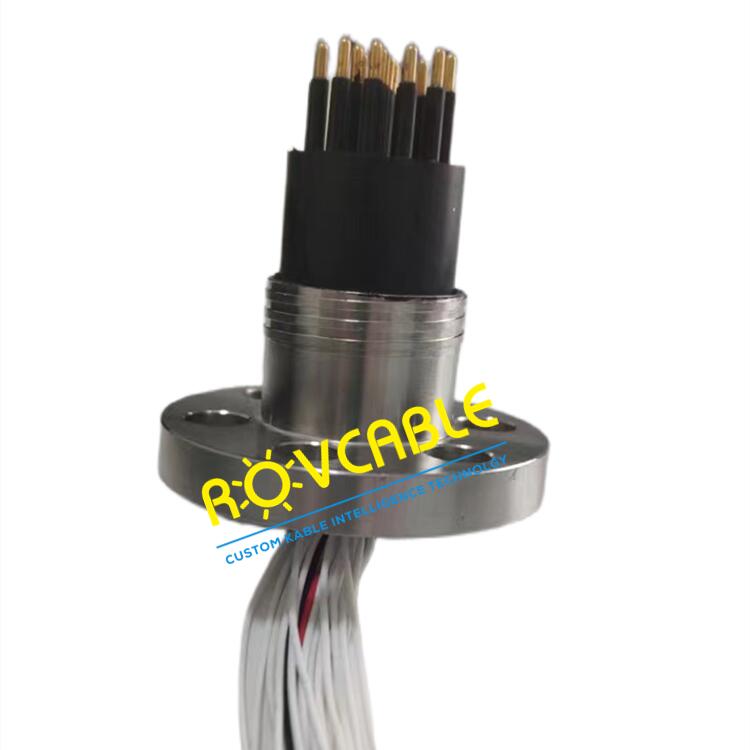

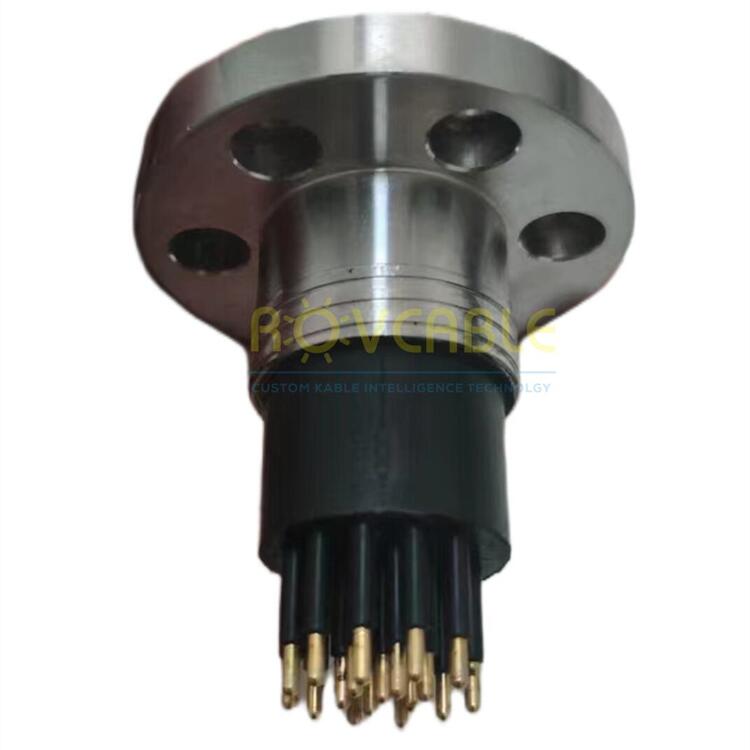

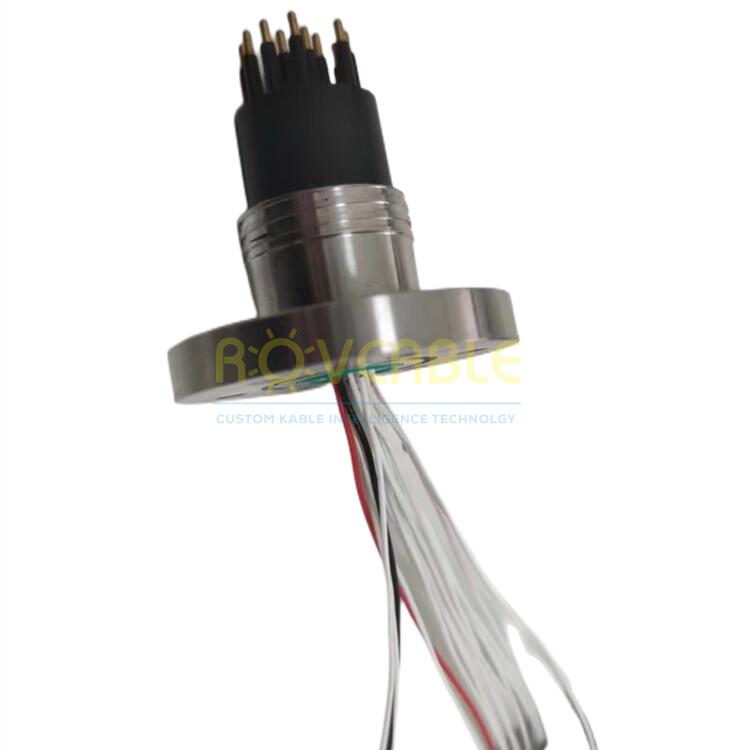

The 18-pin flange subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd provides an IP68-sealed panel penetration solution with 18 independent contacts. The flange mounting allows secure bolted installation to pressure vessel walls, ROV frames, or instrument housing panels, providing a reliable, leak-free electrical feed-through for high pin-count subsea applications.
| Parameter | Value |
|---|---|
| Contact Count | 18 |
| Mount Type | Flange (bolted panel-mount) |
| IP Rating | IP68 |
| Shell Material | 316L Stainless Steel |
| Contact Plating | Gold over Nickel |
| Current Rating | Up to 10 A per contact |
| Voltage Rating | Up to 600 V DC/AC |
| Operating Depth | 300 m standard; custom available |
| Flange Bolts | 4x M3 or M4 (specify) |
| Mating Cycles | ≥500 |
Request flange dimensions or custom contact arrangement: sales@rovcable.com
Flange mounting distributes the sealing load across 4 bolts, providing more uniform gasket compression and better resistance to vibration loosening compared to a threaded bulkhead. It also allows in-situ replacement without removing the connector from the back side of the panel.
The standard flange uses a 4x M4 bolt pattern on a 40 mm pitch circle. Custom bolt patterns for existing panel cutouts are available on request.
Yes -- any combination of power (rated to 10 A each) and signal contacts can be assigned within the 18 positions. Submit a wiring diagram for custom pin assignment.
