Metal Shell 2000 series underwater connectors in 2, 3, 4-contact and Micro 10 and 12-contact variants. IP68. Contact sales@rovcable.com.

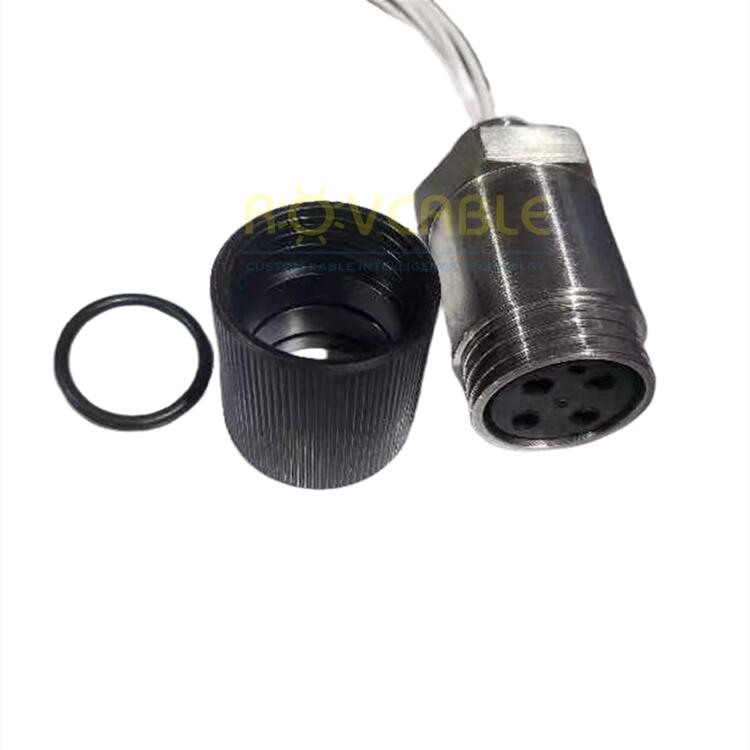

The Metal Shell 2000 series extends the Metal Shell range with both standard large-contact (2, 3, 4-pin) and micro small-contact (10 and 12-pin) configurations in a single connector family. This dual-capability series is from Shanghai Kabel Intelligence Technology Co., Ltd and covers both high-current power applications (standard contacts) and high-density signal applications (micro contacts) within the same IP68-rated stainless steel shell format.
| Parameter | Value |
|---|---|
| Series | Metal Shell 2000 |
| Contact Options | 2, 3, 4 (standard) / Micro-10, Micro-12 |
| IP Rating | IP68 |
| Shell Material | 316L Stainless Steel |
| Standard Contact Rating | Up to 25 A per contact |
| Micro Contact Rating | Up to 5 A per contact |
| Voltage Rating | Up to 600 V DC/AC |
| Operating Depth | 300 m standard |
| Mating Cycles | ≥500 |
Specify standard or micro contact configuration when ordering: sales@rovcable.com
Standard contacts (2-4 pin) use larger pins rated to 25 A for power circuits. Micro contacts (10-12 pin) use smaller precision pins rated to 5 A, enabling higher contact density in the same shell diameter for signal-intensive applications.
Yes -- hybrid configurations mixing standard power contacts and micro signal contacts in one shell are available as a custom option. Contact us with your circuit mix requirements.
Yes -- the micro contacts easily handle RS-485, CAN bus, and other low-voltage differential signal pairs. Shielded wiring is recommended for EMI-sensitive data buses.
