Low Profile Series compact subsea connectors for ROV, AUV and subsea instrumentation where space is constrained. IP68 rated. Contact sales@rovcable.com.
The Low Profile Series from Shanghai Kabel Intelligence Technology Co., Ltd is a range of compact, shallow-body subsea connectors engineered for ROV, AUV, and oceanographic instrument applications where installation space is severely constrained. Available in multiple contact configurations -- from pure Ethernet to hybrid power + data -- all units share an IP68 sealing standard and corrosion-resistant housing materials.
| Model | Contacts | Description |
|---|---|---|
| LP-3 | 3 | Power only |
| LP-8 | 8 | Ethernet 8-core |
| LP-9 | 9 | 8 Ethernet + 1 Screen |
| LP-13 | 13 | 4 Power + 8 Ethernet + 1 Screen |
| LP-Custom | Custom | Specify configuration |
| Parameter | Value |
|---|---|
| IP Rating | IP68 |
| Housing Material | 316L Stainless Steel / PEEK (specify) |
| Contact Plating | Gold |
| Operating Depth | 300 m standard; custom available |
| Form Factor | Low Profile -- 30-50% shallower than standard circular |
| Mating Cycles | ≥500 |
| Mounting | Panel-mount / Inline |
Contact us to select the right Low Profile configuration: sales@rovcable.com
The Low Profile Series has a significantly reduced mating face height -- typically 30-50% shallower -- while maintaining the same IP68 rating and contact performance. This makes it ideal for enclosures where a standard circular connector would protrude excessively.
No -- Low Profile connectors require matching Low Profile mating counterparts. They are not cross-compatible with standard circular series. Both male and female sides must be specified from the Low Profile Series.
Yes -- right-angle (90°) panel-mount versions are available for installations where the cable must exit parallel to the panel surface rather than perpendicular.

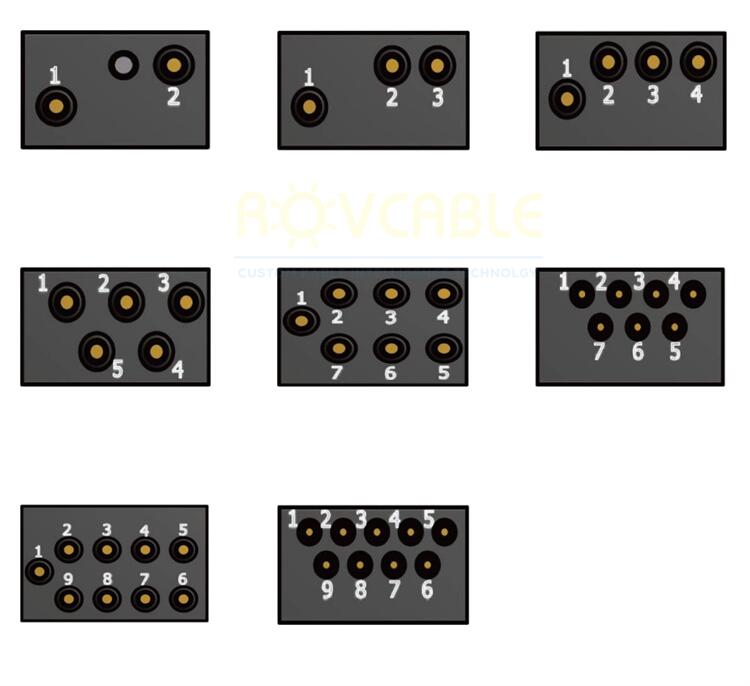

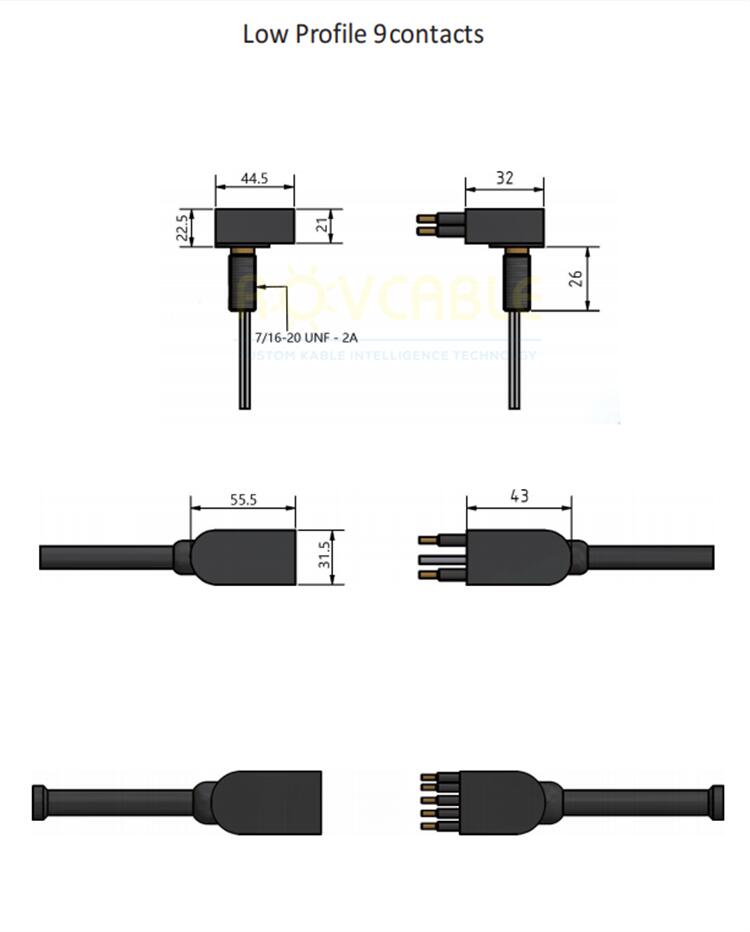

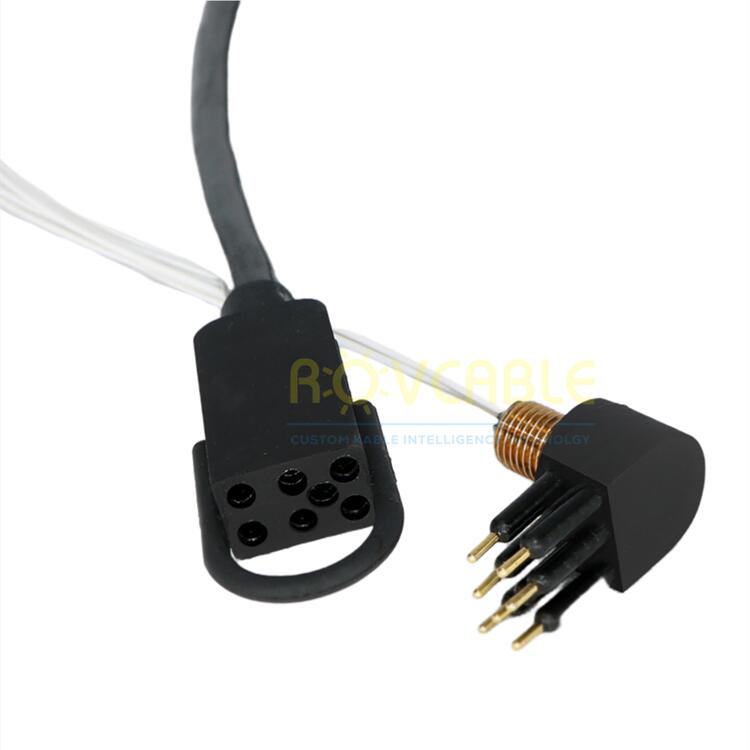

Low Profile and Micro Low Profile Series connectors (LPBH/LPIL or MCLPBH/MCLPIL) are designed for limited space with 2 to 9 contacts to solve more solution.
Application
ROV's & ROTV's & AUV
Defence systems and equipment
Oceanographic systems, equipment and instrumentation solutions
Offshore oil and gas, renewable energy and subsea system
Underwater camera, video and lighting systems
Diving systems and equipment
Material Specifications
Bulkhead Socket: Brass (C36000) or Stainless Steel 316L
Connector Body: Rubber
Contacts: Gold Plated Brass (H62)
O-Rings: Nitrile
Locking Sleeves: Stainless Steel or POM
Cables: Default neoprene outer sheathed cable or Polyurethane (PUR)
