High power 1-contact bulkhead and inline 1kV DC/AC subsea underwater connector. IP68, for ROV and offshore power. Contact sales@rovcable.com.
The High Power 1-Contact 1kV subsea connector from Shanghai Kabel Intelligence Technology Co., Ltd is rated for 1000 V DC/AC rms operation and is available in both bulkhead (panel-mount) and inline (cable-to-cable) configurations. Designed for ROV high-voltage thruster systems, offshore HVDC distribution, and subsea cathodic protection, it combines IP68 sealing with a 316L stainless steel body for maximum reliability at depth.
| Parameter | Value |
|---|---|
| Contact Count | 1 |
| Voltage Rating | 1000 V DC/AC rms |
| Current Rating | Up to 100 A (contact size dependent) |
| IP Rating | IP68 |
| Mount Type | Bulkhead / Inline (specify) |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Silver or Gold |
| Operating Depth | 300 m standard; up to 3000 m custom |
| Mating Cycles | ≥500 |
Bulkhead and inline configurations -- specify when ordering: sales@rovcable.com

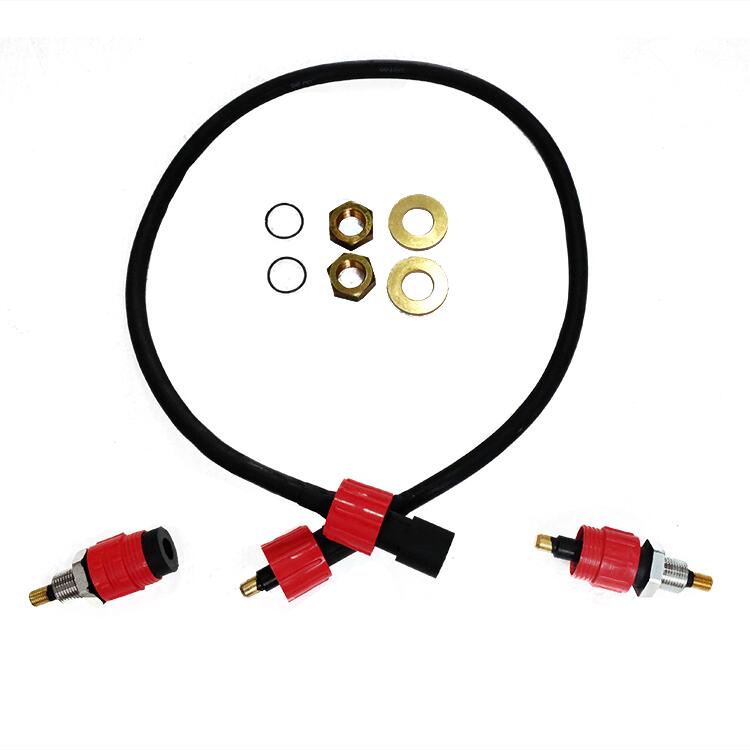

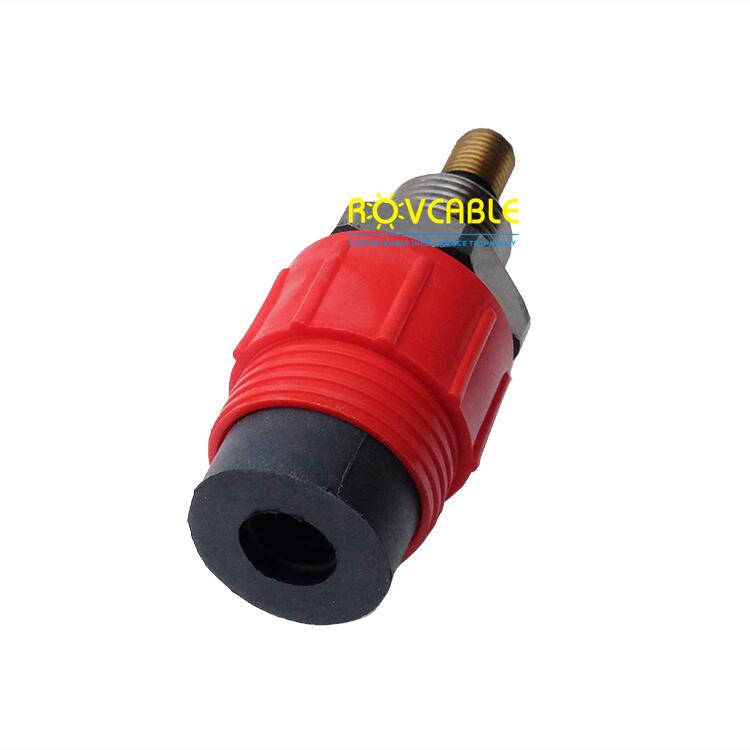

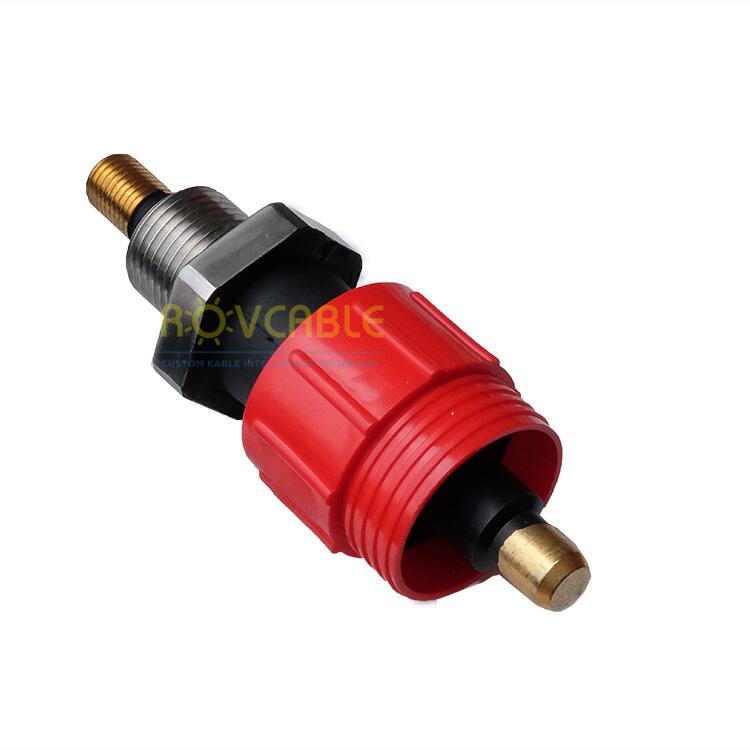

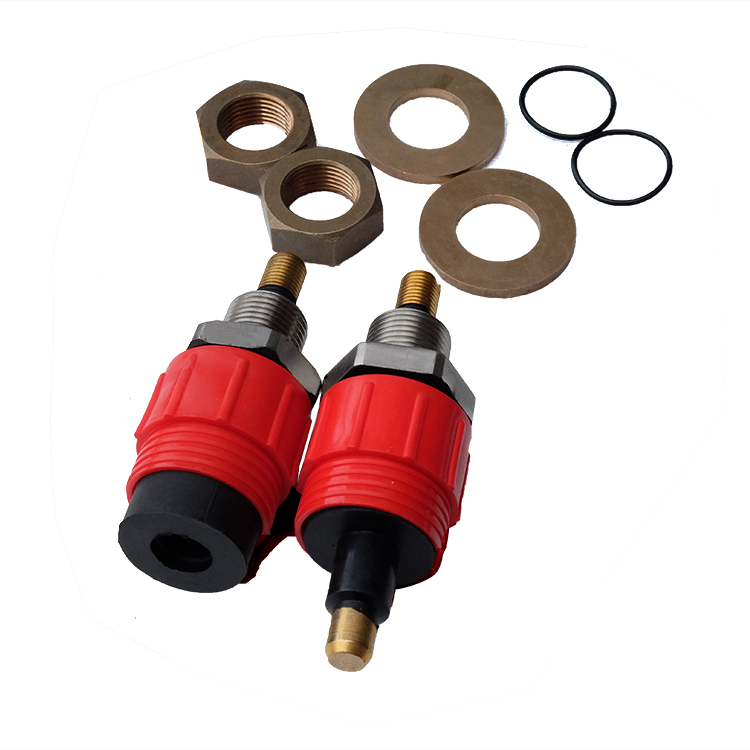

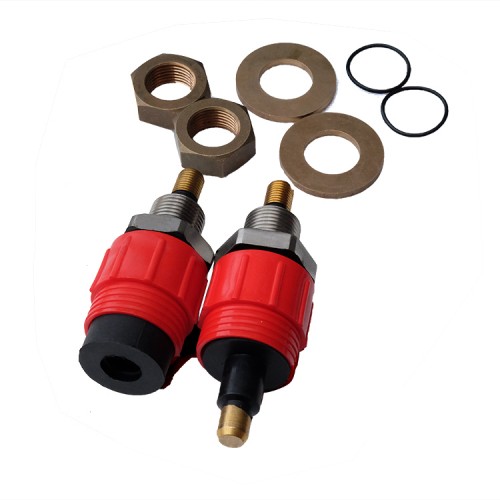

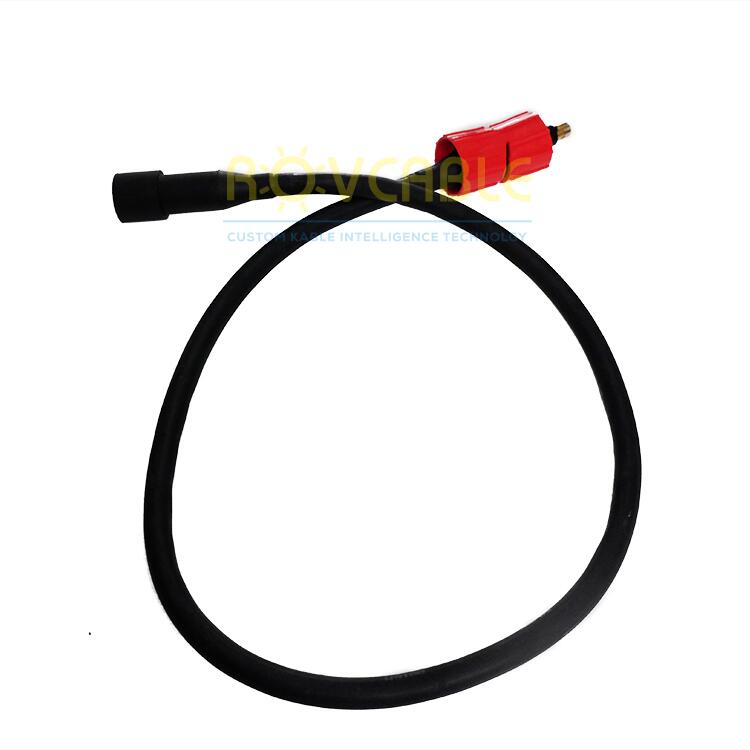

The bulkhead (panel-mount) version is fixed to a pressure housing or junction box wall, with the mating plug on the end of a cable. The inline version joins two cable segments together, both sides terminating to cable ends.
Yes -- the connector is rated for 1000 V DC and 1000 V AC rms. For pulsed or inverter-driven systems, contact us to confirm compatibility with your specific waveform.
Compatible cable cross-sections range from 4 mm² to 35 mm² depending on the contact size selected. Specify your cable size when ordering for correct contact selection.
