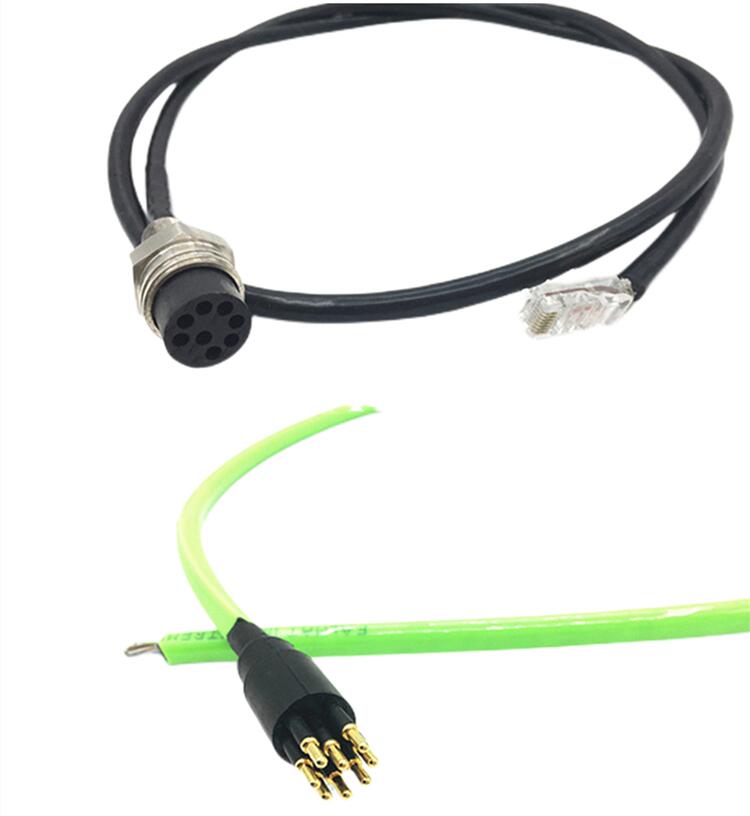

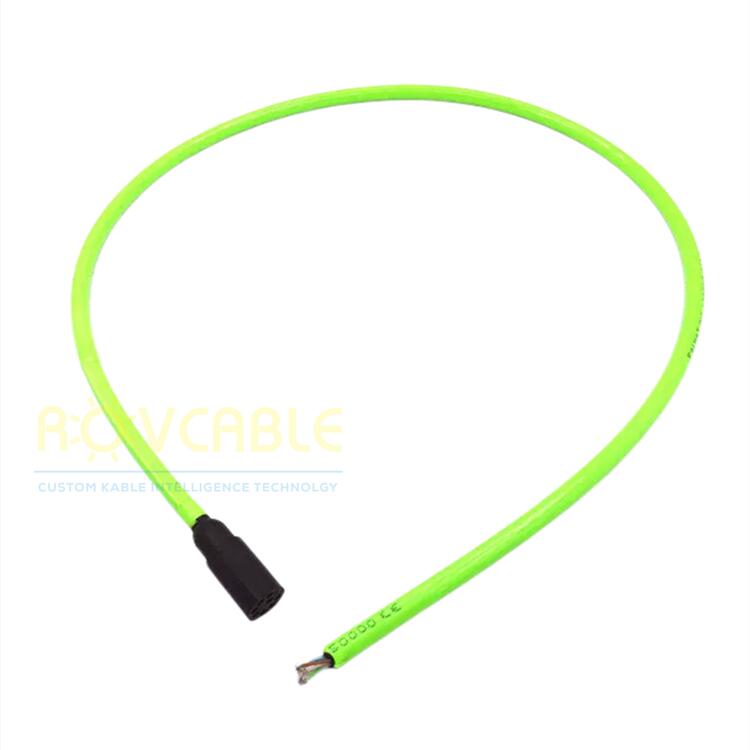

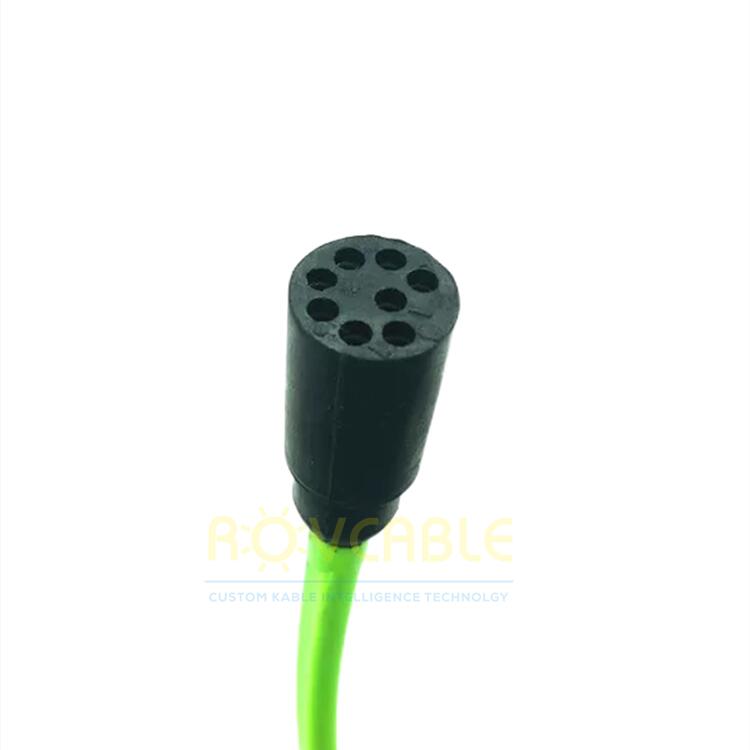

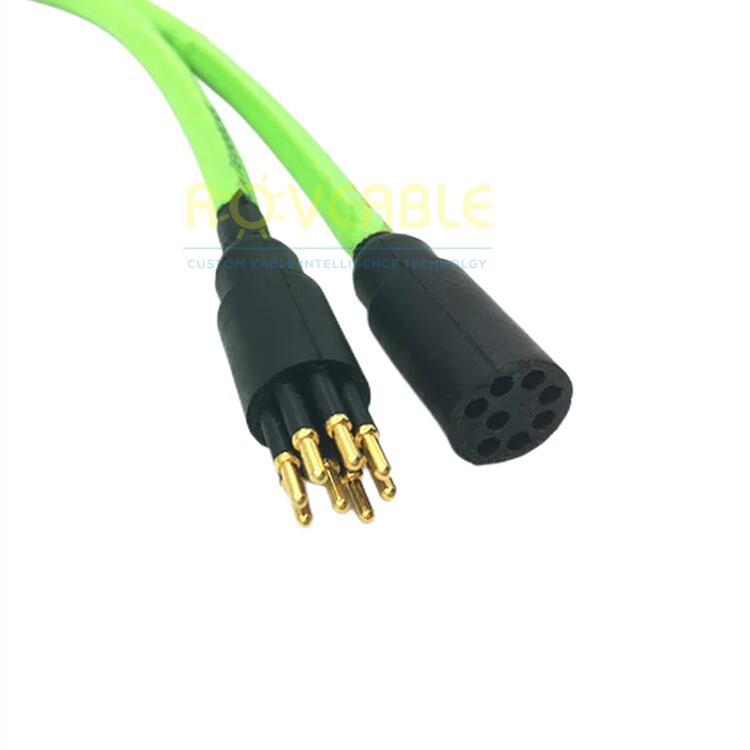

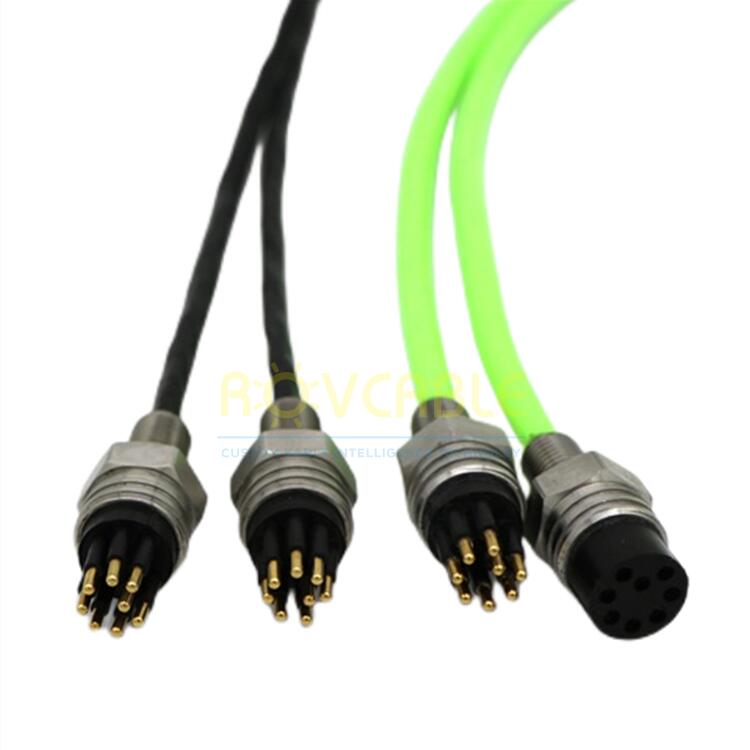

Customized 8-pin Ethernet Circular subsea waterproof connector for ROV, AUV and underwater network systems. IP68 rated, fully configurable. sales@rovcable.com.
Shanghai Kabel Intelligence Technology Co., Ltd offers fully customized 8-pin Ethernet Circular subsea waterproof connectors for ROV, AUV, and underwater instrumentation networks. Build your connector to specification -- choose pin-out wiring, cable type, cable length, depth rating, and housing material. All units are IP68 sealed and pressure-tested before delivery.
| Parameter | Value |
|---|---|
| Contact Count | 8 |
| IP Rating | IP68 |
| Ethernet Compatibility | 100BASE-TX / 1000BASE-T |
| Housing Options | 316L Stainless Steel / Titanium / PEEK |
| Contact Plating | Gold (standard) / Palladium (on request) |
| Depth Rating | Customizable -- up to 6000 m |
| Cable Length | Custom (specify at order) |
| Wiring Standard | T568A / T568B / Custom |
| Mating Cycles | ≥500 |
Submit your specification for a custom quote: sales@rovcable.com
Send us the following when enquiring: (1) required wiring standard (T568A/B or custom), (2) cable type and length, (3) depth rating, (4) housing material preference, and (5) quantity. We will prepare a detailed quotation within 2 business days.
Standard customizations (wiring, cable length, depth rating) are available from 1 piece. Tooling-based customizations (special housing size, unique pin patterns) require a minimum quantity -- contact us for details.
Yes -- all custom connectors are supplied with IP68 immersion test certificates and, for deep-rated units, hydrostatic pressure test reports. Material certifications for stainless steel or titanium housings are also available.
