Hybrid subsea connector with 4 power, 8 Ethernet, and 1 screen contacts. IP68 rated for ROV and AUV applications. Contact sales@rovcable.com.

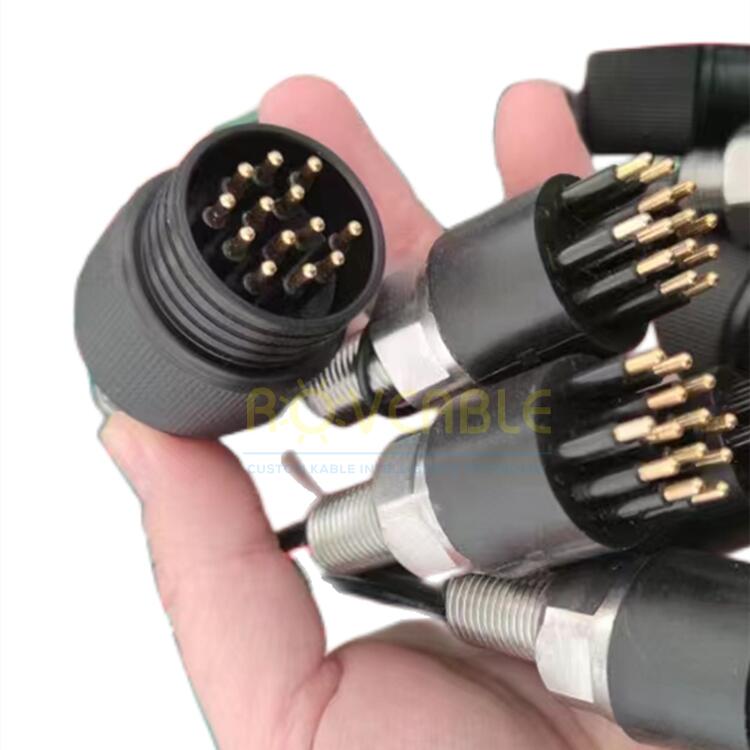

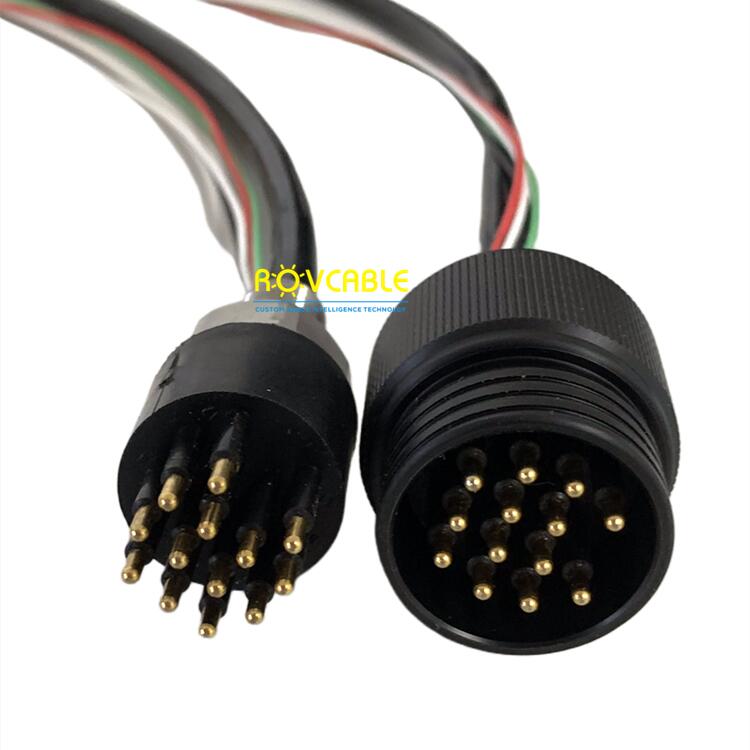

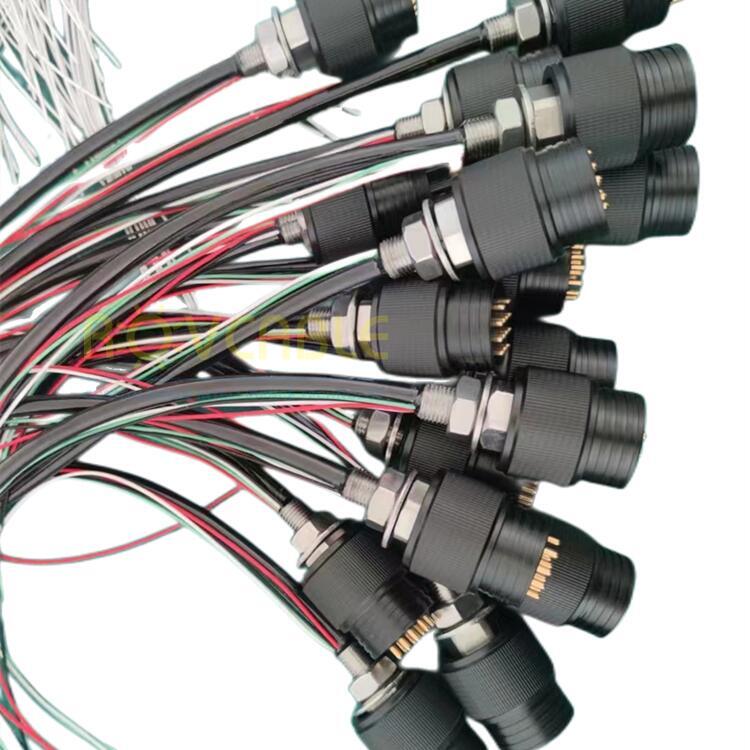

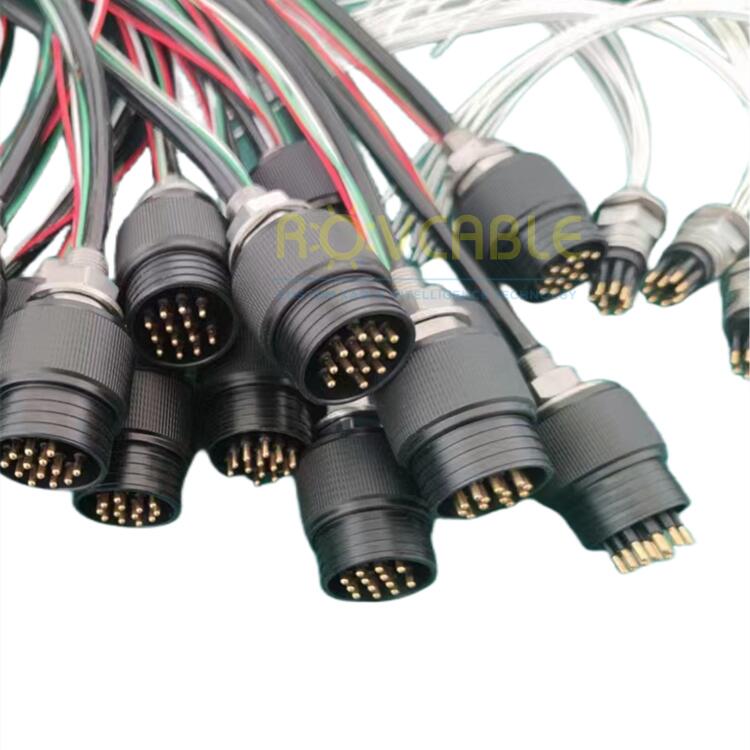

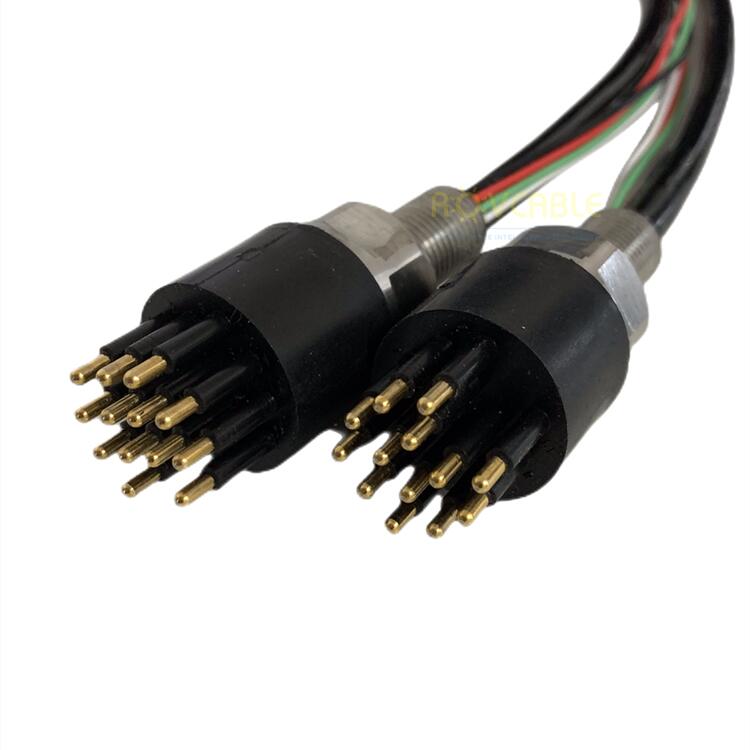

This hybrid underwater connector from Shanghai Kabel Intelligence Technology Co., Ltd combines 4 power contacts, 8 Ethernet data contacts, and 1 screen contact in a single IP68-rated subsea body. It is designed to reduce hull penetrations and simplify cabling on ROV and AUV platforms by routing power and Gigabit Ethernet through a single connector.
| Parameter | Value |
|---|---|
| Contact Configuration | 4 Power + 8 Ethernet + 1 Screen |
| IP Rating | IP68 |
| Power Rating | Up to 25 A per power contact |
| Ethernet Standard | 100BASE-TX / 1000BASE-T |
| Housing Material | 316L Stainless Steel |
| Contact Plating | Gold |
| Operating Depth | 300 m standard; custom available |
| Mating Cycles | ≥500 |
Contact us for depth-rated variants or cable assembly quotes: sales@rovcable.com
Combining power and data in a single connector reduces the number of hull penetrations, lowers the risk of leaks, and simplifies the wiring harness on ROV and AUV frames -- saving design space and assembly time.
No -- the power and Ethernet inserts are separated by shielded partitions within the connector body. The dedicated screen contact provides a ground reference for the Ethernet shield, preventing crosstalk.
Power contacts are rated up to 600 V DC with a current rating of up to 25 A per contact. Lower-voltage configurations for 12 V, 24 V, or 48 V systems are equally supported.
