Shanghai Kabel Intelligence Technology Co., Ltd. offers a comprehensive range of micro wet-mate connectors and miniature subsea cable assemblies designed for compact ROV systems, AUV platforms, underwater sensors and instruments where space is at a premium. Our micro connector series delivers full subsea performance in an ultra-compact form factor.
These miniature wet-mateable connectors are engineered to provide reliable electrical and signal connectivity in the most space-constrained underwater applications. With diameters significantly smaller than standard subsea connectors, they enable the design of compact subsea instruments, micro-ROVs, miniaturised sensor packages and streamlined underwater equipment.
| Parameter | Specification |
|---|---|
| Series | Micro Circular compatible wet-mate connectors |
| Contact Count | 2, 3, 4, 5, 6, 8, 10, 12, 16, 21 contacts |
| Contact Types | MCBH (Bulkhead), MCIL (Inline), MCBHRA (Right Angle) |
| Voltage Rating | 300 V AC/DC (standard) |
| Current Rating | 5-10 A per contact (depending on contact count) |
| Depth Rating | 7,000 metres / 700 bar |
| IP Rating | IP68 (continuous underwater immersion) |
| Shell Material | Anodised aluminium (standard) / SS316 / Titanium |
| Insulator | PEEK |
| Contact Plating | Gold-plated copper alloy |
| Sealing | Dual O-ring + face seal |
| Mating Cycles | 500+ wet-mate cycles |
| Compatibility | SubConn Micro Circular series |
| Operating Temperature | -40°C to +85°C |

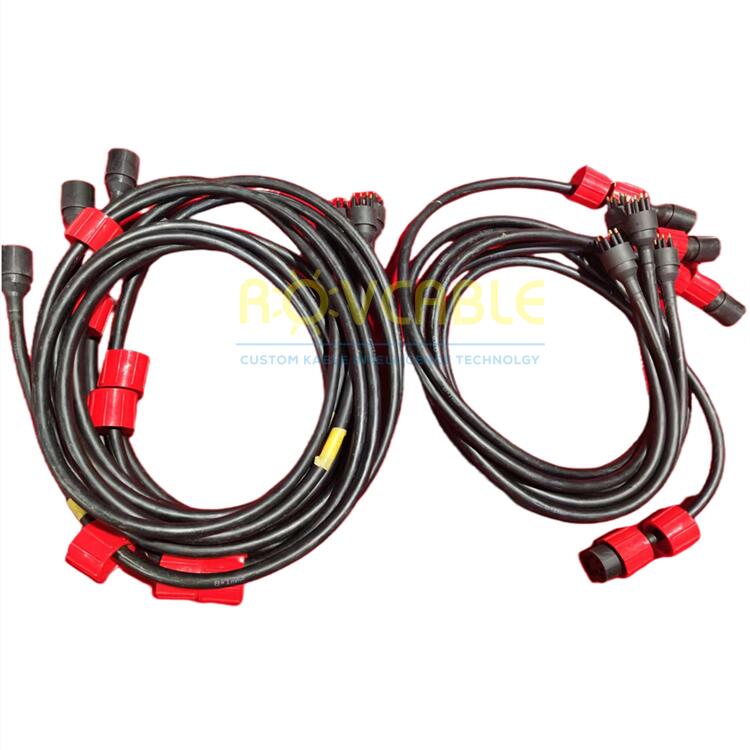

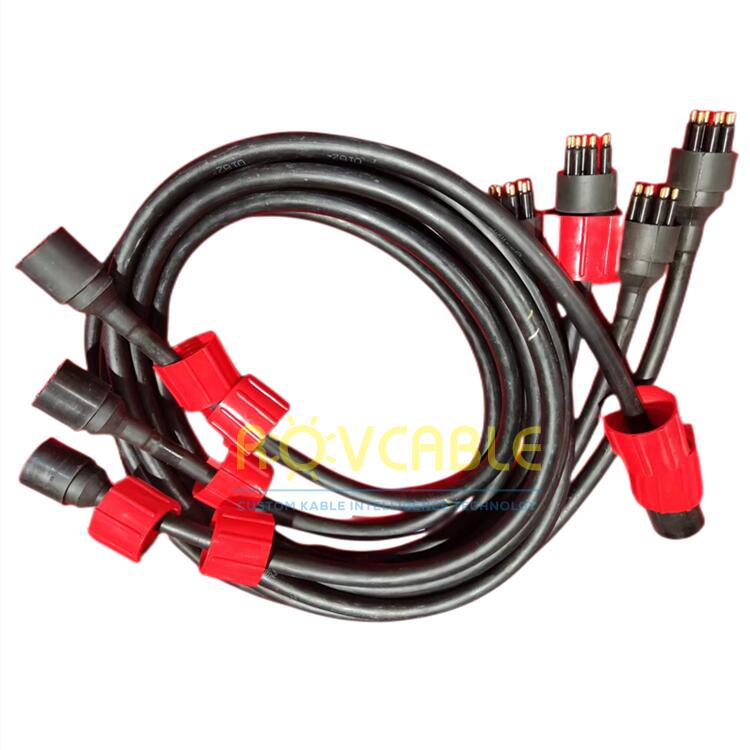

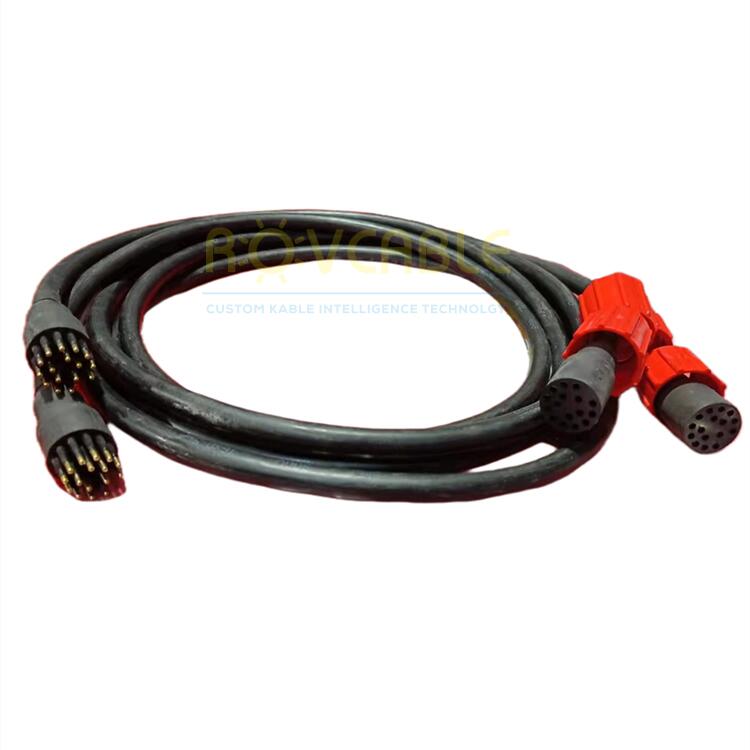

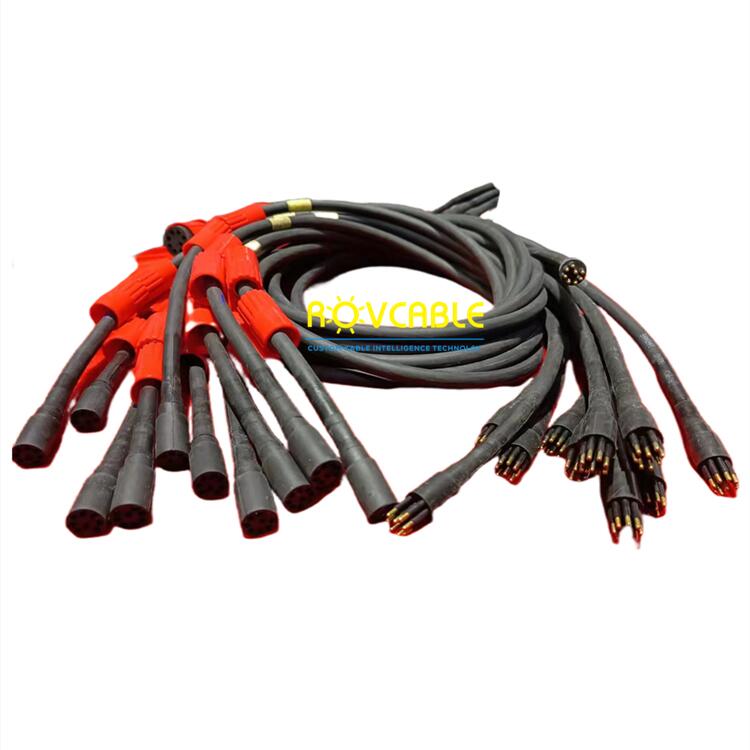

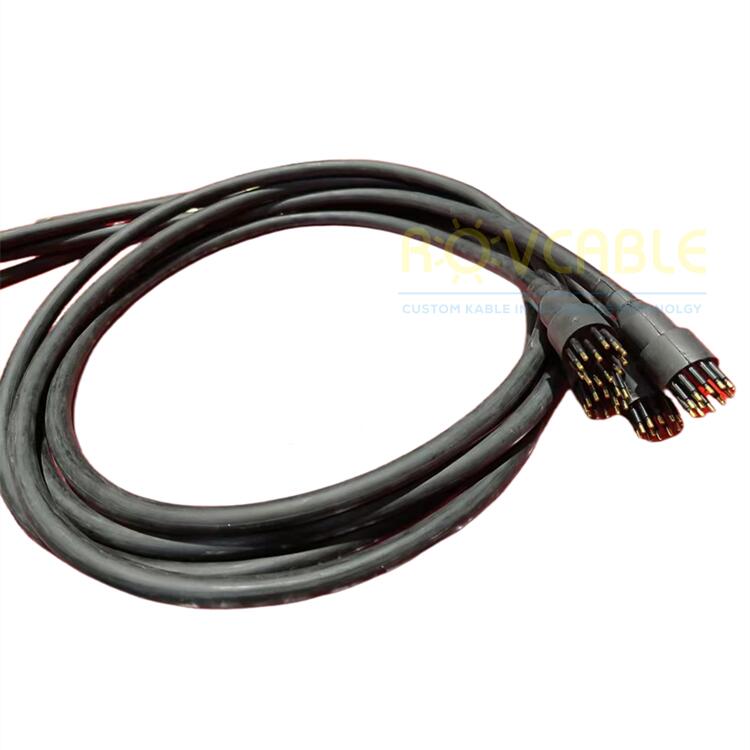

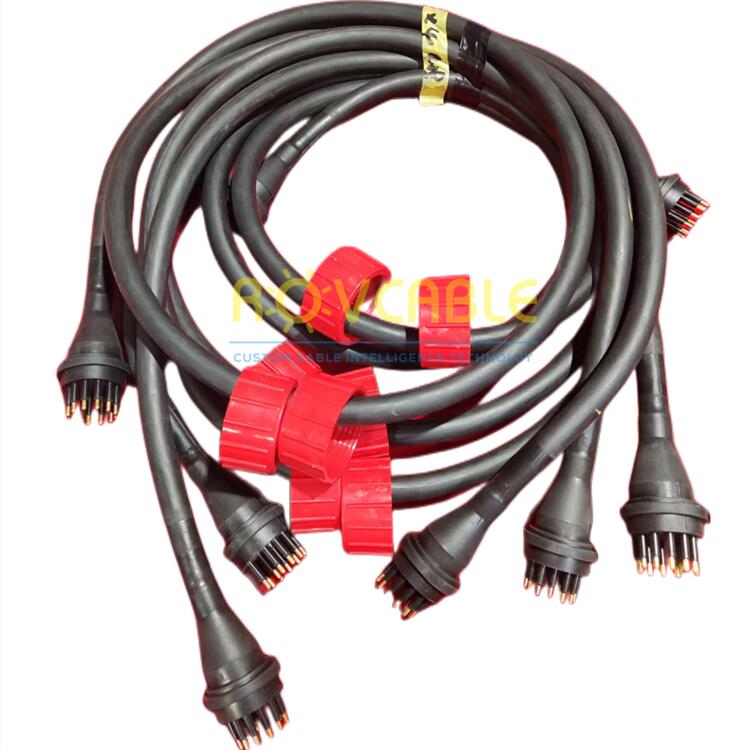

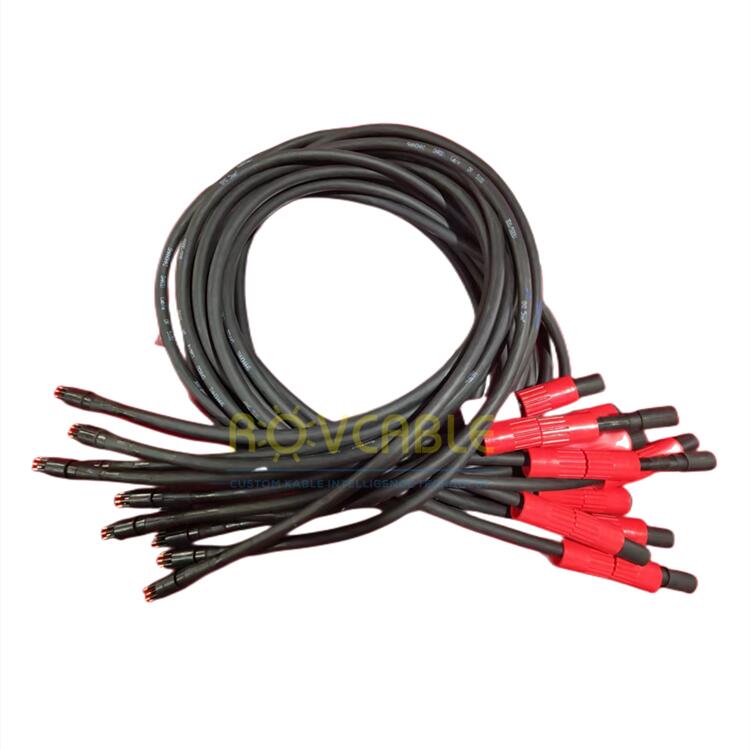

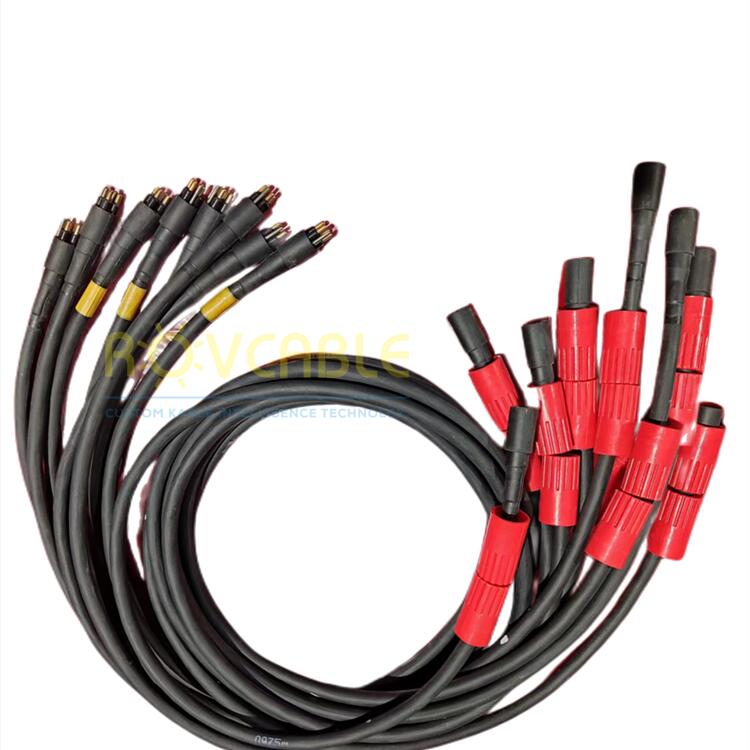

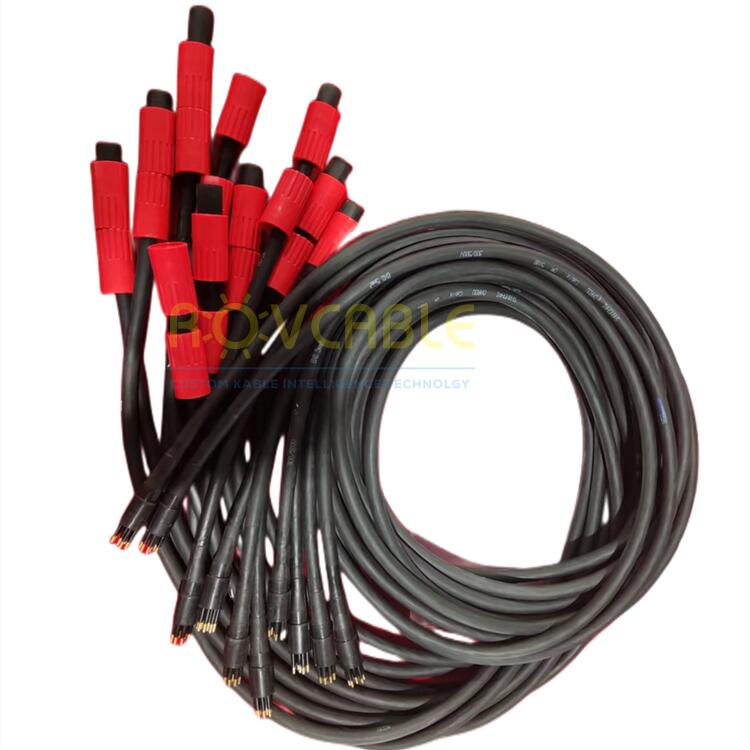

All micro wet-mate connectors can be supplied as fully terminated cable assemblies. Our cable assembly service includes direct over-moulding for complete waterproof sealing, strain relief, and long-term reliability. Custom cable lengths, connector configurations and jacket materials are available to your specification.
Yes. Our micro wet-mate connectors are designed to be fully interchangeable and intermateable with SubConn Micro Circular series connectors.
Our 2-contact micro connector is the most compact, with the smallest shell diameter in the Micro Circular platform. Contact our sales team for specific dimensional drawings.
Yes. Depending on the contact count selected, these connectors can simultaneously transmit power and low-voltage signals within a single connector body.
Email: sales@rovcable.com
Website: www.rovconnector.com
Shanghai Kabel Intelligence Technology Co., Ltd.
| Contacts | MCBH (Bulkhead) | MCIL (In-Line) | MCBHRA (Right Angle) |
|---|---|---|---|
| 2 | MCBH2M/F | MCIL2M/F | MCBHRA2M/F |
| 3 | MCBH3M/F | MCIL3M/F | MCBHRA3M/F |
| 4 | MCBH4M/F | MCIL4M/F | MCBHRA4M/F |
| 5 | MCBH5M/F | MCIL5M/F | MCBHRA5M/F |
| 6 | MCBH6M/F | MCIL6M/F | Not available |
| 8 | MCBH8M/F | MCIL8M/F | Not available |
| 10 | MCBH10M/F | MCIL10M/F | Not available |
| 12 | MCBH12M/F | MCIL12M/F | Not available |
| 16 | MCBH16M/F | MCIL16M/F | Not available |
| 21 | MCBH21M/F | MCIL21M/F | Not available |
Proper handling and installation of micro wet-mate connectors is essential for reliable underwater performance. Before each mating operation, inspect O-rings and sealing surfaces for damage or contamination. Apply a light coating of silicone lubricant to O-rings. Ensure connectors are fully mated and locking sleeves or nuts are tightened to the specified torque. After use, rinse with fresh water, dry and install protective caps.
All micro wet-mate connectors are 100% tested for electrical continuity, insulation resistance, and hydrostatic pressure before shipment. Each connector is supplied with a certificate of conformance.
